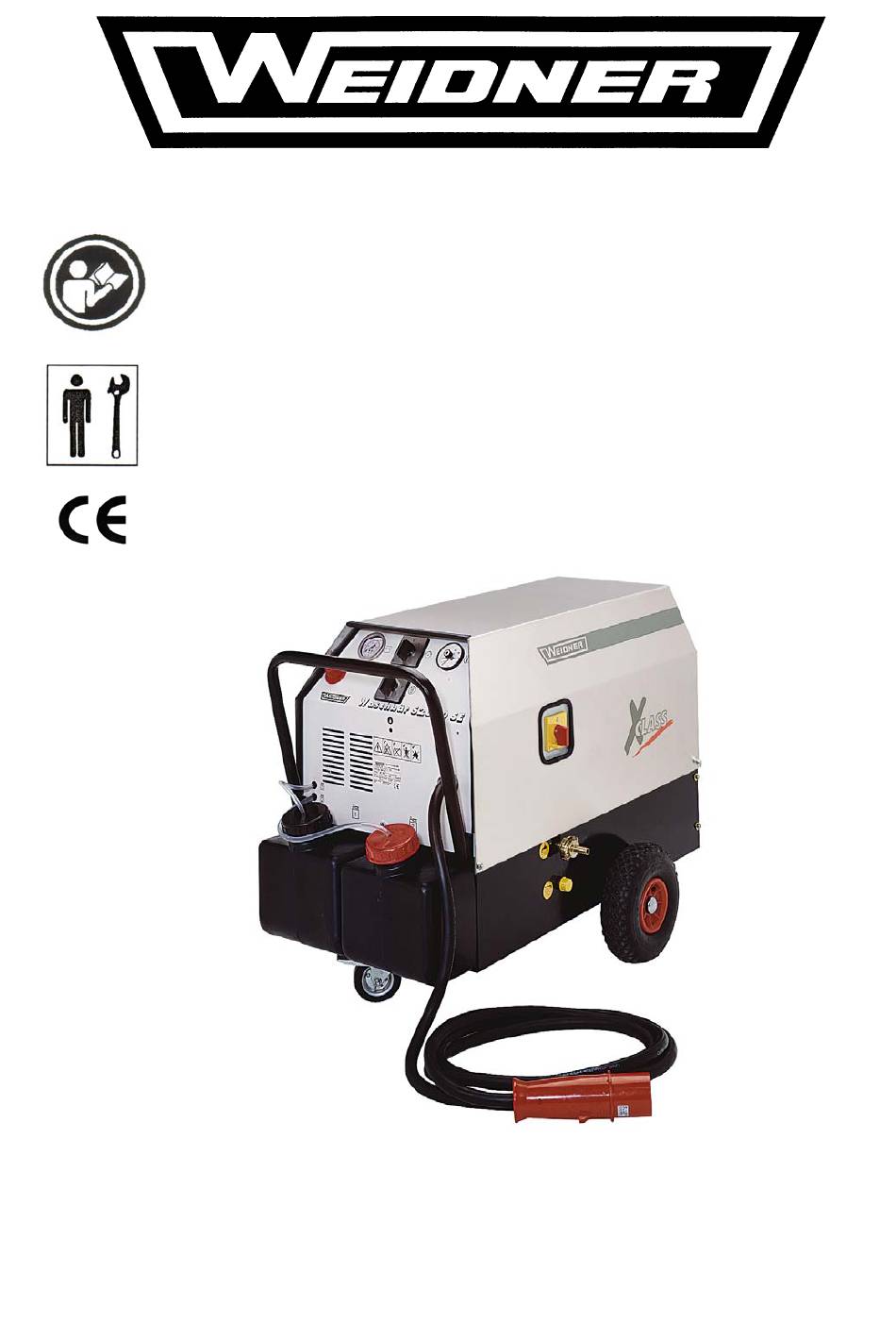

- Page 1 OPERATING MANUAL SPARE PART LIST Waschbär SE 112 / 118 HWY118 EXT Weidner Reinigungssysteme D-74523 Schwäbisch Hall, Steinbeisweg 29 Telefon (0791) 95012-0 Fax (0791) 54 742 e-mail:info@weidner-cleaning.com Internet: www.weidner-cleaning.com...
- Page 2 (flue gas pipe with airflue interruption/ chirnney). Care must also be taken to ensure that adequate ventilationis provided ( combustion air). 8. Repairs to the high-pressure cleaner may only be carried out by the firm of Weidner or by a person authorised by such.
- Page 3 13. Accessories and cleaning agents can be found in our list of accessories. We will be delighted to help you in the choice accessories and cleaning agents suitable for your cleaning needs. 14. Befor working on the high-pressure cleaner it must be disconnected from the mains, remove plug from socket.
-
Page 4: Important Notices
The unloader valve has to be adjusted that overpressure is not more than 10% over working pressure. Use and description of the equipment The Weidner Waschbär SE 112/118 is a fully enclosed mobile hot -water high-pressure cleaning device. The working pressure is generated by a Triplex pump with 3 ceramic plungers. The pump is flange- mounted directly on thequill motor. - Page 5 The function of the injector takes place only in case of*low pressure*. Feeding takes place only to a max. hose length of 15 meters. Before using for other purposes consult with the firm of weidner or one of their agencies first.
-
Page 6: Operation
Operation Cold-water operatibn Appliance switch to "0". Thermostat to "0" degrees C (off). Insert appliance plug into socket. Turn on water supply . Pull spray gun trigger and set appliance switch to position 1 "pump on". The device starts. The pump at first empties the device of air. After a while water comes out of the spray gun. Hold the spray gun open unntil a steady jet of water is ejected. - Page 7 Fault and remedies Fault Possible cause Remedy device does not start no electricity check cables, plugs socket and fuse thermoprobe motor deterrnine and remedy triggered cause of overload pilot fuse defect replace pilot fuse find out cause if there is a burn throuh again pump under pressure trigger spray gun water leak...
- Page 8 Chemical line blocked clean Chemical line faulty replace injector blocked clean injector faulty replace pressure adjustment nozzle too far open closed hp-hose too long use a hose w. nominal diameter...
- Page 10 Pos. No. Bezeichnung Description 3851502700 Passfeder parallel key 3851502745 Schraube screw EPACA43344 halb Lagerdeckel quill EPACA43343 O-Ring Lagerdeckel o-ring quill EPACA43222 halb Simmering simmering EPACA014480 Lager camp EPACA043345 Pleuel, kompl. piston rod EPACA044923 Kurbelwelle crankshaft EPACA044949 Hauptschalter für Bodenbefestigunng main switch for soil attachment EPACA043211 Verschluß...
- Page 11 Reinigungssysteme ...die sauberste Lösung HWY 118EXT_Blechteile Pos. Bezeichnung Description ETA200035 Schiebebügel Waschbär ab 06/1999 handle, Version after 06/1999 ETD130000 Manometerschlauch,410 lg. 250 bar h.p. hose f.pressure gauge 3882800060 Brennkammer VA Waschbär SE combustion camber ETB220102 Steckdeckel PVC Cover 35900001060 Sicherheitsthermostat 95°C mit Tauchhülse safety thermostat with dipping case EPACA00300 Hochdruckpumpe CAT 300 in spezialausf.
- Page 12 Reinigungssysteme ...die sauberste Lösung HWY 118EXT_Rückwand Pos. Bezeichnung Description 1418 3882800060 Brennkammer VA Waschbär SE combustion chamber 1423 3656040600 Einschraubheizkörper 403K 600/44/3 B G1 6000W heating unit 6000W C:\\HWY_HWYSE112/118EXT...
- Page 13 Reinigungssysteme ...die sauberste Lösung HWY 118EXT_Seitenansicht Pos. Bezeichnung Description 3882800040 Rückwand Waschbär SE montagefertig rear panel 3882800060 Brennkammer VA Waschbär SE combustion chamber 3708500518 Hochdruckschlauch 600mm 2ST 10,es AGRhp hose 600mm 2ST 10, es AGR 3/8" ETD130000 Manometerschlauch,410 lg. 250 bar h.p.
- Page 14 Reinigungssysteme ...die sauberste Lösung HWY 118EXT_Frontansicht Pos. Bezeichnung Description 4561664xx8 Kabeltüllen dopps. 9 X 11 X 16 Cable sleeve ETG111055 PVC-Schlauch 5 x 2, Länge angeb. PVC hose order lenght you need ETG204500 Dosierventil für Reinigungsmittel dosing valve for 2 detergent ETD260200 1 Druckmanometer 0-250 bar, 63mm pressure gauge 0-250 bar...
- Page 15 Reinigungssysteme ...die sauberste Lösung HWY 118EXT_Schwimmerventil Pos. Bezeichnung Description 1305 3909900153 1 PVC Kunststoffschwimmer 65 x 130 pvc ball 65 x 130 1304 3909900103 1 Schwimmerventil 3/8" 12mm ,170 mm floatvalve 3/8" 12mm ,170 mm C:\\HWY_HWYSE112/118EXT...
- Page 16 Reinigungssysteme ...die sauberste Lösung HWY 118EXT_Pumpenaggregat Pos. Bezeichnung Description ETE504300 Elektromotor 3,0 KW 400V, 50Hz, 1420 Electromotor 3,0 KW, 400V, 50Hz, 1420 5680301580 1 Schlauchtülle, 3/8" AG x 13 mm brass nipple 3/8" x 13 mm 3780000030 2 1/2" Schlauch (Länge angeben) 1/2"...
- Page 17 Reinigungssysteme ...die sauberste Lösung HWY 118EXT_Schaltkasten Pos. Bezeichnung Description 3652458110 Miniaturrelais MY4 24VAC miniatur relais 3652473404 Schütz 12A 1S+1Ö 24V 50/60Hz contactor 12 A 3651427520 Hauptschalter für Bodenbefestigunng mainswitch ETE116200 Zeitrelais rückfallverzögernd Typ 51183 electronic timer relais delayed 3659151425 Verdrahtungskanal LK 4 40/25 PVC installation tube 3652291002 12 Durchgangsklemme...
