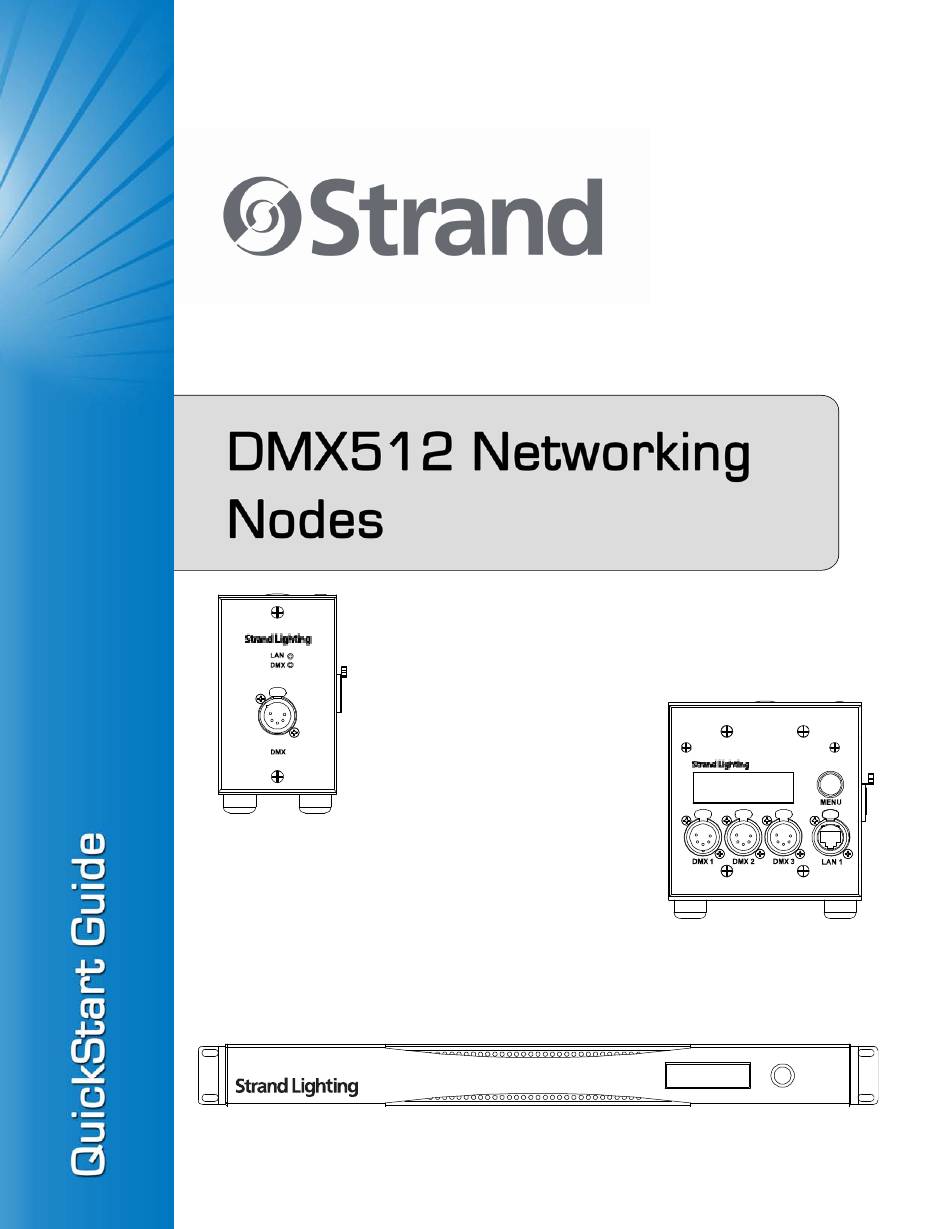

- Page 1 65161 - Single Port DMX512 Network Node 65163 - Three Port DMX512 Network Node MENU 65168 & 65168-1 - Eight Port DMX512 Network Nodes...
-
Page 2: Strand Lighting Offices
Lighting no asume responsabilidad por errores o omisiones que puedan aparecer. Cualquier comentario, sugerencia o corrección con respecto a este manual, favor de dirijirlo a la oficina de Strand Lighting más cercana. Der Inhalt dieses Handbuches ist nur für Informationszwecke gedacht, Aenderungen sind vorbehalten. Strand Lighting uebernimmt keine Verantwortung für Fehler oder Irrtuemer, die in diesem Handbuch auftreten. -
Page 3: Important Information
Syracuse, NY 13206-1111 USA 1-800-93USITT www.usitt.org Strand Lighting Limited Two-Year Warranty Strand Lighting offers a two-year limited warranty of its products against defects in materials or workmanship from the date of delivery. A copy of Strand Lighting two-year limited warranty containing specific... -
Page 4: Table Of Contents
65168 - Eight Port Nodes ..........................6 INSTALLATION Power Requirements............................... 7 POE (Power Over Ethernet) Models (65161 or 65163) .................. 7 Rackmount Models (65168 or 65168-1) ......................7 Connecting a DMX512 Network..........................7 Mounting - 65161 / 65163 Models ......................... 7 Installation - 65161 or 65163 Flush Wall Mounting .................. -
Page 5: Preface
The document is intended for experienced and trained installers and provides installation and operation instructions for the following products: • DMX512 Network Node, POE, Single-Port, 1-Gang (Catalog Number 65161) • DMX512 Network Node, POE, Three-Port, 2-Gang (Catalog Number 65163) • DMX512 Network Node, 8-Port, Phoenix Connectors, 1U Rackmount Enclosure (Catalog Number 65168) •... -
Page 6: Dmx512 Networking Nodes - Overview
DMX512 Network Nodes QuickStart Guide DMX512 NETWORKING NODES - OVERVIEW 1. DMX512 Network Node Components 65161 - Single Port Node C-Clamp Local Area Network (LAN) Status LED DMX512 Network Status LED DMX512 Connection (XLR5F) Removable Rubber Feet (x4) Network (POE) Connection NOTE: Unit can be flush mounted, surface mounted, or hung in truss. -
Page 7: 65163 - Three Port Node
DMX512 Network Nodes QuickStart Guide 65163 - Three Port Node C-Clamp LCD Information Display LCD Control Rotary Button Removable Rubber Feet (x4) DMX512 Connections (3 Each, XLR5F) Network (for POE) Connection Network Connection (Not for POE) NOTE: Unit can be flush mounted, surface mounted, or hung in truss. DMX512 Network Node Components... -
Page 8: 65168 - Eight Port Nodes
DMX512 Network Nodes QuickStart Guide 65168 - Eight Port Nodes Front of Unit (All 8-Port Models) Rackmount Ear (x2, removable) LCD Information Display MENU LCD Control Rotary Button Rear of Unit (5-Pin Phoenix Connector Models) AC Input Power (input cable included with unit) LAN 2 LAN 1 DMX 8... -
Page 9: Installation Power Requirements
3. Mounting - 65161 / 65163 Models The 65161 DMX512 Network Node includes the faceplate, electronics, and a single-gang back box. This unit is suitable for flush or surface wall mounting, sitting on a flat surface or hung in a truss (truss hook and mounting bolt are included). -
Page 10: Installation - 65161 Or 65163 Flush Wall Mounting
QuickStart Guide Note: Installation should be done in full compliance of local and national codes. Installation - 65161 or 65163 Flush Wall Mounting To flush mount a 65151 or 65163 DMX512 Network Node: Step 1. Determine a suitable location for unit to be installed. -
Page 11: Mounting - 65158 Or 65158-1 Models
DMX512 Network Nodes QuickStart Guide Step 4. Thread bolt into truss hook. Tighten bolt. Step 5. The unit is ready for connection to network. 4. Mounting - 65158 or 65158-1 Models To rack mount a 65168 DMX512 Network Node: Note: Before installing, you will need four (4) rack screws that fit your specific rack (by others), at least 1U of rack space available in the rack, and a place to connect the AC input cable. -
Page 12: Operation Overview
The network default configuration for DMX512 Network Nodes is as follows: Field Value IP Address 2.X.X.X IP Netmask 255.0.0.0 DMX Universe Art-NET 0.0 Note: For configuration information, please download the current version of the Strand Net Software Operation Guide from the Strand Lighting web site at www.strandlighting.com. OPERATION... -
Page 13: Product Specifications
PRODUCT SPECIFICATIONS Note: Product specifications contained in this section are subject to change without prior notice. Refer to the product specification sheets on the Strand Lighting web site for current information. 1. DMX512 Network Node - Single Port (catalog number 65161) -
Page 14: Dmx512 Network Node - Three Port (Catalog Number 65163)
DMX512 Network Nodes QuickStart Guide 2. DMX512 Network Node - Three Port (catalog number 65163) Input Power: Power Over Ethernet (PoE) supplied at Rear Ethernet Port Only Connections: DMX 5-Pin XLR Female Connector (bi-directional) - programmable DMX In or DMX out with RDM RJ45 (Ethernet) connectors (x2 - one on front and one at side of back box) Communications:... -
Page 15: Dmx512 Network Node - Eight Port (Catalog Number 65168)
DMX512 Network Nodes QuickStart Guide 3. DMX512 Network Node - Eight Port (catalog number 65168) Input Power: 100 - 250VAC, 50/60 Hz, 0.25A (max) Connections: Eight DMX Phoenix Connectors (bi-directional) - programmable DMX In or DMX out with RDM Two RJ45 (Ethernet) connectors at rear of unit Communications: DMX512A, RDM, ShowNet, Streaming ACN, Art-Net, Vision.Net Compliance:... - Page 16 Strand Lighting Strand Lighting Dallas 10911 Petal Street las, TX 75238 Tel: 214-647-7880 Fax: 214-64 7-8031 Strand Lighting Asia Unit C, 14/F, Roxy Industrial Centre 41-49 Kwai Cheong Road Kwai Chung, N.T., Hong Kong Tel: +852 2796 9786 Fax: +852 2798 6545...
