Gateway-G2000

USER's MANUAL

Version 1.3

2018

Table of Contents

Need help?

Do you have a question about the Gateway-G2000 and is the answer not in the manual?

Questions and answers

Summary of Contents for RAINUS Gateway-G2000

Page 1 Gateway-G2000 USER’s MANUAL Version 1.3 2018...
Page 2: Table Of Contents
Contents G2000 Introduction ..........................3 G2000 Product release & preparing to install ..................3 2-1 G2000 Product release ........................3 G2000 Power supply & Check operation ..................4 HOME ..............................6 STORE ..............................6 GATEWAY STATUS ..........................7 TAG STATUS ............................8 TASK ..............................
Page 3: G2000 Introduction

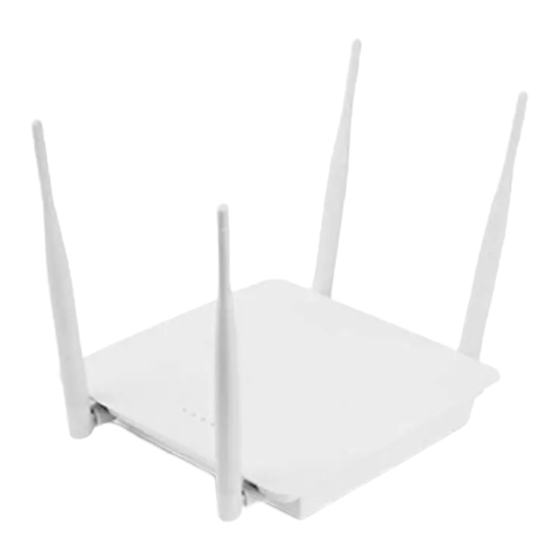

1 G2000 I NTRODUCTION G2000 communicates with ESLs through IEEE802.15.4 RF transceivers and interfaces with ESL server. 2 G2000 P & RODUCT RELEASE PREPARING TO INSTALL 2-1 G2000 P RODUCT RELEASE ▶ Package of the product. ▶ 4 Dipole antennas are coupled to the G2000 Reverse-SMA connectors. ( Caution : Antenna can be damaged if excessive force is applied.
Page 4: G2000 Power Supply & Check Operation
long time at a low temperature after coupling takes damage to the antenna fixing portion. ) 2-2 G2000 P & C OWER SUPPLY HECK OPERATION ▶ Insert the RJ45 (PoE) Connector on the G2000 PoE Connector.
Page 5 ▶ Check the LED RED : DC 5V power is applied. GREEN : Operation MCU BLUE : Operation Ethernet...
Page 6: Home
3 HOME It shows the progress of recent work. 4 STORE Displays a list of registered stores. The output information is as follows. ⚫ Store code ⚫ Number of installed Gateways ⚫ Number of installed Tags(InforTab) Click the icon of Configure item to go to setting page.
Page 7: Gateway Status
5 GATEWAY STATUS Displays the status information of the Gateway. The output information is as follows. ⚫ Gateway MAC address ⚫ Store code ⚫ Number of registered Tags ⚫ Operation mode ⚫ IP address ⚫ Version information ⚫ Status informaiton Click the icon of Configure item to go to setting page.
Page 8: Tag Status
6 TAG STATUS Displays the status information of the Tags The output information is as follows. ⚫ Tags MAC address ⚫ Store code ⚫ Connected Gateway IP address ⚫ The last work done ⚫ Work result ⚫ Battery ⚫ Received signal strength ⚫...
Page 9: Task
7 TASK Show progress of work. You can click the icon of the detail item to see the details of the operation. Here are the details of the work.
Page 10: Server Config
8 SERVER CONFIG Modify server configuration information. The input information is as follows. ⚫ Server network information ⚫ Retail Server IP address and Port ⚫ NMS Server IP address and Port ⚫ Data retention period ⚫ Tag refresh cycle ⚫ NTP server synchronization cycle Gateway status reporting cycle ⚫...
Page 11: Store Config
9 STORE CONFIG Displays a list of registered store settings information. Click the icon of the config item to go to the settings page. The following is the screen to modify store information. ⚫ Store name NTP server information ⚫...
Page 12: Gateway Config
10 GATEWAY CONFIG Show list of registered store information. Click the icon of the config item to go to the settings page. The following is the gateway configuration information modification screen.
Page 13: G Upgrade
11 P/G UPGRADE If the version of the server and the gateway program are changed, the upgrade can be performed by uploading the corresponding file. Here is the program upgrade screen on the server.
Page 14 The following is the gateway main processor program upgrade screen. The following is the program upgrade screen of the gateway wireless module.
Page 15: Configuration Tool
12 CONFIGURATION TOOL Search the gateway installed in the store and change the network-related configuration information. Place the gateway on the same network as the server. Select the CM Tool menu on the left side and click the Search button on the right side.
Page 16 Enter the setup information and click the Submit button. Click the Okay button.
Page 17: Account Setting
13 ACCOUNT SETTING Change account information. 1. Enter the previous password. 2. Enter a new password. 3. Re-enter the new password. Click the Submit button...
Page 18 WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. CAUTION Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void user’s authority to operate the...
