Please read and follow all instructions and warnings. Failure to follow these instructions may result in serious injury or death!
WARNING!
This product is not fireproof. The fabric will burn if
it comes into contact with an open flame or fuel source. Keep
product away from direct flame. Failure to follow this warning
may result in serious injury or death!
WARNING!
This product is for hunting purposes only! It is not to
be used as a camping tent or for any other function. Failure to
follow this warning may result in serious injury or death!
WARNING!
Do not use devices that produce fumes inside of blind.
Vapors and fumes could result in carbon monoxide poisoning,
serious injury, or death!

PARTS LIST

Part #
Description
UP15-0096
End Frame Base - Male Piece
UP15-0097
End Frame Base - Female Piece
UP15-0098
End Frame Hoop
UP15-0099
Side Support
UP15-0100
End Support - Male Piece
UP15-0101
End Support - Female Piece
UP15-0102
Waterfowl Door
UP15-0103
Waterfowl Door Extension
UP15-0104
Waterfowl Door Latch
UP15-0105
Cross Support
UP15-0372
Lower Cross Support
UP15-0106
Anchor Stakes
UP15-0107
Blind Cover
UP15-0108
Window Cover
UP15-0109
Peek Window Cover
UP15-0110
Side Window Bungee - 48''
UP15-0111
End Window Bungee - 30''
UP15-0112
End Window Bungee - 60''
Note: Hardware is not listed for pre-assembled
Waterfowl Door Hinges.
Check to make sure you have all the required parts and hardware. If
you find damaged or missing parts in a newly purchased product,
please return this product to the retailer for replacement.
TIPS FOR INCREASING PRODUCT LONGEVITY
Always store your blind in a cool dry place and make sure that your
blind is completely dry and clean before storing in carrying bag. Never
leave your blind outside for any longer than needed. This material may
fade after long periods of time in direct sunlight.
PO Box 454 • Windom, MN 56101 • (844) 745-7723 • www.GoMuddy.com
January 2018. Published by Premier Outdoor Equipment, LLC., Windom, Minnesota
Model MGB6000
WARNING!
matches, or other sources of fire near this product. Failure to
follow this warning may result in serious injury or death!
WARNING!
result in serious injury, suffocation, or death!
WARNING!
direct adult supervision. Failure to follow this warning may result
in serious injury or death!

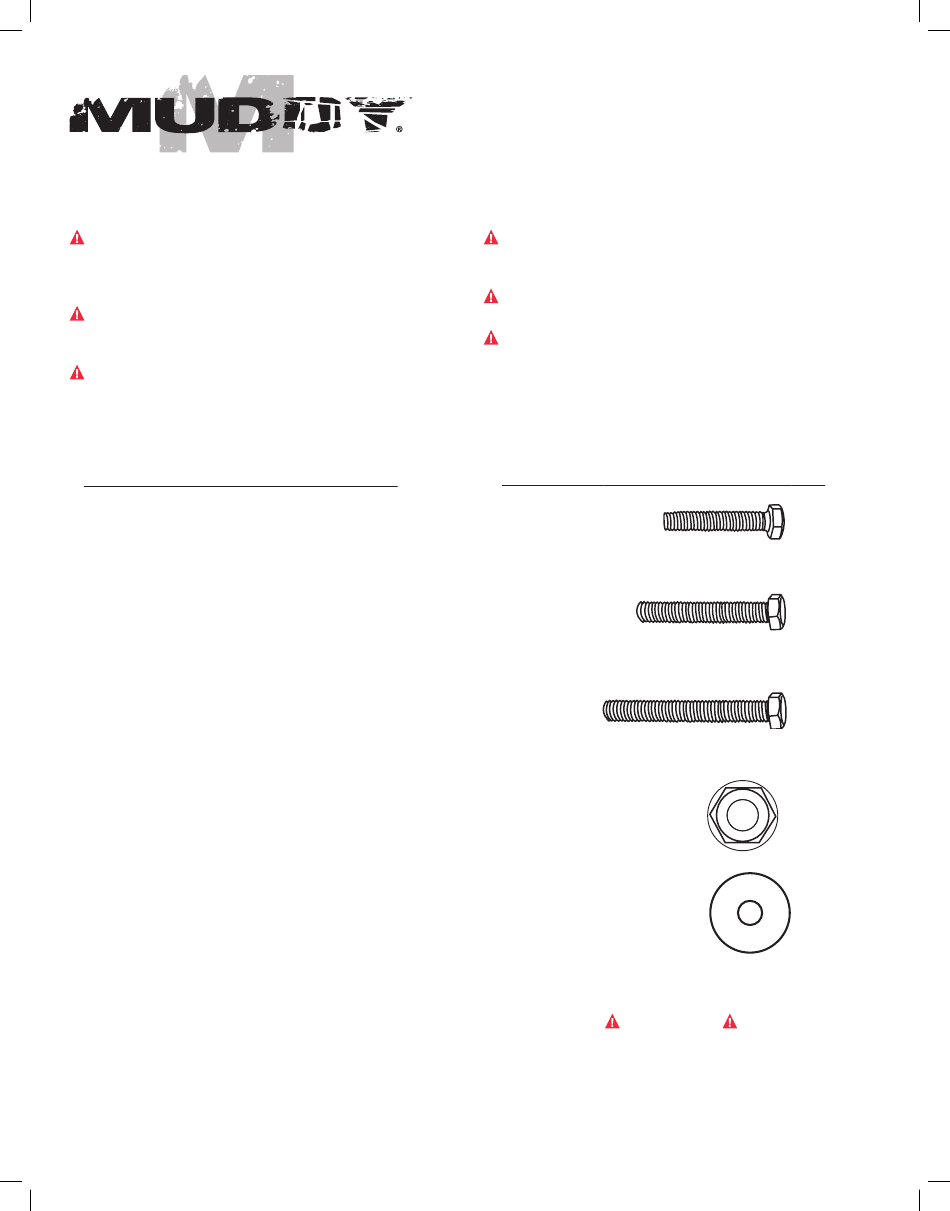

HARDWARE LIST
Part #
Qty
UP77-0156
2
2
8
8
UP77-0173
4
4
1
1
1
UP77-0157
4
8
4
1
6
UP77-0097
3
4
2
2
UP77-0002
Read all instructions and safety warnings and follow them
thoroughly. Failure to follow these instructions may
© 2018 Premier Outdoor Equipment, LLC. All rights reserved.
Bale Blind
Do not allow children or adults to use lighted candles,
Do not allow the material to cover your face. This may
Do not allow children to use this product without
Description
[A] 5mm X 1'' Hex Bolt
[B] 5mm x 1 1/4'' Hex Bolt
[C] 5mm x 1 1/2'' Hex Bolt
5mm Nylock Nut
Nylon Washer
WARNING!
result in serious injury or death!
Qty
75
12
2
89
1
