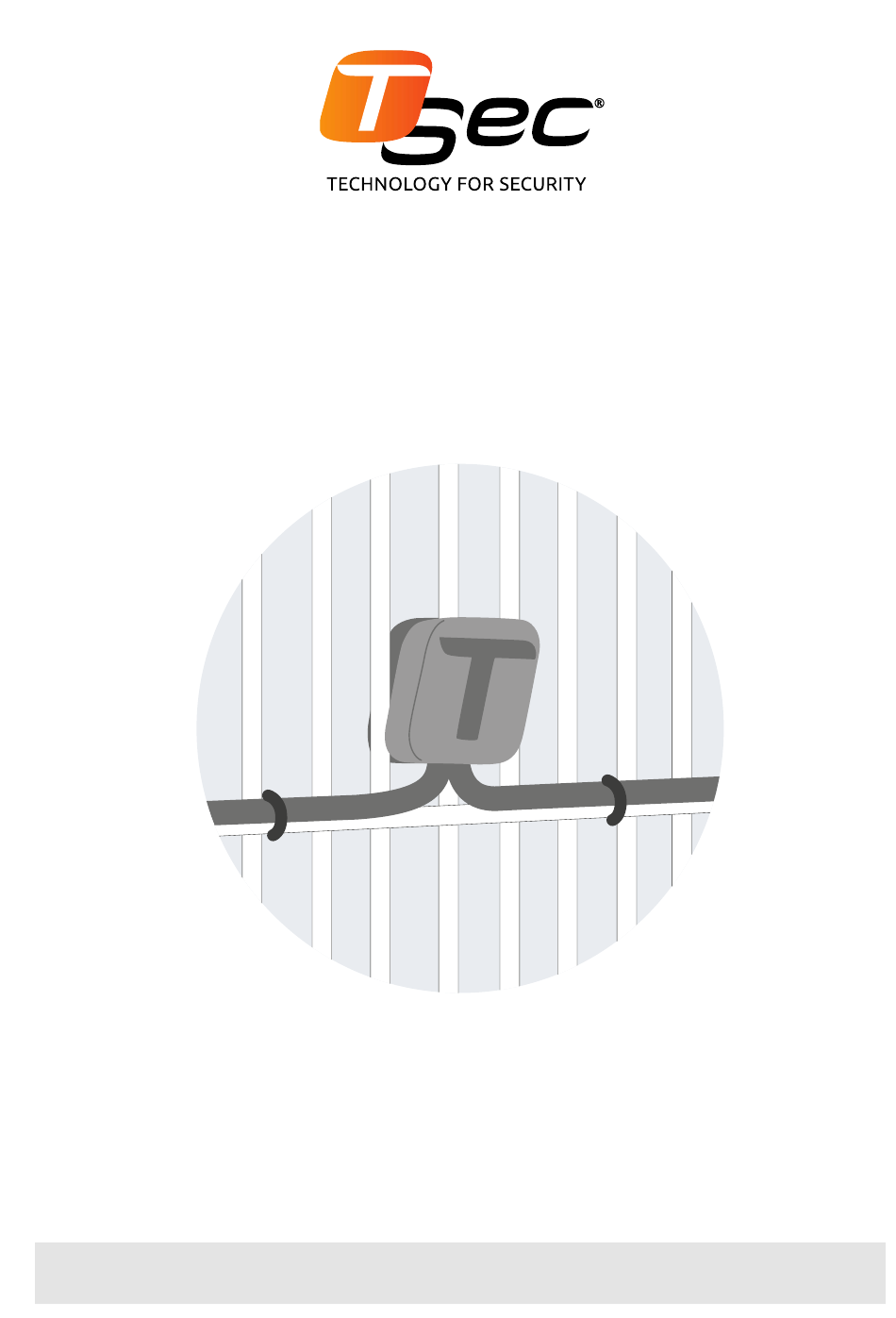

MACS

Anti-intrusion perimeter system for rigid and

semi-rigid metal fences

Instruction manual

v1.1 - EN

Carefully read this manual in its entirety.

You will find useful information to take full advantage of the product's potential, use it safely and obtain the best results.

Table of Contents

Need help?

Do you have a question about the MACS and is the answer not in the manual?

Questions and answers

Summary of Contents for TSec SpA MACS

Page 1 MACS Anti-intrusion perimeter system for rigid and semi-rigid metal fences Instruction manual v1.1 - EN Carefully read this manual in its entirety. You will find useful information to take full advantage of the product's potential, use it safely and obtain the best results.
Page 2 Transferring the document on websites or other electronic systems. Copying contents without any modification and stating TSec SpA as copyright owner. TSec SpA reserves the right to make modifications or improvements to the relative documentation without prior notice. Requests for authorization, additional copies of this manual or technical...
Page 3: Table Of Contents
General concepts about sensors Initial operations Operate with the web interface Diagnostics and maintenance Diagnostics and troubleshooting Firmware and web interface updates Maintenance and cleaning Appendix Technical data Disposal Service and warranty MACS | Instruction manual v1.1 11- 2018 | MACS_instructions_en_v1.1 | © 2018 TSec SpA...
Page 4 Safety system expert components Configures the system Maintenance technician Performs maintenance on High technical knowledge in the field of safety the system systems System owner / safety Monitors the system manager MACS | Instruction manual v1.1 11- 2018 | MACS_instructions_en_v1.1 | © 2018 TSec SpA...
Page 5: Reception
Possible self- drilling screws for installation of sensors on pole. Ethernet cable to connect the Ethernet board. Spare parts and accessories For orders and consulting the spare parts and accessories catalog, contact the local distributor or manufacturer. MACS | Instruction manual v1.1 11- 2018 | MACS_instructions_en_v1.1 | © 2018 TSec SpA...
Page 6: Get To Know Macs
Contents This section includes the following topics: Introduction to MACS system System start-up The sensors (MACS-S3H) The Master (MACS-MAS) The Ethernet board (MACS-ETH) Connection to the Ethernet board Web interface MACS | Instruction manual v1.1 11- 2018 | MACS_instructions_en_v1.1 | © 2018 TSec SpA...
Page 7: Introduction To Macs System
Introduction to MACS system Description MACS is an anti- intrusion perimeter system for rigid and semi- rigid fences with metallic panels higher than 1.50 m (4.92 ft) and total height (panel and wall) over 1.70 m (5.57 ft). Thanks to an accelerometer inside of each sensor and a proprietary algorithm, the system detects and signals vibrations caused by climbing over the fence and other potentially damaging actions (e.g.
Page 8: System Start-Up
Master via bus. The algorithm recognizes attempts to climb over the fence by filtering out vibrations caused by accidental impacts or weather. Sensor front Part Description Sensor body Hole for fastening screw to pole or counter- plate Bus cables T- cap MACS | Instruction manual v1.1 11- 2018 | MACS_instructions_en_v1.1 | © 2018 TSec SpA...
Page 9: The Master (Macs-Mas)
Transmits signals from the sensors to the Ethernet board. Main components Part Description Watertight box Terminal block for connecting sensor chains (see "Description of terminal block for connecting sensor chains" on page 22) MACS | Instruction manual v1.1 11- 2018 | MACS_instructions_en_v1.1 | © 2018 TSec SpA...
Page 10 Orange Sensor configuration status: Steady: configuration in progress. The sensor alarms are not read. The LED turns off after about 30 s of inactivity in the web interface. Off: configuration concluded. MACS | Instruction manual v1.1 11- 2018 | MACS_instructions_en_v1.1 | © 2018 TSec SpA...
Page 11: The Ethernet Board (Macs-Eth)
LD14 Orange Enabled connection option (see "Connection to the Ethernet board " on the next page): Steady: through the serial number of the controller and IP address. Off: only through IP address. MACS | Instruction manual v1.1 11- 2018 | MACS_instructions_en_v1.1 | © 2018 TSec SpA...
Page 12: Connection To The Ethernet Board
Associate the sensors with monitoring zones and alarm outputs. Enable/disable the sensors. Monitor the system status (sensors, zones, outputs). Download the sensor log file. Manage the system and network settings. Manage the users and relative permissions. MACS | Instruction manual v1.1 11- 2018 | MACS_instructions_en_v1.1 | © 2018 TSec SpA...
Page 13 Consult, change, eliminate and rename the configurations. Settings Display and change the system settings (e.g. date and time, user management) and network settings. Manage firmware updates. Download the sensor log file. MACS | Instruction manual v1.1 11- 2018 | MACS_instructions_en_v1.1 | © 2018 TSec SpA...
Page 14: System Installation
System installation System installation Contents This section includes the following topics: Things to know Before installing the system Install the sensors Install the Master Install the Ethernet board MACS | Instruction manual v1.1 11- 2018 | MACS_instructions_en_v1.1 | © 2018 TSec SpA...
Page 15: Things To Know
The maximum coverage for the complete system (2 chains of 120 sensors each) is 1200 m (3937 ft). If the fence to be protected has a length over 1200 m (3937 ft), more than one MACS system must be installed.
Page 16 On the pole: in the case of panels with mesh thicker than 28 mm (1.10 in) or for special needs Where possible, opt for installation on panel. Example of installation on a thin mesh panel MACS | Instruction manual v1.1 11- 2018 | MACS_instructions_en_v1.1 | © 2018 TSec SpA...
Page 17: Before Installing The System
Branch cable from the alarm control panel with conductors necessary to connect the Ethernet board. Only for MACS- ETH, for independent power supply from the alarm control panel, 12 V 3 A power supply. MACS | Instruction manual v1.1 11- 2018 | MACS_instructions_en_v1.1 | © 2018 TSec SpA...
Page 18: Install The Sensors
2. Fasten the counter- plate to the sensor by partially tightening the provided short screw. Prepare the sensor for thick mesh panels 1. Mount the spacer on the counter- plate. MACS | Instruction manual v1.1 11- 2018 | MACS_instructions_en_v1.1 | © 2018 TSec SpA...
Page 19 Note: as an example, the illustrations refer to a thin mesh panel. 1. Position the sensor with the counter- plate outside of the fence. Make sure that the gasket touches as much of the mesh as possible (e.g. on a cross-piece). MACS | Instruction manual v1.1 11- 2018 | MACS_instructions_en_v1.1 | © 2018 TSec SpA...
Page 20 Install the sensors on the pole 1. Establish the installation point and fasten the sensor with a self- drilling screw (not supplied), then make sure that the sensor is firmly mounted. MACS | Instruction manual v1.1 11- 2018 | MACS_instructions_en_v1.1 | © 2018 TSec SpA...
Page 21: Install The Master
Use the dedicated holes for fastening to the wall. Use cable glands mounted on the box to connect the bus cables to the Master. Install the Master 1. Fasten the watertight case to the wall using four screws (not provided). MACS | Instruction manual v1.1 11- 2018 | MACS_instructions_en_v1.1 | © 2018 TSec SpA...
Page 22 Description of terminal block for connecting the Ethernet board Terminal Description Wire color Bus cable towards the Ethernet board Shield Orange Green Yellow Black Not in use Generic alarm output MACS | Instruction manual v1.1 11- 2018 | MACS_instructions_en_v1.1 | © 2018 TSec SpA...
Page 23: Install The Ethernet Board
NOTICE: install the box in a covered, protected area to prevent damage to the components. Install the Ethernet board Note: the procedure refers to the installation of MACS- ETH. For the installation of MACS- ETH- PS, refer to the instructions provided with the product, then perform the electrical connections, described as follows.
Page 24: System Configuration
System configuration System configuration Contents This section includes the following topics: General concepts about sensors Initial operations Operate with the web interface MACS | Instruction manual v1.1 11- 2018 | MACS_instructions_en_v1.1 | © 2018 TSec SpA...
Page 25: General Concepts About Sensors
When the system is turned on, it associates all the sensors with a single zone called "Default" and associates the zone with the alarm output 1 of the terminal block towards the alarm control panel. MACS | Instruction manual v1.1 11- 2018 | MACS_instructions_en_v1.1 | © 2018 TSec SpA...
Page 26: Initial Operations
Apply and save. 5. Insert the name of the configuration, then click Rename. Assign a name that is understandable to all users accessing the system (e.g. shrubs, vehicle gate, wall). MACS | Instruction manual v1.1 11- 2018 | MACS_instructions_en_v1.1 | © 2018 TSec SpA...
Page 27: Operate With The Web Interface
The sensors, zones, configurations and other system data can be saved in a file for restoration (e.g. after replacing the Ethernet board and/or Master circuit board). On the Settings, Settings, System page, in Backup click Create backup: a .macs file is created with all the system data.
Page 28 Manage your account Settings > Account Create a user Settings > Users > Create new user Note: only the administrator user ("admin", "admin") has permissions for creating users. MACS | Instruction manual v1.1 11- 2018 | MACS_instructions_en_v1.1 | © 2018 TSec SpA...
Page 29 Consult alarms log Settings> Alarm log > Download system log Settings> Alarm log > Download sensor log Delete alarms log Settings > Alarm log > Delete log MACS | Instruction manual v1.1 11- 2018 | MACS_instructions_en_v1.1 | © 2018 TSec SpA...
Page 30: Diagnostics And Maintenance
Diagnostics and maintenance Diagnostics and maintenance Contents This section includes the following topics: Diagnostics and troubleshooting Firmware and web interface updates Maintenance and cleaning MACS | Instruction manual v1.1 11- 2018 | MACS_instructions_en_v1.1 | © 2018 TSec SpA...
Page 31: Diagnostics And Troubleshooting
2. Upon restart, hold down the reset button on the Ethernet board for a few seconds: the LED LD10 flashes slowly. 3. Keep the reset button pressed for 5 seconds: the LED LD10 flashes rapidly and the network settings are reset to factory default values. MACS | Instruction manual v1.1 11- 2018 | MACS_instructions_en_v1.1 | © 2018 TSec SpA...
Page 32: Firmware And Web Interface Updates
Check status periodically. Cleaning The system components do not require periodical cleaning to function correctly. To clean the sensors and cables (for aesthetic reasons), do not use abrasives or solvents. MACS | Instruction manual v1.1 11- 2018 | MACS_instructions_en_v1.1 | © 2018 TSec SpA...
Page 33: Appendix
Appendix Appendix Contents This section includes the following topics: Technical data Disposal Service and warranty MACS | Instruction manual v1.1 11- 2018 | MACS_instructions_en_v1.1 | © 2018 TSec SpA...
Page 34: Technical Data
1 output: tampering alarm Normal output status Power supply From the Ethernet board through proprietary bus cable Dimensions 142 × 167 × 63 mm (5.59 × 6.57 × 2.48 in) MACS | Instruction manual v1.1 11- 2018 | MACS_instructions_en_v1.1 | © 2018 TSec SpA...
Page 35 Degree of protection MACS- ETH: IP00 MACS- ETH- PS: IP30 Bus cable External sheath material External diameter Max 8.5 mm (0.33 in) Marking CEI- UNEL 36762 C- 4 (U =400 V) MACS | Instruction manual v1.1 11- 2018 | MACS_instructions_en_v1.1 | © 2018 TSec SpA...
Page 36: Disposal
Fax: +39 030 57 85 303 e- mail: info@tsec.it Warranty To find out about the terms of the warranty, exclusions and cancellation of the warranty, refer to the website https://www.tsec.it/it/condizioni- di- vendita.php. MACS | Instruction manual v1.1 11- 2018 | MACS_instructions_en_v1.1 | © 2018 TSec SpA...
Page 38 TSec SpA Via Gavardina Traversa I, 74 25081 Bedizzole (BS) Italy www.tsec.it info@tsec.it +39 030 57 85 302 MACS Instruction manual MACS_instructions_en_v1.1 © 2018...
