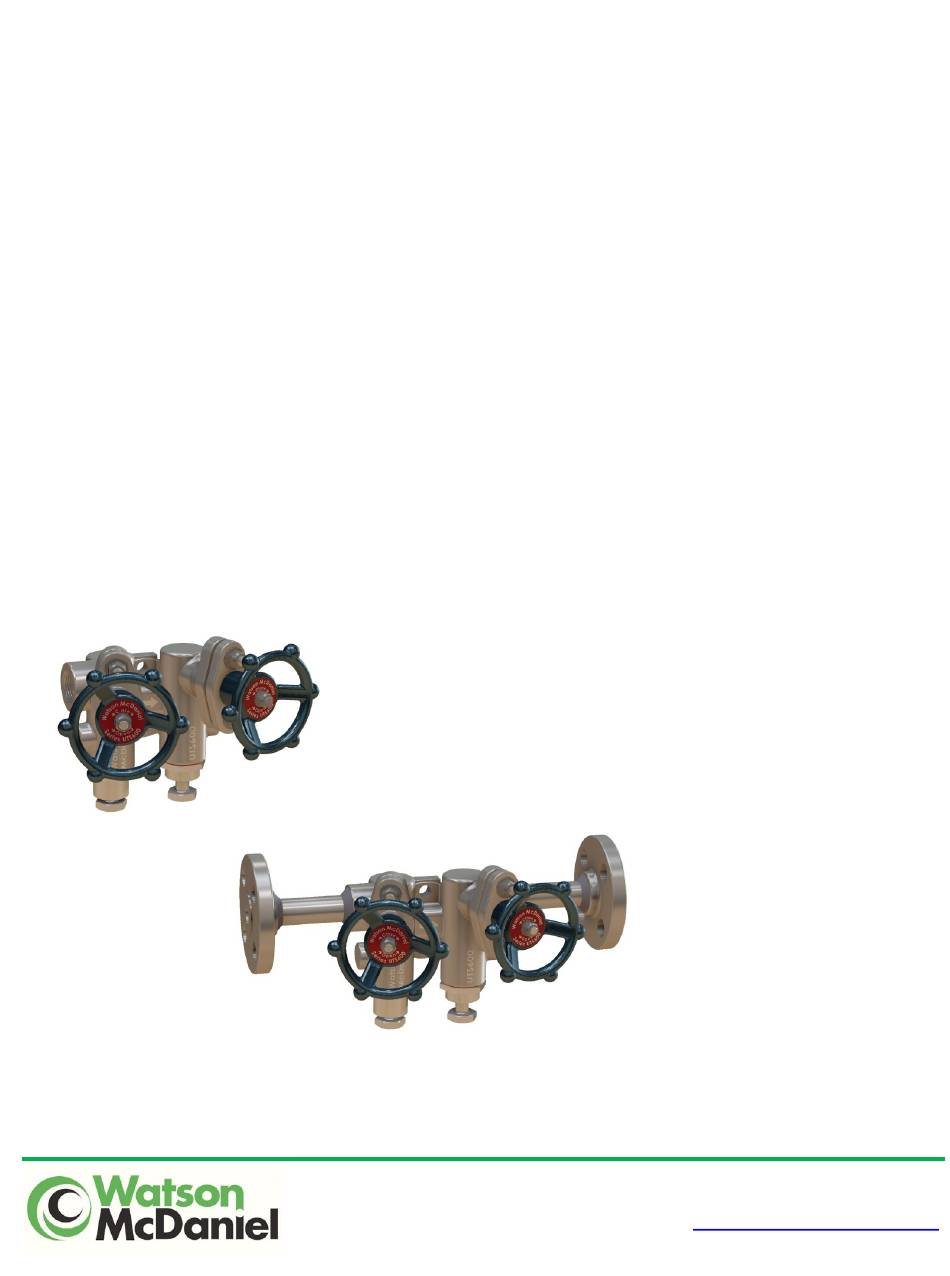

- Page 1 UTS600 Series Universal Trap Test Valve Station Installation Operation & Maintenance Manual 428 Jones Boulevard Phone: (610)495-5131 Limerick Airport Business Center Fax: (610)495-5134 Pottstown, PA 19464 www.watsonmcdaniel.com...
- Page 2 UTD600LSM Each Watson McDaniel Company Product is warranted against defects in material and workmanship for one year from date of shipment. This warranty extends to the first retail purchaser only. All defective material must be returned to the person from whom you purchased the Product, transportation prepaid, free of any liens or encumbrances, and if found to be defective will be repaired free of charge or replaced, at the warrantor’s or seller’s option.
- Page 3 UTS600 Manual 2590000 RevA Principle of Operation The UTS600 Series Universal Connector Trap Test Valve Station has a two-bolt 360 degree swivel mount flange design, integral piston-style isolation valves, test valve, and integral strainer and blowdown valve. 1. Universal Connector Trap Test Station will be in normal operation when both the inlet and outlet isolation valve are in the open position and the blowdown valve and test valve are in the closed position.
- Page 4 Watson McDaniel Company UTS600 Manual 2590000 RevA Start-Up 1. Upon start-up, the blowdown valve should be in the open position. Outlet isolation valve and test valve should be in the closed position. When opening blowdown valve, hold blowdown valve body in place with wrench while opening valve head.
- Page 5 Watson McDaniel Company UTS600 Manual 2590000 RevA Troubleshooting and Repair of Trap Test Valve 1. If isolation valve is leaking when valve is closed, make sure the valve is fully closed. If valve is still leaking, tighten bonnet nuts (4) to compress valve rings (9). If valve continues to leak, replace the valve rings and bonnet assembly (2, 4).
- Page 6 Watson McDaniel Company UTS600 Manual 2590000 RevA B. Replacing valve stem 1. Remove hand wheel nut (11), washer (12) and nametag (13). Remove hand wheel (10). 2. Remove bonnet nuts (4) using ½” wrench. Loosen nuts evenly until fully removed. Remove washers (5).
