Table of Contents

Industrial Controls
IP500AC

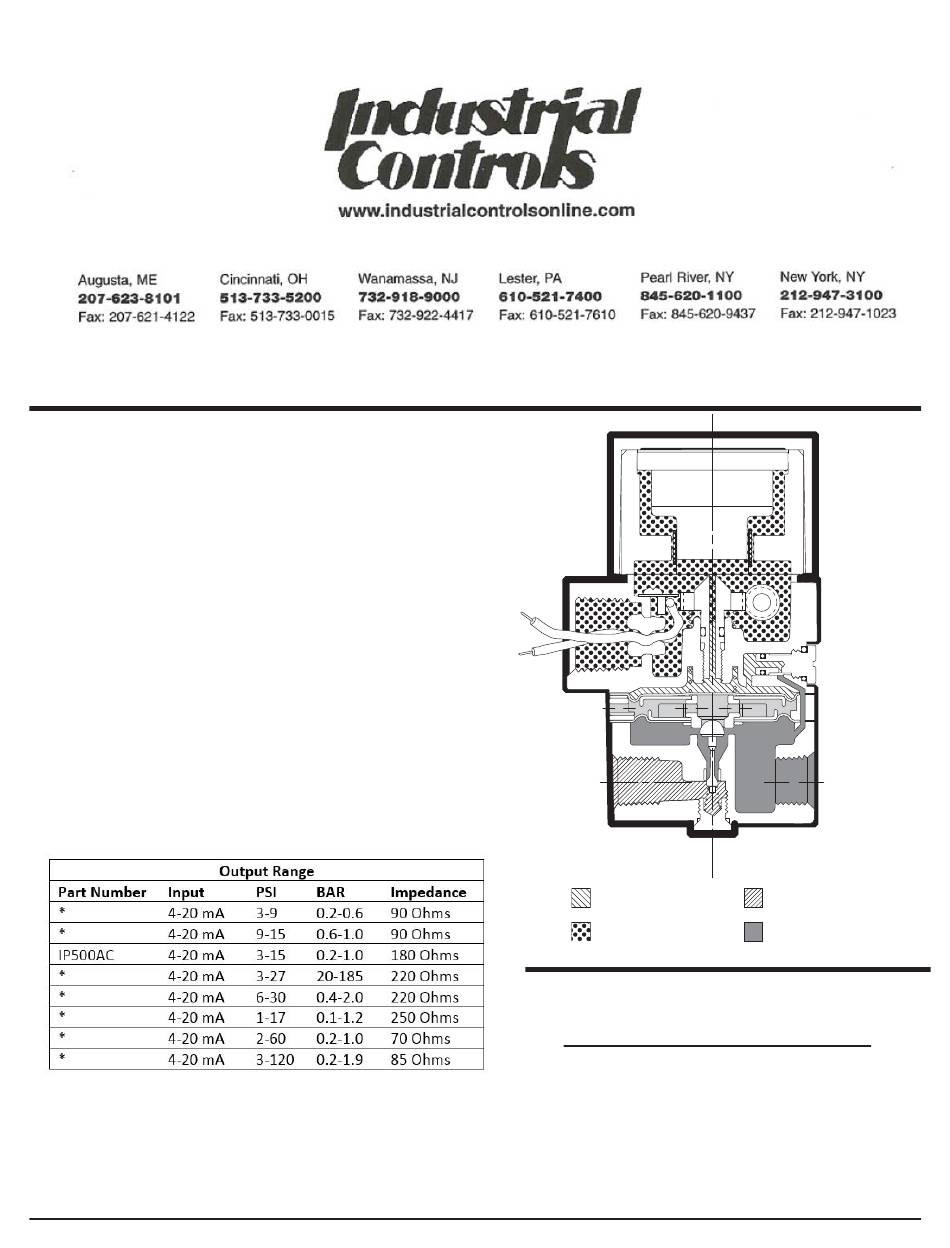

I/P Transducer
Installation, Operation
and Maintenance
Instructions
*
Contact Industrial Controls
Note: Output shown is as calibrated at the factory. Large span
adjustment capability allows recalibration to achieve output
ranges from 3-35 psig (0.2-2.4 BAR) with 2-60 psig unit to
3-145 psig (0.2-10 BAR) with 2-120 psig unit.
541-622-039
Pilot Pressure
Atmospheric Pressure
Contents
Section
1.0
2.0
3.0
4.0
Supply Pressure
Output Pressure
Page
2
3
5
5
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP500AC and is the answer not in the manual?

Questions and answers

Related Manuals for Industrial Controls IP500AC

Summary of Contents for Industrial Controls IP500AC

  • Page 1: Table Of Contents

    Section Description Page Description & Installation Operation Contact Industrial Controls Maintenance Note: Output shown is as calibrated at the factory. Large span Troubleshooting adjustment capability allows recalibration to achieve output ranges from 3-35 psig (0.2-2.4 BAR) with 2-60 psig unit to 3-145 psig (0.2-10 BAR) with 2-120 psig unit.

  • Page 2: Description

    1.2 Principle of Operation The IP500AC is a force balance device in which a coil is suspended in the field of a magnet by a flex- 1.2.1 ure. Current flowing through the coil generates axial movement of the coil and flexure. The flexure moves towards the nozzle and creates back pressure which acts as a pilot pressure to an integral booster relay.

  • Page 3: Operation

    1.4 Pneumatic Connections WARNING The I/P transducer enclosure contains aluminum and is considered to constitute a potential risk of ignition by impact or friction and must be taken into account during installation. 1.5 Electrical Connections Figure 1 DIN 43650 Connector 2.
  • Page 4 2.2 Dimensional Drawings (2) #10-32 UNF-2A x .38 DP. 2.88 1.10 Mounting Holes (Shown with 73.1 27.9 Bracket Screws Installed) 2.18 1.13 Removable 55.4 28.7 14.0 Mounting Max (Square) Bracket Diameter 1.13 1.15 MNTG. 28.7 29.2 Holes Diameter 4.24 107.7 1.04 1.12 1.250...

  • Page 5: Maintenance

    3. MAINTENANCE Under normal circumstances, no maintenance should be required. If clean dry air is not used the orifice can become blocked. To clean, first turn off supply air, unscrew and remove orifice assembly. The unplug orifice by using a wire that has a smaller diameter than 0.015 in.
