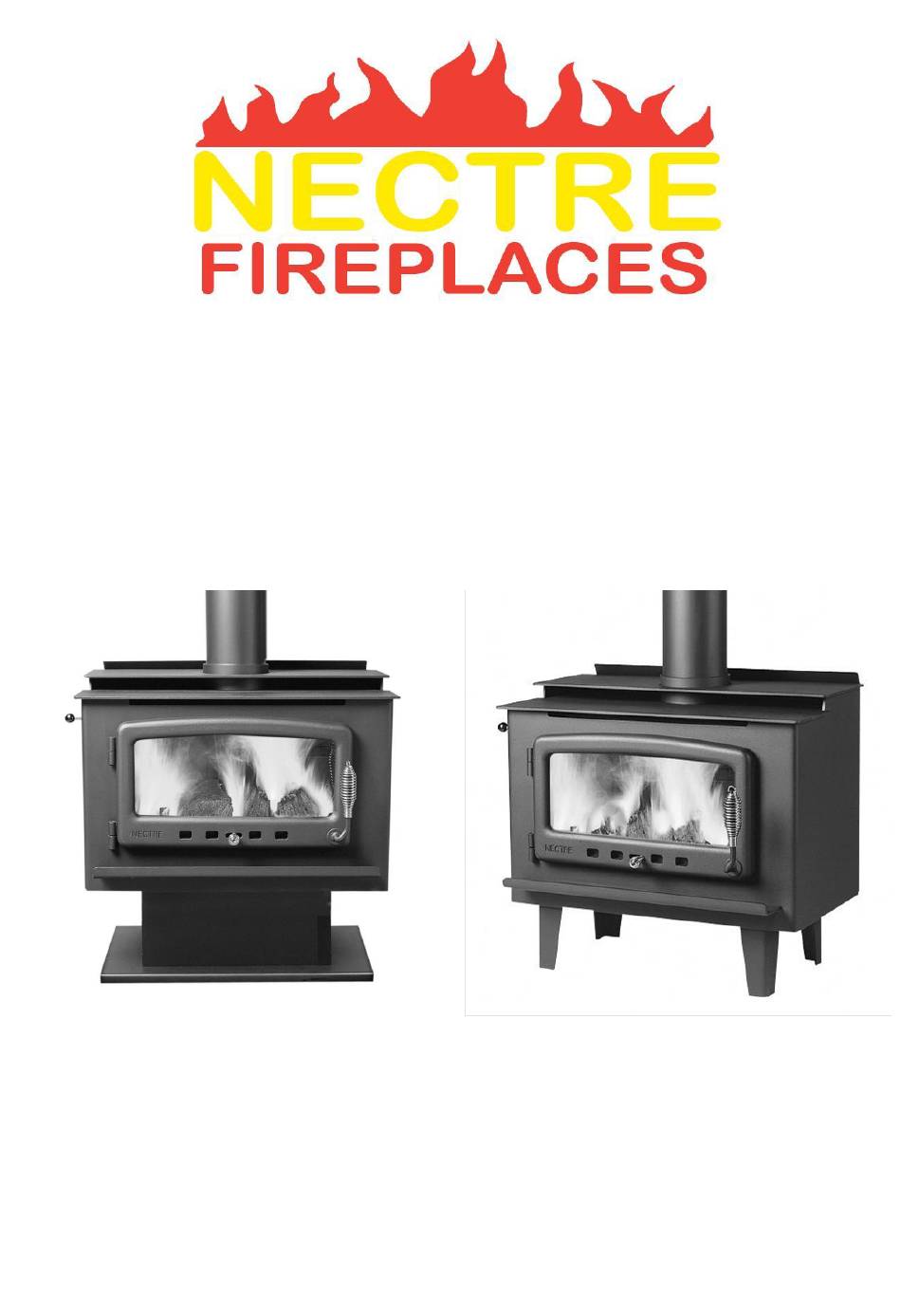

Nectre MK2 LE Installation Instructions Pecan Engineering Pty Ltd 13 Acorn Road Dry Creek South Australia 5094 Email info@pecan-eng.com.au Phone: (08) 8349 8332 Fax: (08) 8260 6643 ACN 007 741 693... - Page 2 THE INSTALLATION INSTRUCTIONS IN THIS 2. INSTALLING THE HEATER MANUAL APPLY TO THE NECTRE MK2 LE. IT HAS BEEN TESTED FOR EMISSIONS AND EFFICIENCY Positioning the Heater AND COMPLIES ACCORDING TO AS/NZS 4012:1999 & AS/NZS 4013:1999. First review the necessary clearances specified below before considering where to position the heater.
- Page 3 For example: either side of the door opening, and extend under the heater. Side wall clearance for the MK2 LE is 450 mm. Minimum dimensions for floor protector are 900mm wide by 900mm deep. It may be desirable, for example aesthetic A 12mm gapped shield on the wall with a factor of 0.40.
- Page 4 5. INSTALLING FIRE BRICKS flue or fitting a specialist cowl will usually resolve the issue. The Nectre MK2 LE comes with 9 full size bricks (234(h) x 118(w) x 40(d)mm) and 2 half size bricks (234(h) x 59(w) x 40(d)mm).
- Page 5 6. INSTALLING BAFFLE PLATES 7. INSTALLING ASH PLATE The Nectre MK2 LE is supplied with two baffle plates:- The ash plate acts to protect the front of the firebox below the door opening from the hot coal bed and fire.
- Page 6 8. TECHNICAL DRAWINGS Legs model: Pedestal model: Top view:...
