GD-W913N/ND
1
Cable Connection
Please follow the steps below to connect the device
Step 1
Connect the ADSL port of the router to the Modem port of the splitter
using a telephone cable. Connect the phone to the phone port of the splitter
using a telephone cable. Connect the incoming line to the Line port of the
splitter.
Step 2
The spliiter has three ports:
LINE: Connect to a wall phone jack (RJ-11 jack)
Modem: Connect to the ADSL interface of the router
PHONE: Connect to a telephone set
Step 3
Connect the LAN port of the router to the network card of the PC through
an Ethernet cable.
Step 4
Plug one end of the power adapter into the wall outlet and the other end
to the Power port of the router.
The followig figure show the connection of the DSL router, PC and telephones.

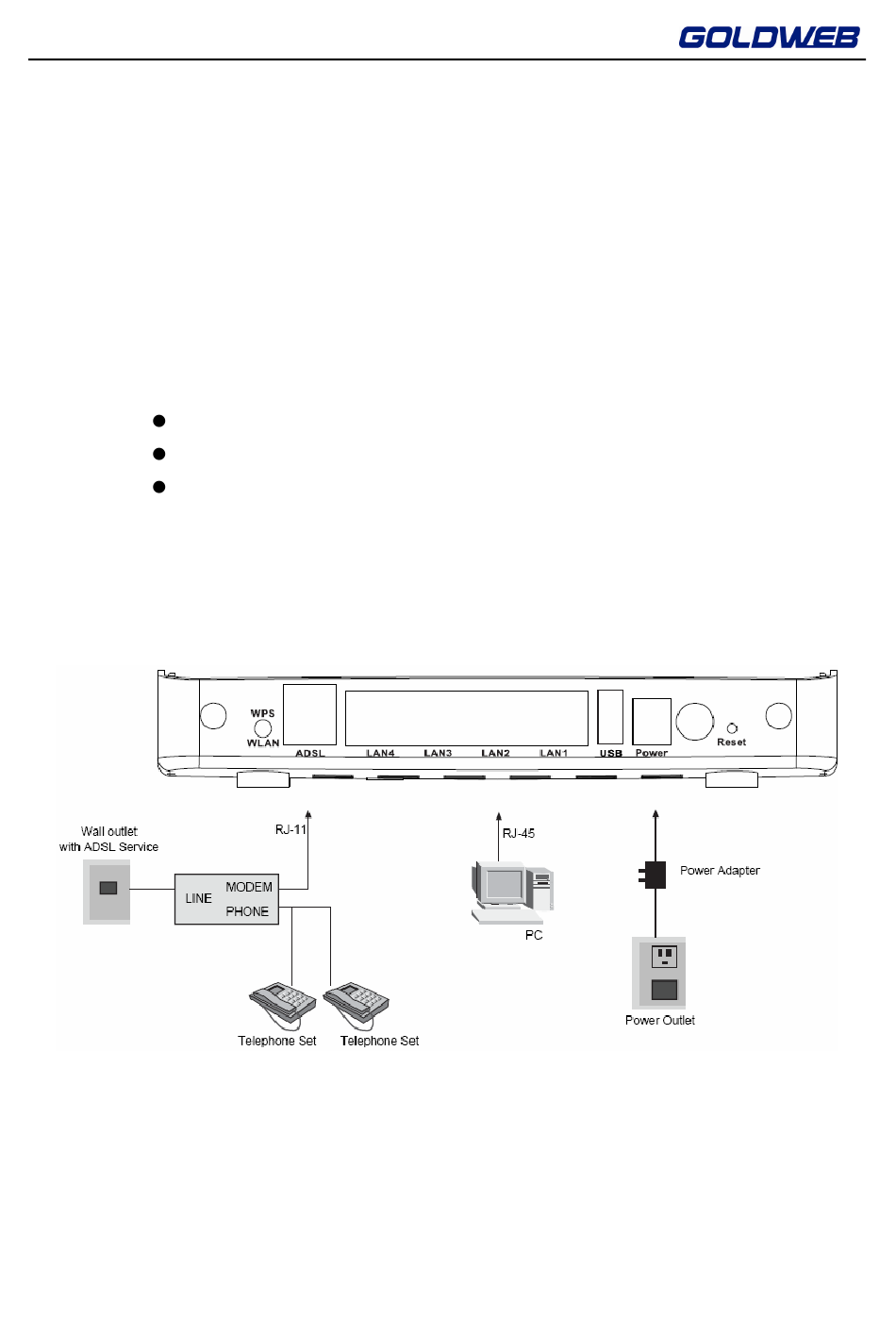

Figure 1 Connecting the DSL router
1
Advertisement
Summary of Contents for Goldweb GD-W913N
- Page 1 GD-W913N/ND Cable Connection Please follow the steps below to connect the device Step 1 Connect the ADSL port of the router to the Modem port of the splitter using a telephone cable. Connect the phone to the phone port of the splitter using a telephone cable.
- Page 2 GD-W913N/ND WAN Configuration for Internet Connection Configuring IP Address of Network Card Configure TCP/IP properties of your network card to Obtain an IP address automatically from modem, or set the IP address of the computer with the same network mask of the modem.
-
Page 3: Wan Service
GD-W913N/ND WAN Service Choose Advance Setup > WAN Service, and the following page appears. Figure 3 WAN service configuration In this page, you may add, remove or edit a WAN service. Adding a PPPoE WAN Service This section describes the steps for adding the PPPoE WAN service. - Page 4 GD-W913N/ND Step2 In this page, you can select a ATM Interface for the WAN service. After selecting the ATM interface, click Next to display the following page. Figure 5 WAN service configuration (PPPoE) Step3 In this page, select the WAN service type to be PPP over Ethernet...
- Page 5 GD-W913N/ND Figure 6 PPP username and password (PPPoE) Step4 In this page, you can modify the PPP username, PPP password, PPPoE service name and authentication method. PPP Username: The correct user name provided by your ISP. PPP Password: The correct password provided by your ISP.
- Page 6 GD-W913N/ND Dial on demand (with idle timeout timer): If this function is enabled, you need to enter the idle timeout time. Within the preset minutes, if the modem does not detect the flow of the user continuously, the modem automatically stops the PPPoE connection.
- Page 7 GD-W913N/ND Figure 7 Routing-default gateway (PPPoE) Step6 In this page, select a preferred WAN interface as the system default gateway interface and then click Next to display the following page.
- Page 8 GD-W913N/ND Figure 8 DNS server configuration (PPPoE) Step7 In this page, you may select a DNS server interface from the available WAN interfaces. Click Next, and the following page appears. Figure 9 PPPoE summary Step8 In this page, it displays the information about the PPPoE settngs. Click...
- Page 9 GD-W913N/ND Wireless Choose Wireless > Basic to display the following page. This page allows you to configure the basic features of the wireless LAN interface. Enable Wireless: Enable or disable the wireless function. Hide Access Point: if you want to hide any access point for your router, select this option, and then a station cannot obtain the SSID through the passive scanning.
- Page 10 GD-W913N/ND Clients Isolation: When many clients connect to the same access point, they can access each other. If you want to disable the access between the clients that connect to the same access point, you can select this option. Disable WMM Advertise: After enabling this option, the transmission performance multimedia of the voice and video data can be improved.
