ELECTRICAL
Stud
Detector
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 11334 and is the answer not in the manual?

Questions and answers

Summary of Contents for Workzone 11334

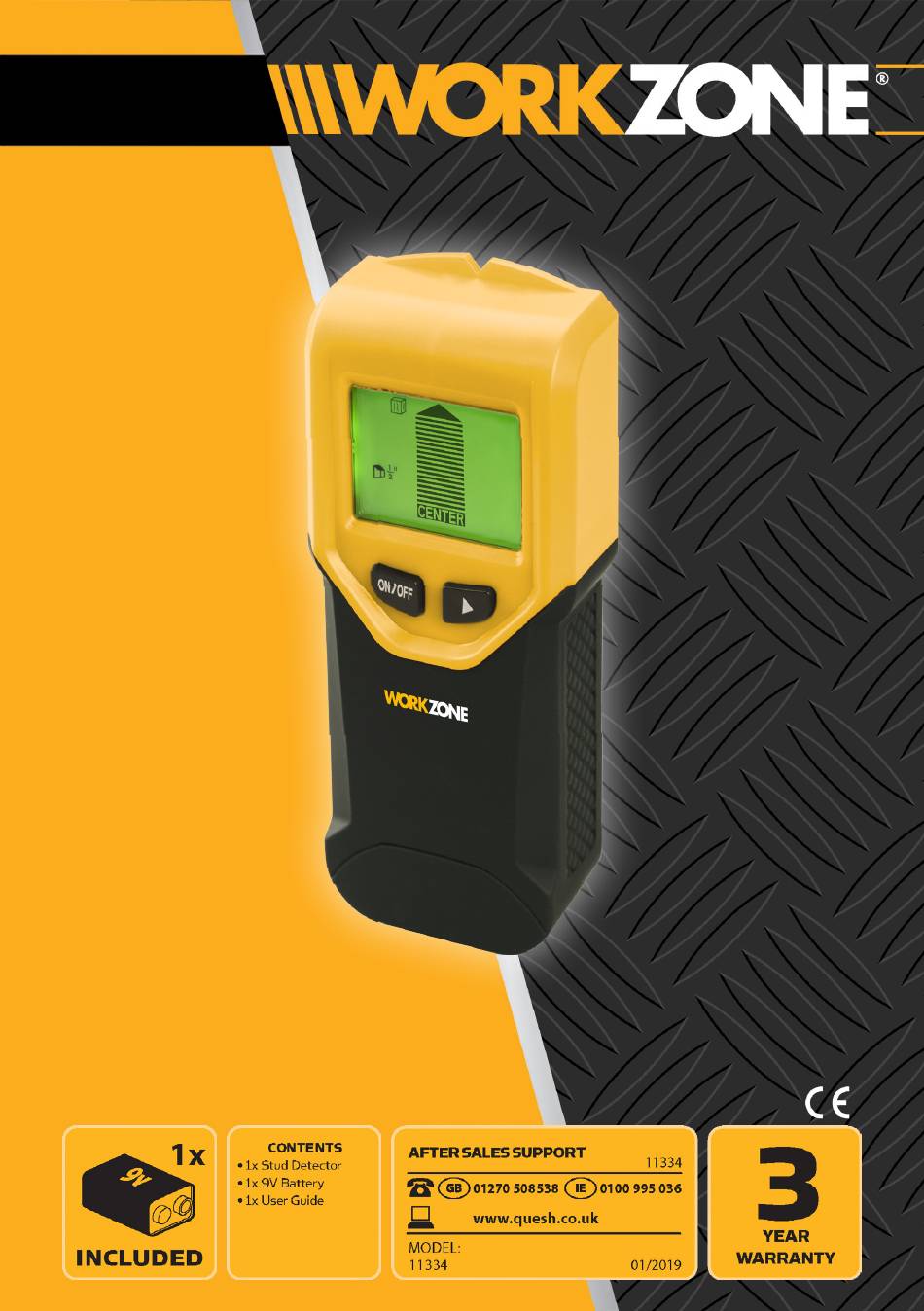

  • Page 1 ELECTRICAL Stud Detector User Guide...
  • Page 2: Table Of Contents

    Contents Welcome Section 2-3. General Information & Safety Instructions Contents & Features 5-6. General Layout Setting Up • Installing The Battery • Turning On/Off 8-13. Operating • Selecting A Mode • Calibrating Before Use • Stud Scanning Mode • Stud Scanning On Different Surfaces •...
  • Page 3: Welcome Section

    Welcome Section Congratulations! You have made an excellent choice with the purchase of this quality WORKZONE ® product. By doing so you now have the assurance and peace of mind which comes from purchasing a product that has been manufactured to the highest standards of performance and safety, supported by the high quality standards of Quesh Ltd.
  • Page 4: General Information & Safety Instructions

    General Information & Safety Instructions This Stud Detector is powered by a 9V square battery. Do not dispose of batteries in your household waste. Please contact your local authority for details on safe disposal. Do not expose this product to damp or moist conditions. •...
  • Page 5 General Information & Safety Instructions WARNING DO NOT rely exclusively on the detector to locate items behind scanned surfaces. Use information sources such as plans, visible electrical and pipe outlets/entry points to locate objects before penetrating the surface. • DO NOT assume that there is no live cabling within a wall. •...
  • Page 6: Contents & Features

    Contents & Features Contents 1 x Stud Detector 1 x 9V Battery 1 x User Guide Features • Detects wood, metal and unshielded AC cables • Scans up to a depth of 2.36” (60mm) • 3 preset stud depths • 3 material presets •...
  • Page 7: General Layout

    General Layout STUD DETECTOR Centre Mark Screen On/Off Mode Calibrate...
  • Page 8 General Layout SCREEN ICONS Edge Indicator AC Power Wood Mode Cable AC Power Metal Mode Mode 1 Inch 1½ Inch Scan Depth Scan Depth ½ Inch Low Power Scan Depth Move Right Move Left Left Edge Right Edge Indicator Indicator Center Indicator...
  • Page 9: Setting Up

    Setting Up Installing The Battery This product is supplied with a 9V battery. To fit the battery please remove the battery from it’s wrapper. Open the battery bay by pushing the tab towards the top of the detector on the battery cover and lifting the cover up. Connect the 9V battery to the correct terminals and place it in the battery bay.
  • Page 10: Operating

    Operating Selecting A Mode The Stud Detector has three modes of use: • Stud Detection • Metal Detection • AC Power Detection You will need to repeatedly press the button to cycle through the available modes to make your selection. The options will be: >...
  • Page 11: Stud Scanning Mode

    Operating Stud Scanning Mode To scan for studs make sure the detector has been set to one of the first three settings and calibrated as mentioned on page 7, place the detector’s back flat against the surface you want to scan. In a slow paced motion move the detector up right across the surface in the direction you want to scan.
  • Page 12 Operating When the detector finds the center of the stud, there will be an audible beep. The screen will show a full level bar, an arrow at the top and ‘CENTER’ and the bottom. Use the ‘V’ groove to mark the centre of the stud with a pencil if required.
  • Page 13: Stud Scanning On Different Surfaces

    Operating Stud Scanning On Different Surfaces The detector will behave differently and results vary depending on what type of material it is scanning though. WARNING DO NOT rely exclusively on the detector to locate items behind scanned surfaces. Use information sources such as plans, visible electrical and pipe outlets/entry points to locate objects before penetrating the surface.
  • Page 14: Metal Scanning Mode

    Operating • WOOD (SUB)FLOORING & GYPSUM DRY WALL OVER PLYWOOD The detector will have trouble scanning through this mix of material and results will be inaccurate. You will need to use the ‘1½”’ scan mode and the indicator will show a weak signal only. •...
  • Page 15: Ac Power Cable Scanning Mode

    Operating AC Power Cable Scanning Mode This mode will allow you to scan for metal nails, screws, pipes, trunking, etc. To scan for metal make sure the detector has been set to ‘AC Power’ mode and calibrated as mentioned on page 7. To achieve a more accurate reading you will need to scan in two passes or more.
  • Page 16: Trouble Shooting

    Trouble Shooting Problem Cause Solution Not turning on. Flat battery. Change battery. Not detecting correctly, low Battery charge to low to Change battery. battery indicator present. operate correctly. Detecting other objects while Electrical wiring, plastic or Scan the area in Metal mode in stud mode.
  • Page 17: Specifications

    Specifications Stud Detector General Dimensions: 68mm x 34mm x 168mm Approximate Weight: 149g Battery Battery Type: 9V ‘Square’...
  • Page 18 Warranty Certificate Warranty This product is warranted to be free from defects in workmanship and parts for a period of 36 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and labour.
  • Page 19 Quesh Limited 1800 995 036 www.quesh.co.uk B7, First Business Park First Avenue, Crewe MODEL: 11334 PRODUCT CODE: 11334 01/2019 Cheshire CW1 6BG Phone lines available Monday to Friday 9am - 5pm. Call cost local rate per minute from a landline,...
