Summary of Contents for Shanghai HuaTuo Satellite Navigation Technology LT400

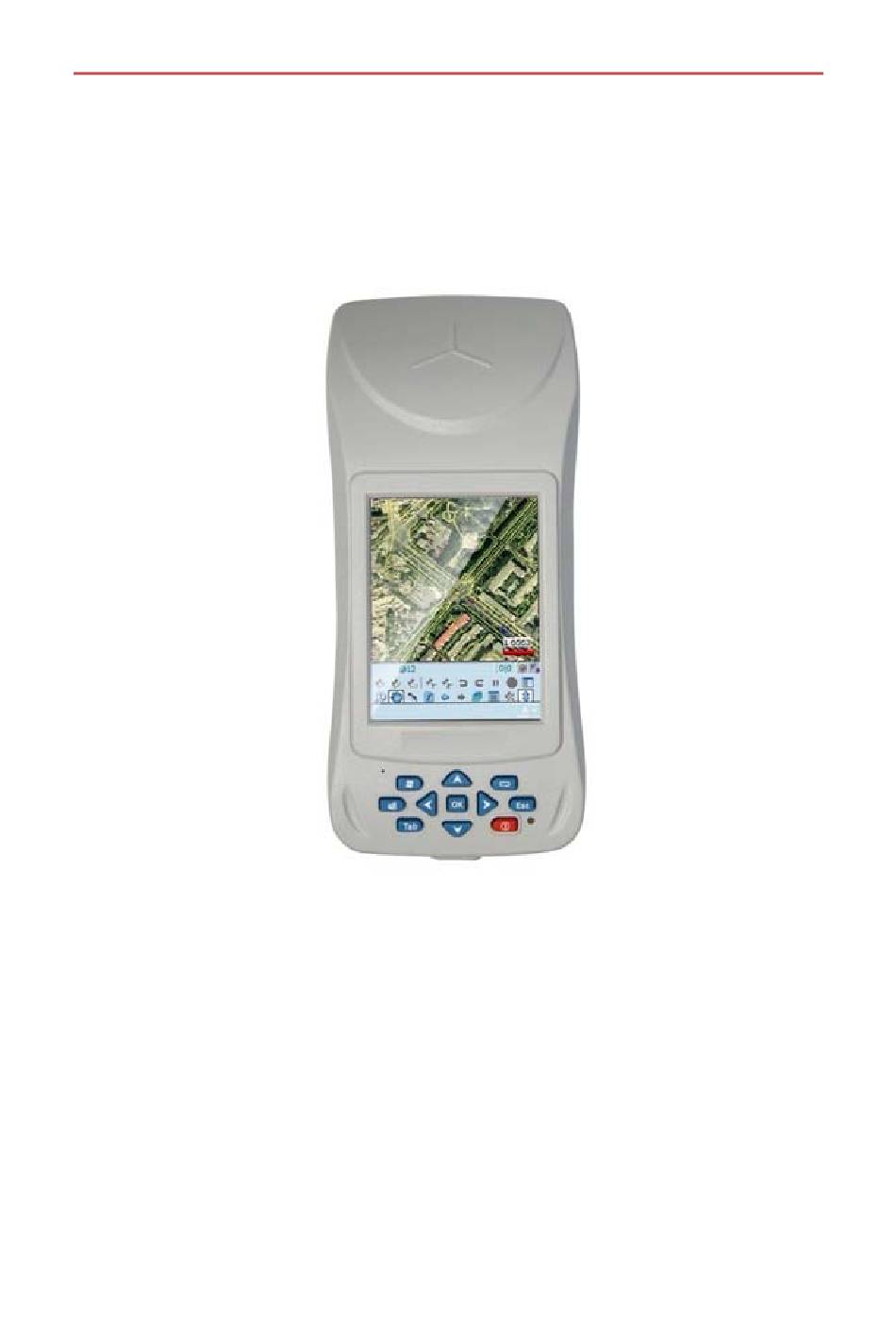

- Page 1 GPS/GIS ERIES ANDHELD ATA OLLECTOR SER ANUAL Shanghai HuaTuo Satellite Navigation Technology Ltd. Shanghai China ...
- Page 2 Where to Find Information This manual is designed to guide you through the LT400 series procedures. You can find additional HuaTuoSat information in the LT400 series Reference Manual and also the Technical Training Video.
- Page 3 FCC Statement Federal Communications Commission (FCC) Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation of the device.
-
Page 4: Table Of Contents
Chapter 2 technical specifications ..................... 6 Chapter 3 Introductions of appearance and keyboard ............. 8 3.1 Front Components ....................... 8 3.2 Bottom Components .................... 9 3.3 Back view ........................ 10 3.4 insert SIM card and memory card ................ 10 Chapter 4: Accessories introduction .................. 11 4.1 LT400 data cable ...................... 11 Chapter 5: basic operation ...................... 12 5.1 Use of touch pen ....................... 12 5.2 Power on/off ...................... 12 5.3 Align screen ....................... 13 5.4 Set date and time ...................... 13 5.5 Battery management and charging ................ 14 Chapter 6: System Interface Description ................ 15 ... -
Page 5: Chapter 1 Announcements
LT400 User Manual Chapter 1 Announcements This user manual contains important security and correct use product information, please read it carefully before using. • The touching screen of LT400 is imported from aboard, it’s little hard; in order to guarantee long time using, it is better to using touch pen from , never HuaTuoSat using sharp tools tap the screen. • Although the product with highly standard functions of waterproofing and anti‐falls, please avoid any colliding while using it. • The other accessories contained in the package are only used for LT400; please do not use accessories of others. The battery ,adapter or charger intended to be used with LT400 requires user to purchase additionally. • Contact us if you have any confusion of LT400. And never disassemble the product by yourself; otherwise you will lose warranties. • If you have a problem and cannot find the information you need in the product documentation, contact your local Dealer. Alternatively, please request technical support using the Website at HuaTuoSat (www.chcnav.com) or technical support HuaTuoSat email: support@chcnav.com. ... -
Page 6: Chapter 2 Technical Specifications
LT400 User Manual Chapter 2 technical specifications This chapter will do the basically technical specification of LT400 GIS data collect. • GNSS characteristic 12 channels, GPS L1, including 2×SBAS, update 1HZ data output. • System Configuration Operation System: window mobile 6.1 Processer: 806 MHz. Internal Memory: 2GB Flash External Memory: TF Card Slot, 2GB as Standard • Performance Specifications Stand alone: 2m SBAS real time accuracy: 1m RTD accuracy: 0.5m Post Processing accuracy: 0.3m Static accuracy: ‐‐‐‐Horizontal: ± (5mm+1ppm) RMS ‐‐‐‐Vertical: ± (10mm+1ppm) RMS Baseline Length: ≦10km • Communications Built‐in Bluetooth Class 2, version 2.0+EDR protocol High‐speed USB 2.0 port RS232 Internal GPRS module External antenna connector • Physical ... - Page 7 LT400 User Manual • Electrical Power consumption: 3.0w Charging power: 5 VDC,1A • Display Screen QVGA‐TFT 3.7 colored touch screen 480×640 pixel resolution LED backlight • Software(optional) LandTour GIS field software LandTour office software for Kinematic Post‐processing ...
-
Page 8: Front Components
LT400 User Manual Chapter 3 Introductions of appearance and keyboard This chapter introduces you to the external appearance of your device. The design inspiration of LT400 series GIS data collector comes from the human body esthetics, its concept is “exquisite curve, completely grasping”. LT400's crown and base no longer use the partial half surrounding structure which will encapsulate(this kind of design only to destroy product overall modeling esthetic sense and fine feeling), and the similar products from home and abroad either have this kind of design. The knee bend design of crown breaks out the coordination in the GPS antenna's receive direction, lets the operator have very direct‐viewing impression, knows this to have the high accuracy GPS antenna's GIS product for the assembly. The overall modeling does not lose for the curve in resolutely, and conforms to the person of body engineering various part of compositions and functions as shown in Figure 3.1‐1 3.1 Front Components ... -
Page 9: Bottom Components
Tips: Combination key: In the power off mode, simultaneously press the power key and down direction key for 2 or 3 seconds to enter the system updating mode. 3.2 Bottom Components 1. [ Port of LEMO(7 pin)] Connect LT400 with computer via Port of LEMO and USB2.0, can realize the data transmission, the battery charging and GIS sampler power supply and so on. Shown in the Figure 3.2 2. [Logo] On Logo Lid, there is Log, it’s artistic, ... -
Page 10: Back View
LT400 User Manual 3.3 Back view Figure 3.3 1. Touch pen 2. Speaker 3. Camera 4. Belt 5. Battery cover Figure 3.3 3.4 insert SIM card and memory card Open back cover, take off the battery, you will see two slots; one is for SIM card and the other one for memory card. Please insert SIM card like Figure 3.4 ... -
Page 11: Chapter 4: Accessories Introduction
LT400 User Manual Chapter 4: Accessories introduction 4.1 LT400 data cable Figure 4.1 Connect LT400 with computer via LT400 data cable: insert the LEMO port to LT400 and insert USB2.0 port to computer. The connection can be used in the GIS data collector and computer synchronizes, sampler data transmission, battery charge and so on. Figure 4.1 ... -
Page 12: Chapter 5: Basic Operation
LT400 User Manual Chapter 5: basic operation This chapter familiarizes you with the basic operations of your device. 5.1 Use of touch pen LT400 series GIS data collector touch pen has a function the same as a personal computer's mouse, it can be used to move or select file. Click: Click the screen softly with a touch pen to select or choose a file, click is equivalent to choosing a file with the left mouse on a personal computer. Tap and hold: When tap and hold an option, a drop‐down ... -
Page 13: Align Screen
LT400 User Manual 5.3 Align screen In device unlocked mode, click [Start] → [Settings] → [System] → [screen], clicks Align Screen. Like show in Figure 5.3‐1~5.3‐2. Figure 5.3‐1 Figure 5.3‐2 5.4 Set date and time In device unlocked mode, click [Start] → [Settings] → [System] → [Clock & Alarms]. Like show in Figure 5.4‐1~5.4‐2. Figure 5.4‐2... -
Page 14: Battery Management And Charging
Open the options and follow the prompts to complete the operation. 5.5 Battery management and charging Battery management: LT400 GIS data collector is used 5400MAh lithium‐ion as battery, which can be removable. Under normal using, LT400 can work for 10 hours. To make the battery long time using, user can take the following measures: ... -
Page 15: Chapter 6: System Interface Description
LT400 User Manual Chapter 6: System Interface Description See the figure 6‐1 Open the "Start" menu. Connecting or set the connection. Adjust the volume. Show the collector current status information and battery information, set the time how long will it standby. The time setting, alarm setting and clock display position setting. The Bluetooth settings, show Bluetooth status. :Turn on/off GPS. Click here to set owner information. Figure 6‐1 E‐mail account setting. Click here to increase new duty. Set whether there is dating tips Unlock the screen. Lock the screen. [Calendar] Click to view the calendar. [Contact person] Click to enter the contact settings interface [Unlock] When the screen is locked, click the [Unlock] → [unlock], to release the lock on the device. ... -
Page 16: Chapter 7 Install Application Software
LT400 User Manual Chapter 7 Install application software The operation system of LT400 serials is window mobile, all software basic of Window mobile can install in this device. To using the internal GPS module, please install the LTSET tools, also you can try to install LandTour ( GIS collect HuaTuoSat software), other GIS software like Arcpad. The first step: before installing software, users need to ... - Page 17 LT400 User Manual Second step: install application software. HuaTuoSat After establishing the synchronized relations of collector and computer, copy software *.cab file to [my device], then turn to [Start] ‐> [File Explorer], in [my equipment] → [My Documents], double‐click the *.cab file of the software, you can install the software to the specified directory. ...
-
Page 18: Chapter 8: Main Function
LT400 User Manual Chapter 8: main function 8.1 GPRS connection ∙Setting up a Cellular (GPRS) Connection. take off the battery, insert the SIM card into the controller. Cellular (GPRS) is a long‐distance wireless data connection that is available through some mobile service operators. (Select models only). NOTE: You must subscribe to GPRS service with your mobile operator. You must obtain the settings (APN name) from your mobile ... - Page 19 LT400 User Manual 8.2 Builtin high accuracy specialized GPS module Start GPS Turn on LT400, tap the on the desktop, then go to the screen shown Figure 8.2‐1, Tap the menu to turn on and turn off the GPS, tap the to exit the software. Turn off and turn on GPS Tips: when GPS is open, it will increase power consumption. ...
- Page 20 Figure 8.2‐5 Log on CORS server, LT400 can work compatible with CORS system, by using the internal GPRS module which can get the different data from CORS sever. Show in Figure 8.2‐6, key in the CORS IP and port, click get source list, select the appropriate source list of RTD (RTD‐ Real Time pseudo range ...
-
Page 21: Memory Superiority
LT400 User Manual 8.3 Memory superiority The LT400 series provided two kinds of memory, flash memory (not to be easy to lose memory) and RAM (random access memory), both of them supply memory to application software and data. The flash memory is a type of constantly‐powered non‐volatile memory, when the battery is removed from controller or battery is low, the data storage in will not losing; ... -
Page 22: Chapter 9: Configuration List
LT400 User Manual Chapter 9: Configuration list Number Name Amount Notes Schematic 1 LT400 controller 1 Photo 11‐1 2 LT400 1 Photo 11‐2 data cable 3 2G TF storage 1 Photo 11‐3 11‐1 card 4 Touch pen 2 5 LT400 1 ... - Page 23 LT400 User Manual ： Chapter Troubleshooting and Maintenance This chapter gives solutions to common device problems you may encounter. • Touch screen not sensitive reaction Check the touch screen carefully, especially the edge of touch screen, if any small stone is blocked take it off. Do align screen. • System crashed. The controller is dead because of running lots of programs, please do software reset to solve the problem. LT400 only can do soft reset. The soft reset can not lead losing data. • Failure to dialing the GPRS network ...
- Page 24 LT400 User Manual Take the receiver in one open area, power on receiver. Start ‐>settings‐>System ‐>internal GPS, double‐clicks internal GPS, check the satellites Map/SNR and satellites state menu, whether the receiver the SBAS satellites.( For southeastern Asian Masas, Europe Egous ) ...
-
Page 25: Appendix A: Arcpad+Lt400
LT400 User Manual Appendix A: Arcpad+LT400 How to set LT400 GIS controller with Arc Pad software? 1. Active the internal GPS module of LT400. Appendix A‐2 ... - Page 26 LT400 User Manual 3. Copy the installation CAB file GPS Power to contoller, double click install the software. Appendix A‐5 4. Distribute communication port of internal GPS. GPS program port: if any software want to using GPS data, in the software there is the communication port, here you can select Com1 or COM7 GPS hardware port: the GPS hardware port, you must set as ...
- Page 27 LT400 User Manual 5. Run the Arc Pad software, set the communcation port with internal GPS module. Appendix A‐9 Appendix A‐10 6. Active GPS, and check the current postion. ...
