CS 7600 System Overview
Introduction
Note: The CS 7600 is intended for dental professionals. You are required
to have training to use the CS 7600.
CS 7600 is a scanner system for intraoral X-ray exposed imaging plates.
The CS 7600 is intended for digital dental radiography using an imaging plate (storage phosphor
plate) for radiographic diagnostic intraoral images. The CS 7600 system is used to scan and review
intraoral dental X-ray images. When scanning the X-ray exposed imaging plate a digital image is
previewed on the scanner's LCD and saved to the scanner's internal memory. After scanning, the
scanner erases the imaging plate and ejects it. The imaging plate is ready for re-use.
The exam acquisition's scanned image is sent over the network to the workstation's image Acquisition
interface. Using the image Acquisition interface the image is processed and reviewed.
The image Acquisition interface sends the images to the Kodak Dental Imaging Software, which
archives the acquired images.
The scanner connects directly to the network, or is connected peer-to-peer to the workstation.
The scanner can be optionally placed on a desk/counter top or mounted on a wall, using a special shelf
(adapter).
The system is composed of the following elements:
•

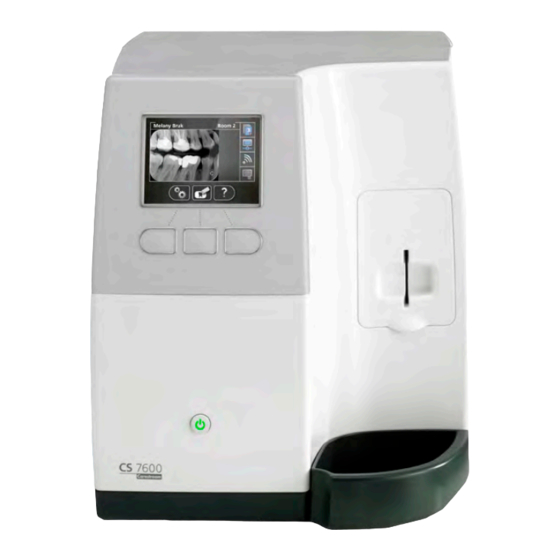

CS 7600 scanning device
•
Smart imaging plates
•
CS 7600 image Acquisition interface
•
Scan & Go device (optional,
Note: The scanner is supplied with a separate viewing and archiving
software package: Kodak Dental Imaging Software, approved by
Carestream Health.
Note: The CS 7600 User Guide is also provided as a PDF file on the
supplied CD-ROM.
(page 4)
(page 6)
(page
page 9)
11)
CS 7600_User Guide (8J4071)_Ed01 3
