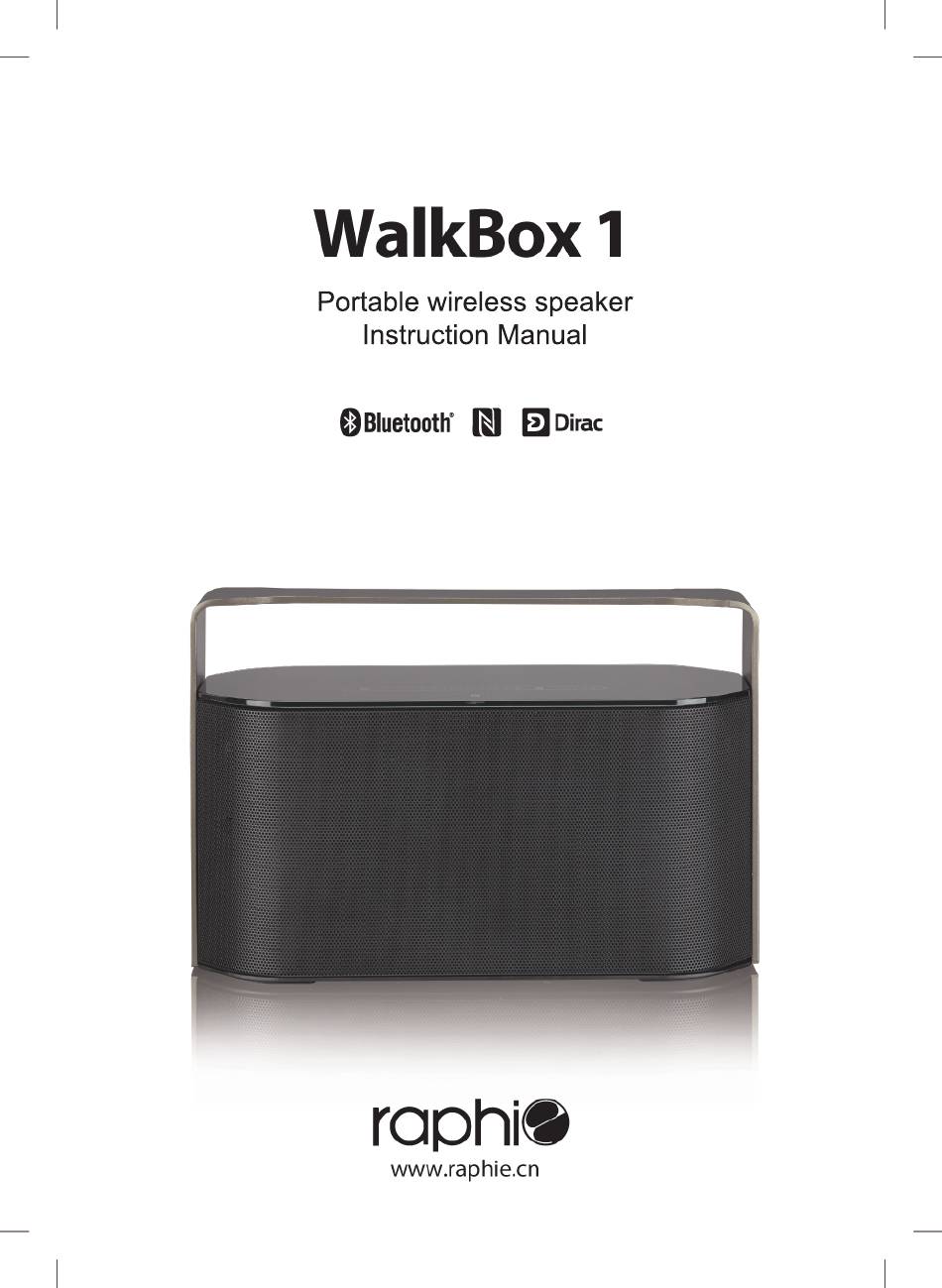

Summary of Contents for RAPHIE WalkBox 1
-
Page 2: Table Of Contents
Contents Safety Warnings ........................1 Caution ................................. 1 Explanation of Graphical Symbols ...................... 1 WARNINGS ..............................1 Battery Precautions ..........................2 Unpacking .......................... 3 Product Overview ....................... 4 Front View ..............................4 Bottom View ..............................4 Connections ......................... 5 Connecting to AC power ........................ -
Page 3: Safety Warnings
Safety Warnings Caution: To reduce the risk of electric shock, do not dismantle the product and do not expose the apparatus to rain or moisture. Nouser-serviceable parts inside. Refer servicing to quali ed personnel only. Explanation of Graphical Symbols: The lightning ash within an equilateral triangle is intended to alert you to the presence of uninsulated dangerous voltage within the product's enclosure that may be of su cient magnitude to constitute an electric shock to a person or persons. -
Page 4: Battery Precautions
Do not dismantle, open, or shred the battery. The battery is intended to be used only with the RAPHIE product and the power supply provided, or RAPHIE power supply or charger designed for use with this product. -
Page 5: Unpacking
UnPacking Open the packing,the following items are included: (if any item appears to be damaged, do not attempt to use it. Contact your authorized dealer immediately for help.) O w n e r’ s G u id e Main Unit Owner’s Guide 3.5mm to 3.5mm AC Power Supply Cable... -
Page 6: Product Overview
Product Overview · Front View 1. LINE IN Socket 5. Volume +/– Buttons Connects to an external audio device. Press + to increase the volume. Press – to decrease the volume. 2. USB FOR CHARGING ONLY 5V Slide from – to + to increase the volume. Charging Port Slide from + to –... -
Page 7: Connections
Connections Connecting to AC (Mains) Power • This unit is designed to operate with an AC power supply or with the built-in battery. • Connecting the unit to any other power source may cause damage to the unit. Connect the AC Power cable to the AC Power Supply, and then connect the other end of the AC Power Supply,to the POWER INPUT 13.5V 3.5A Socket of... -
Page 8: Aux Connection
AUX Connection Use a 3.5mm to RCA stereo audio cable to connect the audio device’s audio output sockets to the unit’s LINE IN Socket. Audio device To the LINE IN Socket Audio out 3.5mm to RCA White stereo audio cable (not included) Use a 3.5mm to 3.5mm stereo audio cable to connect the mobile device’s headphone socket to the unit’s LINE IN socket. -
Page 9: General Operation
General Operation · Power ON/OFF • Press for about 3 seconds to switch on the unit. The button will light up. • Press for about 3 seconds to switch the unit back to Standby mode. The button will • POWER ON/OFF SWITCH to OFF position and unplug the mains plug from the AC (mains ) outlet. -
Page 10: Nfc Operation
NFC Operation NFC is a one touching way of pairing your Bluetooth device via NFC to your speaker. 1. Activate NFC on your mobile device. 2. Place the NFC sensor area on the device close to the unit’s NFC sensor area (it will work best within 10 mm) to connect your device to the unit. -
Page 11: Technical Information
Technical information Model: WalkBox 1 Power Supply: AC 100V–240V ~50/60 Hz Power Consumption: 56 W ECO Standby Power Consumption: < 0.5 W Output Power: 5W x 2 +10W USB Power: 5V/1A Feature Connectivity: USB FOR CHARGING ONLY 5V/1A Charging Port x 1, AUX LINE IN... - Page 12 And any use of such marks by raphie is under license. To the maximum extent permitted by applicable law, under no circumstances shall raphie or any of its licensors be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused.
