ShowLed CONBOX Quick Start Manual

Hide thumbs Also See for CONBOX:

Advertisement

Quick Links

Download this manual See also: Manual
CONBOX QUICK GUIDE

Advertisement

loading
Need help?

Need help?

Do you have a question about the CONBOX and is the answer not in the manual?

Questions and answers

Related Manuals for ShowLed CONBOX

Summary of Contents for ShowLed CONBOX

  • Page 1 CONBOX QUICK GUIDE...

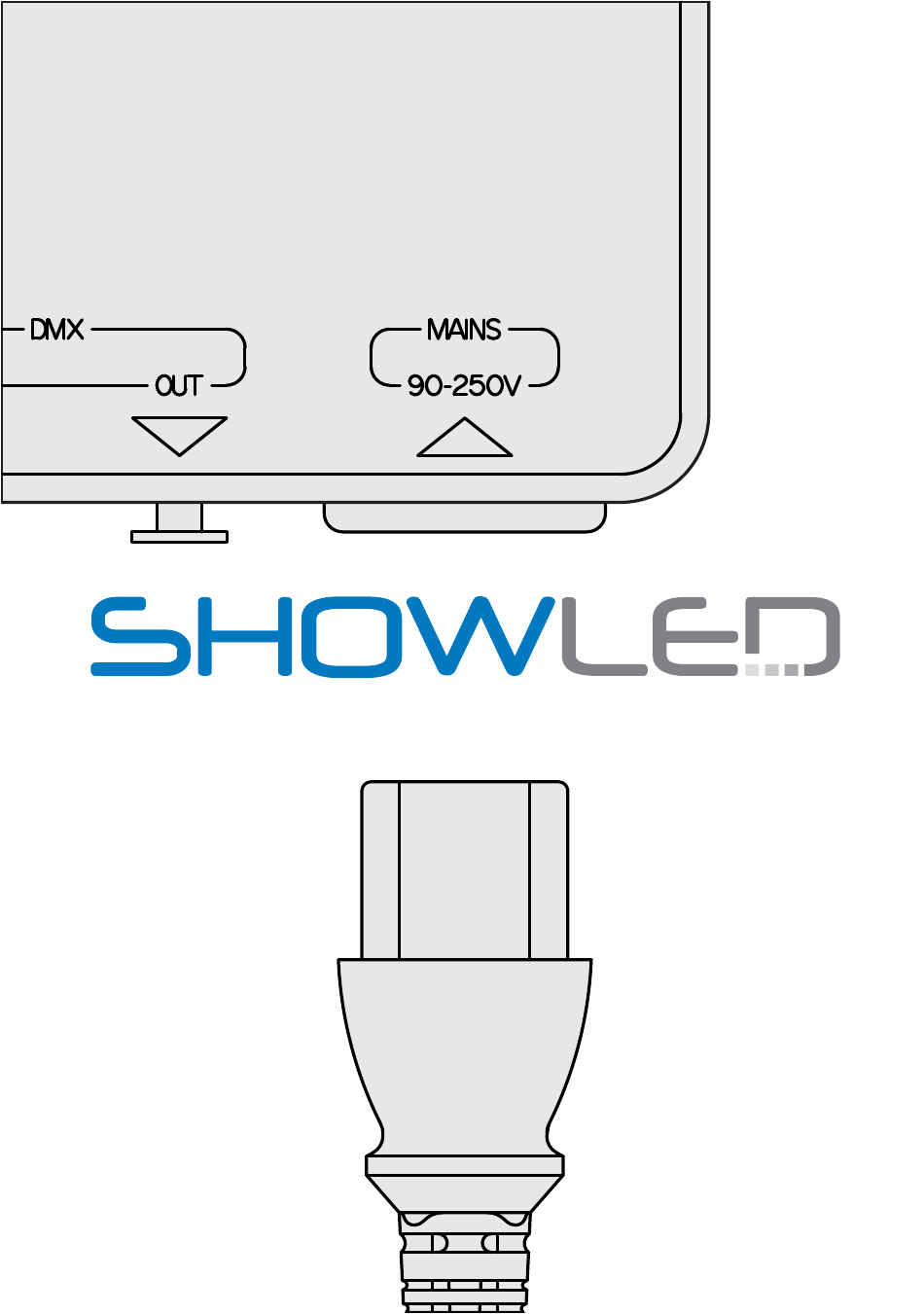

  • Page 2 CONBOX POWER CORD DMX 10M SPARE LEDS...
  • Page 3 CONBOX YOUR STORAGE CASE CHECK YOUR CURT AIN...
  • Page 4 POWER INDICATOR MENU BUTTONS DMX-IN DMX-OUT POWER INPUT...
  • Page 5 LCD SCREEN PREVIEW LEDS 16 CONNECTORS 8 channels 2 per channel...
  • Page 6 AIR VENTS diagonal airflow DO NOT COVER SD CARD SLOT firmware updates...
  • Page 8 [ü] POWER INDICATOR - ON WWW.SHOWLED.COM [ü] WWW.SHOWLED.COM CHv1.1...
  • Page 9 DEVICE FUNCTION WWW.SHOWLED.COM PRESS  +‚ CHv1.1 Select CLASSIC OUTPUT CHAMELEON OUTPUT Select Select CLASSIC CHAMELEON orange plug grey plug 16 16 16 16 16 16 64 LEDS MAX 32 LEDS MAX PER CHANNEL PER CHANNEL...
  • Page 10 CLASSIC CHAMELEON on = blue copies the RGB WWW.SHOW WWW.SHOW CLv1.1 CHv1.1...
  • Page 11 MASTER SLAVE SLAVE...
  • Page 12 CLASSIC CLASSIC CONTROLLER CONBOX CHAMELEON CHAMELEON CONTROLLER CONBOX...
  • Page 13 press PRESS ONCE press PRESS ONCE press HOLD ~ +€1 SEC...
  • Page 14 EXIT select EXIT SETTINGS MENU PATTERN TYPE select 1 2 3 4 5 6 7 S PATT.BEHAVIOUR select s of t h a rd CHASE SPEED select MIN.INTENSITY select MAX.INTENSITY select...
  • Page 15 NUMBER OF COLOURS select 1 2 3 4 4R 3R 2R CH COLOUR 1 select COLOUR 2 select COLOUR 3 select COLOUR 4 select NOTE: DMX channel arrangement for 10/5 & 10/5SYNC is the same as this parameter description.
  • Page 16 DMX 24/8 DMX 10/5 DMX 10/5SYNC set DMX base...
  • Page 17 DMX 24/8 select required DMX channels 24 for chameleon / 8 for classic DMX 10/5 select required DMX channels 10 for chameleon / 5 for classic DMX 10/5SYNC select same as above but ‘sync’ helps to synchronise all your controllers set DMX base select set DMX base address...
  • Page 18 RETURN TO FACTORY SETTINGS PRESS ~ +€ 4 SEC...
  • Page 19 CLASSIC OUTPUT CHAMELEON OUTPUT Select Select WWW.SHOWLED.COM WWW.SHOWLED.COM CLv1.1 CHv1.1 MicroSD detected Update firmware updating to v1.2 DO NOT TURN OFF WWW.SHOWLED.COM WWW.SHOWLED.COM CLv1.2 CHv1.2...
