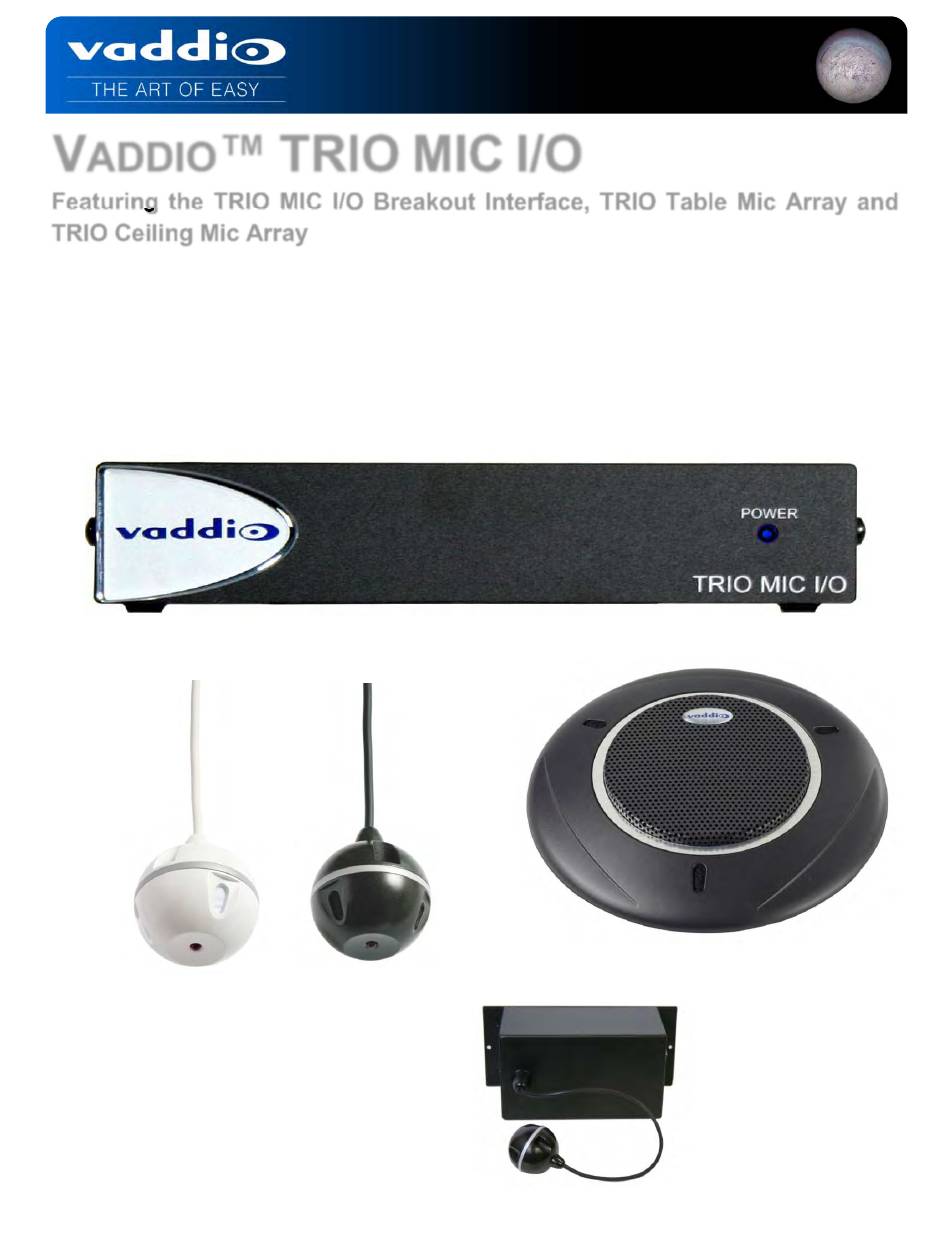

V
™ TRIO MIC I/O
ADDIO
Featuring the TRIO MIC I/O Breakout Interface, TRIO Table Mic Array and
TRIO Ceiling Mic Array
Part Numbers:
999-8535-000: TRIO Mic I/O (North America)
999-8535-001: TRIO Mic I/O (International)
Microphones:
999-8850-000: TRIO Table Mic Array (Worldwide)
999-8860-000: TRIO Ceiling Mic Array - White Version (Worldwide)
999-8865-001: TRIO Ceiling Mic Array - Black Version (Worldwide)
TRIO Mic I/O
TRIO Ceiling Mic Arrays
© 2013 Vaddio - All Rights Reserved. Vaddio TRIO MIC I/O and TRIO Mic Arrays - Document Number 342-0568 Rev A
TRIO Ceiling Mic Array
and Electronics Module
(shown with black mic
and cable)
Installation and User Guide
TRIO Table Microphone Array
Advertisement
Table of Contents
Related Manuals for VADDIO TRIO MIC I/O
Summary of Contents for VADDIO TRIO MIC I/O
- Page 1 TRIO Ceiling Mic Arrays TRIO Table Microphone Array TRIO Ceiling Mic Array and Electronics Module (shown with black mic and cable) © 2013 Vaddio - All Rights Reserved. Vaddio TRIO MIC I/O and TRIO Mic Arrays - Document Number 342-0568 Rev A...
- Page 2 TRIO I/O and TRIO Mic Solutions Inside Front Cover - Blank Vaddio TRIO MIC Solutions - Document Number 342-0568 Rev A Page 2 of 16...
-
Page 3: Table Of Contents
Diagram: TRIO Ceiling Mic Interface Module ....................8 Diagram: TRIO Ceiling Mic Array Head ......................9 TRIO MIC I/O System Configuration and Programming ................... 9 Diagram: Professional Audio Mixer Connection Diagram with TRIO Mic I/O ..........10 Step-by-Step Installation Instructions ........................11 TRIO Mic I/O Installation:............................. 11 Diagram: Basic System Connections ...................... -
Page 4: Overview
A single AEC Reference input is connected to the TRIO Mic I/O from the room mixer to complete the installation for echo cancelling microphones. -
Page 5: Unpacking
Bundle C - 999-8820-000/001: TRIO I/O and two (2) Table Mic Arrays (001 suffix for Int’l) Bundle D - 999-8830-000/001: TRIO I/O and four (4) Table Mic Arrays (001 suffix for Int’l) Vaddio TRIO MIC Solutions - Document Number 342-0568 Rev A Page 5 of 16... -
Page 6: Equipment Descriptions And Call-Outs
TRIO MIC I/O Interface The TRIO Mic I/O is an audio breakout interface for the TRIO Microphones. The interface provides power and audio over Cat-5 to the TRIO MIC and terminates into a balanced line level audio source for connection to a room’s audio mixer. -
Page 7: Trio Table Mic Array
➌ 1) Mic Port: RJ-45 Connection port that is home ran to the TRIO MIC I/O Interface via up to 100’ (30.48m) of Cat-5 cable. 2) Cable Management: A channel with cable tabs is for routing Cat-5 cable from the mic while allowing the mic to sit flat on any surface. -
Page 8: Trio Ceiling Mic Array
A second RJ-45 jack is located on the processing board internal to the Ceiling Interface Module. This is the TRIO Mic Port for connection of the device to the TRIO MIC I/O via a standard Cat- 5 cable. The cable exits the Ceiling Interface Module via a standard conduit connector. -
Page 9: Diagram: Trio Ceiling Mic Array Head
@ +6dBu. AEC Reference Audio Level: The AEC Reference output level from the audio mixer going to the TRIO MIC I/O should be set at a nominal level @0dBu. An extremely low level AEC Reference (<-20dBu) could impact the AEC performance it the TRIO mic arrays. -
Page 10: Diagram: Professional Audio Mixer Connection Diagram With Trio Mic I/O
Diagram: Professional Audio Mixer Connection Diagram with TRIO Mic I/O The diagram below depicts a typical deployment of the TRIO MIC I/O with a professional audio mixer in a conference room application. TRIO mic arrays are connected to the TRIO MIC I/O interface. The TRIO MIC I/O outputs are connected to the input channels of the professional audio mixer. -
Page 11: Step-By-Step Installation Instructions
Rack Mounting Kit: The rack kit provides a method for the TRIO Mic I/O to be installed in a 1RU space within a rack. The Rack Kit includes two rack ears (one long and one short). The rack ears are mounted on the sides of the TRIO Mic I/O using the existing screws included on the device. -
Page 12: Trio Table And Ceiling Mic Array Installation
1.5” white plastic trim ring and the ceiling tile. 6) Route Cat-5’s RJ-45 connector originating from the TRIO MIC I/O through the conduit coupler on the end of the Ceiling Interface Module. Connect the Cat-5 cable to the internal connector labeled OUT TO MIXER. -
Page 13: Warranty Information
Vaddio Customer Service: Vaddio will test, repair, or replace the product or products without charge if the unit is under warranty and is found to be defective. If the product is out of warranty, Vaddio will test then repair the product or products. The cost of parts and labor charge will be estimated by a technician and confirmed by the customer prior to repair. -
Page 14: Compliance And Ce Declaration Of Conformity
Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment. ICES-003 Compliance... -
Page 15: Technical Specifications
TRIO Mic I/O: 1.42 lbs. (.65kg) TRIO Ceiling Microphone: 0.113 lbs. (.051 kg) TRIO Table Microphone: 0.472 labs (0.214 kg) Accessories Rack Mount Kit for TRIO MIC I/O 998-6000-004 - Offset mount with Long and Short Ear 1: C PPENDIX ONNECTORS... - Page 16 ©2013 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing are subject to change without notice or obligation. Vaddio is a trademark of Vaddio. All other trademarks are property of their respective owners.
