Summary of Contents for Somle Boxer series

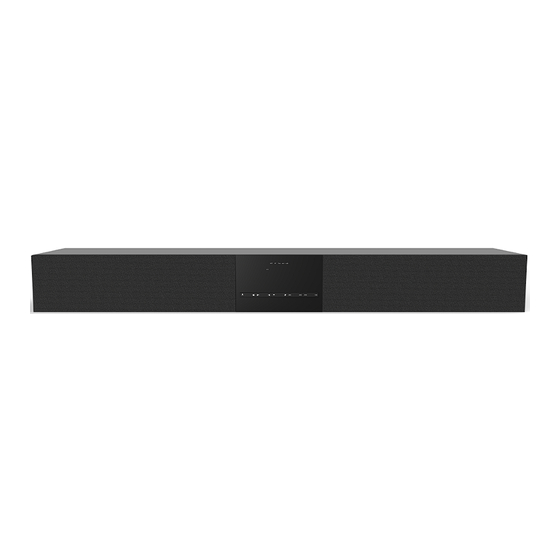

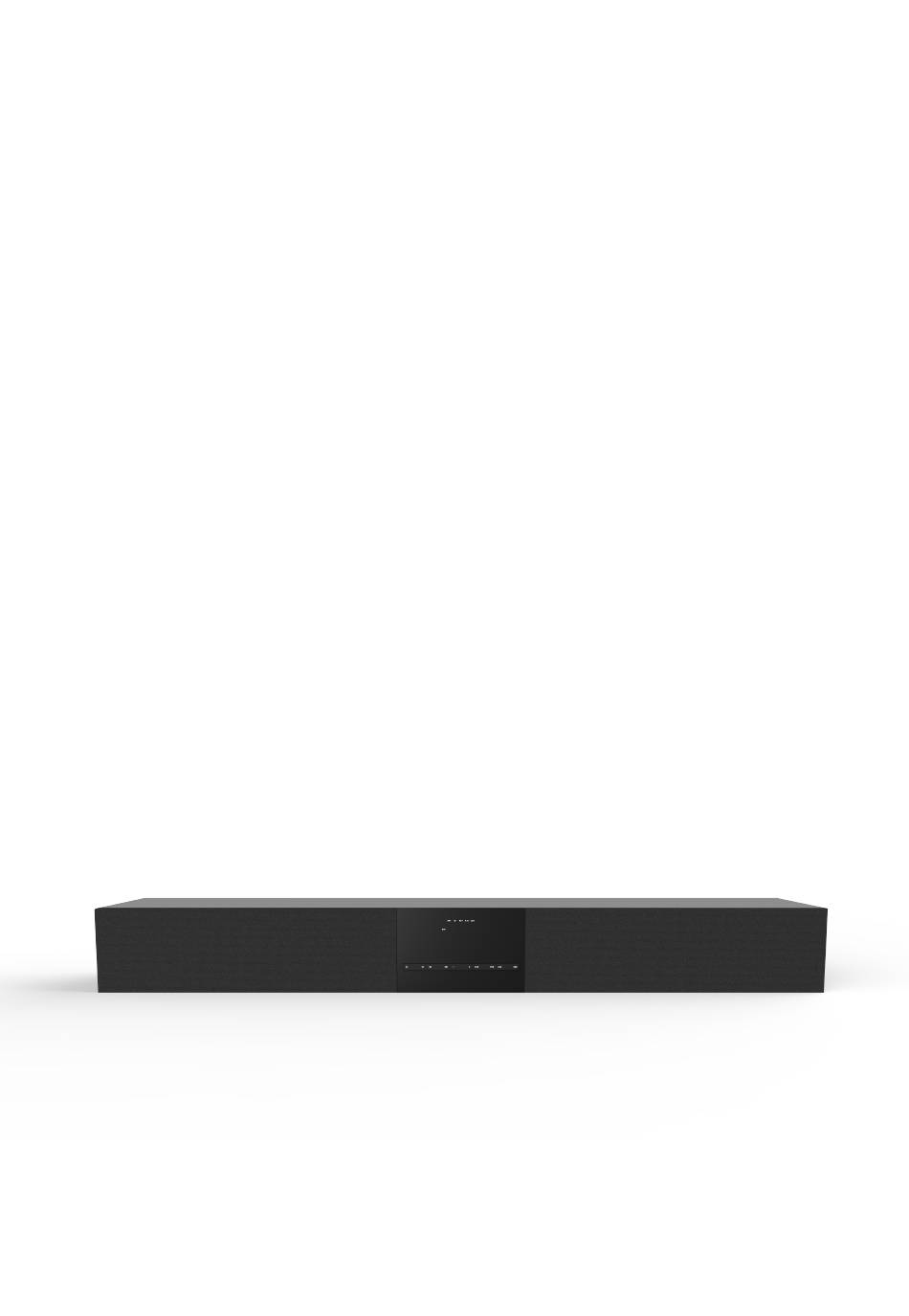

- Page 1 Boxer series B1027 / B1197 / B1397 User manual...
-
Page 2: Table Of Contents
Contents Important Notice Safety Your Home Audio Introduction What’s in the box Overview of the main unit Overview of the remote control Get started Prepare the remote control Connect power Turn on Connect audio cable to the TV Connect audio cable to the Sound system Other Connections ECO , Standby mode Product information... -
Page 3: Notice
Important Notice Know these signs To reduce the risk of fire or electric shock,do not expose WARNING: this product to smoke,rain,dust or moisture! CAUTION/ATTENTION RISK OF ELECTRIC SHOCK,DO NOT OPEN THE COVER RISQUE D’ELECTROCUTION,NE PAS OUVRIR. WARNING : SHOCKHAZARD . DO NOT OPEN AVIS: RISQUE DE CHOCELECTRIQUE<... -
Page 4: Safety
Safety Important Safety Instructions ■ Read these instructions. ■ Keep these instructions. ■ Heed all warnings. ■ Follow all instructions. ■ Do not use this apparatus near water. ■ Clean only with dry cloth. ■ Do not block any ventilation openings. Install in accordance with the manufacture’s instructions. - Page 5 ■ Do not defeat the safety purpose of the polarized or grounding plug. A polarized plug has two blades with one wider than the other. A grounding plug has two blades and a third grounding prong. The wide blasde or the third prong is provided for your safety.
- Page 6 ■ Do not install the product in an area with heavy dust or high humidity. Operating the product in such environment may cause fire or electric shock. Hold the power connector when removing the power cable . Pulling the power cable ■...
- Page 7 Compliance Statements NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to in a particular installation.
-
Page 8: Your Home Audio
Your Home Audio Introduction With this unit, you can enjoy audio fromTV/DVD/MP3/U-DISK or mobile device with Bluetooth . What’s in the box TV sound system Remote Optical digital Power cord* audio cable *The appropriate power cord(s) for your region is supplied Overview of the main unit... - Page 9 Screen 【Start / Pause】 【Standby 】 【Previous track】 【Next track】 【Decrease the volume】 【Increase the volume】 mode】 【Audio 【DTS sound】 【USB jack】 【AUX-in jack】 【Turn on/off the unit】 【AC Power Cord Input Jack】 100-240V~50-60Hz 90W 【Optical input】 OPT IN 【RCA signal input L/R】 RCA IN...
-
Page 10: Overview Of The Remote Control
Overview of the remote control 【Mute mode】 【Standby-On】 【Reset the unit】 【DTS sound】 【Adjust subwoofer volume】 sound】 【Normal 【Adjust treble volume】 sound】 JAZZ 【Jazz sound】 【Pop 【Start / Pause】 【Previous/Next track Long press:Fast forward / Fast backward (for USB mode only)】... -
Page 11: Get Started
Get started Prepare the remote control ！ Risk of explosion! Keep the batteries away from heat, sunshine and fire. Never discard batteries into fire. Power cord* *The appropriate power cord(s) for your region is supplied Connect power ！ Risk of product damage! Ensure that the power supply voltage corresponds to the voltage printed on the bottom of the unit. -
Page 12: Connect Audio Cable To The Tv
Connect audio cable to the TV Most TVs today have multiple types of audio outputs. Please use high-quality optical to get the best audio performance. OPTICAL Optical digital audio (recommended) • A digital audio output that passes digital data in the form of pulsating light through a fiber optic cable. -
Page 13: Other Connections
Other Connections Play music by connecting mobile phones, laptops and other mobile devices to the audio via AUX cable,you can also connect USB directly to play songs. U-disk AUX cable Mobile devices such as mobile phones, laptops, etc. can be directly connected via Bluetooth, convenient and quick. -
Page 14: Product Information
Product information Specifications Amplifier Rated Output Power 64W RMS Left + Right: 32W RMS Subwooder: 32W RMS Frequency Response 50Hz-20KHz，±3dB ≥80dB Signal to Noise Ratio Speakers Speaker Impedance 2×4ohm+8ohm（B1027） 2×4ohm+8ohm（B1197） 2x4ohm+2x8ohm（B1397） Speaker Driver 2.75”Full range +4”Subwoofer（B1027） 2.75”Full range +4”Subwoofer（B1197） 2.75”Full range +2x4”Subwoofer（B1397） General information AC Power 100-240V~50-60Hz... -
Page 15: Troubleshooting
Troubleshooting No sound • Make sure the sound system is turned on and the power indicator is on . • Make sure the sound system is not muted. • Increase the volume. • Make sure the audio cable connection is correct and secure on the sound system and the TV. •... - Page 16 Printed in China...
