Summary of Contents for CKY CK128

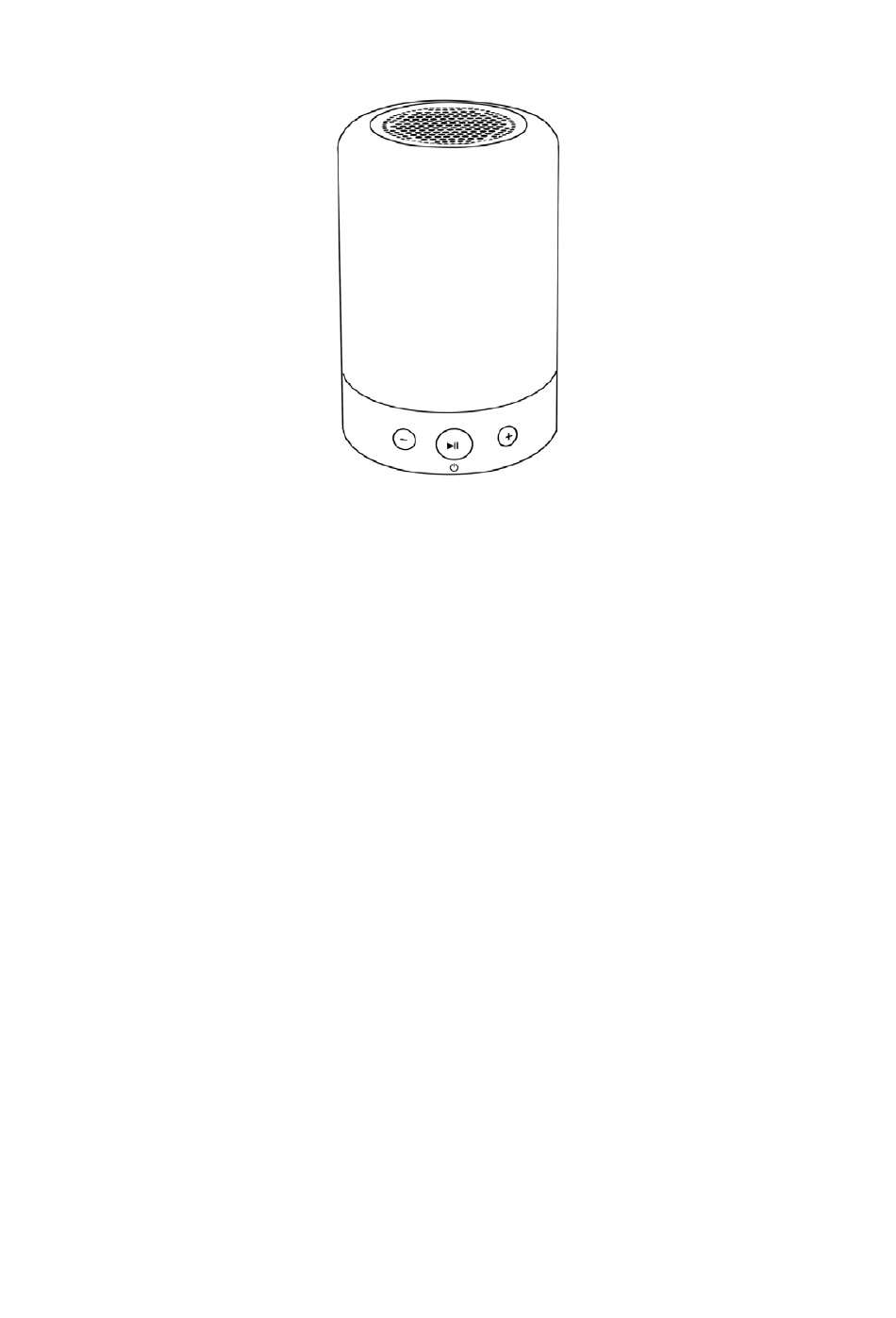

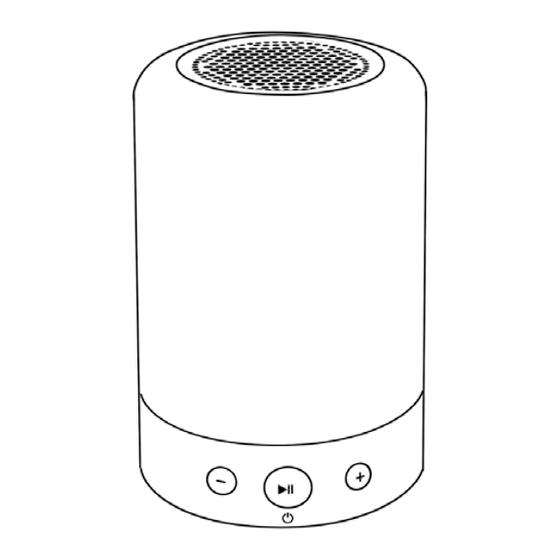

- Page 1 CK128 User Manual Picture is for reference only ...
-
Page 2: Dear Customer
Dear Customer Thank you for your excellent choice of CK128 music lamp. Please read instructions carefully before operating this Bluetooth speaker in order to bring it into full play. Unpack the box, please make sure you get following product and accessories: 1* Music Lamp, 1* Micro USB Charging Cable, 1* User Manual. Please keep user manual properly for further reference. Product Introduction Adopting digital signal processing technique, CK128 is an advanced and portable wireless music lamp for Bluetooth play, TF/SD card, external audio input and amplification, compatible with most Bluetooth enabled devices and applicable to indoor entertainment and outdoor activities. Attentions For better performance maintaining, please keep this speaker away from following conditions: ● Damp or underwater conditions ● High‐temperature conditions ● Direct‐sun exposure conditions ● Easy fall off conditions Warnings Please keep it away from water and damp. Please make sure it is charged with specified voltage to avoid fire or electric shock hazards. Power Supply Powered by the built‐in 3.7V lithium battery. Please fully charge the speaker 3~5hrs before first time use and make sure to charge this speaker once a month due to its 3.7V self power consuming lithium battery. It takes about 3hrs to be ... - Page 3 fully charged with a standard micro USB cable (DV 5V) if this speaker run out of juice completely. This speaker could be charged any time in any mode, however, playing music while charging would greatly lower charging efficiency which is not recommended since there would be a relatively huge current consumption. Please make sure this speaker is fully charged and do please remember to unplug micro USB charging cable before music playing. Charging Alert Speaker beeps the first time indicating less than 10% battery jucie during music mode; Speaker beeps several times during music mode and power off automatically, do please to re‐charge it. Diagram ...
-
Page 4: Bluetooth Mode
: Long press to power on/off; short press to pause/play/answer/end a call (Indicator flashes in blue when music is on; in steady red when charging) 4. : Next track/Volume+ 5. Microphone 6. TF/SD Card Slot 7. USB Port 8. Single Cycle 9. Mode Switch 10. Timer 11. Eyelet for string 12. Reset Bluetooth Mode Turn on the speaker to enter into Bluetooth mode automatically (if not, switch mode by pressing “mode” button). ● Indicator flashes fast in blue and voice prompts, waiting for device connecting ● Turn on Bluetooth on your device ● Pair with “CK128” (If it’s already paired with your device, it will reconnect automatically) ● Voice prompts “Bluetooth Connected” and indictor goes on in blue steadily Hands‐free Mode When this speaker is connected your phone and, it rings for a coming call. ● to answer incoming phone calls in Touch metal ring or short press Bluetooth mode ● to hang up and back to music playing Touch metal ring or short press ● Reminder: To reject a call couldn’t be operated by the speaker ... -
Page 5: Timer Instruction
TF Card Mode ∕ Power on and insert TF SD card , the speaker would read and play music inside automatically (supports MP3, WMA and WVA format). TF Card Music Download Insert TF card and connect the speaker with your PC by USB cable to download music directly from the internet. FM Mode ● Switch to FM mode by pressing “Mode” button ● Voice prompts “TF card mode” ● to search for radio stations and press again to Under TF card mode, press end it ● Indicator flashes fast during station searching ● Selected radio station would be saved automatically Lamp Instruction Speaker power on, finger touch or palm pat the metal ring to turn on the light. Touch repeatedly to sequentially shift to dim white light, low white light, medium white light, high white light, red light, blue light, green light, alternating light (pause a color by pressing it); press again to run the circle again. Press the metal ring for 3s to turn off light. Timer Instruction Press the “timer” button to shift between 10mins, 20mins, 30mins, 60mins, 90mins and 120mins timing. Both lamp and speaker turn off automatically after set time. Press the “timer” button for 3s to cancel timing. Technical Parameters ... -
Page 6: Troubleshooting
Battery Capacity: 3.7V, 2000mAh Charging Time: 3‐3.5H Driver Diameter: φ52*32mm Speaker Power: 4Ω, 4W Frequency Response: 70HZ‐20KHZ Bluetooth Version: V2.1+EDR Distortion: 0.5% SNR: 65db Main Material: ABS/PP, stainless steel Product Dimensions: 86*86*121mm Weight: 350g Light Power: 1.2W Troubleshooting Situation Solution Bluetooth failed to connect Make sure it is disconnected with previous device since it would auto‐connect to the last connected device. Please search and connect speaker with new device. Low or no volume A: This speaker is designed with low output volume． B: Make sure you’ve turned up volume of both devices and this speaker. Poor Bluetooth connection Make ... - Page 7 Indicator light is off during Low battery and please to charge music playing Failed to connect with two It could not pair with two devices devices simultaneously. Please disconnect with the first device and turn off the Bluetooth function of the first device. To pair and connect with the second device, please turn on the Bluetooth of the second device to pair with this speaker. No audio output from TF/SD A: Check the volume and the play/pause button. card ...
- Page 8 Company Information Vomaxtech Limited is an energetic startup, established by the returnee from Chicago along with a group of like‐minded comrades. We focus on the best customer experience and creating an exclusive product world for them. Here, we have a powerful Statistics Analysis team dedicated to market research to ensure every product suit customers’ usage habits and aesthetic standard best. The distinctive R &D team makes every product more energetic to guarantee customers a perfect experience. Besides, the strict QC system and the most intimate service team are ready here to serve you in every detail whenever you need. ...
- Page 9 Warning： changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐ Reorient or relocate the receiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐ Connect the equipment into an outlet on a circuit different ...
- Page 10 from that to which the receiver is connected. ‐‐ Consult the dealer or an experienced radio/TV technician for help. NOTE: This device and its antenna(s) must not be co‐located or operation in conjunction with any other antenna or transmitter. ...
