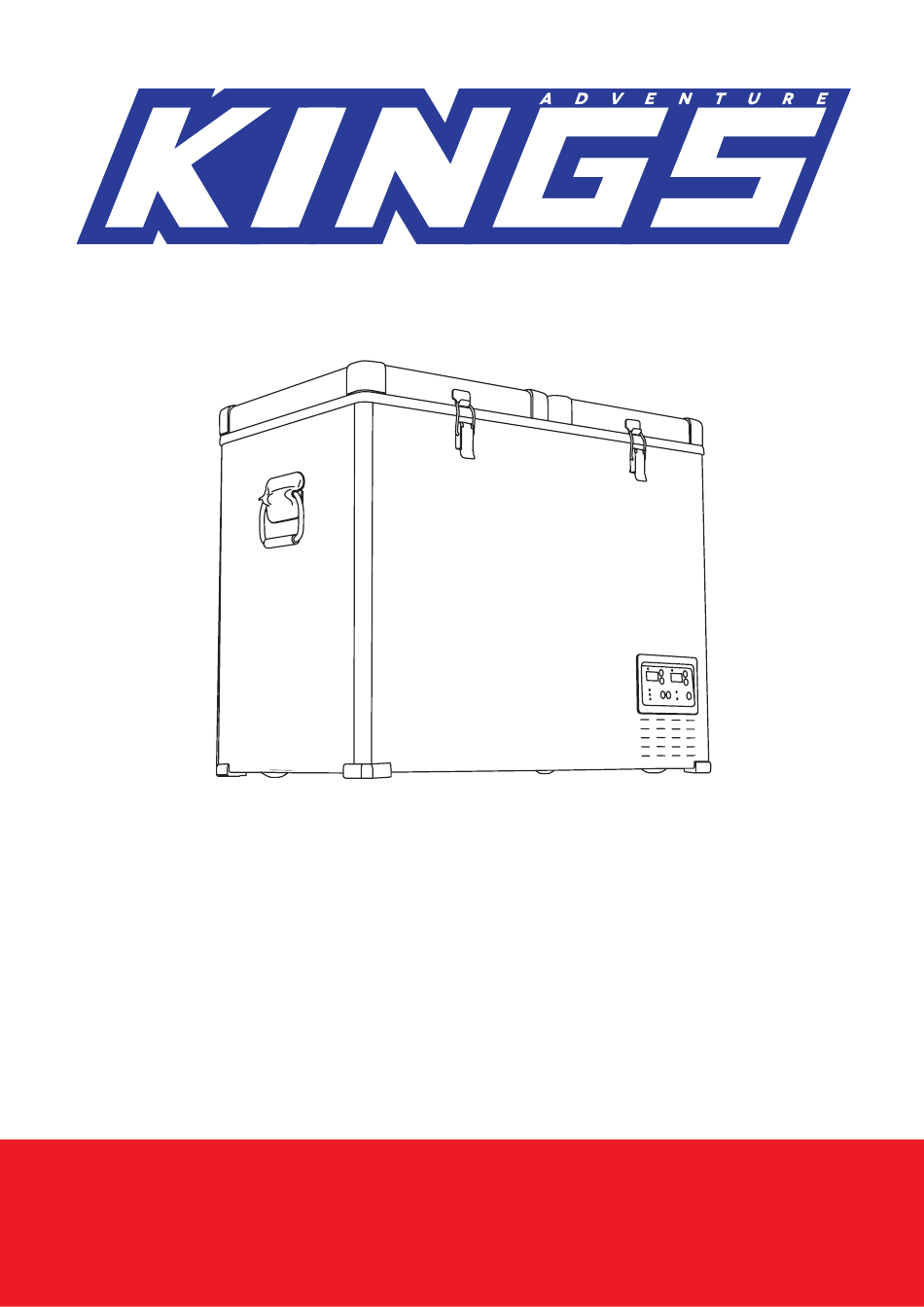

Page 1: User Manual
65L Dual Zone Fridge USER MANUAL PLEASE READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE USE. -
Page 2: Safety Instructions
Before you throw away your old refrigerator or freezer: • Take off the doors • Leave the shelves in place so that children may not easily climb inside. FOR SAFE DISPOSAL: Dispose of appliance at a suitable resource and recovery centre. Adventure Kings 65L Fridge... - Page 3 OVERVIEW 1. Lid Latches 2. Control Panel 3. Carry Handle 4. Power Input Panel 5. 12V/24V DC Power Cable 6. 240V AC Power Cable Dual Zone (YCD65) Adventure Kings 65L Fridge...
-
Page 4: Installation
DC supply as over distance the voltage can decrease if the incorrect sized cable is being used. DISTANCE CABLE GAUGE FOR DC INPUT 4.5m or less 2.1mm² (AWG14) 4.6m and over 3.3mm² (AWG12) Adventure Kings 65L Fridge... -
Page 5: Battery Monitor
Input Power: 24V 9.6V /OFF 21.3V /OFF 1.6K 10.4V /ON 22.7V /ON Battery 10.1V /OFF 22.3V /OFF Protection 4.7K 11.4V /ON 22.7V /ON 11.1V /OFF 24.3V /OFF HIGH 12.4V /ON 25.7V /ON DUAL ZONE CONTROL PANEL Adventure Kings 65L Fridge... -
Page 6: Starting And Operating
The power inlet socket is fitted with a 15A fuse for protection. Plug the 240V connection cable into the AC voltage socket on the rear and then connect to a suitable 240V AC voltage. Adventure Kings 65L Fridge... -
Page 7: Temperature Controller
Once selected the display will flash a number of times before returning to the current temperature. NOTE: The left side can only be set to an equal or higher temperature of the right side Adventure Kings 65L Fridge... -
Page 8: Energy Saving Tips
Children should be supervised to ensure that they do not play with the appliance. Adventure Kings 65L Fridge... -
Page 9: Using Solar Panels
DC output of the generator connect this to the battery to recharge it. It is important that you monitor the battery being charged, ensuring that an oversupply of charge is not being provided. Connection must be via the battery. Example of a DC set-up: Fridge Generator Solar Panel Battery Adventure Kings 65L Fridge... -
Page 10: Tips & Suggestions
You must remember that when a vehicle is parked in the sun on a day where the ambient tem- perature is +30°C, the interior of the vehicle can reach +55°C. Adventure Kings 65L Fridge... -
Page 11: Maintenance
The power cable must only be replaced by a qualified technical personnel and/or by an assistance body authorised by the Manufacturer. 4WD Supacentre will not assume any responsibility in the instance where the instructions in this present manual are not fully respected. Keep out of reach of children. Adventure Kings 65L Fridge... -
Page 12: Warranty
TO MAKE A CLAIM, PLEASE ENSURE YOU RETAIN YOUR SALES RECEIPT OF PURCHASE 1800 88 39 64 OUTDOOR SUPACENTRE PTY LTD 2 Stanley St Silverwater NSW, 2128 PHONE: 1800 88 39 64 www.4wdsupacentre.com.au Adventure Kings 65L Fridge...
