Installation Instructions
100A Series Low Power FM Antenna
Types 100A-1M, 100A-2F, 100A-2F-HW
Notice
The installation, maintenance, or removal of antenna systems requires qualified, experienced personnel.
ERI installation instructions are written for such personnel. Antenna systems should be inspected once a
year by qualified personnel to verify proper installation, maintenance, and condition of equipment. ERI
disclaims any liability or responsibility for the results of improper installation practices.
READ THE INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY
Preparation
Before beginning the assembly and installation of
the 100A Series antenna system, make sure all parts
are present.
Tools Required (not included):
•
5/32 Inch Allen wrench
•
9/16 Inch Open-end wrench
•
Adjustable wrench (15/16 Inch Capacity)
•
Ruler or Tape Measure accurate to 1/16 inch (0.15
cm)
NOTE: A torque wrench adaptable to tools
mentioned above will be helpful in the installation
process.

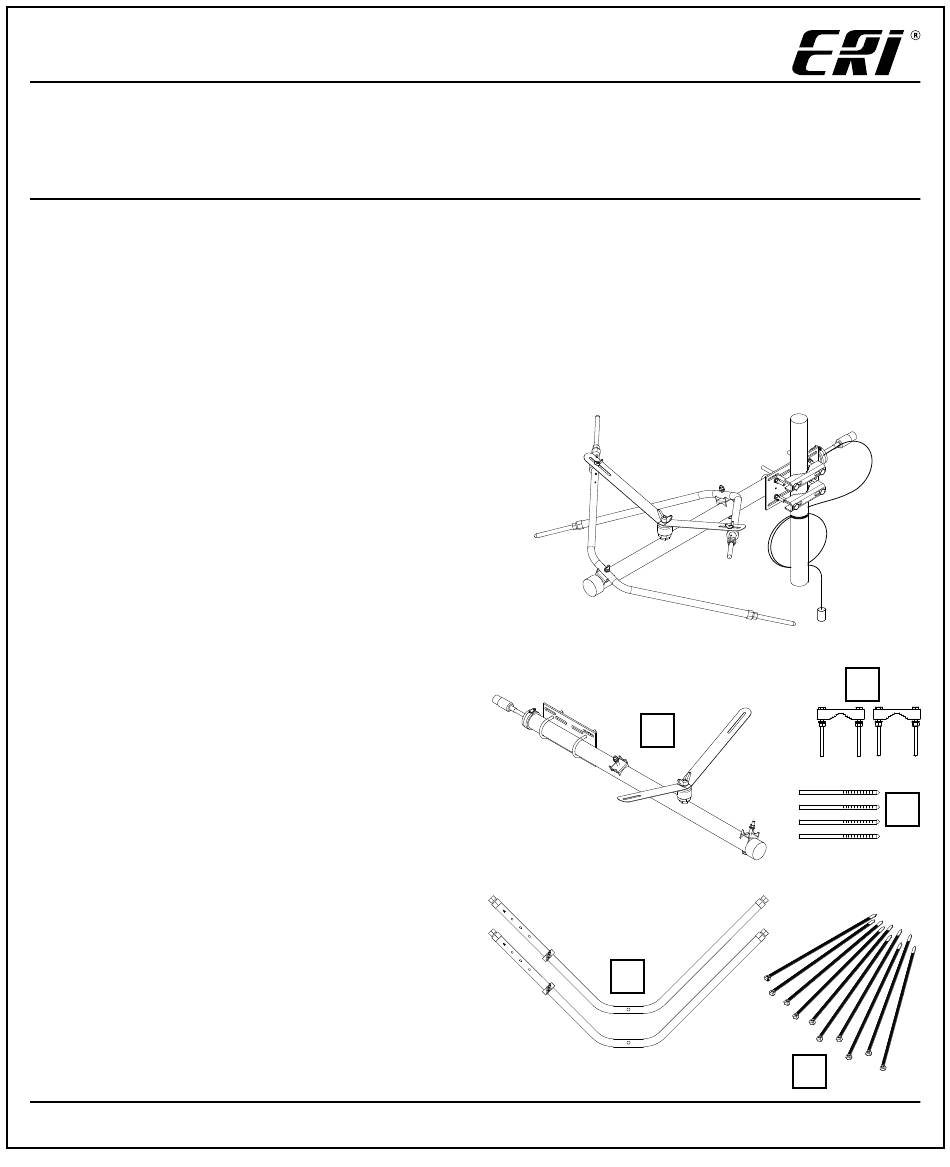

Parts*
1.
Element Boom Assembly (qty 1)
2.
Element Arm Assembly (qty 2)
3.
Arm Extender Kit (qty 4)
4.
Universal Mounting Clamps (qty 2)
5.
Cable Ties (qty 10)
* The parts listed are for the 100A-1M. For type numbers 100A-2F
and 100A-2F-HW, an additional 100A element (as described
above) and a PD100A power divider are included.
