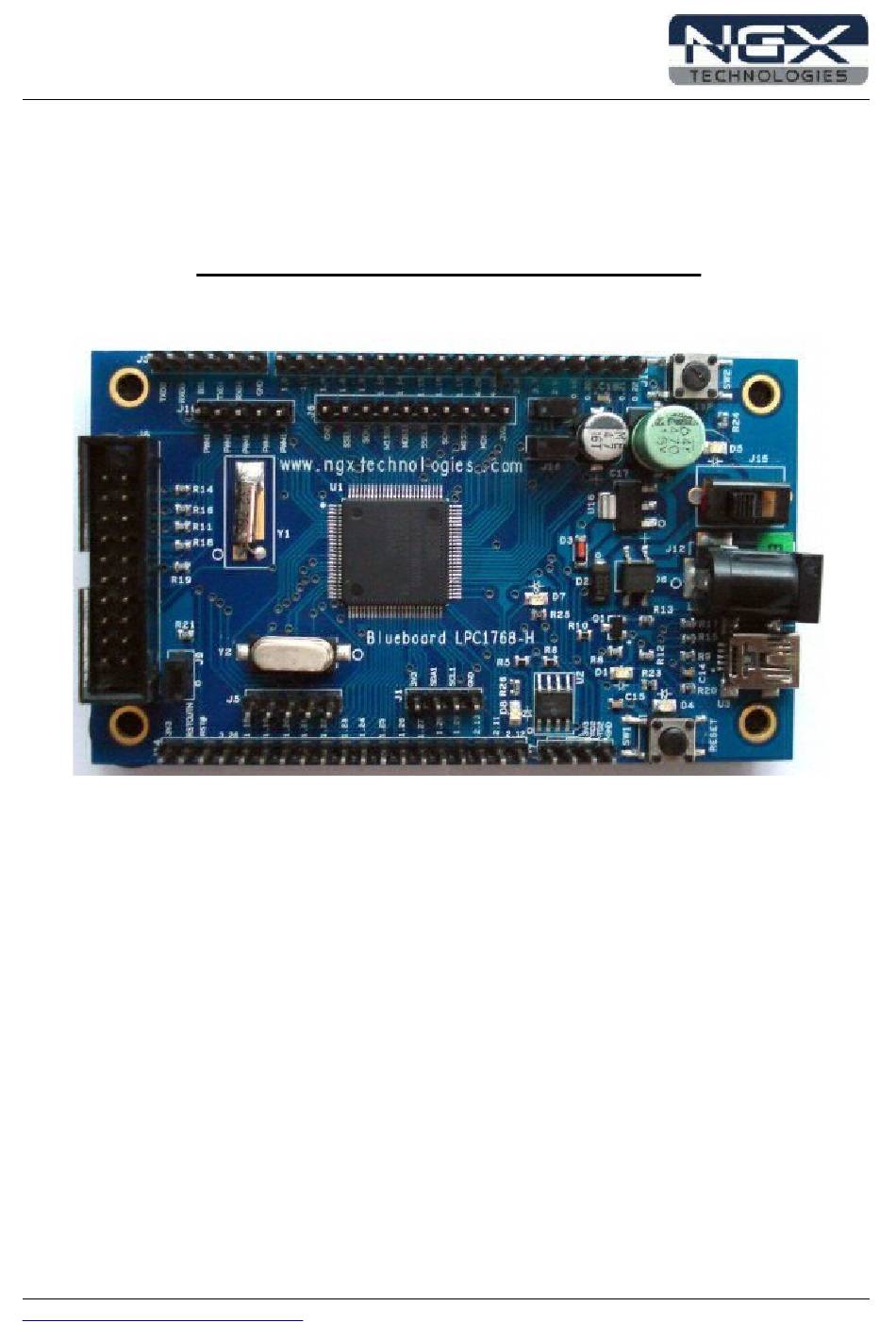

- Page 1 BlueBoard-LPC1768-H USER MANUAL v2.0 20/09/2011 BlueBoard-LPC1768-H USER MANUAL http://shop.ngxtechnologies.com...
-
Page 2: Table Of Contents
Table of Contents Revision history............................3 Introduction ............................4 Features..............................5 Hardware..............................5 Getting Started............................6 Requirement............................6 Validating the BlueBoard LPC1768-H ....................6 How To Enter USB Boot Loader Mode?....................6 For Blueboard-LPC1768-H......................7 For Blueboard-LPC1768-H V2.......................7 Using JTAG with BlueBoard........................7 Information............................8 Revision History........................8 Legal............................8 Disclaimers ..........................8 Trademarks ..........................8 http://shop.ngxtechnologies.com... -
Page 3: Revision History
BlueBoard-LPC1768-H V2.0 version: v2.0 author: Nagaraj M Baddi The mass storage for USB bootloader is enumerated using SW1 and SW2 buttons. • BlueBoard-LPC1768-H v1.0 schematic is changed to BlueBoard-LPC1768-H v2.0. • BlueBoard-LPC1768-H v1.0 version: v1.0 author: Milind Kakati BlueBoard-LPC1768-H v1.0 User manual. -
Page 4: Introduction
Note: Please note that the BlueBoard-LPC1768-H has undergone a minor hardware change. The new version is called Blueboard-LPC1768-H V2. V2 version has the been designed keeping in mind the USB bootloader functionality. User can now use the SW2 for USB bootloading. Whereas in the earlier version the user had to manually connect a wire on P2.12 to GND while powering ON or... -
Page 5: Features
BlueBoard-LPC1768-H USER MANUAL v2.0 20/09/2011 Features The BlueBoard LPC1768-H has most of the pins brought out to the male header. Hardware Power • 7.5V/1A DC female jack / USB mini connector • Slide switch ON / OFF Interface • USB mini •... -
Page 6: Getting Started
BlueBoard-LPC1768-H USER MANUAL v2.0 20/09/2011 Getting Started Before starting you would need the following. Requirement The requirement is put in two sections. Hardware • USB cable with type B connector • 7.5V/1A DC power supply • USB or Parallel JTAG... -
Page 7: For Blueboard-Lpc1768-H
USER MANUAL v2.0 20/09/2011 For Blueboard-LPC1768-H The USB bootloader program for this version looks for pin P2.12 to be held LOW during reset or power up. To enter the USB bootloader mode connect the P2.12 pin (On connector J14) to GND and press the SW1 (RESET) switch or power up. -
Page 8: Information
This notice contains important safety information about temperatures and voltages. No license is granted under any patent right or other intellectual property right of NGX Technologies covering or relating to any machine, process, or combination in which such NGX Technologies products or services might be or are used.
