Eiko VRT1 Installation Instructions Manual

SAFETY PRECAUTION:
IMPORTANT: READ INSTUCTIONS CAREFULLY BEFORE INSTALLING. KEEP THESE INSTRUCTIONS
FOR FUTURE REFERENCE.
• CAUTION: DO NOT USE ELECTRIC GENERATOR TO TEST THE LED FIXTURE.
• CAUTION: TO AVOID ELECTRICAL SHOCK AND DAMAGE, PLEASE DO NOT INSTALL WHEN RAINING.
• WARNING: TO PREVENT ELECTRIC SHOCK OR RISK OF FIRE, THE INSTALLATION MUST BE
COMPLETED BY OPERATOR WITH PROFESSIONAL ELECTRICAL KNOWLEDGE.
• WARNING: PLEASE WEAR GLOVES TO AVOID INJURY DURING INSTALLATION.
• WARNING: DURING OR AFTER INSTALLATION, IF THERE ARE SITUATIONS SUCH AS SMOKE OR FIRE
IN THE WIRES OR FIXTURES, PLEASE TURN OFF POWER IMMEDIATELY AND CONTACT A QUALIFIED
ELECTRICIAN.
• SUITABLE FOR OUTDOOR USE.
• MIN 75°C (167°F) SUPPLY CONDUCTOR.
• THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE
BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.

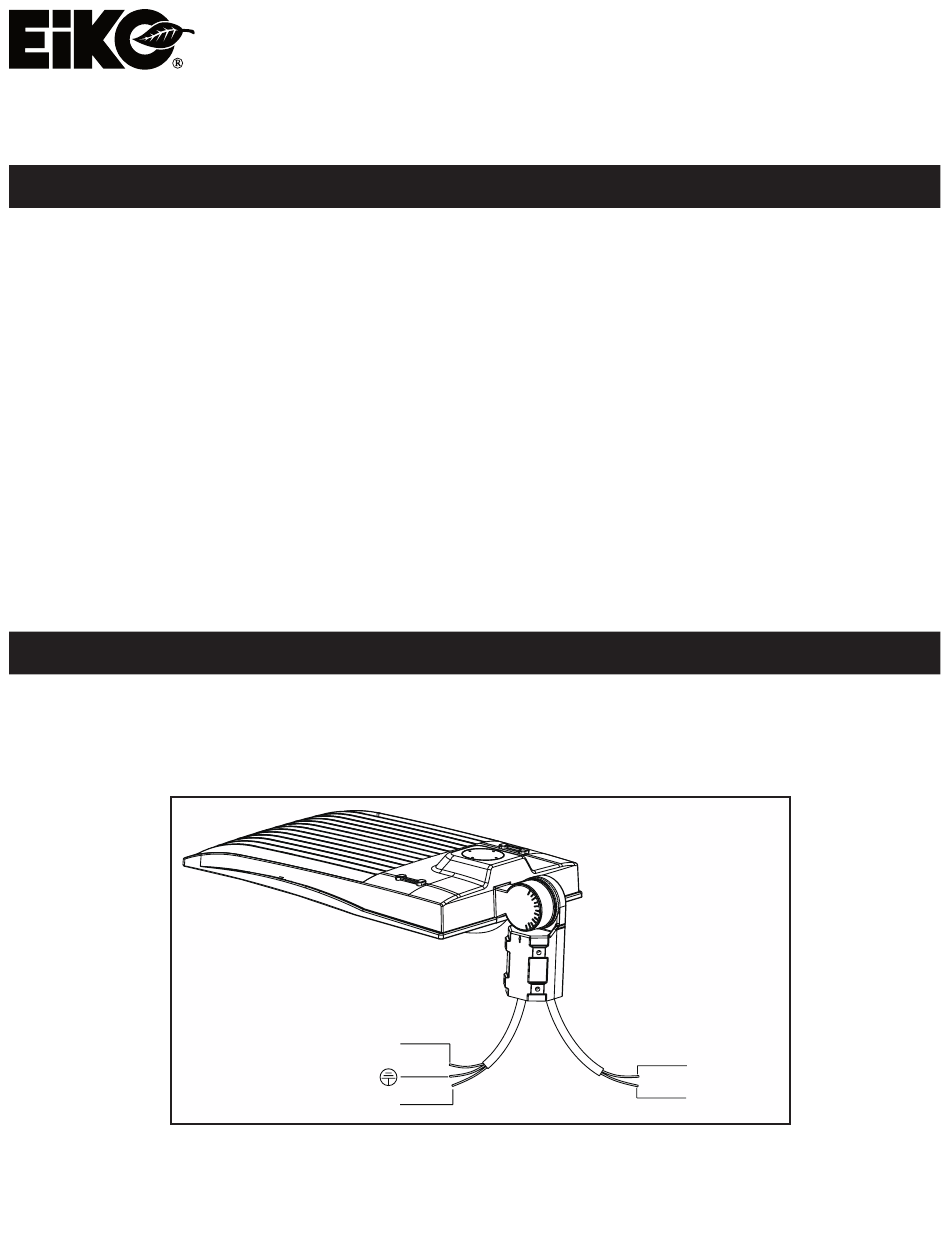

WIRING DIAGRAM:
3 DIFFERENT DIMMING FUNCTIONS ARE AVAILABLE IN THIS LIGHT FIXTURE:
1. Constant current can be achieved by 1-10V DC dimming.
2. PWM signal dimming.
3. Variation of resistance unit dimming.
EiKO Global, LLC • 23220 W. 84th St, Shawnee, KS 66227 • (P) 1-800-852-2217 • (F) 1-800-492-8975 • eiko.com
EiKO Canada • 81 King St, Barrie, Ontario L4N 6B5 • (P) 1-705-721-5189 • (F) 1-705-721-7855 • orderdesk@eiko.com
Black/Brown: ACL
Green/Yellow: Ground
White/Blue: ACN
INSTALLATION INSTRUCTIONS
VERT: SITE LIGHTING PLATFORM
VRT1 | VRT2
Dim+
Dim-
