National Electronics & Watch Co,. Ltd.
M11-1913D GPS watch User Manual (2.4G HRM)
Ref: UI-111913-001
Introduction
Thank you for purchasing the GPS watch. This GPS watch is packed with personal Training
features like speed, trip time, laps, etc. GPS can display your current location in an electronic
map. Watch features include 12/24H Time format, Chronograph, World time, 5 daily Alarms, 6
Interval Timers, Run, Run Data, HRM, ALTI and Set modes. This watch can communicate with
a PC to store and review your performance. This watch uses a rechargeable battery that can
be charged through USB port of your PC. It also uses HRM belt with 2.4 GHz technology to
monitor your heart rate for all your HR related information.
Caring for your GPS watch:
Clean your GPS watch with a dampened cloth preferably with mild detergent solution. Wipe dry
using a dry cloth. Do not use chemical cleaners and solvents that may damage plastic
components.
Do not store your GPS watch to prolonged exposure to extreme temperatures as this may
result to permanent damage to your unit.
About GPS:
Global Positioning System (GPS) is a satellite- based navigation system made up of a network
of 24 or more satellites. GPS works best in clear weather condition, anywhere in the world, 24
hours a day. Tall buildings may interfere with GPS accuracy. When 3 satellite signals are
received, the watch will have 2D GPS fixed (Latitude and Longitude). When 4 or more satellite
signals are received, the watch will have 3D GPS Fixed.
Water immersion:
This GPS watch is designed to be water resistant up to 3 ATM. It can resist water pressure up
to 30 meters. After submersion to water, please make sure to wipe dry and air dry the unit
before using or charging.
Caution: This unit is not intended to be used while swimming. Prolonged water submersion
may cause electronic shorting in the unit which may cause minor skin burn or irritation.
Getting Started
Step 1) Know your watch:

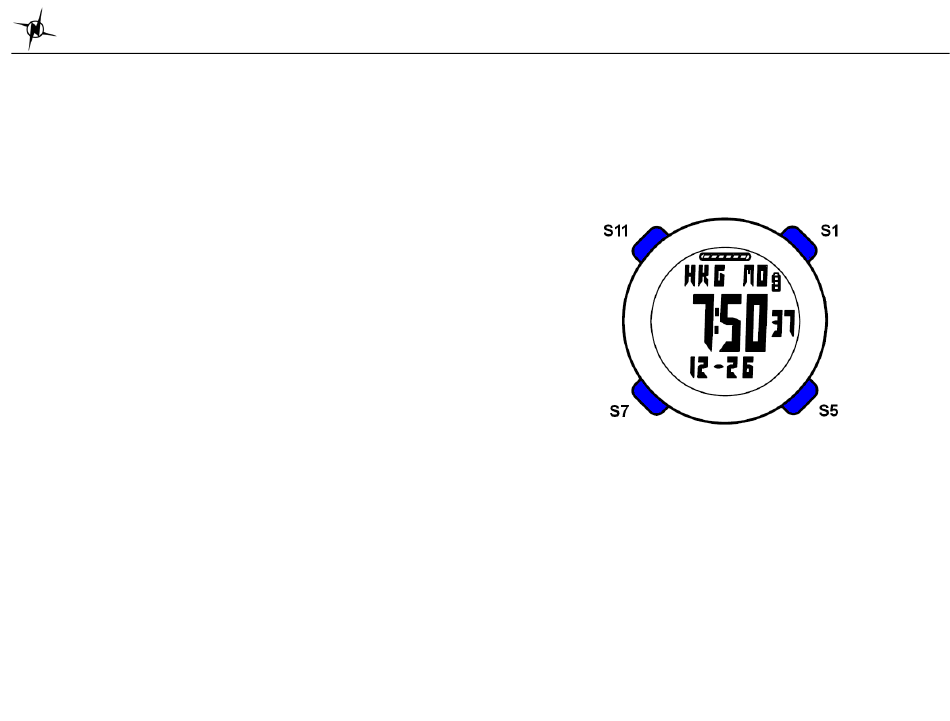

Push button location:
Push button Main function:
S1 – Start / Stop / +
S5 – View / Lap
S7 – Mode / Exit
-
S11 – Light / Set / Save /
BC10
Advertisement
Table of Contents
Related Manuals for National Electronics & Watch M11-1913D
Summary of Contents for National Electronics & Watch M11-1913D
-
Page 1: Getting Started
National Electronics & Watch Co,. Ltd. M11-1913D GPS watch User Manual (2.4G HRM) Ref: UI-111913-001 Getting Started Introduction Step 1) Know your watch: Thank you for purchasing the GPS watch. This GPS watch is packed with personal Training features like speed, trip time, laps, etc. GPS can display your current location in an electronic map. -
Page 2: Step 2) Charging The Battery
National Electronics & Watch Co,. Ltd. Step 2) Charging the Battery: Step 3) Configure your watch: Charge the unit for at least 4.0 hours before first use. The length of time for a fully charged Before using your GPS watch, User can opt to do the following. battery will last depending on the actual usage. - Page 3 National Electronics & Watch Co,. Ltd. GPS signals and its meaning: 5.5) If the heart rate data does not appear on the watch, or if you have erratic data, follow the tips below. If the problem persists, you may have to pair the HR belt again. 5.5.1) Make sure the HR belt is snugly fit to your body.
-
Page 4: General Operations
National Electronics & Watch Co,. Ltd. 6.3) Using HRM mode: Watch reset: The user can reset the watch by pressing and holding S1, S5, S7 and S11 together. All RUN mode and HRM mode has the same timer counter. When the chronograph is started or segments will be light on, then EL backlight ON. -
Page 5: Exercise Modes
National Electronics & Watch Co,. Ltd. TIME/NIGHT/CONTRAST/CHIME setting in Time mode: EXERCISE modes Press and hold S11 until the “TIME” blinks. Press S1 or S11 to select any of the sub views: The watch has the following major exercise modes: RUN, CHRONOGRAPH and HRM modes. TIME, NIGHT, CONTRAST and CHIME setting. -
Page 6: Chronograph Mode
National Electronics & Watch Co,. Ltd. View 2 CHRONO/ Distance / Speed CHRONOGRAPH mode: View 3 CHRONO/ Distance / HRM (this view is hidden if HRM is OFF). View 4 CHRONO/ Distance / Calorie Press S7 from RUN mode to enter CHRONOGRAPH mode. The watch will display the View 5 CHRONO/ Distance / Clock following in succession:... -
Page 7: Altimeter Mode
National Electronics & Watch Co,. Ltd. View 9 CHRONO/ HRM/ Altimeter View 10 CHRONO/ HRM/ In-zone ALTIMETER mode Press S7 from HRM mode to enter ALTI mode. The watch will display the following in succession: SEARCH GPS BATTERY level DATA TRACK MEMORY view 1 of ALTI mode. -
Page 8: Alarm Mode
National Electronics & Watch Co,. Ltd. MANUAL setting: ALARM mode Set the HOUR by pressing S5 and press S1/S11 to change digit then press S5 to enter. Setting the ALARM: Set the MIN by pressing S5 and press S1/S11 to change digit then press S5 to enter. Press S7 from TIMER mode to enter ALARM mode. - Page 9 National Electronics & Watch Co,. Ltd. When Chime is ON, there is an hourly Chime and the Key tone will automatically ON. There is GPS watch troubleshooting guide: also a confirmation sound every time you press a button. The Chime icon also appears in all modes.
- Page 10 National Electronics & Watch Co,. Ltd. BC10...
- Page 11 National Electronics & Watch Co,. Ltd. Click on the Download Data tab. Data will be automatically downloaded to your PC. GPS NE PRO PC software If there no proper contact between the USB clip and the watch, an error may occur and the software will prompt you to check the cable.
-
Page 12: Fcc Statement
National Electronics & Watch Co,. Ltd. FCC Statement 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.
