Handbook
Version 03-2016
30092016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HMBox and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FP HMBox

Summary of Contents for FP HMBox

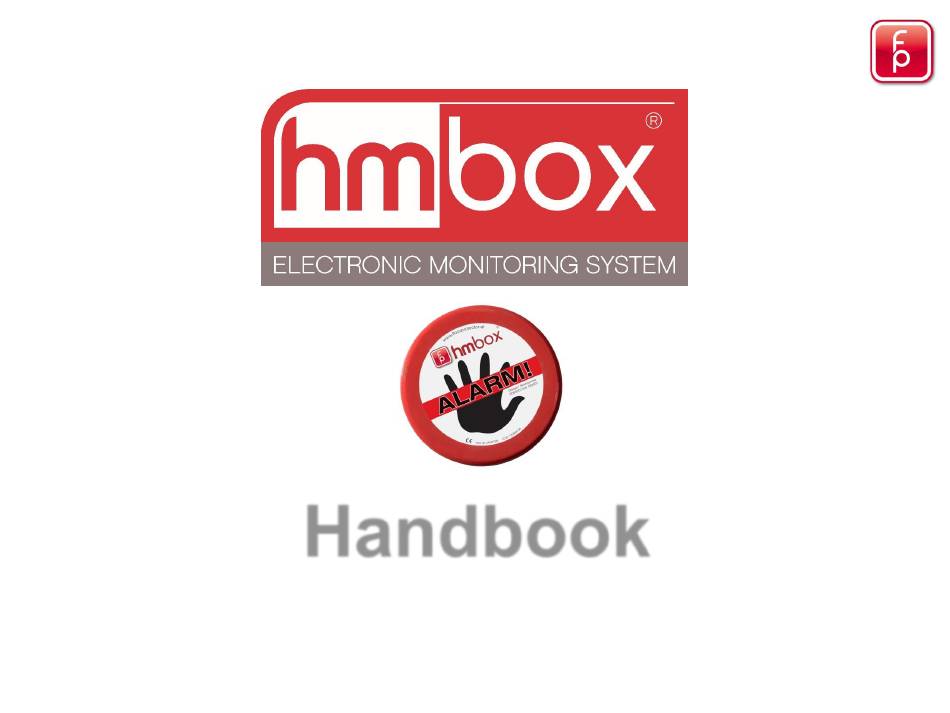

  • Page 1 Handbook Version 03-2016 30092016...

  • Page 2: Table Of Contents

    Contents 1. HMBox- case content page 3 2. Mounting the HMBox page 4 3. Activating the HMBox page 5 - 9 4. Controlling the activation page 10 5. Manual synchronisation page 11 6. View measurement values page 12 7. Deactivate the HMBox page 13 8.

  • Page 3: Hmbox- Case Content

    HMBox - Case Screw driver – for uplifting the HMBox HMfix – adhesive for mounting the HMBox Stanley knife – for removal of remaining HMfix Release agent – for residue free removal of the HMfix HMBox...

  • Page 4: Mounting The Hmbox

    Mounting the HMBox 1. Apply Release Agent Please left box in the case, turn cover to the left and open it. Apply agent on Aluring ! ATTENTION: a thin film must be applied before adhesive application. This simplifies the later removal of the Hmfix adhesive.

  • Page 5: Activating The Hmbox

    Activating the HMBox 1. Start HMBox-APP on Smartphone and log in with your user account data. 2. Under „My HMBoxes“ add a HMBox with “+” ALWAYS pay attention, that you have an active Bluetooth-connection as well as an existing network.
  • Page 6 Activating the HMBox 4. Fill out all of the given fields and „Save“ You can choose an existing address or fill in a new address 5. Under “My HMBoxes” create the desired construction site (this is only possible before or during the activation)
  • Page 7 Activating the HMBox 6. Under „Add construction site“ you can set up a new project see below 7. or you choose an existing site 7. Fill out all of the given fields and „Save“ Site name: Name of the project Street: House no.:...
  • Page 8 Activating the HMBox 8. Now the HMBox is shown under „My HMBoxes“ HMBoxes, that are not activated, appear at the top (have not been assigned to a project) HMBoxes, that are actually taking measurements (appear under the assigned project) 9. Select the desired HMBox by clicking on it.
  • Page 9 Reset the battery is only required by battery change 12. Press „Start Measurement“ now the settings on the smartphone will be sent to the HMBox. This means that the Alarm and GSM have been switched on and the measurements begin.

  • Page 10: Controlling The Activation

    Checking the Activation The transfer of the entered data and the activation of the APP to the HMBox will take approximately 2 minutes. The LED-Light on top of the HMBox begins to blink red which means that the measurement process and the Anti-Theft protection have been started.

  • Page 11: Manual Synchronisation

    Manual synchronisation 1. A manual synchronisation is only possible on site in the direct vicinity of the HMBox (~ 8m), Bluetooth connection must be active and sufficient network connection Select a HMBox Box is highlighted in greed 2. “View current measurement“...

  • Page 12: View Measurement Values

    View measured data 1. Select HMBox HMBox is highlighted in green 2. Press „View current measurement “ here you can also change the project data under „Edit site data“, if necessary 3. Measured data in different views...

  • Page 13: Deactivate The Hmbox

    Deactivating the HMBox 1. Under “My HMBoxes” Select HMBox you want to deactivate HMBox is highlighted in green (Bluetooth connection must be active and sufficient network connection 2. „End Measurement“ With this function, the measurement process is stopped and the GSM and Alarm protection are deactivated.

  • Page 14: Remove The Hmbox

    HMBox and turn right until the box automatically triggers off the ground. 2. The HMBox will be released from the adhesive „Hmfix“ residue free, when the release film has been applied before attaching the HMBox to the substrate.

  • Page 15: Additional Information

    Software. With this software you can easily manage projects and create reports on a Workstation or a mobile laptop. You can added any number of HMBox units and projects. The data are saved on the HMBox database for an indefinite period of time.
  • Page 16 Additional Information / FCC / IC proved FCC: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 17 Technical Information Carrier 2.4 GHz ISM- Frequency Band (Bluetooth LE) GSM 850, E-GSM 900, DCS 1800, PCS 1900 Protocol Bluetooth LE Standard HTTP (GSM) Output power max. +4 dBm (Bluetooth LE) max. 2 Watts GSM & GPRS (GSM 850, E-GSM 900) max.
  • Page 18 Gmbh A-2700 Wr. Neustadt Waldgasse 2 A-2700 Wiener Neustadt fon: +43-(0)2774 – 29 701 fax: +43-(0)2774 – 29 701 -19 office@floorprotector.at www.floorprotector.at...
