Technalogix TAUD-100 Operating Manual

Broadcast transmitter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

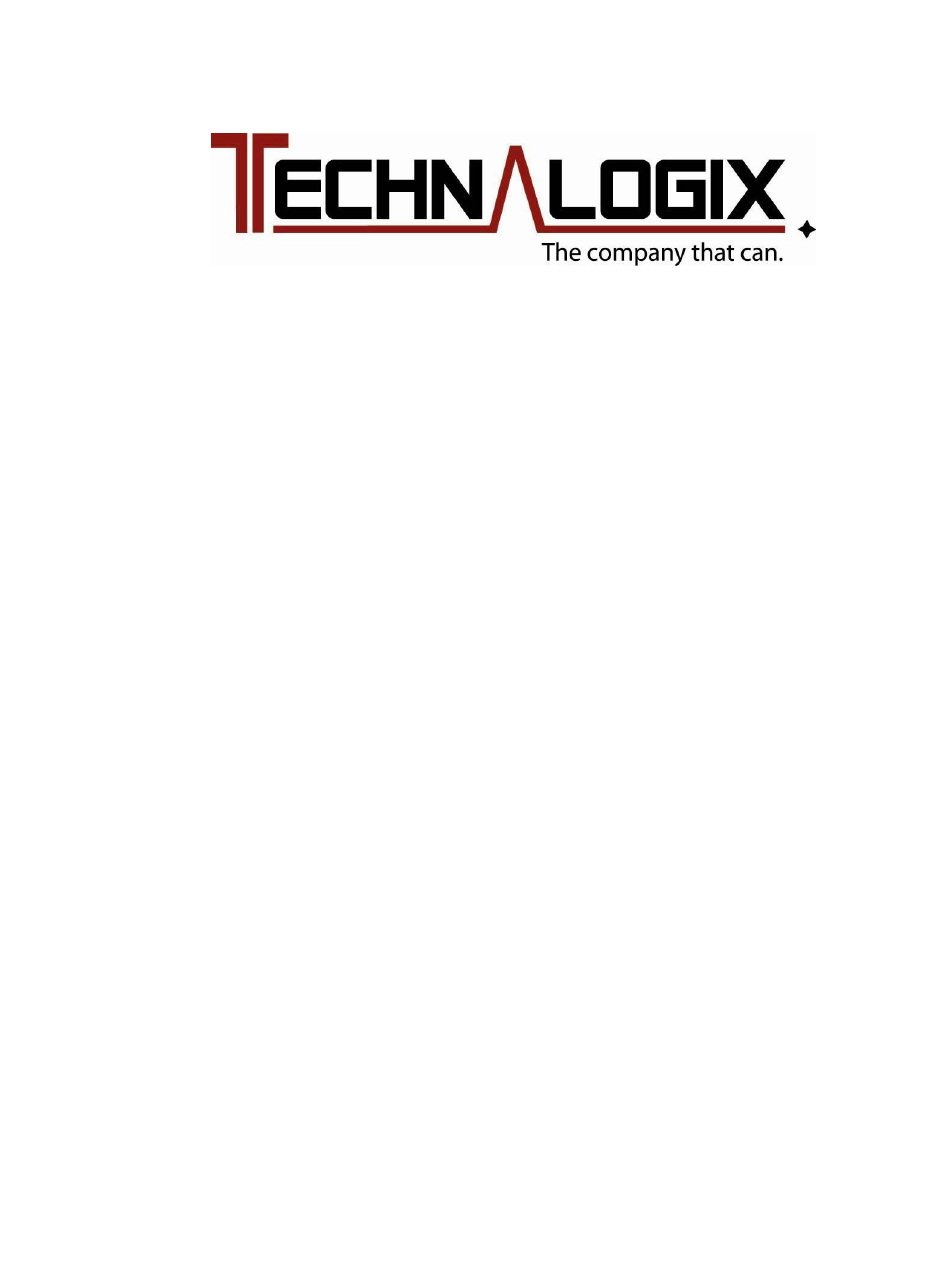

TAUD-1000
BROADCAST TRANSMITTER
OPERATING
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TAUD-100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Technalogix TAUD-100

Summary of Contents for Technalogix TAUD-100

  • Page 1 TAUD-1000 BROADCAST TRANSMITTER OPERATING MANUAL...
  • Page 2 No? Okay, good. Please take a few minutes to read the manual and familiarize yourself with your new Technalogix power amplifier. We believe that this manual, and of course our equipment, should be everything you need to get on the air with superb broadcast quality video.

  • Page 3: Section I - Safeguards

    SERVICING - Do not attempt to service this equipment yourself as opening or removing covers can result in a warm tingly feeling and will void the warranty. Refer all servicing to qualified service personnel. Technalogix Ltd...
  • Page 4 At the first opportunity, enlist help in summoning a doctor. If a doctor cannot be summoned, transport the victim to the doctor or a hospital. Be sure the victim is kept well covered and warm while awaiting professional treatment. Technalogix Ltd...

  • Page 5: Operating Safeguards

    On TV and FM broadcast frequencies, insufficient antenna height puts an upper limit on your range, regardless of power levels, as the distance from your antenna to the radio horizon is limited. Technalogix Ltd...

  • Page 6: Section Ii - Warranty

    Technalogix Ltd. will not be liable for damages of whatever nature arising out of or in connection with the equipment or its use thereof. Technalogix does not assume responsibility for injury or damage resulting from the practices of untrained or unqualified personnel in the handling of this equipment.
  • Page 7 Materials Authorization (RMA) number is provided. Please look under our web site (www.technalogix.ca) for the RMA form (Service) and fill it out. Either fax it to us or email to us. • Package equipment carefully for prepaid shipment to Technalogix. Include a written description of the problem experienced, a copy of the original invoice establishing warranty status, and the RMA.
  • Page 8 Terms & Conditions of Sale Sales by Technalogix Ltd (“Seller”) are made only on the terms which are contained in this Terms and Conditions of Sale Policy. Seller hereby gives notice of its objection to any different or additional terms and conditions. All sales are expressly conditional upon Buyers’ assent to the terms and conditions set forth below.
  • Page 9 Orders for standard product may be changed by Buyer, with no penalty to the Buyer, provided that Buyer provides Technalogix notification at least 30 days prior to the scheduled ship date. Order changes received within 30 days of the scheduled ship date may be subject to an order change charge;...
  • Page 10 Buyer’s premises Validity of Separate Clauses If any provisions of this agreement shall be held invalid, illegal, or unenforceable, the validity, legality or enforceability of the remaining provisions shall not be affected or impaired thereby. II-5 Technalogix Ltd Transmitter...

  • Page 11: Section Iii - Overview

    Section III – Overview Standard Features • Narrow output bandpass filter allows adjacent channel operation • Front panel Display to monitor system parameters • Microcontroller-based monitoring and control ensures amplifier will never be overdriven and high VSWR will not damage amplifier •...
  • Page 12 Principle of Operation The TAUD-1000 power amplifier supplies a 1000-watt (rms) 8VSB television signal on any of the UHF television channels 14 through 69. Please note that channel selection must be made at time of order, as the transmitter or translator is calibrated and tested to the channel requested and is not field tuneable.
  • Page 13 COMBINER/FILTER TAUD-500 AMPLIFIER Modulator or Processor RF Out TAUD-500 AMPLIFIER External power supply TAUD-1000 BLOCK DIAGRAM Date: November 17, 2008 Page: 1 of 1...
  • Page 14 Inside each of the 500-watt RMS power amplifiers, the signal passes through an RF attenuator to limit the output power level of the power amplifier and to help buffer any transients that may come into the power amplifier. After attenuation, the signal gets preamplified through a UHFTV- 50 driver amplifier before the signal gets split into (3) signals for final amplification using a 3-way microstrip power divider.
  • Page 15 BLF878 FINAL AMPLIFIER PALLET A=-0.5dB typical 3 WAY SPLIITER 3 WAY COMBINER ATTENUATION Directional C RF INPUT RF OUT To Wattmeter and Antenna A=-0.05dB typical UHFTV-50 Driver Pallet 50 OHM TERMINATION BLF878 FINAL AMPLIFIER PALLET TAUD-500 ENCLOSURE Date: NOVEMBER 29, 2010 Page: 1 of 1...
  • Page 16 After amplification, the signal exits the power amplifier enclosure and goes into the filter/coupler enclosure. The two RF signals from each of the TAUD-500 amplifiers (500-watts RMS) get combined by a 2-way, 90 degree combiner via phased cables. The amplified signals are filtered with a bandpass filter and monitored again with another directional coupler before heading out to the customers inline 8VSB reading wattmeter and then to an antenna for broadcast, as depicted in the following filter/coupler block diagram.
  • Page 17 FILTER COMBINER DIRECTIONAL COUPLER PA1 OUT RF OUT PA2 OUT TO WATTMETER AND ANTENNA A=-0.05dB A=-0.45dB A=-0.6dB to -1.0dB TAUD-1000 COMBINER/FILTER ENCLOSURE Date: November 17, 2008 Page: 1 of 1...
  • Page 18 Specifications Electrical specifications that are specific to the unit are included with the shipment in addition to being kept on file at Technalogix Physical Characteristics Operating Temperature 0 - 50°C Dimensions TAUD-500 Power Amplifier (each) ¼ W-19" flange (17” encl.), D-25- ", H-10 ½”...

  • Page 19: Section Iv - Rf Components

    The BLF878 amplifier pallets have a typical gain of 17dB and draw no more than 25Adc. Currents for these pallets must be measured with an ammeter in series with the power supply lead. Each of the amplifier pallets is connectorized to optimize servicing and accessibility IV-1 Technalogix Ltd TAUD-1000 Transmitter...
  • Page 20 Directional Coupler The Technalogix dual directional coupler provide DC voltages proportional to forward and reflected RF power monitoring. These analog voltages are converted for processing using analog-to-digital converters and provide the control system with valuable data for monitoring purposes. Output power should be set following the operating procedure found elsewhere in this manual.
  • Page 21 RF output. The cavity resonator uses aperture coupling and is a linear resonator design. Typical insertion loss is 0.4 dB to 0.6 dB depending on channel frequency. The filter is DC grounded on both the input and output for additional lightning protection. IV-5 Technalogix Ltd TAUD-1000 Transmitter...

  • Page 22: Section V - Power Supply

    48.0Vdc nominally. All fans in the Power Amplifier enclosure run off this same supply. The power supply found in the Combiner/Filter enclosure is a Meanwell S60-24. It powers the control PCBS in the Combiner/Filter enclosure. Its output voltage is set to 24.0 Vac. Technalogix Ltd TAUD-1000 Transmitter...

  • Page 23: Specification

    R S P - 3 0 0 0 s e r i e s 3000W Single Output Power Supply Features : AC input 180 ~ 264VAC AC input active surge current limiting High efficiency up to 90% Built-in active PFC function,PF>0.95 Protections: Short circuit / Overload / Over voltage / Over temperature / Fan alarm Forced air cooling by built-in DC with fan speed control function...

  • Page 24: Block Diagram

    R S P - 3 0 0 0 3000W Single Output Power Supply s e r i e s Mechanical Specification Case No.982B Unit:mm 236.3 8-M4(Both Sides) L=5mm 236.3 OUTPUT 4-M4 L=5mm Air flow direction INPUT 16max. AC Input Terminal Pin No. Assignment Control Pin No.
  • Page 25 R S P - 3 0 0 0 3000W Single Output Power Supply s e r i e s Derating Curve Static Characteristics Ta=25 (HORIZONTAL) AMBIENT TEMPERATURE ( ) INPUT VOLTAGE (V) 60Hz Function Manual 1.Remote ON/OFF (1)Remote ON/OFF control becomes available by applying voltage in CN1 & CN2 & CN3. (2)Table 1.1 shows the specification of Remote ON/OFF function.
  • Page 26 R S P - 3 0 0 0 s e r i e s 3000W Single Output Power Supply 2.Alarm Signal Output (1)Alarm signal is sent out through "P OK" & "P OK GND" and P OK2 & P OK GND2 pins. (2)An external voltage source is required for this function.
  • Page 27 R S P - 3 0 0 0 3000W Single Output Power Supply s e r i e s 4.Current Sharing (1)Parallel operation is available by connecting the units shown as below (+S,-S and CS are connected mutually in parallel): (2)The voltage difference among each output should be minimized that less than 2% is required.
  • Page 28 R S P - 3 0 0 0 3000W Single Output Power Supply s e r i e s 6.Three Phase Connect FIG. A: 3 3W 220VAC SYSTEM (STANDARD MODEL FOR STOCK) N (NC) FIG. B: 3 4W 220/380VAC SYSTEM FIG.

  • Page 29: Switching Power Supply

    MEAN WELL S-60 SWITCHING POWER SUPPLY SERIES ISO-9001 CERTIFIED MANUFACTURER .LOW COST, HIGH RELIABILITY .COMPACT SIZE, LIGHT WEIGHT C OUTPUT CAPACITOR .100% FULL LOAD BURN-IN TEST .105 º .INTERNATIONAL AC INPUT RANGE .BUILT IN EMI FILTER, LOW RIPPLE NOISE .HIGH EFFICIENCY, LOW WORKING TEMPERATURE .SOFT-START CIRCUIT, LIMITING AC SURGE CURRENT .SHORT CIRCUIT, OVERLOAD, OVER VOLTAGE PROTECTED MODEL...

  • Page 30: Section Vi - Monitor And Control System

    Display Interface, RF, and Temperature Sensor modules. In higher power/multiple pallet systems, a fourth module (DC Distribution) is included. The operation of each module is outlined in the following sections and illustrated in the following block diagram. Technalogix Ltd Adrenaline Control System VI-1...

  • Page 31: Display Interface

    DISPLAY INTERFACE PANEL MEMBRANE SWITCH SWITCH INTERFACE CHARACTER DISPLAY INTERFACE CONTRAST DC IN TOUCHSCREEN SWITCHING SUPPLY SUPPLY EXTERNAL INTERFACE DC-DC CONVERTER DC OUT DC DISTRIBUTION CAT5 INTERFACE PALLET TEMPERATURE SENSOR DC IN CURRENT MONITORING TEMP SHUTDOWN CAT5 SENSOR INTERFACE SHUTDOWN CURRENT MONITORING EXTERNAL...
  • Page 32 • Settings to change the RF power units between % power (maximum of 110%) or watts. • Summary of PCB modules and assembly numbers specific to the power amplifier A block diagram of the Display Interface PCB follows: Technalogix Ltd Adrenaline Control System VI-3...
  • Page 33 DC output control voltage on pin 3. The touchscreen interfaces to the Display Interface via connector J107. The fuses on the Display Interface are all resettable. F102 protects the +5V line while F101 protects the DC-DC converter, if installed. Technalogix Ltd Adrenaline Control System VI-4...
  • Page 36 System continually checks power level and tries to bring RF power level back to where it was when the fault occurred. If overdrive occurs, a warning is also displayed in red text near the top of the touchscreen and the event recorder logs the event. Technalogix Ltd Adrenaline Control System VI-10...
  • Page 37 AGC mode, goes into Manual mode, and the fault procedures are followed. The user can toggle back and forth from AGC and Manual modes by going to the RF Power Screen and changing the mode. Technalogix Ltd Adrenaline Control System VI-11...
  • Page 38 SNMP interface, or through controlling of the Remote Port. A quick beep from the on-board buzzer signifies that the response has been taken. The power supplies and fan will remain active while the carrier is turned off via this switch. Technalogix Ltd Adrenaline Control System VI-12...
  • Page 39 The individual menu screens will now be covered. Technalogix Ltd Adrenaline Control System VI-13...
  • Page 40 VSWR is found above the set trip point, but below 1.8:1, then the system will fold back the forward power to a safe level. If the measured VSWR exceeds 1.8:1, then the carrier will be initially turned right off. Technalogix Ltd Adrenaline Control System VI-14...
  • Page 41 Transistor device or circulator / isolator load damage could be the culprit, or the tragic spilt-drink-on-transmitter incident. Our team would be glad to walk you through any troubleshooting issues or questions you may have. Technalogix Ltd Adrenaline Control System VI-15...
  • Page 42 The SNMP offers a third method of monitoring system parameters and external control. The user’s Network Management System (NMS) can monitor multiple transmitter sites remotely and control common functions of the system via the Technalogix Management Information Base (MIB). Detailed information on all three remote interfacing subsystems is found later in this section.
  • Page 43 The events are recorded in non-volatile memory so they are safe in the event of a power outage or pesky lightning-strike-wins-fight-with-power-supply. Technalogix Ltd Adrenaline Control System VI-17...
  • Page 44 (month, day, hour, etc). Any changes will immediately be seen in the summary bar on the bottom right of the touchscreen. When the changes are made, simply press the BACK TO MAIN button to continue to other screens. Technalogix Ltd Adrenaline Control System VI-18...
  • Page 45 The versions can then be correlated to factory documentation. In addition, current government certification numbers are included for Industry Canada and FCC. Please contact Technalogix if you require copies of the actual grants, or visit: FCC: https://fjallfoss.fcc.gov/oetcf/eas/reports/GenericSearch.cfm...
  • Page 46 Contact Screen The Contact Screen provides an easy means for the user to get in touch with Technalogix for anything. Whether they have a technical or installation question or simply want to chat about how gosh darn cool our equipment is, Technalogix welcomes questions, feedback, and contact.
  • Page 47 Similarly, the user can switch between watts or percentage for their RF power readings. When in percentage mode, the power amplifier is designed for a maximum operating power of 100% with overdrive protection at 110%. Technalogix Ltd Adrenaline Control System VI-21...
  • Page 48 F301 is good. Two yellow LEDs, D303 and D304, provide visual indication that the DC supply inputs are present for both the drivers/fans and finals, respectively. A flashing D301 (orange LED) indicates that the software is running. Technalogix Ltd Adrenaline Control System VI-22...
  • Page 51 RF PCB module. The Temperature Sensor module simply takes this signal and passes it through to a pad, where a wire connects it to the driver or first gain stage pallet. Technalogix Ltd Adrenaline Control System VI-28...
  • Page 52 Temp sensor 1.11 component layout Top Technalogix Ltd Adrenaline Control System VI-31...
  • Page 53 Temp sensor 1.11 component layout bottom Technalogix Ltd Adrenaline Control System VI-32...
  • Page 54 PCB, and • provide external remote operation to the user through parallel data, Ethernet, and SNMP interfaces. These functions can be seen by the block diagram: Technalogix Ltd Adrenaline Control System VI-33...
  • Page 55 U215, and U237. The Remote Port allows external control of the transmission system via the DB25. The Power Amplifier enclosure does not include all the pins in the Remote Port like the Combiner/Filter enclosure. Technalogix Ltd Adrenaline Control System VI-34...
  • Page 56 PCB, and • provide external remote operation to the user through parallel data, Ethernet, and SNMP interfaces. These functions can be seen by the block diagram: Technalogix Ltd Adrenaline Control System VI-35...
  • Page 57 U217, and U240. The Remote Port allows external control of the transmission system via the DB25. The Power Amplifier enclosure does not include all the pins in the Remote Port like the Combiner/Filter enclosure. Technalogix Ltd Adrenaline Control System VI-36...
  • Page 60 PCB, and • provide external remote operation to the user through parallel data, Ethernet, and SNMP interfaces. These functions can be seen by the block diagram: Technalogix Ltd Adrenaline Control System VI-48...
  • Page 61 U215, and U237. The Remote Port allows external control of the transmission system via the DB25. The Power Amplifier enclosure does not include all the pins in the Remote Port like the Combiner/Filter enclosure. Technalogix Ltd Adrenaline Control System VI-49...

  • Page 64: Web Interface

    Web Interface To access the Technalogix Adrenaline Web Interface, connect an Ethernet cable to the RJ45 port on the power amplifier (back panel) to your network. The Adrenaline control system in the power amplifier should allocate an internal IP from your router or you can set this manually (see below).
  • Page 65 • Carrier is on or off • Forward RF in Overdrive (>110% FS) • Pallet Voltage Supply Good • High VSWR • High Temperature • AGC on or off (AGC or Manual mode) Technalogix Ltd Adrenaline Control System VI-62...
  • Page 66 AGC level is maintained if the power amplifier restarts. Also on the main web Ethernet page, along the top, are links to the other pages: Main – Returns to Main Index page Network Configuration SNMP Configuration Password Configuration Technalogix Ltd Adrenaline Control System VI-63...

  • Page 67: Network Configuration

    HTTP Port shows the current port used for internet access, 80 or 81. Port 80 is the default and is the accepted standard. Port 81 is available because some internet providers block access to port 80 unless you pay more. Be very careful changing this. Technalogix Ltd Adrenaline Control System VI-64...
  • Page 68 Note that you can only have one web server using the same port. With this, anyone can access the system over the internet with something like: http://www.yourcompanywebaddress.com/adrenaline Technalogix Ltd Adrenaline Control System VI-65...

  • Page 69: Snmp Configuration

    SNMP Configuration Technalogix Ltd Adrenaline Control System VI-66...
  • Page 70 The SNMP Configuration page allows you to set the SNMP communities. Set these to limit access to the system via SNMP. Default communities are READ: public read WRITE: private write public Technalogix Ltd Adrenaline Control System VI-67...
  • Page 71 The User account allows access only to the main page. The Admin account allows access to the main and all the configuration pages. Passwords are 8 characters long. Don’t forget your password. Resetting passwords isn’t fun and may cause loss of all settings. Technalogix Ltd Adrenaline Control System VI-68...
  • Page 72 SNMP The Technalogix.mib file allows access to the following Read Only Dip switch Setting - 8 bit value from dipswitch Pallet Supply Voltage - voltage level (Vdc) Temperature - temperature in (°C) 12V Current - current on12V bus (Adc) 48V Current...

  • Page 73: Snmp Traps

    SNMP Traps To Enable traps Set enable traps to 1 Set the IP address to that of the receiving computer. Set the community to one of the read communities set above. Technalogix Ltd Adrenaline Control System VI-70...
  • Page 74 The system will generate a general trap on any error flag and send an 8bit value indicating the type of error. Bit 0(LSB) Overdrive Bit 1 High VSWR Bit 2 High Temperature Bit 3 High Speed Hardware Shutdown Bit 4(MSB) High Input Level Technalogix Ltd Adrenaline Control System VI-71...
  • Page 75 Shown here is trap of a high temperature fault (Value 4). Technalogix Ltd Adrenaline Control System VI-72...
  • Page 76 In addition to the DB25 parallel data connector, the user may chose to remotely control the transmitter/translator via an optional Ethernet web server or through an optional Simple Network Managed Protocol (SNMP) interface, described later in this section. Technalogix Ltd Adrenaline Control System VI-73...
  • Page 77 Errors – An error that causes one enclosure to shutdown will cause the other enclosures to shutdown. If one power amplifier or the combiner is to fold back its power levels to stay within operating parameters, the others will match that power level. Technalogix Ltd Adrenaline Control System VI-74...

  • Page 78: Section Vii - Mechanical Section

    2-way combiner. In the event of any RF power or phase imbalance between the two TAUD-500 Power Amplifier enclosures, the unbalance gets dissipated in the form of heat through the flanged resistor. Technalogix Ltd TAUD-1000 Transmitter VII-1...

  • Page 79: Section Viii - Installation

    A sloping roof will tend to develop leaks less rapidly. The building should be well roofed with good material. The cooling load will be lowered with reflective or light colored roofing material. Technalogix Ltd TAUD-1000 Transmitter VIII-1...
  • Page 80 The environment’s temperature will contribute greatly to the length of the power amplifier’s life. Technalogix recommends that the building’s filtered air intake must have capacity for all air-flow in the building plus an additional 20%. Keep the intake below the roofline to avoid intake of solar heated air.
  • Page 81 Electrical Service Recommendations Technalogix recommends that a qualified, licensed local electrician be consulted for the required electrical service. We suggest local electricians because: • The personnel knows the local codes • The personnel can be on site readily • You are apt to get better overall support if you give what business you can to local suppliers Technalogix recommends that proper AC line conditioning and surge suppression be provided on the primary AC input to the power amplifier.
  • Page 82 Technalogix provides complete turnkey antenna systems if needed. If your site is serving as a translator, your receiving antenna should be in line of sight to the originating station all year round.
  • Page 83 A location leeward of some natural topographical feature will prevent wind damage and snowdrifts. Check the soil runoff conditions that may slow or hasten wind or water erosion and other concerns that may be unique to your location. Technalogix Ltd TAUD-1000 Transmitter VIII-5...
  • Page 84 Claims for loss or damage may not be withheld from any payment to Technalogix, nor may any payment due be withheld pending the outcome thereof. Technalogix cannot guarantee the carrier’s performance.
  • Page 85 Location and Function of Controls and Connectors (each TAUD-500 Power Amplifier) The following illustration depicts the location of the connectors when installing each of the 500-watt 8VSB power amplifiers (TAUD-500) that comprise the TAUD-1000. Technalogix Ltd TAUD-1000 Transmitter VIII-7...
  • Page 86 Ground Ground Notes: 1. Analog output with voltage ranging from 0 to 5Vdc. 2. TTL level digital input, active on rising edge. 3. TTL level digital output, active high. Remaining pins should not be connected. Technalogix Ltd TAUD-1000 Transmitter VIII-8...
  • Page 87 The following illustration depicts the location of the connectors when installing the Combiner/Filter enclosure that takes the outputs of the (2) TAUD-500, combines them, and passes the combined 1,000-watt (RMS) signal through a bandpass filter and directional coupler. Technalogix Ltd TAUD-1000 Transmitter VIII-9...
  • Page 88 Ground Ground Notes: 1. Analog output with voltage ranging from 0 to 5Vdc. 2. TTL level digital input, active on rising edge. 3. TTL level digital output, active high. Remaining pins should not be connected. Technalogix Ltd TAUD-1000 Transmitter VIII-10...
  • Page 89 Location and Function of Controls and Connectors (Power Supply Enclosure) The following illustration depicts the location of the connectors when installing the Power Supply enclosure. DC OUT - DC output (30Vdc) fed independently to each of the (2) TAUD-500 Power Amplifier enclosures. Technalogix Ltd TAUD-1000 Transmitter VIII-11...
  • Page 90 7. Hook up the modulator or processor as shown in their respective manuals for a transmitter or translator. If the modulator or processor was produced by Technalogix, then the RF output level has already been set and optimized for optimum performance and should not be adjusted.
  • Page 91 At this stage, the system is set up and ready to do a preliminary start up, as outlined in the following section Technalogix Ltd TAUD-1000 Transmitter VIII-13...

  • Page 92: Section Ix - Operating Procedure

    RF In (BNC female). This ensures that the RF drive signal is applied only after the power supply is stable and the bias voltages are applied to the amplifier. Technalogix Ltd IX-1...
  • Page 93 The power amplifier has been factory aligned for channel frequency (per system specification), signal levels and optimum performance. Technalogix Ltd IX-2...

  • Page 94: Section X - Maintenance And Troubleshooting

    All modular components inside the enclosure are attached to aluminium mounting plates for easy removal and replacement. Ensure that plates are secured and the mounting hardware is tight. Technalogix Ltd...

  • Page 95: Troubleshooting

    (may roll either way interference depending on phase) Ensure modulator/processor and power amplifier share a common ground Diagonal lines in picture Interference Install EMI/RFI filter in AC line Determine source and frequency of interfering signal (spectrum analyzer may be required) Technalogix Ltd...
  • Page 96 VSWR. Verify correct cable for transmission line length Check all cables for visible damage (kinks, nicks or cuts) Check all connectors for poor connections, water or corrosion Check alignment of antenna Check for physical damage of antenna, including ice build-up Technalogix Ltd...
  • Page 97 Thank you for choosing Technalogix Ltd.
