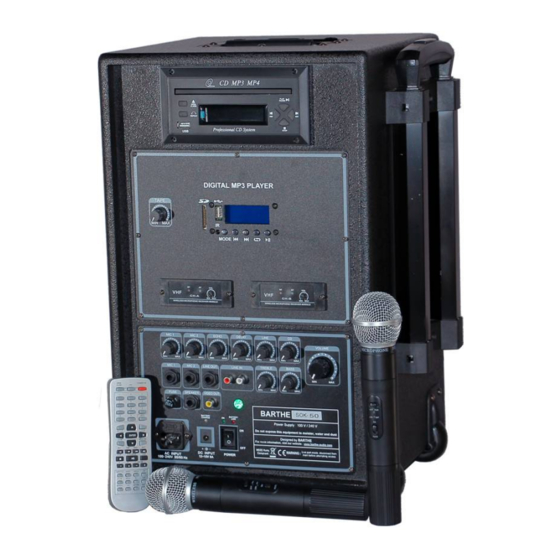

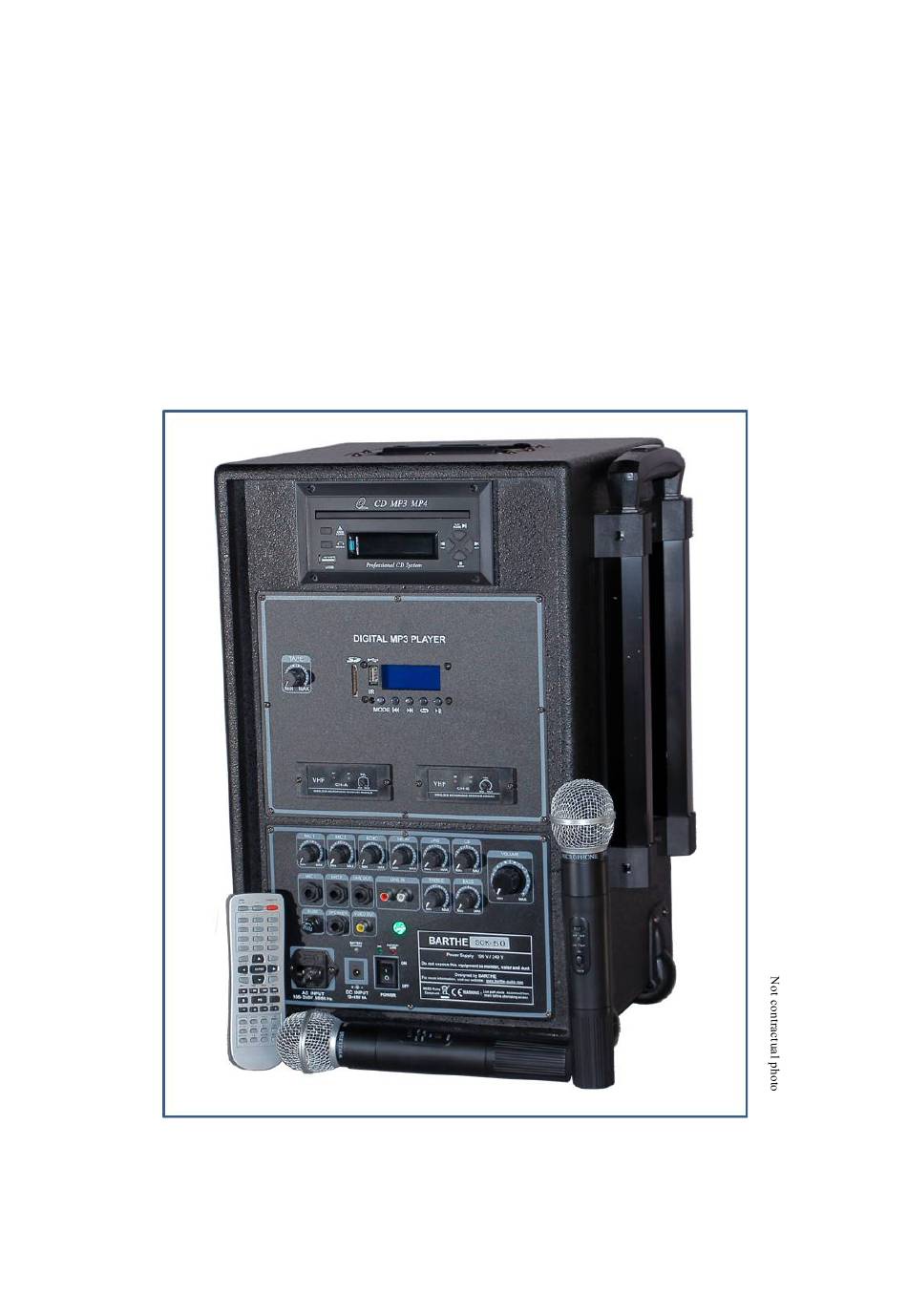

- Page 1 BARTHE www.barthe-audio.com THE INNOVATION IN AUDIOVISUAL USER MANUAL FOR: SOK 50 Please read this manual carefully before operating the unit and keep it for reference.
-
Page 2: Table Of Contents
BARTHE www.barthe-audio.com THE INNOVATION IN AUDIOVISUAL USER MANUAL FOR SOK 50 TABLE OF CONTENTS I – SAFETY INSTRUCTIONS page 3 II – TECHNICAL CHARACTERISTICS - Switching ON/OFF page 5 III – PARTS DESCRIPTION - Device description page 6 - Tape recorder and CD/DVD player... -
Page 3: I - Safety Instructions
BARTHE www.barthe-audio.com THE INNOVATION IN AUDIOVISUAL I – SAFETY INSTRUCTIONS Before using the appliance, please read these instructions carefully. Please follow these instructions in order to protect the user and all other person from injury or material damage. Do not execute an operation not indicated in this handbook to avoid any material failure or accidental wound. - Page 4 BARTHE www.barthe-audio.com THE INNOVATION IN AUDIOVISUAL Leave enough space around the power outlet so it can be easily unplugged. If you leave any objects around the outlet, you cannot access it quickly in case of emergency Do not attempt to disassemble or modify the device since it contains high voltage and high temperature parts that could ignite or cause electric shocks.
-
Page 5: Technical Characteristics
BARTHE www.barthe-audio.com THE INNOVATION IN AUDIOVISUAL II – TECHNICAL CHARACTERISTICS Presented model: SOK 50.4 UB Output power: 50 W Power source: 110 / 250 V Loudspeaker: 8‘’ Wireless microphone (optional): - Frequency range : VHF 220,8 or 222,6 MHz - Effective range : 35 m Sensitivity: 10 dBµV (signal to noise ratio of over 60 dB) -
Page 6: Switching On/Off
BARTHE www.barthe-audio.com THE INNOVATION IN AUDIOVISUAL - SWITCHING ON For a mains supply use, connect the mains cable, and turn switch « ON/OFF » on. The power LED lights green. Warning: After extinction, wait at least 3 seconds before turning the machine on. -
Page 7: Tape Recorder And Cd/Dvd Player
BARTHE www.barthe-audio.com THE INNOVATION IN AUDIOVISUAL - TAPE RECORDER (1) Record (2) Play (3) Rewind (4) Fast forward (5) Stop (6) Pause Cassette desk - USB - CD / DVD PLAYER (8) CD drawer (9) Track display (Non contractual picture) -
Page 8: Cd / Dvd Control Panel
BARTHE www.barthe-audio.com THE INNOVATION IN AUDIOVISUAL - CONTROL PANEL Wired micro MIC-1 volume control Wired micro MIC-2 volume control (3)(4) Echo control (use only with wired micro) Audio input volume DVD volume Main volume control Bass control (10) Treble Control... -
Page 9: Mp3 Player (Mr)
BARTHE www.barthe-audio.com THE INNOVATION IN AUDIOVISUAL - MP3 player Description: LCD display with blue backlight off. Repeat mode loop. Playback of MP3 and WMA files. 3 play functions: reading of all songs, repeat a song, reading all songs of current folder (ALL, 1, or F). - Page 10 BARTHE www.barthe-audio.com THE INNOVATION IN AUDIOVISUAL 1 Media in reading 2 Reading time 1 Mode and standby 4 Reading mode 2 Return previous track and Volume - 5 Play/pause and moving in the folders 3 Next track advance and volume +...
-
Page 11: Hand Hold Microphone / Headband
BARTHE www.barthe-audio.com THE INNOVATION IN AUDIOVISUAL - HANDHELD MICROPHONE (1) Mesh (2) Power Switch (3) Power LED indicator (4) Low battery LED indicator (5) Battery compartment/Cover (6) Audio Switch (ON /MUTE) - BODY PACK TRANSMITTER (1) Volume Control (2) MIC-IN Jack... -
Page 12: Cd Player Remote
BARTHE www.barthe-audio.com THE INNOVATION IN AUDIOVISUAL USE OF THE VARIOUS ELEMENTS - CD PLAYER REMOTE... - Page 13 BARTHE www.barthe-audio.com THE INNOVATION IN AUDIOVISUAL The remote control can control the DVD player. OPEN/CLOSE: To open or close the DVD drive. OSD: Lets you view different information about the reading media. STANDBY/ON: Turn on or off the player. Selecting tracks, chapters by numbering (ex: press 9 to access track n°9).
-
Page 14: Mp3 Player Remote
BARTHE www.barthe-audio.com THE INNOVATION IN AUDIOVISUAL -MP3 PLAYER REMOTE PLAY/PAUSE: Play or pause. EQ: Equalizer Selecting tracks, chapters, by numbering, (ex: press 9 to access track n° 9). PICK SONG: N/A ENTER: Allows you to loop a track, tracks in the folder or all tracks. -
Page 15: Use
BARTHE www.barthe-audio.com THE INNOVATION IN AUDIOVISUAL IV. USE - GÉNÉRAL USE This device can be used on mains supply or on battery (if battery option). Using the device on mains supply Plug the cord of the device on the AC input and on an electrical outlet. -
Page 16: The Tape Recorder
BARTHE www.barthe-audio.com THE INNOVATION IN AUDIOVISUAL - TAPE RECORDER (IN OPTION) Normal Playback - Press the STOP/EJECT to open the door of the tape player. - Place the tape in. - Push the door to close. - Press on PLAY button. -
Page 17: Cd / Dvd Drive
BARTHE www.barthe-audio.com THE INNOVATION IN AUDIOVISUAL - CD / DVD DRIVE Normal playback - To turn the DVD player on, turn the DVD volume button on until it clicks the display lights. - Press on stop button/open/close to open the disc tray. - Page 18 To select Bluetooth, press the MODE button until you have the Bluetooth Menu, start searching for devices on your device to connect, select the device named "BARTHE". To return to the NORMAL mode, press the MODE button until you select the desired media.
-
Page 19: The Wireless Handheld Microphone / Lapel Headband
BARTHE www.barthe-audio.com THE INNOVATION IN AUDIOVISUAL - THE WIRELESS HANDHELD MICROPHONE / LAPEL HEADHAND MICROPHONE (OPTION U) 1. Open the battery compartment of the microphone, insert the batteries (please take care of the polarity) 2. Set to ON, the LED blinks once. The low battery indicator lights up then turns off. When the indicator is red, it means the batteries are exhausted, change the batteries. -
Page 20: Maintenance
BARTHE www.barthe-audio.com THE INNOVATION IN AUDIOVISUAL V - MAINTENANCE In case of fingerprints or other mark, it may be necessary to clean the surface of the disk; use a soft, dry cloth. The tape drive heads needs regular cleaning. This eliminates the ferrite dust that can deposit and alter listening. -
Page 21: Questions
BARTHE www.barthe-audio.com THE INNOVATION IN AUDIOVISUAL VI – QUESTIONS Double check the following points before concluding that your system is down. 1- Are all connections correct? 2- Is the system used in accordance with the instruction manual? If the system is not working properly, perform the check list below. If any of these checks does not resolve the problem, the system may be defective. - Page 22 BARTHE www.barthe-audio.com THE INNOVATION IN AUDIOVISUAL SYMPTOM CAUSE SOLUTION - The disc is inserted upside Pressing buttons has no effect. down. - Reload the disc. The disc stops in the middle of a - Presence of foreign matters in - Remove the disc and remove track and cannot be read the disc tray.
-
Page 23: Regulation
BARTHE www.barthe-audio.com THE INNOVATION IN AUDIOVISUAL VII - REGULATION This device complies with the standards applicable in the EU. It complies with: Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003 on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS). - Page 24 BARTHE www.barthe-audio.com THE INNOVATION IN AUDIOVISUAL Distributed by: 11 rue des Sapeurs – 34 380 St Martin de Londres - FRANCE – Tel: +33 04 67 55 14 57 – Fax: +33 04 67 63 54 95 www.barthe-audio.com info@barthe-audio.com Limited Company with a capital of 202 000 € - 572 029 155 RCS Montpellier – 2640 Z –...
