Summary of Contents for Ultra Digital UDI7012

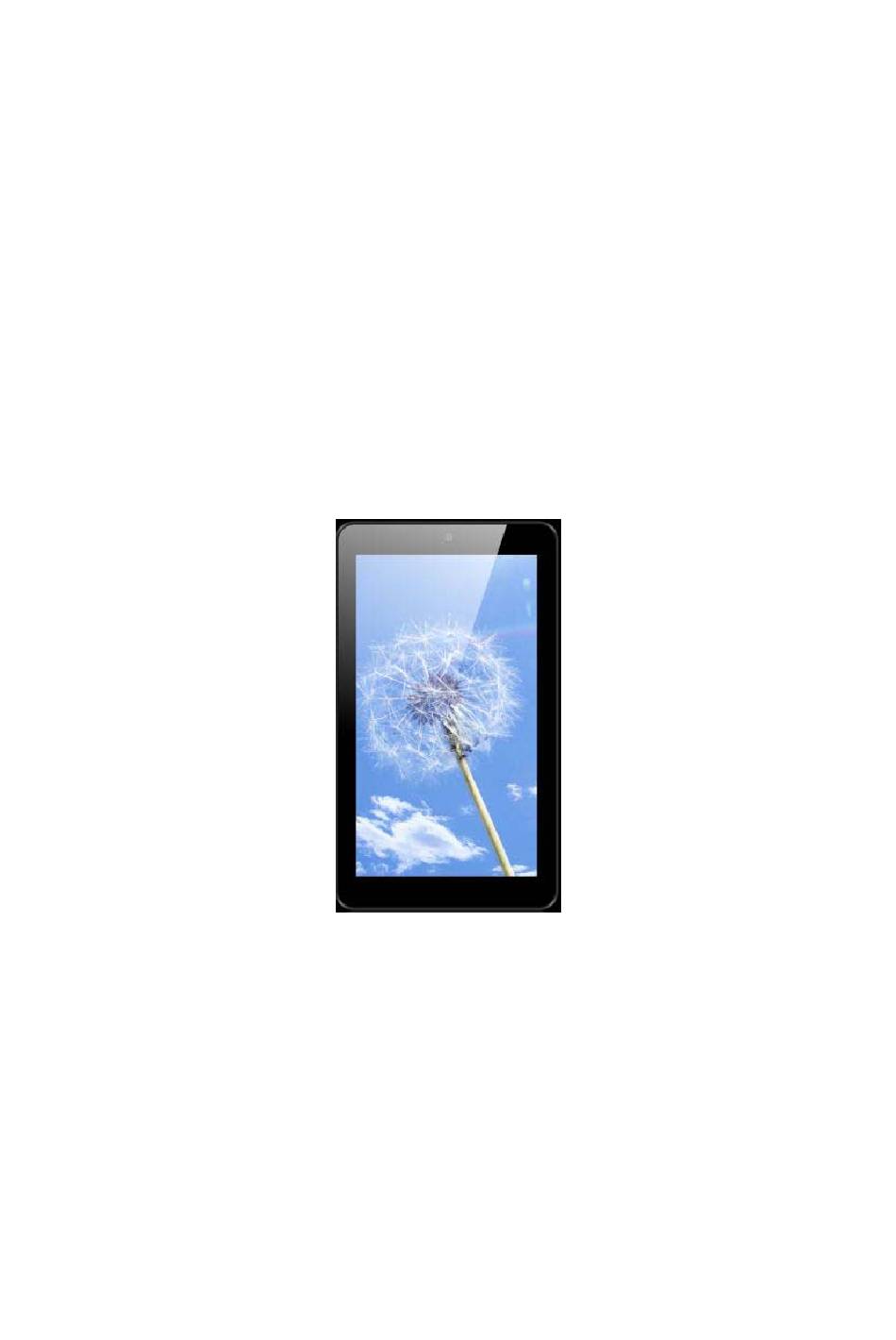

- Page 1 USER MANUAL UDI7012 Safety Precautions ...
- Page 2 Read these safety instructions before using your device and store them for possible future reference. Always follow these basic safety precautions when using your Mobile device. This reduces the risk of fire, electric shock, and injury. Do not expose this product to rain or moisture. ●...
-
Page 3: Specification
Only qualified personnel are authorized to install or repair this product. ACCESSORIES Only use batteries, chargers and other accessories which are compatible for this device. Do not connect incompatible accesssories to the device. KEEP YOUR DEVICE DRY Your device is not water proof. Keep it dry. CHILDREN Keep the mobile device in a safe place out of the reach of children. - Page 4 Power off：Long press the power button for 3 seconds →click power off → click confirm Screen off and on ：Short press power button to turn off or turn on screen Mandatory shutdown: If the device has no response, long press the power button for 6 seconds to perform mandatory power off Notice: In case of no necessary conditions, It's better not use mandatory power off. Power off should be performed normally according to the standard steps. 3．Desktop 3‐1 Introduction of Main Interface Press and hold the power button to boot up the machine, the screen after boot‐up is in a locked state, slide on unlock icon to unlock, then you will enter the main interface as shown below. Through this interface you can browse menu used recently, replace wallpaper, add widgets or program shortcut, open procedures or carry out other operations. 3‐1‐1.Status bar: tap on status bar at the lower right corner with finger, you can open notification bar to read prompt message, networking status, battery status, and check date and time. 3‐1‐2.Return button: tap with finger, you can return to the previous operation or exit the application program. 3‐1‐3. Main interface: tap main interface button to enter the main interface: ...
- Page 5 ● Add: its function is to add small icons with a variety of functions or widgets, folders, wallpapers; you can delete icons on main interface by holding down the icon to be deleted, when there is X‐Remove icon appear, drag this icon directly to X for deletion ● File Manager: view all the procedures in this machine and uninstall programs; ● Wallpaper: in this menu, you can set up your favourite pictures as the background of the main interface. ● Search: enter Web page search waiting state, input website here for search. ● Setting: touch and directly enter the system setting menu interface. 3‐1‐4．Menu button recently used: touch , it will pop up functional menus recently used as follows: Through this shortcut button, you can quickly access to application programs running in the backstage and browse traces of recent use. 3‐1‐5． Volume ‐ ,volume + 3‐1‐6．Main menu button: touch , it will pop up a full‐function menu as follows: This window shows all functional icons in this machine. Touch any icon to enter the relevant functional interface. Functions of these icons are introduced briefly as follows: Browser: touch to enter Internet interface and browse websites. Calendar: view calendar and settings. Calculator. Clock: Set alarm clock. Music: Play music. Please refer to the introduction of (3‐1.Music) for the method of operation. ...
- Page 6 Video: please refer to the introduction of (3‐2. Video) for the method of operation. Recorder: enter recording interface for recording. Please refer to the introduction of (3‐3. Recording) for the method of operation. Camera: please refer to the introduction of (3‐4. Camera) for the method of operation. 3‐2．Installation This machine is free to install APK (abbreviation of Android Package, namely Android installation package) program, you can get third‐party application programs suitable for the Android system on the electronic market or through Internet, and can install it on this machine by yourself. First open "Settings/Security", tick items behind "Unknown Source". 3‐2‐1．Program access： Method 1: download through Internet, then copy the application program into TF card or U disk and then insert it into the machine; or copy files from your computer through USB cable to the machine. Method 2: download application program through "Application Market" in this machine to your TF card. 3‐2‐2．Program Installation： Touch main interface shortcut, select "File manager" and then enter root directory in the SD card, internal storage or USB (corresponding U disk), then touch the file manager to be installed in accordance with the Setup Wizard. 3‐2‐3．Program Uninstall： Touch "Setting" on main interface or the hidden shortcut icon on lower right corner, select "Apps" on the left list, tap "ALL" on the right column, select the program you want to remove in following list , tap "Uninstall" in the inferior dialog , and touch "OK". Then the program will be uninstalled. Notice : original program can’t be uninstalled. ...
- Page 7 3‐3． Text input When you start up a program or select the text edit box needed for input texts or numbers, a screen keyboard will appear. The keyboard has the following input methods for selection: ●Android keyboard ●Google Pinyin input method 3‐3‐1．Select input method Based on preset, the machine will display the Android keyboard when you want to input texts. 1. Touch Menu button on the homepage interface, and touch settings. 2. Touch language and keyboard. 3. In the language and keyboard settings area, input methods installed in your machine will be listed. 4. Tick on the input method you need. 3‐3‐2．Use and switch input methods 1. On the text input interface, hold down text edit box area until text edit menu pop up. Then touch "Input Method". 2. Select your desired input method. Keyboard panel of Android Pinyin input method 4．Internet 4‐1．Network setting Touch status bar at the bottom right, select "Set/Wireless and Network" to enter network setting interface: In the "Wireless and Network" setting interface, press "WI‐FI" and drag to the right to open WI‐FI. After WI‐FI open, it will automatically search WLAN(Wireless Local Area Network) and display it in a list, touch the WLAN TO be connected(for example, d‐link wireless router network illustrated by this machine),you will enter the password input interface, input the network password and then touch "Connect", this machine will automatically ...
- Page 8 connect to the WLAN , then you can connect it to the Internet in a normal state. 4‐2. Web browser Touch main interface shortcut, select “Browser" to enter browser interface, touch “Menu" button, it will pop up browser setting menu; touch "Start", address bar will pop up, input website and confirm. After open a web page, you can slide your finger up and down on the screen to browse and view the other parts of the webpage, it also support simultaneous opening and free switches between multiple windows, which change a lot of inconvenience of single window of Android 4.0 in the past. 4‐3. E‐mail E‐mail program can receive and send e‐mail. E‐mail application program is accompanied by e‐mail setup wizard, you can add external POP3 or IMAP e‐mail account of familiar Web‐based email service providers (such as Yahoo, Gmail, Hotmail, and Netease). ...
-
Page 9: Multimedia Entertainment
Note: prior to E‐mail Setup Wizard, make sure that your device has been connected to the network and the time setting is correct. 4‐3‐1．Mailbox Touch main interface shortcut, select “Email" icon, mailbox setup wizard will help you set up. Touch "Next" button, input E‐mail address and password of your E‐mail account. Then touch "Next" button, select your mailbox type ‐‐ POP3 or IMAP. Then touch "Next" button to check whether the E‐mail sending and receiving server is available, input your account name and name you want to display when sending E‐mails, then touch "Finish". If the mailbox is available, it will automatically enter your inbox. 5． Multimedia Entertainment 5‐1.Music Select music icon, touch and enter music file list, in which you can touch the music you want to play as shown below: " "Select previous/next song, fast backward/fast forward; you can also realize fast backward/fast forward by directly sliding the progress bar. " / ": Play/pause music; 5‐2. Video ... - Page 10 Select video player icon, touch and enter video file list, in which you can hold down the bottom of the video files, it will pop up a "Delete" menu, touch "Delete" to delete the video files. Select video and touch to enter video player interface; “ ”：Volume up/down; “ ”：Select a previous/next video and fast backward/fast forward in the current video; you can also realize fast backward/fast forward by directly touching on the progress bar. “ / ”： Play/pause a video; “ ”： Return to previous menu; Tap for more humanized settings: 5‐3. Recording Select recording icon, touch it to enter the recording interface: In the recording interface, touch " " to start recording, after the recording is finished, touch " " to save automatically. The recorded files will be saved in the "Recordings" file folder under root directory in "recordingxxxxx.3gpp" file format. All the recording files can be played in the music play mode. 5‐4． Camera ...
- Page 11 Select camera icon to enter the shooting mode. 5‐4‐1．Self‐time photo In the shooting mode, touch " ” to take photos. Photograph files are stored in the "internal storage/DCIM/Camera" directory, file name will be generated automatically in order in the format of "year, month, date, hour, minute, second. jpg". Touch " " to browse all photos taken. 6． Setting 6‐1. Wireless and network: in this setting, you can set up network connection; the method of operation has been described in detail in (2‐1 Network Setting). 6‐2. Date usage: you can set date, time, time zone and time display format you like. 6‐3. Sound: you can set media volume, notification rings, select operating sound, screen lock prompt tone; 6‐4. Display: rotate the screen automatically (screen direction will changed automatically when rotating MID), wallpaper (choose from dynamic wallpaper, photo gallery, wallpaper gallery), brightness (adjust brightness of the screen), sleep (time setting of screen saver). 6‐5. Storage: view available capacity of memory of SD card or the machine, uninstall SD card, format SD card. 6‐6 Battery check battery’s state 6‐7. Application program: in this menu, you can view the memory space, manage/delete installed applications, view and manage running services. 6‐8. Location and security: you can make the following setting: show my location when using the network, set patterns for unlocking screen, if its characters shall be shown when entering password, set whether installation of third‐party application program is allowed in "Unknown sources". 6‐9. Language & input , select language and set input method. 6‐10back up& resest 6‐11. About Tablet PC: view the status of the machine, power usage state, legal information, model and version number of software. ...
- Page 12 Connect to a computer and file transfer Connect the machine to a computer through USB cable, the status bar at the bottom right of the screen will prompt that USB has connected, default USB connection is "connect as a media device", then users can access to this machine and take as a removable disk; If you need to connect application of mobile phones such as 91 assistant or pea pod, you should open "USB debugging" mode through "Settings" ‐ "System" ‐ "Developer's option". The USB storage state system will restrict users to use relevant application programs which need to access to the local disks of the machine, it will return to normal when disconnecting the USB storage status as shown below: ...
- Page 13 FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause ...
