0406 Version 1.2

X102 Handsfree

User Manual

Table of Contents

Need help?

Do you have a question about the X102 and is the answer not in the manual?

Questions and answers

Summary of Contents for X-tail X102

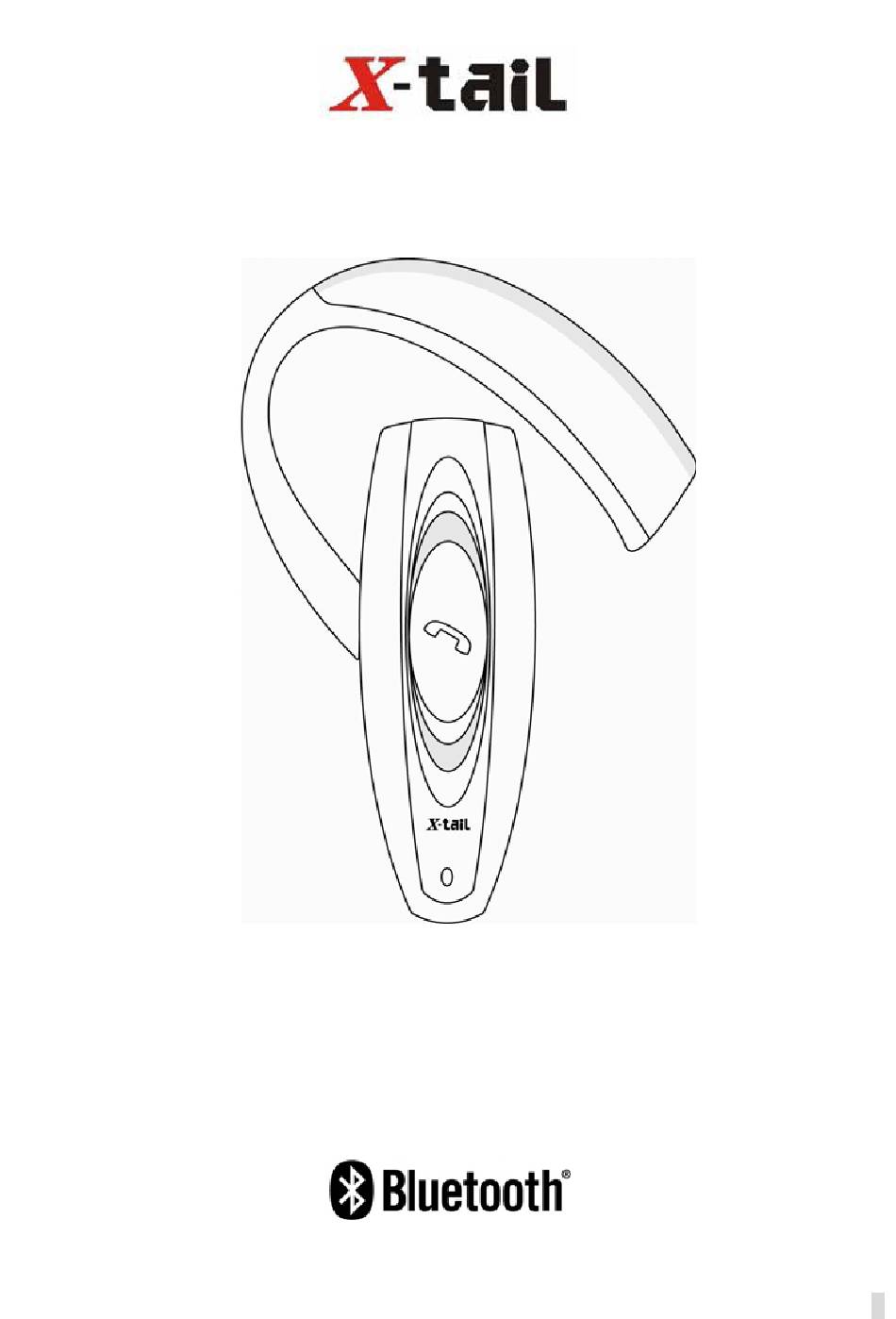

Page 1 0406 Version 1.2 X102 Handsfree User Manual...
Page 2: Table Of Contents
0406 Version 1.2 Contents Introduction ..................1 Headset Features ................2 Charging the Headset ................ 2 Putting on the Headset ............... 5 Turning the Headset On/Off ............... 6 Pairing the Headset................7 Placing a Call ..................8 Receiving a Call.................. 9 Ending a Call ..................
Page 3: Introduction
Bluetooth wireless technology redefines the very way we experience connectivity. The X102 Handsfree lets you wirelessly connect to the Bluetooth mobile phone supporting Headset profile or Handsfree profile. Please read this user manual carefully before you start using the headset.
Page 4: Headset Features
0406 Version 1.2 Headset Features 1. Talk Button Turns the headset on/off, answers/ends a call, pairs the headset with a device, and is used for voice dialing. 2. Volume Up Button Increases the speaker volume. 3. Volume Down Button Decreases the speaker volume. 4.
Page 5 0406 Version 1.2 Recharging When the battery is low, the headset LED indicator starts flashing red, and a warning tone will be heard. The low battery warning tone will start 3.5 hours while in standby mode or 8 minutes while in talk mode before the headset runs out of power.
Page 6 0406 Version 1.2 electrical outlet. The orange LED indicator on the Y-Cable turns on. Attach the DC plug to the headset’s socket port. When the battery is completely charged, the LED indicator on the headset turns green. You can now remove the headset from the DC plug, and unplug the switching adapter from the electrical outlet.
Page 7: Putting On The Headset
When charging is complete, the LED indicator turns green. Putting on the Headset The X102 Handsfree is designed to be worn on either ear. Its earpiece arm features an adjustable as well as a 90 degree rotatable design that gives a secure fit to your ear.
Page 8: Turning The Headset On/Off
0406 Version 1.2 Loop the earhook over your ear. Adjust the earpiece arm to stabilize the headset. The microphone should be positioned toward to your mouth. Turning the Headset On/Off To turn the headset on Press the talk button for about seconds until you hear a low tone followed by a high tone.
Page 9: Pairing The Headset
0406 Version 1.2 Pairing the Headset Before using the headset, you must first pair it with a Bluetooth wireless technology enabled device, such as a Bluetooth mobile phone. NOTICE: Pairing must be done every time while the headset establishes a link with a different Bluetooth wireless technology enabled device.
Page 10: Placing A Call
0406 Version 1.2 Placing a Call You can make a call through: Dialing a number from your mobile phone Dial the phone number from the mobile phone’s keypad. Press the phone’s MAKE/ACCEPT Call key to make a call. The call automatically transfers to the headset. Voice dialing To use voice dialing, this functionality is only available if the mobile phone supports voice dialing.
Page 11: Receiving A Call
0406 Version 1.2 Receiving a Call When a call comes in, the headset rings and the LED indicator flashes blue every 3 seconds. You can either press the talk button once on the headset or press the MAKE/ACCEPT Call key on your mobile phone to answer the call.
Page 12: Mute/Un-Mute
Resetting won’t delete previously stored pairing information. NOTICE: The X102 Handsfree supports both Headset and Handsfree profiles. Some mobile phones don’t support all functions listed above. Please consult your phone’s user’s guide.
Page 13: Y-Cable Led Indicators
0406 Version 1.2 Headset State LED State Incoming call – Sony Ericsson Blue LED flashes 3 times every 3 sec. Incoming call - Nokia Blue LED flashes 4 times every 3 sec. Talk mode Blue LED flashes 4 times every 3 sec. Low battery Red LED flashes instead of blue LED.
Page 14: Specifications
0406 Version 1.2 Specifications Standard Compliant with Bluetooth specification v1.1 Chipset BlueCore2-Audio single chipset Profile Supported Bluetooth Headset profile Radio Frequency 2402 MHz ~2480 MHz Transmitter Power Class 2 (max 4dBm) Transmission Range Up to 10 meters Receiver Sensitivity -79 dBm Charger Power Supply 5VDC / 500 mA Temperature...
Page 15: Safety And Certification
0406 Version 1.2 Charging LED does not turn on when charging the rechargeable earhook: Ensure: The earhook is properly inserted into DC jack on the Y-cable. The switching adapter is properly inserted into the Y-cable. Headset does not pair with Bluetooth phone: Ensure the headset is on pairing mode.
Page 16: Warranty And Parts Replacement
0406 Version 1.2 conjunction with any other antenna or transmitter. NOTICE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. CE Statement Important Notice: This device is a 2.4GHz FHSS Bluetooth headset, intended for office and home uses in all EU and EFTA member states.
Page 17 0406 Version 1.2 A copy of your receipt or the proof of purchase is required. Without proof of purchase, your warranty is defined as beginning on the date of manufacture as labeled on the products. The warranty is void if the serial number, date or product label is removed, or if the product has been subject to physical abuse, improper installation, modification, or repair by unauthorized third parties.
Page 18: Contacting Priver
Contacting Priver Head office 4F, No. 69-8, Sec. 2, Chung-Cheng E. Rd., Tamshui Zhen, Taipei Hsien 251, Taiwan, R.O.C. Tel: +886-2-28093999 Fax: +886-2-28090799 Contact: sales@x-tail.com.tw Website: www.x-tail.com.tw Factory China: Gold Bridge Industrial Estate, Ching Shi Zhen, Dong Guan City, Guang Dong Province, P.R.C.
