Summary of Contents for Syncronorm V:Server U8

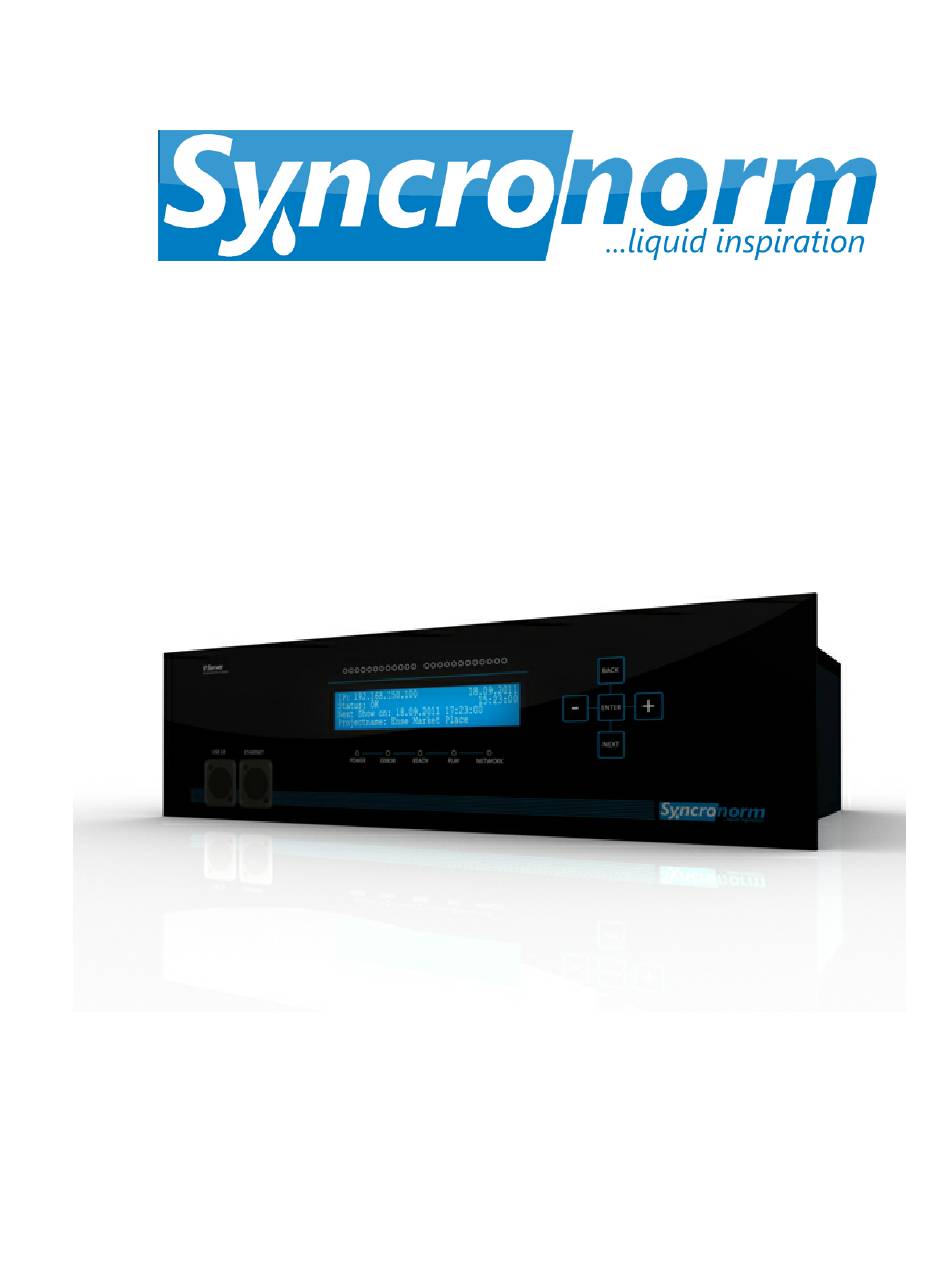

  • Page 1 Syncronorm V:Server Instruction Manual © 2015 Syncronorm GmbH...

  • Page 2: Table Of Contents

    V:PAD and V:3D ................................9 Synchronization ................................10 Input and Output Configuration ................................11 Setup Netw ork Connection ................................. 11 I/O Control ................................. 12 5 V:Server Commands ........................... 14 Part III Maintenance and cleaning Part IV Guarantee Index © 2015 Syncronorm GmbH...

  • Page 3: Part I Introduction

    Introduction Welcome topic Welcome to SYNCRONORM. You made a good choice with the purchase of this product V:Server U8/ U16 . Prior to commissioning the unit, please read the instructions of use carefully and fully familiarise yourself with the unit. Ensure that all work on and with this unit is only carried out in accordance with these instructions.

  • Page 4: Checking The Scope Of Delivery

    PCs using the Windows operating system. To download the current software and firmware, visit the Syncronorm website. Intended use V:Server U8 / U16 , referred to in the following as "unit", may only be used as specified in the following: - For controlling DMX and DMX-RDM compatible units (e.g. pumps, nozzles, spotlights). Safty information Hazards to persons and assets may emanate from this unit if it is used in an improper manner or not in accordance with its intended use, or if the safety instructions are ignored.

  • Page 5: Qualifications And Training Of Employees

    Original spare parts and accessories approved by the manufacturer provide safety. We wish to stress that all parts and accessories not supplied by SYNCRONORM GmbH have neither been tested nor approved by SYNCRONORM GmbH. For this reason, the installation and/or use of such products can, under certain circumstances, negatively affect the specifications for the device.

  • Page 6: Part Ii Installation

    Syncronorm V:Server Installation Front Panel Back Connectors © 2015 Syncronorm GmbH...

  • Page 7: Getting Started

    2. Wait until the V:Server boot is finished, this can take several minutes on first start up. 3. As soon as you can see the Info page the Server has start up completely Setup Network Connection to setup all Network settings to get access to your V:Server using V:PAD. © 2015 Syncronorm GmbH...

  • Page 8: Settings

    Load Showfile after Boot: This option will load a specific Sequence (show) after startup Update Project from USB This option can be used to import a full Project from any USB-Stick. This is also available using the Front-Panel. © 2015 Syncronorm GmbH...

  • Page 9: V:pad And V:3D

    If you want to send back DMX Data to V:PAD i.e. for recording old show, you can here define the IP address of the PC where V:PAD is running. Same for V:3D as monitoring on an additional PC. Check out I/O Configuration to setup specific Universes to be sent to V:PAD or V:3D. See I/O Control © 2015 Syncronorm GmbH...

  • Page 10: Synchronization

    In this window you can setup all Timecode settings for being Timecode Master or Slave. The V:Server supports 3 different Timecode formats: SMPTE (Analog over XLR Connector on backside), NTC (Nettimecode over Ethernet), SNTC (Syncronorm Timecode over Ethernet). Here you can also adjust the SMPTE signal volume.

  • Page 11: Input And Output Configuration

    IP address for Comnet. Note that it is always recommend to use static IP addresses instead of using DHCP. Now, V:PAD should be able to connect to your V:Server as soon as they are in the same Network. © 2015 Syncronorm GmbH...

  • Page 12: I/O Control

    V:PAD (live). As soon as V:PAD is used as DMX-Input the V:Server will switch in "Interface" mode and will simply forward all DMX-Data. ArtNet: Here you can merge in any ArtNET input, i.e. from an external console. Note that ArtNET Universes are counting by 0. Connectors: © 2015 Syncronorm GmbH...
  • Page 13 This option is enabled by default and will calculate all incoming DMX signals depending on the current patched fixtures, which means that in case of any Profile or Virual Master is assigned to a channel, this will be calculated in the result. Use RDM This option will enable the RDM functionality. © 2015 Syncronorm GmbH...

  • Page 14: Server Commands

    STARTSYSTEMUPDATE Start a Firmware update GETCURRENTBOOT Shows current loaded Project GETCURRENTSHOW Shows current loaded Show GETSERIALNUMBER Shows device Seriel Number SETAUDIOVOLUMEN Set the audio output volume setaudiovolume|80 GETTIMELOCKDATE Shows the Date when System will be locked © 2015 Syncronorm GmbH...

  • Page 15: Part Iii Maintenance And Cleaning

    The guarantee is only valid in the country in which the unit was purchased from an SYNCRONORM dealer. This guarantee is governed by German law under the exclusion of the agreement of the United Nations covering contracts governing the international sale of goods (CISG) regulations.

  • Page 16: Index

    Folder and Project scope of delivery Front Panel Settings Showdata - G - Shownet Slave SMPTE Guarantee SMPTE signal volume SNTC - I - Synchronization I/O Control - T - IP-Addresses Technical data - L - Timecode Login © 2015 Syncronorm GmbH...
  • Page 17 Index - V - V:Nano V:PAD and V:3D © 2015 Syncronorm GmbH...
