NCZ-3011 DOOR / WINDOW SENSOR
User Guide

Product Summary:

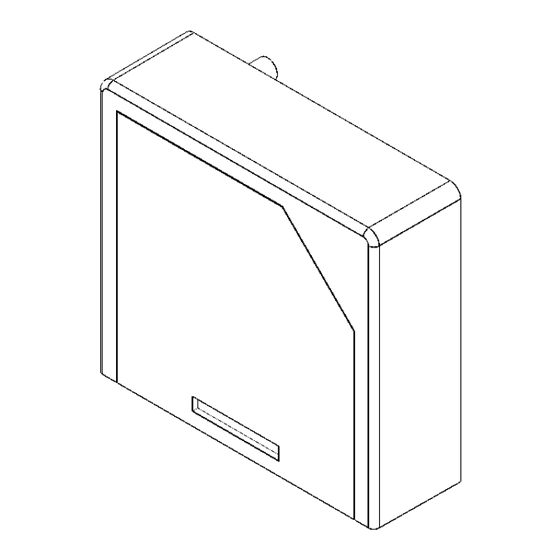

Nyce Control's NCZ-3011 is a wireless Door / Window sensor using the ZigBee radio protocol. It is used
in conjunction with a low RF transmit power wireless ZigBee network to monitor the open or closed state
of doors or windows. The NCZ-3011 can only detect the state of the item that it is attached to.
• Button functions: Identify/join Network
• Switch functions: Dry reed switch actuated by the movement of an external permanent magnet
• Accurate battery voltage level measurement and reporting back to co-ordinator
• Network operation based on the ZigBee open profile Home Automation
• 4-5 years projected battery life
Magnet
Sensor
Correct installation orientation of magnet and sensor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NCZ-3011 and is the answer not in the manual?

Questions and answers

Related Manuals for Nyce Control NCZ-3011

Summary of Contents for Nyce Control NCZ-3011

  • Page 1 RF transmit power wireless ZigBee network to monitor the open or closed state of doors or windows. The NCZ-3011 can only detect the state of the item that it is attached to. • Button functions: Identify/join Network •...
  • Page 2 Mount the rear cover housing on door frame using double sided tape or supplied screws • Place the NCZ-3011 indoors and away from sources of water/moisture and extreme weather • conditions Mount the magnet on the door such that it is spaced no more than 2 cm from the sensor when the •...
  • Page 3 Move a ZigBee router / range extender closer to the sensor • If necessary, replace the sensor • Technical Specifications: Model Number: NCZ-3011 • Battery Type: 3.0 V CR2032 Lithium coin cell • RF Frequency: ZigBee channels 11-26, 2.48 GHz •...
  • Page 4 Such modifications could void the user’s authority to operate the equipment. Changes or modifications not expressly approved by NYCE Control, Inc can void the user’s authority to operate the equipment. This device complies with Industry Canada license-exempt RSS standard(s). Operation is Subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
