Summary of Contents for K&L GPS200MV

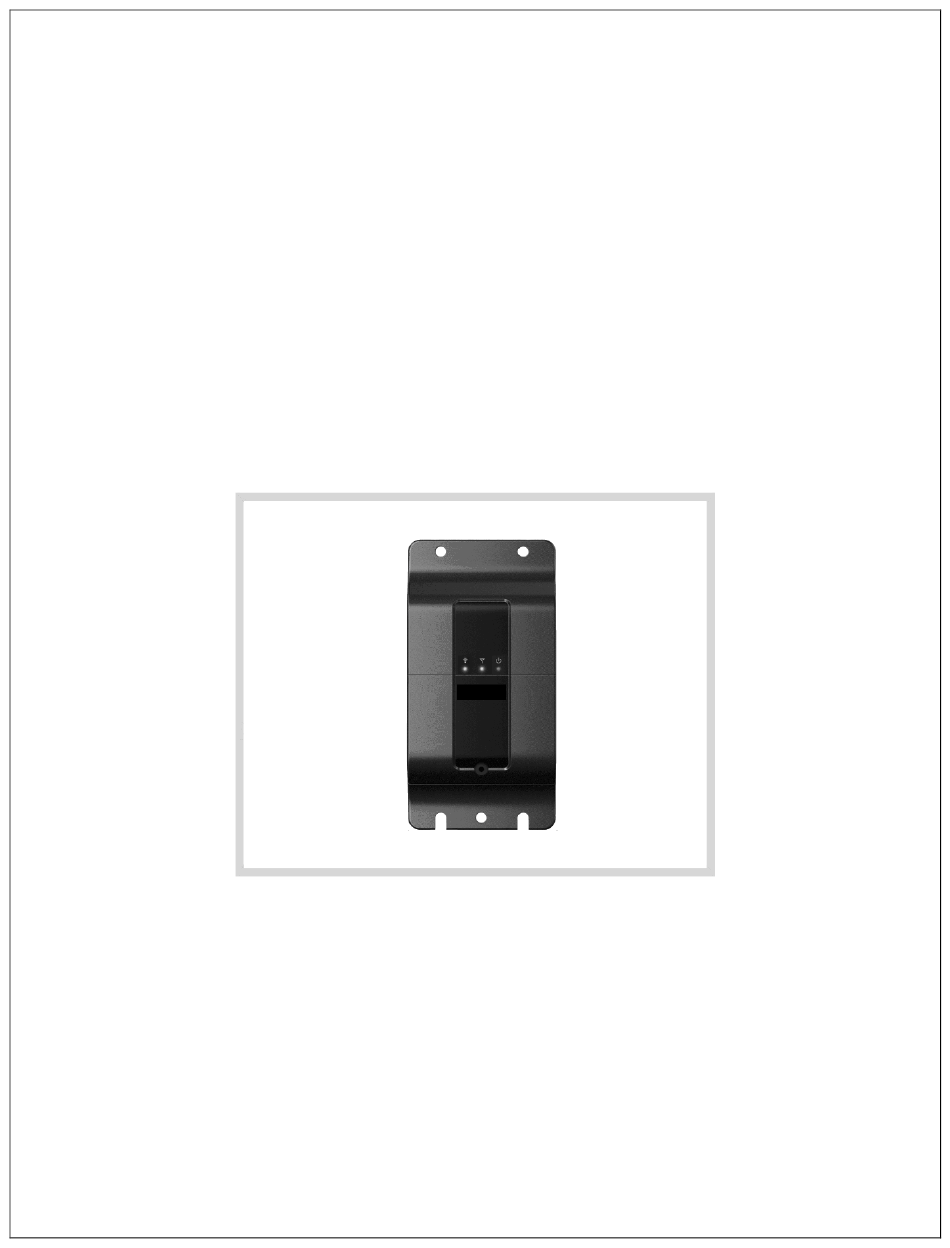

- Page 1 CDMA GPS Mobile Terminal Installation Manual Model: GPS200MV K&L Technology Co., Ltd...
-
Page 2: Table Of Contents
CONTENTS 1. Safety Information .……………………. 3 2. General Specifications ………………...…. 4 3. Unpacking .…………………… 5 4. Appearance ……………………… 6 5. Installation Manual …………………….. 8 6. Troubleshooting .……………………. 17... -
Page 3: Safety Information
1. Safety Information Product care and maintenance • Use only Manufacturer-approved accessories; otherwise, it could damage this unit and may be dangerous. • Do not disassemble this product. Take it to a qualified service technician when repair work is required. •... -
Page 4: General Specifications
2. General Specifications Model Name GPS200MV Technology CDMA 800MHz Stand-Alone Dimension 61(W) x 120(H) x 24(D)mm Weight (approximately with standard battery) Operation Temp. -30°c ~ +100°c In put Power GPS Antenna Dual PIFA Type 50Ω Intenna Li-lon 1250mAH Backup Battery... -
Page 5: Unpacking
3. Unpacking Device (Power Cable) (Battery) Manual Adhesive Tape Screws (Fuse) -
Page 6: Appearance
4. Appearance Power Button ① Emergency Reset ② Screw Hole ③ GPS Lamp ④ CDMA Lamp ⑤ Power Lamp ⑥ Battery Cover ⑦ Power Connector ⑧ 24pin Connector ⑨ 4pin Car Alarm Box Connector... - Page 7 Power Button If you want to turn on the device, push ① the power button for 2 seconds at least. You can realize that the device power on or not through the lamp. It's the same way to turn off the device.
-
Page 8: Installation Manual
5. Installation Manual The installation location can be changed according to the user’s preferences. This manual recommends user to install using “Car main power” for keeping permanent activation. • Connecting power supply Use the wire connected to the car main power for power supply. - Page 9 • Installation Install the product at the proper location inside of the car where dust was removed and cleaned. The product can be fixed using the tape attached to the rear side of the product or the screw holes at both sides of the product. (At this time, attach the product in such way that the LCD window faces upwards for proper GPS reception.) •...
- Page 10 1. Take center fascia apart from dashboard 1-1 Unscrew the center fascia marked. 1-2 Unscrew the center fascia marked. It may differ slightly depending on the model...
- Page 11 1-3 Pull the separated center fascia toward your body. 1-4 Pull out the connector between the center fascia and dashboard.
- Page 12 1-5 After the all connectors remove completely, take the separated center fascia up onto the handle. 1-6 As the below picture, remove the center fascia completely. 2. Power supply connection Use the car main power adapter as the power supply. 2-1 Peel the rubber tube off the car main power adapter wire...
- Page 13 3. Prepare the GPS device for installation. As the below picture, peel the rubber tube off the (+) and (-) pole 3-1 The copper cable of car main power adapter and GPS device connect to each other keeping attention the polarity. 3-1-1 The polarity of GPS device Red colored wire is positive (+) pole.
- Page 14 3-2 After the all wires are connected, the device should be lights up as below. 3-3 Insulate the peeled wires using an insulating tape. 4. Push the device deeply into the center fascia and move to glove box. 5. As the below picture, open the glove box fully pushing the side.
- Page 15 5-1 To stick the device on glove box, remove a dust and keep clean inside of glove box. 6. Remove the label of adhesive tape. Installation 1 > 7. Stick the device on suitable position.
- Page 16 7-1 When the device is stuck, keep out of touch with glove box’s door. < Installation 2 8. Finish Put together the center fascia and dashboard in reverse order of disassemble. 9. As the below picture, you can choice the install position anywhere you want.
-
Page 17: Troubleshooting
6. Troubleshooting Please check to see if any problem which you may have with your phone is described here before taking it for service or calling a service engineer. • Check whether you connect the wire of product to car main power correctly. - Page 18 Model: GPS200MV (REV 1.0)
- Page 19 FCC (Federal Communications Commission) Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
