- Page 1 USER’S MANUAL MOBILE HIGH BAND VHF RF POWER AMPLIFIER SERIES PA3-1XE 3370 N SAN FERNANDO ROAD, #206 LOS ANGELES, CA 90065 TEL: (323) 256-3000 FAX: (323) 254-321 E-Mail: sales@tplcom.com Web site: www.tplcom.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PRODUCT DESCRIPTION GENERAL SPECIFICATION III. OPTIONS CAUTION OPERATING PRECAUTIONS INSTALLATION VII. WARRANTY VIII. SERVICE... -
Page 3: Product Description

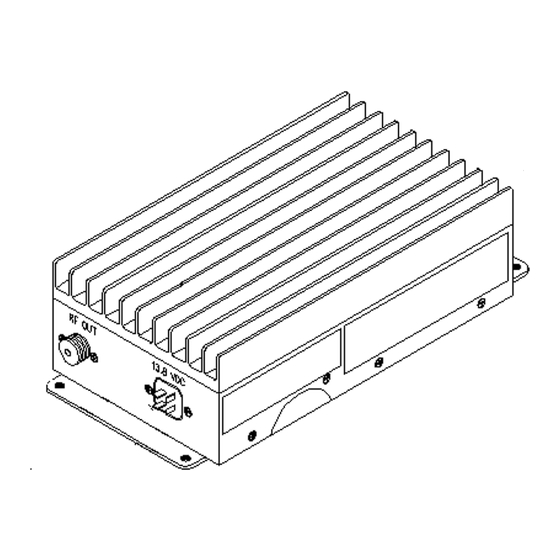

I. PRODUCT DESCRIPTION The PA3-1XE model is a VHF RF power amplifier series intended for use in the mobile applications. This amplifier can deliver RF power from 40 to 125 W when driven with 1 to 50 W (model dependant) and it will cover the frequency range from 136 - 174 MHz. - Page 4 DC input connector. Reduced DC input voltage will result in lower output power and efficiency. EIA DUTY CYCLE: NOTE: Use of TPL Mobile Amplifiers above the recommended duty cycle or in repeater applications is not recommended and voids the warranty. CONFIGURATION: All mobile amplifiers are supplied with Solid State Carrier Operated Relay (SSR).
-
Page 5: Options
IV. CAUTION Inspect the amplifier thoroughly upon receipt for visible damage. If any is noticed, please call TPL Communications at 800 HI POWER to request an RMA (Return Material Authorization) number. If purchase trough a dealer or distributor, ask them to also follow this procedure for best results. -
Page 6: Operating Precautions
V. OPERATING PRECAUTIONS CAUTION: This amplifier produces RF voltages that can cause painful and dangerous burns. Use caution! Connect and disconnect all RF connections with the drive power and DC power off. DRIVE POWER: RF power transistors, although quite rugged in most respects, are easily damage by overdrive. - Page 7 EXPOSURE TO RADIO FREQUENCY ENERGY National and International Standards and Guidelines Your two-way radio, which generates and radiates radio frequency (RF) electromagnetic energy (EME), is designed to comply with the following national and international standards and guidelines regarding exposure of human beings to radio frequency electromagnetic energy: Federal Communications Commission Report and Order NO.
- Page 8 health care facilities may be using equipment that is sensitive to external RF energy. FOR VEHICLES WITH AN AIR BAG Do not place a portable radio or amplifier in the area over an air bag or in the air bag deployment area. Air bags inflate with great force. If a portable radio or amplifier is placed in the air bag deployment area and the air bag inflates, the radio or amplifier may be propelled with great force and cause serious injury to occupants of the vehicle.
-
Page 9: Installation
Instructions in the Radio Installation Manual VI. INSTALLATION The PA3-1XE amplifier installation is illustrated in figure 2. Mount the amplifier as close to the antenna as practical. Keep coaxial cable runs short, avoiding sharp bends and pinching. Avoid loose connectors at the ends of the coaxial cables. - Page 10 2. Wire the DC power connector (Cinch 4 pin female) directly to the battery if possible. Do not use the present vehicle wiring. Use #10 AWG if possible and certainly no lighter than #12 AWG. To avoid a possible fire, or other possible damage, make sure a fuse or circuit breaker is installed at the battery end of the wire.
- Page 12 MOBILE CONFIGURATION BLOCK DIAGRAM AMPLIFIER ENCLOSURE FUSE 13 .8V DC AMPL IFIER ANTENNA SWITCH CARRIER OPERATED RELAY RF IN RF OUT...
-
Page 13: Warranty
TPL, nor does it extend to units which have been repaired or altered outside our service department, nor where the serial number has been removed, defaced or changed.
