Summary of Contents for AirCinema AirCinema

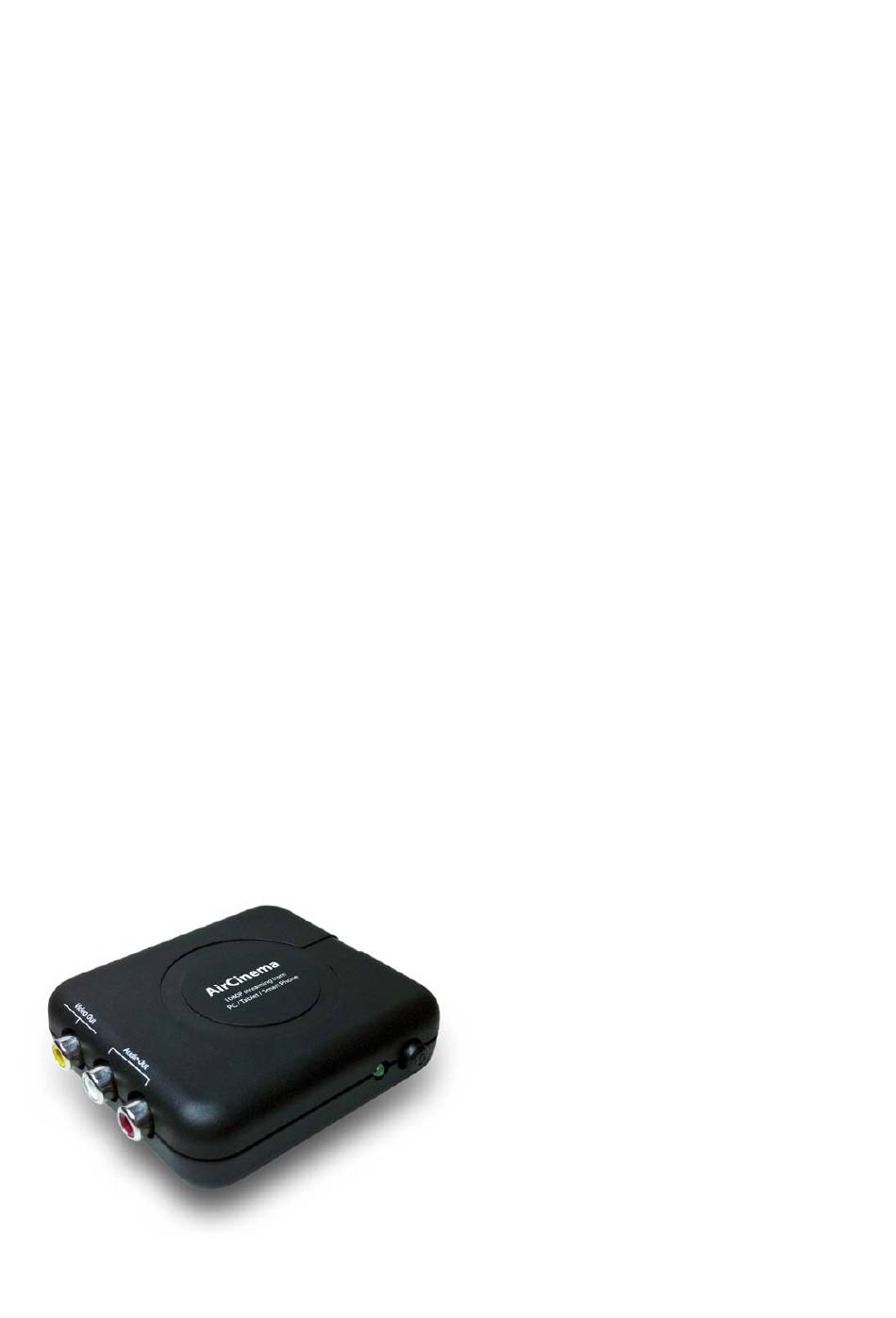

- Page 1 AirCinema 1080P streaming from PC / Tablet / SmartPhone User's Manual...
- Page 2 FEDERAL COMMUNICATIONS COMMISSION This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to part 15 of the FCC Rules.
-
Page 3: Table Of Contents
1.2 Features............................ 1.3 Specifications..........................1.4 System Requirements....................... CHAPTER 2. OUTLINE DESCRIPTION..................CHAPTER 3. HARDWARE INSTALLATION................... CHAPTER 4. CONNECTION SETUP……………………………………….………………………….. 1. Connect your device to AirCinema……………………………………………………………………. 2. Use web browser to... ………………………………………………………………………………….. Remote control……………………………………………………………………………………………... 3. Initial Setup………………………………………………………………………………………………. Language………………………………………………………………………………………………… TV System……………………………………………………………………………………………….. Wireless LAN Setup…………………………………………………………………………………….. -
Page 4: Chapter 1. Overview | 1
CHAPTER 1. OVERVIEW | 1 1.1 Introduction The AirCinema delivers Full HD resolution (HDMI out) or NTSC/PAL (Composite video out) from computer/Tablet/Smart-phone wirelessly to your home Entertainment center; it brings video and audio to the big size TV/LCD Monitor/Projector wirelessly via standard Wi-Fi technology. Providing Wi-Fi transmission up to 180 feet (open site). -
Page 5: System Requirements
CHAPTER 1. OVERVIEW | 2 • Wirelessly : Frequency : 2.4 GHz ISM Bands (2.412-2.472 GHz) Modulation : BPSK/ QPSK/ 16-QAM/ 64-QAM Compliant with IEEE802.11n Draft 3.0 standard. High speed wireless connection up to 150Mbps. Data security : 64/128 bit WEP, WPA, and WPA2 Output Power : <... -
Page 6: Chapter 2. Outline Description | 3
2. Power LED : Power indicator. 3. RCA: Composite Video and Audio output 4. DC5V : Power in. 5. RST.: Reset AirCinema device to default, Poke the RST. until device show back to default message and into Initial Setup automatically. -
Page 7: Chapter 3. Hardware Installation | 4
1. Make sure AirCinema was power off. 2. Connect power adapter to (AirCinema device) power jack. 3. Properly connect HDMI or RCA Video and Audio output port (AirCinema device) to input port of TV / Monitor etc… 4. Power on TV / Monitor. -
Page 8: Chapter 4. Connection Setup | 5
CHAPTER 4. CONNECTION SETUP | 5 When the first time to use AirCinema, it will show “Ready to Initial Setup” screen. Please follow the instructions to setup AirCinema. 1. Connect your device to AirCinema via WiFi Please turn on your devices (Computer / Smart phone / Tablet PC) Wi-Fi function. -
Page 9: Use Web Browser To
Connect “remote control” and the remote control panel will be showed on the devices (Computer / Smart phone / Tablet PC) screen. Select “OK” to next step (Initial Setup) Remote control Go to AirCinema setup --------------------------------------------------------- Use Up / Down / Left... -
Page 10: Initial Setup
Virtual AP Setup When finish Initial Setup Please select “Save Change” Click “OK” to confirm. ------------------------------------------------------------------------------------------------------------------------------------------ Language You can choose language of the AirCinema Click “OK” to confirm. --------------------------------------------------------------------------------------------------------------------------------------- TV System To set video display resolution, NTSC / PAL or other resolution to suit your TV system. -
Page 11: Wireless Lan Setup
Please see 5.1 Network / Wireless LAN Setup / Virtual AP Only Mode / Infrastructure (AP) Mode ------------------------------------------------------------------------------------------------------------------------------------------ Virtual AP Setup To set AirCinema Wireless Security Password Region When finish Virtual AP setup Please select “Save Change” Click “OK” to confirm. -
Page 12: Chapter 5. Aircinema Setup
CHAPTER 5. AirCinema SETUP | 9 AirCinema Setup Network / Audio / Video / System ------------------------------------------------------------------------------------------------------------------------------------------ 5.1 Network Click “OK” to enter Network setup option. ----------------------------------------------------------------------------------------------------------------------------- Device Name You can change the AirCinema Device name Move the point to Key in letters you need. -
Page 13: Wireless Lan Setup
CHAPTER 5. AirCinema SETUP | 10 Wireless LAN Setup To set play Video/Audio from your devices with or without internet. Click “OK” to enter Wireless LAN Setup. - Virtual AP Only Mode It allow you play Video/Audio from your devices (Computer / Smart phone / Tablet PC) without internet. -
Page 14: Virtual Ap Bridge Mode
CHAPTER 5. AirCinema SETUP | 11 - Virtual AP Bridge (bridge to wireless router) Mode Note: We suggest enable router UPnP service, when you use Infrastructure (AP) Mode, or it may cause some problems. Click “OK” to enter AP router connection setup option. - Page 15 CHAPTER 5. AirCinema SETUP | 12 After the AirCinema connect AP router successfully. AirCinema connection status screen will showed on the TV / Monitor etc… Re-Link your devices (Computer / Smart phone / Tablet PC) Wi-Fi to the “device SSID” of the AirCinema device.
-
Page 16: Virtual Ap Setup
CHAPTER 5. AirCinema SETUP | 13 Virtual AP Setup To set AirCinema Wireless Security Password Region When finish Virtual AP Setup Please select “Save Change” Click “OK” to confirm. ----------------------------------------------------------------------------------------------------------------------------- 5.2 Audio Click “OK” to enter Audio setup option. -----------------------------------------------------------------------------------------------------------------------------... -
Page 17: Hdmi Output
CHAPTER 5. AirCinema SETUP | 14 HDMI Output HDMI LPCM - General, Sound decode by AirCinema HDMI RAW - Sound decode by your stereo sound device. (AMP) HDMI Auto - Auto detected by AirCinema. Click “OK” to confirm. ----------------------------------------------------------------------------------------------------------------------------- Surround Sound Auto - Auto detected by AirCinema. -
Page 18: Lip Sync
CHAPTER 5. AirCinema SETUP | 15 Lip Sync If the Video you are playing, and the Audio are not showed at the same time, you can use this function to adjust audio. Lip Sync (Auto) Auto detected by AirCinema. Lip Sync (Manual) Adjust audio manually. -
Page 19: Aspect Ratio
CHAPTER 5. AirCinema SETUP | 16 Aspect Ratio To scale video size Pan Scan 4:3 Letter Box 4:3 16:9 16:10 Click “OK” to confirm. ---------------------------------------------------------------------------------------------------------------------------- TV System To set video display resolution, NTSC / PAL or other resolution to suit your TV system. -
Page 20: 1080P 24Hz
CHAPTER 5. AirCinema SETUP | 17 1080P 24Hz Movie Mode If the Video and the Monitor/TV can support 1080P 24Hz (Ex. Home Theater) You can select this mode to get more better effect. Click “OK” to confirm. ---------------------------------------------------------------------------------------------------------------------------- 5.4 System Click “OK”... -
Page 21: Factory Default
CHAPTER 5. AirCinema SETUP | 18 Factory Default Erase setting and apply default Immediately, “Yes” to confirm. ---------------------------------------------------------------------------------------------------------------------------- Version Info Show the AirCinema Version Info ----------------------------------------------------------------------------------------------------------------------------... -
Page 22: Usb Upgrade
USB Upgrade - Please follow the Firmware Update steps carefully, or else you may damage the device. - If you are going to upgrade the firmware of AirCinema, please prepare the suitable firmware Update file and one USB flash drive. -
Page 23: Chapter 6. Airfun Software | 20
CHAPTER 6. AirFun SOFTWARE | 20 To play Video/Audio by device, you need DLNA software For PC : Download AirFun “For PC” in AirFun download page or download DLNA software on internet. For Android Smart device: Download AirFun “For Android” in AirFun download page or download DLNA software on Google Play. - Page 24 CHAPTER 6. AirFun SOFTWARE | 21 1. Go to the Remote Control --------------------------------------------------------------------------------------------------------------------------------- 2. Drop the Photo/Music to Photo/Music Playback. AirFun will change to Photo/Music window as below Music Playback window 1. Drop another music to “Play” AirFun will play the music you are dropped at once.
- Page 25 CHAPTER 6. AirFun SOFTWARE | 22 Photo Playback window 1. Drop another photo to “Play” AirFun will play the photo you are dropped at once. 2. Drop photo to “Queue” The photo you are dropped will play by queue. 3. Photo status AirFun playing. 4.
- Page 26 CHAPTER 6. AirFun SOFTWARE | 23 3. Drop the Video to Video Playback. AirFun will change to Video window as below Video Playback window 1. Drop another video to “Play” AirFun will play the video you are dropped at once. 2.
-
Page 27: Chapter 7. Troubleshooting | 24
Q5. How to change NTSC / PAL system if connect to traditional analog TV by composite video? A5. 1) If you are the first time to use AirCinema, after connected AirCinema device and power on, It will show “Ready to Initial Setup” screen, in Initial Setup to set TV System option.
