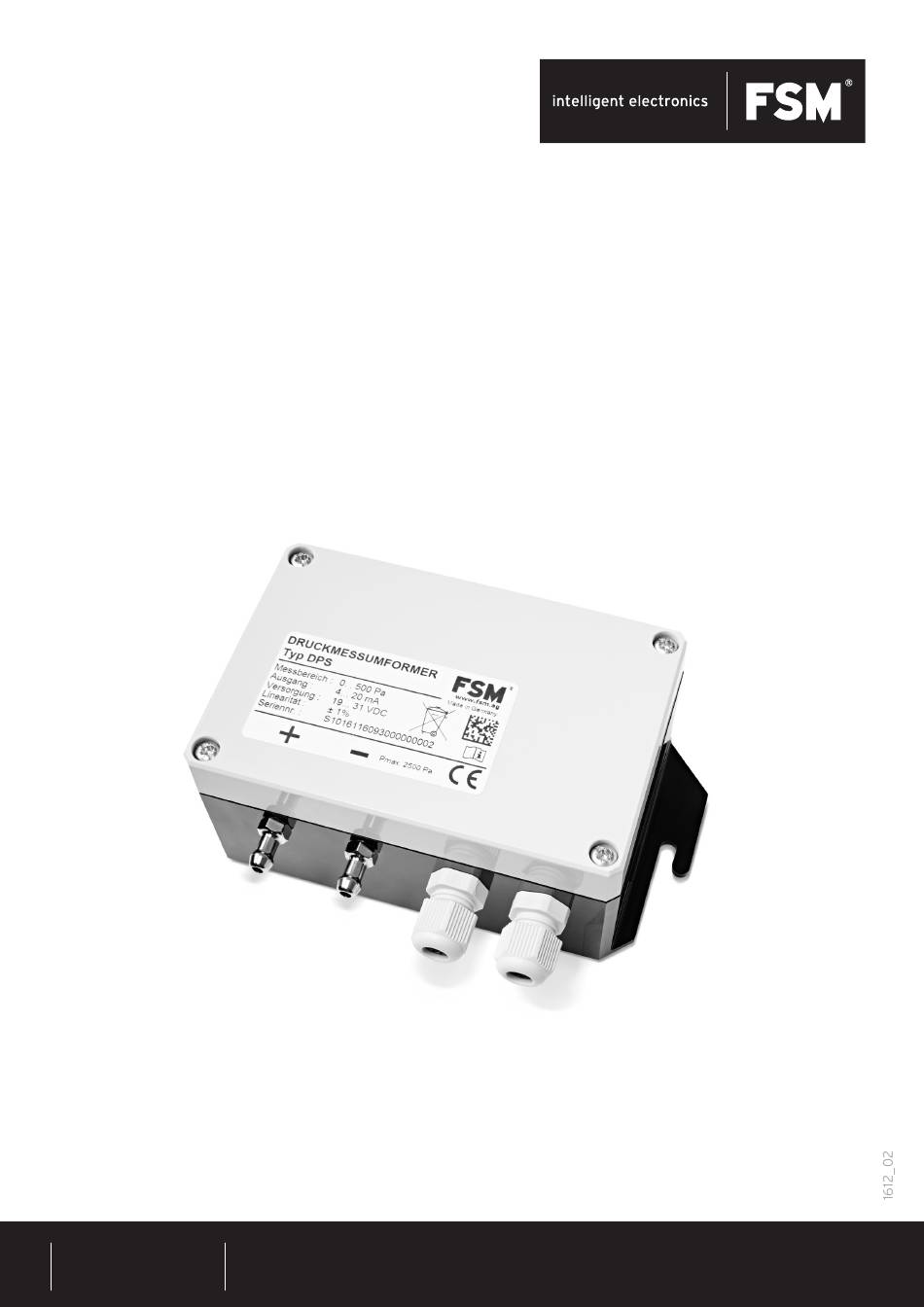

Operating instructions Pressure sensor | Type DPS/ APS FSM AG Erich-Rieder-Straße 2 Telefon +49 7661 9855 0 D-79199 Kirchzarten vertrieb@fsm.ag www.fsm.ag... - Page 2 Note: Commissioning may only be reliable, trained or assigned personnel. The pressure transducers of the DPS type series are suitable for detection of excess pressure, low pressure or differential pres- sure of non-aggressive gasses. Pressure measurement is carried out using CuBe membranes sensitive to the respective pressure range.
-
Page 3: Calibration Instructions
Measuring instruments Multimeter to measure the output current or voltage signals Calibration of type DPS Connect the correct power supply between terminals 1 and 2. Connect the multimeter to measure the output signals (current or voltage) between terminals 3 and 4. - Page 4 Readjustment of the sensor does not require readjustment of the trimmers TP3 to TP7. Only the trimmers TP1 and TP2 must be readjusted if necessary according to the calibration instructions. FSM AG Erich-Rieder-Straße 2 Telefon +49 7661 9855 0 D-79199 Kirchzarten vertrieb@fsm.ag...
