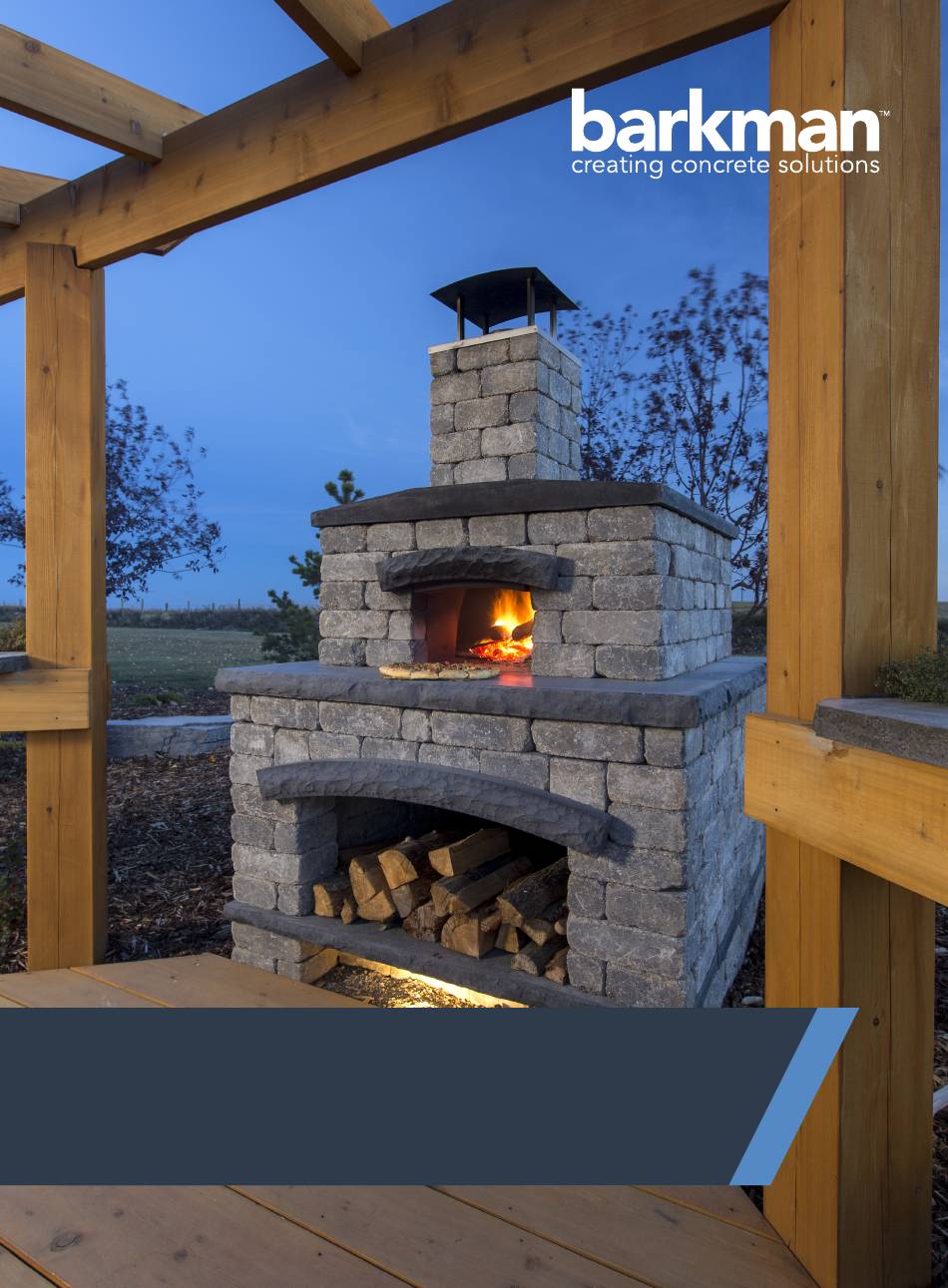

  • Page 1 Harvest Grove Outdoor Kitchen Pizza Oven Instruction Manual...

  • Page 2: Installation And Use

    3. Read the installation, operation and maintenance instructions thoroughly before installing or servicing this equipment. Barkman Concrete Ltd. is not liable for any property damage or bodily injury caused by failure to follow the installation instructions, improper use of the product or any negligence or carelessness of the consumer.

  • Page 3: Fire Warning

    DANGERS OF FIRE: 1. If the information in these instructions is not followed exactly, a fire or explosion may result in property damage, injury or death. 2. Beware of flying sparks from mouth of oven. Make sure that no combustible materials are within range of pizza oven at any time.
  • Page 4 This kit measures 60”W x 64”D x 93”H. Materials Included: 4”x 4” quarry stone - 3 pieces 4”x 8” quarry stone - 119 pieces 8”x 8” quarry stone - 16 pieces 8”x 12” quarry stone - 141 pieces 6” x 4 7/8” quarry stone - 2 pieces 8”...
  • Page 5 small arch countertop pieces large arch chiseled and smooth divider plates floor dome roof chimney and extension pipe shims Scan our QR code to watch our online instruction videos.

  • Page 6: Section A - Pizza Oven Base

    Section A - Pizza Oven Base 1. On your prepared level base, lay out the first layer of the pizza oven base as indicated in the diagram. 8”x12” 8 x 12 (14) 8”x8” 8 x 8 4”x8” 4 x 8 IMPORTANT: Periodic checks must be made to ensure that the layers remain level.

  • Page 7: Section B - Wood Box Surround, Mantle, Oven Dome

    4”x8” Section B - Wood Box Surround, 8”x8” Mantle, Oven Dome 8”x12” 1. Lay out the first layer of the wood box surround as indicated in the diagram. Glue this layer to the divider plates below using the landscape glue provided. 8 x 12 (12) Align this layer with the...
  • Page 8 4”x8” 4. Lay out the fifth layer of the wood 8”x8” box surround as indicated in the 8”x12” diagram. 8 x 12 (12) 8 x 8 4 x 8 5. Place the large arch into layer five as indicated in the diagram. Glue the arch down where it contacts the quarry stone below using the landscape glue provided.
  • Page 9 7. Lay out the seventh layer of the wood box surround as indicated in the diagram. Glue this layer down using the landscape glue provided. 8”x12” 8 x 12 (10) 8”x8” 8 x 8 4 x 8 4 x 4 4”x8”...

  • Page 10: Section C - Upper Wall Surround, Roof, And Chimney

    10. Place the oven dome onto the oven floor as indicated in the diagram. Seal the outer edges with the SILICONE provided. WARNING: ONLY USE SILICONE TO SEAL THE OUTER EDGES OF THE OVEN DOME. Section C - Upper Wall Surround, Roof, and Chimney 1.
  • Page 11 3. Lay out the third layer of the upper wall surround as indicated in the diagram. 8 x 12 4 x 8 (13) 4”x8” 8”x12” 4. Place the arch into the third layer as indicated in the diagram. Glue the arch down where it contacts the quarry stone below using the landscape glue provided.
  • Page 12 6. Lay out the fifth layer of the upper wall surround as indicated in the diagram. Ensure this layer is level for holding the roof. Glue this layer down using the landscape glue provided. 4”x8” 8 x 12 4 x 8 (15) 8”x12”...
  • Page 13 9. Lay out the second layer of the chimney as indicated in the diagram. Glue this layer down using the landscape glue provided. 4 x 8 10. Repeat the patterns from steps 8&9 of Section C to a height of 5 layers above the roof, checking that the layers remain level.

  • Page 14: After Installation

    AFTER INSTALLATION: CURING INSTRUCTIONS: Upon installation of your new pizza oven, there are still small amounts of moisture needing to work their way out of the oven dome and floor. If you immediately begin to build large fires in your pizza oven, you will compromise your oven’s longevity and ability to cook well and can ultimately cause damage, including cracking.

  • Page 15: Maintenance Instructions

    MAINTENANCE INSTRUCTIONS: Make sure that the oven is completely cool before inspecting and cleaning it. Cleaning the Oven: 1. DO NOT use water to clean, dampen or extinguish fire in a hot pizza oven. 2. Never use any cleaner (detergent, chemicals, soaps) on the pizza oven. 3.
  • Page 16 Harvest Grove Outdoor Kitchen Kits BARKMAN CONCRETE LIMITED Steinbach Office 152 Brandt Street, Steinbach, MB R5G 0R2 T 204 326 3445 or 1 800 461 2278 F 204 326 5915 steinbach@barkmanconcrete.com Winnipeg Office 909 Gateway Road, Winnipeg, MB R2K 3L1...
