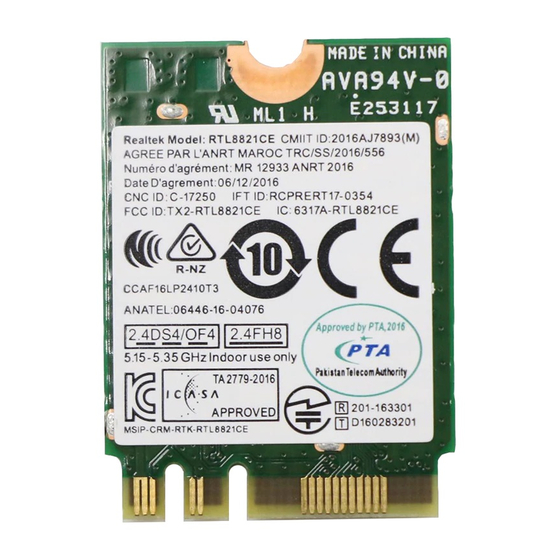

Combo ngff type2230 module
Hide thumbs Also See for RTL8821CE:
Table of Contents

Advertisement

Quick Links

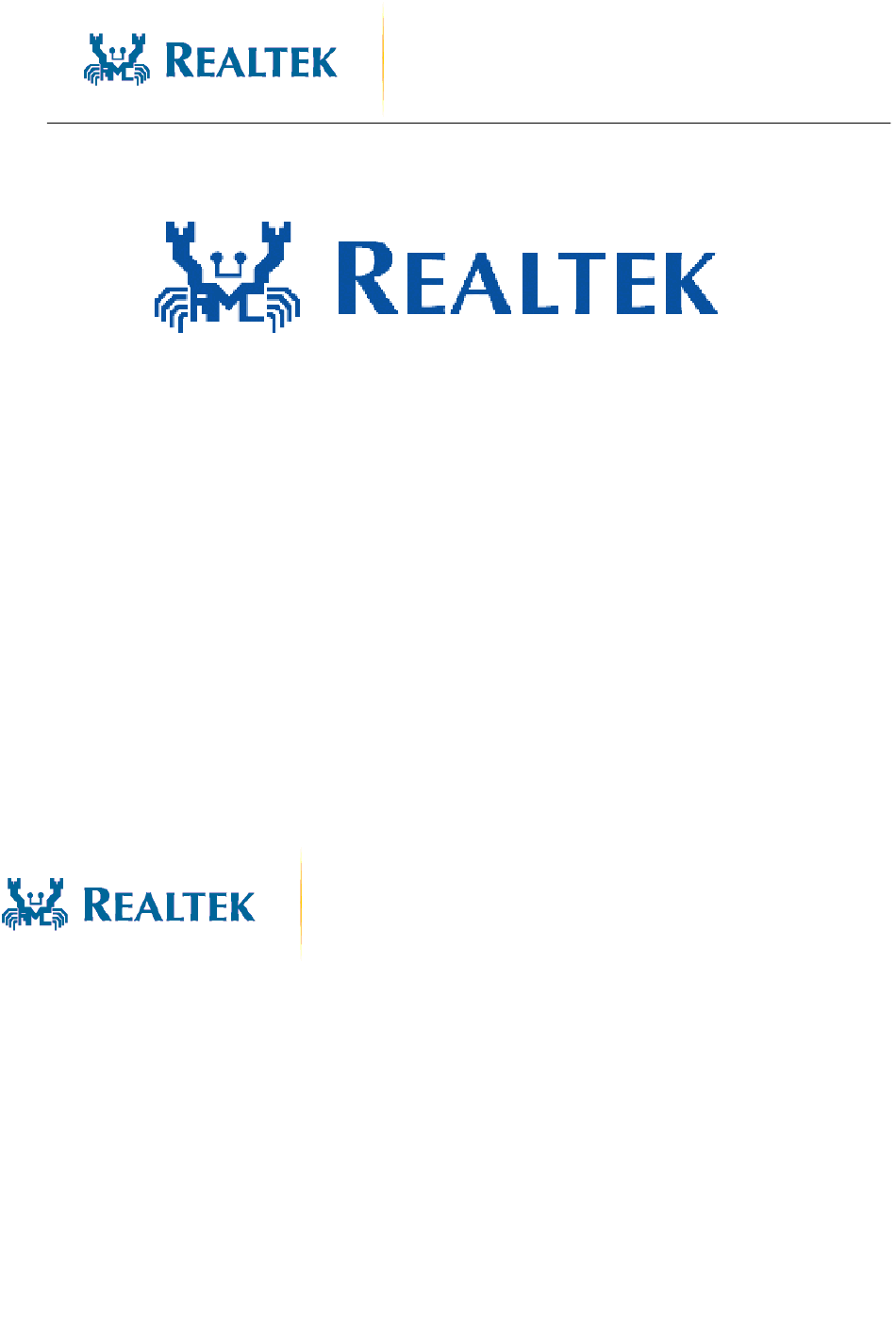

(Realtek RTL8821CE)
Combo NGFF Type2230 Module OEM Instructions
Preliminary Version
05/09/2016
Realtek Semiconductor Corp.
No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan
Tel.: +886-3-578-0211. Fax: +886-3-577-6047
www.realtek.com

Advertisement

Table of Contents
loading

Related Manuals for Realtek RTL8821CE

Summary of Contents for Realtek RTL8821CE

  • Page 1 (Realtek RTL8821CE) Combo NGFF Type2230 Module OEM Instructions Preliminary Version 05/09/2016 Realtek Semiconductor Corp. No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Tel.: +886-3-578-0211. Fax: +886-3-577-6047 www.realtek.com...
  • Page 2 ONTENT ENVIRONMENTAL ..........................3 ..............................3 PERATING ................................ 3 TORAGE MTBF ............................. 3 CALCULATION WARNING ............................3 Federal Communication Commission Interference Statement ......3 Industry Canada Statement ....................5 NCC 警語 ......................13 Japan Statement ....................13 Korea Statement ....................14...

  • Page 3: Federal Communication Commission Interference Statement

    ENVIRONMENTAL Operating Operating Temperature: 0°C to +70 °C Relative Humidity: 5-90% (non-condensing) Storage Temperature: -40°C to +80°C (non-operating) Relevant Humidity: 5-95% (non-condensing) MTBF calculation Over 150,000hours Warning Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 4 Antenna Type Connector 2.4GHz 5GHz LYNwave ALA110-222050-300011 PIFA Antenna IPEX MHF4 REALTEK RTK-ANT-0006 PIFA Antenna IPEX MHF4 RFDPA171320EMLB301 Dipole Antenna IPEX MHF4 3.14 For incorporation in Laptop and Tablet platform (the distance from the antenna to the user according to OEM...
  • Page 5 Antenna Placement Within the Laptop and Tablet Host Platform: This module is authorized for installation in qualified laptops (i.e. notebooks and netbooks), and tablets with overall diagonal dimension of the keyboard and/or display section is > 20 cm. To ensure RF exposure compliance the antenna(s) used with this module must be installed in host platforms to provide a minimum separation distance, in all operating modes and orientations of the host platform.

  • Page 6: Industry Canada Statement

    Label Of The End Product: The final end product must be labeled in a visible area with the following "Contains FCC ID: TX2-RTL8821CE". The following FCC part 15.19 statement has to also be available on the label: "This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation."...
  • Page 7 Information To The OEM Integrator This module is intended only for OEM integrator. The OEM integrator is responsible for the compliance to all the rules that apply to the product into which this certified RF module is integrated. Additional testing and certification may be necessary when multiple modules are used. French translation : Ce module est destiné...
  • Page 8 Model Name Antenna Type Connector 2.4GHz 5GHz LYNwave ALA110-222050-300011 PIFA Antenna IPEX MHF4 REALTEK RTK-ANT-0006 PIFA Antenna IPEX MHF4 RFDPA171320EMLB301 Dipole Antenna IPEX MHF4 3.14 For incorporation in Laptop and Tablet platform (the distance from the antenna to the user <=20cm): French translation: Pour l'incorporation dans la plate-forme d'ordinateur portable et de tablette (la distance de l'antenne à...
  • Page 9 Antenna Placement Within the Laptop and Tablet Host Platform: This module is authorized for installation in qualified laptops (i.e. notebooks and netbooks), and tablets with overall diagonal dimension of the keyboard and/or display section is > 20 cm. To ensure RF exposure compliance the antenna(s) used with this module must be installed in host platforms to provide a minimum separation distance, in all operating modes and orientations of the host platform.
  • Page 10 Label Of The End Product: The final end product must be labeled in a visible area with the following "Contains IC: 6317A-RTL8821CE" The Host Model Number (HMN) must be indicated at any location on the exterior of the end product or product packaging or product literature which shall be available with the end product or online.
  • Page 11 Caution: the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems; (ii) the maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall comply with the e.i.r.p.
  • Page 12 NCC 警語 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自 變更頻率、加大功率或變更原設計之特性及功能。 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現 象時，應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依 電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學 及醫療用電波輻射性電機設備之干擾。 本模組於取得認證後將依規定於模組本體標示審合格籤，並要求平台上標示 「本產品內含射頻模組：ID編號」 Japan Statement Host system must be labeled with "Contains MIC ID:xxxxxx“, MIC ID displayed on label. 5GHz band (W52, W53): Indoor use only.
  • Page 13 Korea Statement B 급기기 이 기기는 가정용(B 급) 전자파적합기기로서 주로 (가정용 가정에서 사용하는 것을 방송통신기자재) 목적으로 하며, 모든 지역에서 사용할 수 있습니다.
  • Page 14 Installing the Wireless PCIe NGFF2230 module Hardware Installing PCIe NGFF2230 module to PCIe NGFF2230 connector and connect two external Wi- Fi antennas on I-PEX connectors.
  • Page 15 Un-installing the Wireless PCIe NGFF2230 module Hardware Remove 2 external Wi-Fi Antennas from the Wireless PCIe NGFF2230 module board and remove the Wireless PCIe NGFF2230 module board from PCIe NGFF2230 connector port...
  • Page 16 Installing the Wireless PCIe NGFF2230 module Software Before you proceed with the installation, please notice following descriptions. Note1: The following installation was operated under Windows 7. Note2: If you have installed the WLAN driver & utility before, please uninstall the old version first.
  • Page 17 C. Click Install this driver software anyway D. After step “C” please press Next button.
  • Page 18 E. Please click “YES” to install BT package. F. Please click “下一步”to continue.
  • Page 19 G. Please click “下一步”to continue.
  • Page 20 H. Please click “安装”to start installation. I. Please click “完成”to finish the installation.
  • Page 21 J. Press Finish button to complete the install process...
  • Page 22 Un-installing the Wireless PCIe NGFF2230 module Software A. Uninstall the RTL8821CE WLAN Driver from “Start”→ “All Programs”→ “REALTEK 11ac 8821CE PCIE WLAN NIC Massproduction kit” Please click “Uninstall” to remove RTL8821CE WLAN driver.
  • Page 23 Installing the Bluetooth USB Module Software A. Insert the NGFF2230 card into system connector. B. Boot on system then the “Geniric Bluttooth Adapter” device will show up in device manager. C. Click right button on “RT Bluetooth Radio” and select “Update Driver”.
  • Page 24 Page 24/29...
  • Page 25 D. After select “Update Driver Software ” then the Hardware Update Wizard will pop up, please select “Browse my computer for driver software” and press Next button. E. After step “D” please Select “Let me pick from a list of device drivers on my computer ”.
  • Page 26 F. Finish step “E” then select “Have Disk..” G. Now select browse to find the driver for device and press Next button.(The driver’s locate is the same with WiFi driver ) Page 26/29...
  • Page 27 Page 27/29...
  • Page 28 H. Then click “Install this driver software anyway” to continue. I. Press close button to complete the install process and you can see the Driver will be show up in Device Manager. Page 28/29...
  • Page 29 Page 29/29...
