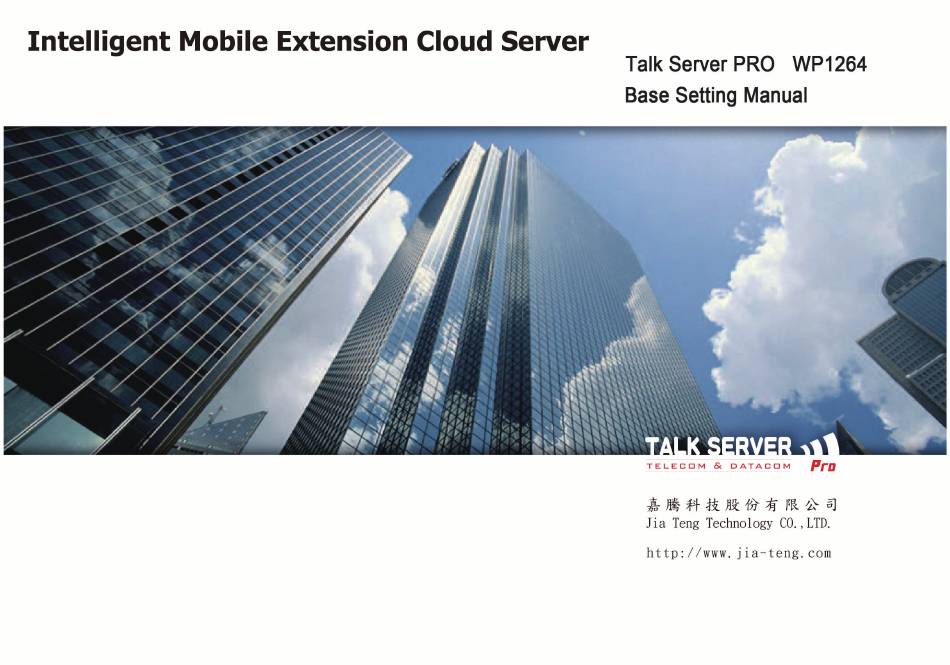

Jia Teng Talk Server Pro WP1264 Setting Manual

Intelligent mobile extension cloud server
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Talk Server Pro WP1264 and is the answer not in the manual?

Questions and answers

Summary of Contents for Jia Teng Talk Server Pro WP1264

  • Page 2 Federal Communication Commission Interference Statement FCC Radiation Exposure Statement: This equipment has been tested and found to comply with the limits for a Class B This equipment complies with FCC radiation exposure limits set forth for an digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to uncontrolled environment.
  • Page 4 64 sets of configuration of call dialing plan ¨ 64 sets of configuration of Trunk dialing plan ¨ A. PBX Features d. Call Features a. IVR Support G.711A, G.711μ-law, G.723, G.729 codec ¨ Call busy voice prompt ¨ D.I.L. ( Direct In Line ) ¨...
  • Page 5 Build in SIP Proxy Registration Server SNMP-Client ¨ ¨ Support SIP v2(RFC3261, 3262, 3263, 3264) ¨ Compliant with IETF SIP standards ¨ Support up to 64 Subscribers ¨ Support up to 20 concurrent calls ¨ NAT support ¨ b. SIP Trunk Support up to 12 SIP Trunk registrations ¨...

  • Page 6: Table Of Contents

    T a bl e o f C o nt e nt : C o nf ig u r a t io n S t a r t WEB br o w s e r t o Lo g in N e t w o r k se t t ing D H C P S e r ve r G l o ba l S e t t ing S IP A c c o u nt...
  • Page 7 About Jia Teng Since its establishment in 2006, JiaTeng has adhered to the generous experience of developing software products and the ability to integrate manufacturing process vertically. We are devoted to offering customers everything from innovative designs to systematized manufacturing services. The business scope contains management information and billing systems for telecommunication operators, mobile phones, wireless communication products, and networking products.

  • Page 8: S T A R T Web Br O W S E R T O Lo G In

    Start your browser to input http://192.168.100.1, then press “ENTER”. 1. Please install WIFI Antenna first, and then connect with the power Input Account: admin 2. Plug ADSL Modem into WAN Password: 123456 3. Connect your RJ 45 cable into LAN WPS / -02-...

  • Page 9: Network Setting

    NETWORK SETTING DHCP SERVER WAN Mode: There are 3 modes of WAN Mode: STATIC/DHCP/PPPoE Please select your suitable mode according to ADSL data DHCP Server Switch: WIN DNS: Enable & disable for DHCP Server Switch. Default is “Enable”. Please input the IP address of DNS according to ADSL data. Please so not change to be “Disable”, otherwise user cannot If user has applied the SIP account of Telecom, please input the login the system.

  • Page 10: Global Setting

    Web Login Username: GLOBAL SETTING Web login Password: Web login Password (check): Input the Password again Number Length: There are 2 available choices (3 digits/4 digits) for Number Length of Extension. IP PBX password: Set the Password of IP PBX EXT '9' function: EXT '0' function: FUN_NULL: No Function...
  • Page 11 E-mail notification: GLOBAL SETTING There are 4 items for setting to notice voice mail by E-mail E-Mail: E-Mail User Name: E-mail Password: SMTP Server: The IP address of Mail server. NTP Setting: Time Server setting Back up: Save the file of new setting Select Make Backup File, then appear as the following picture Make Backup File Press Download to download the latest setting file, then appear as...
  • Page 12 Restore: re-save the setting file of system Reboot: restart device Select the restore file, then the system will appear as the following picture Reset: back to the default ※ This setting will clear all current setting and back to default Finish all and press Upload putton to send the setting file ※...

  • Page 13: Sip Account

    SIP ACCOUNT This page can afford checking list of SIP account (Trunk). Uni Talk: 2 SIP account available Uni Talk plus: 4 SIP account available. Talk server Pro: 12 SIP account available. Number column: Register column: appear the SIP account or Telecom Number Mode column: appear the register mode Group column: Select column:...
  • Page 14 SIP ACCOUNT Edit SIP Account Answer Mode: 3 mode (ON / OFF / DID) Start up the line Close the line Ring directly to the assigned extension. It will add To num: for assigned extension. Duty Auto Attend : 2 selections (Enable / Disable). Default is Disable. ※...
  • Page 15 AUTO ATTEND Build-in: 3 items for greeting 400 On Duty / 401 Break Duty/ 402 Off Duty There is another item without playing greeting, code: None IVR, ring directly to operator. None IVR: Without playing greeting 400: On Duty 401: Break Duty 402: Off Duty ADD To add new code DELETED delete code...

  • Page 16: A U T O A T T E Nda Nt

    Edit Auto Attend Auto Attend Number: Set or amend greeting of Auto Attendant Operator Ring Mode: 2 selections (Sequential / Round Robin) Seguential Each ringing start from Operator(1), jump to the next one if Operator(1) is busy Round Robin The first ringing for Operator(1), the second ringing for Operator(2), the third ringing for Operator(3), the fourth ringing for Operator(1).

  • Page 17: D U T Y / O F F Du T Y / H O L Ida Y S

    DUTY TIME The process for Duty Auto Attend Working hours: On Duty AA The time Before Noon and the time After Noon Noon rest: Break Duty AA The interval of noon rest After working Hours: Off Duty AA The time after working hours Finish all setting items, press SAVE putton.

  • Page 18: Sip Server

    SIP SERVER Local Port: Assigned the port of SIP protocol The registered number for SIP Client must use the same port. Register Expire: default for 300 second RTP Port: Real-time Transport Protocol Port RFC2833 Payload type: RTP Payload for DTMF Digits, Telephony Tones and Telephony Signals Reference setting for Telecom Specification Ex: FETnet use 97, this section must fill in 97.

  • Page 19: Fu Nc T Io Ns O F E X T E Ns Io N

    EXTENSION NUMBER Talk Server Pro: available for 64 extensions Uni-Talk: available for 8 extensions S_NO column: Point out the S_NO to enter the WEB Number column: Show the extension number Transfer mode column: Show the status of transfer Select column: Point out the square and select delete, then user can delete ADD putton: To add new extension, point out the ADD to enter the WEB.
  • Page 20 Call Control: the limit of extension Edit Extension Number 4 selections: Unlimit / NoInternation / NoDomestic / NoOutline Unlimit: without any control NoInternation: limit for international NoDomestic: limit for long distance NoOutline: only for extension call NoInternation / NoDomestic: limit table for calling, must enter CALL CONTROLL page Transfer: Four available selections: no transfer / to v_mail / to user / to outside No transfer: default no transfer...

  • Page 21: S Ip C L Ie Nt S (E X T E Ns Io N)

    Edit SIP Client SIP CLIENT Handset Port: Number S_NO column: To show the number Number: Select the extension number Register ID column: show the registered number and status of register Ring Switch: 2 selections (Enable / Disable) Point out to enter WEB Default is Enable to allow to ring.

  • Page 22: Dial Control

    DIAL CONTROL Dial Control Table The extension will according to previous number of these 2 table(domestic & international). If the first 2 digits of out-going number match with dial control, the phone cannot call out。 -16-...

  • Page 23: Fu Nc T Io N C O De O F P H O Ne Se T Ip P H O Ne , S M A R T P H O Ne

    Press 9 for outgoing call Pick up the incoming call, if the other extension is ringing. *12# Direct transfer without any limits to other extensions/Trunk line/Voice mail *15# Busy transfer to other extensions. *16# transfer to other extensions if no one answer. *14# set DND mode *25# Hear the message of your own phone set Hear the message of the other phone set.
