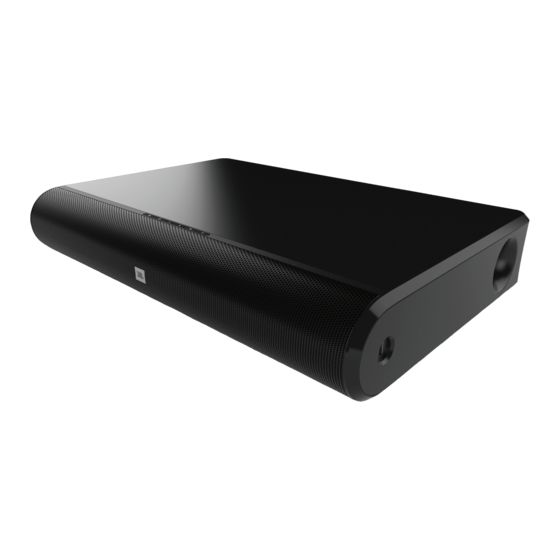

Home cinema 2.2 all in one soundbase for television
Hide thumbs Also See for Cinema Base:

Advertisement

Quick Links

Download this manual See also: Owner's Manual
JBL CINEMA
Quick Start Guide
Note: For complete information about using your JBL Cinema Base download the
complete Owner's Manual from www.jbl.com
BASE
TM
LIGHT
GREY

Advertisement

loading

Related Manuals for JBL Cinema Base

Summary of Contents for JBL Cinema Base

  • Page 1 JBL CINEMA BASE Quick Start Guide Note: For complete information about using your JBL Cinema Base download the complete Owner's Manual from www.jbl.com LIGHT GREY...
  • Page 2 JBL CINEMA BASE ™ Quick Start Guide Guide de démarrage rapide What’s in the box Cinema Base Remote BASS Optical cable Analog aux cable HDMI cable Power cable...
  • Page 3 Stereo Harman volume Note: Before using the remote control, remove the plastic tab protecting the battery at the bottom of the remote control. 2b. Cinema Base top panel 1) Power on / Stand by 2) Source selection 3) Volume +/-...
  • Page 4 JBL CINEMA BASE ™ Quick Start Guide Guide de démarrage rapide 2c. Cinema Base rear panel Power switch Connections Power Optical HDMI TV Aux-in Subwoofer Input AC (ARC) Remove Caps (cable not included) Note: Please ensure your television features HDMI Audio Return Channel (ARC) before using the HDMI connection.
  • Page 5 JBL CINEMA BASE ™ Quick Start Guide Guide de démarrage rapide Bluetooth pairing JBL CINEMA BASE behavior JBL CINEMA BASE No device connected Pairing mode Device connected Stereo / Harman Display surround behavior Stereo mode Harman Display Surround...
  • Page 6 Cinema Base. 23" (585mm) Note: Maximum TV Stand Size (L x W): 23" x 13.5" (585mm x 342mm). TV stands are recommended to fit within the designated area. Cinema Base supports TVs with weights up to 50lbs (22.6kg)
  • Page 7 Remote learning feature The Cinema Base has the ability to learn the volume control and power infrared (IR) codes of your IR TV remote control. Get your Cinema Base to control TV Volume (in operational mode) using this simple procedure: 1.
  • Page 8 JBL CINEMA BASE ™ Quick Start Guide Guide de démarrage rapide • Frequency response: 45Hz – 20kHz • Maximum SPL: 100dB • Total amplifier power: 240W • Speakers: left and right 2.5" (65mm) full range drivers and dual 3.5" (90mm) subwoofers •...
  • Page 9 JBL CINEMA BASE ™ Quick Start Guide Guide de démarrage rapide • Intervalo de frecuencias: 45 Hz – 20 kHz • SPL máximo: 100 dB • Potencia del amplificador total: 240 W • Altavoces: Unidades de gama completa izquierda y derecha de 2,5" (65 mm) y subwoofers duales de 3,5"...
  • Page 10 JBL CINEMA BASE ™ Quick Start Guide Guide de démarrage rapide • Frequenzgang: 45Hz – 20kHz • Maximaler Schalldruckpegel: 100 dB • Verstärkerleistung: 240W • Lautsprecher: links und rechts 65mm (2,5")-Komplettkanäle und duale 90mm (2,5")-Subwoofer • Dolby Digital Decoding ®...
  • Page 11 JBL CINEMA BASE ™ Quick Start Guide Guide de démarrage rapide • Frequentiebereik: 45Hz – 20kHz • Maximum SPL: 100dB • Totale uitgangsvermogen: 240W • luidsprekers: links en rechts 2.5" (65mm) full range drivers en dual 3.5" (90mm) subwoofers • Dolby Digital Decoding ®...
  • Page 12 JBL CINEMA BASE ™ Quick Start Guide Guide de démarrage rapide • Taajuusvaste: 45Hz – 20kHz • Maksimi SPL: 100 dB • Kokonaislähtöteho: 240 W • Kaiuttimet: vasen ja oikea 2,5" (65 mm) full range -kaiutinelementit ja 3,5" (90 mm) kaksoissubwooferit •...
  • Page 13 JBL CINEMA BASE ™ Quick Start Guide Guide de démarrage rapide • Frekvensomfång: 45 Hz–20 kHz • Max SPL: 100 dB • Total förstärkareffekt: 240 W • Högtalare: Vänster och höger 65 mm (2,5 tum) fullfrekvenselement och dubbla 90 mm (3,5 tum) subwoofers •...
  • Page 14 JBL CINEMA BASE ™ Quick Start Guide Guide de démarrage rapide • 周波数特性 ： 45Hz∼20kHz • 最大音圧レベル ： 100dB • トータルのアンプ出力 ： 240W • スピーカー ： 左右2.5インチ(65mm)フルレンジ ・ ドライバーおよび3.5インチ (90mm)サブウーファー デジタル ・ デコーディング • Dolby ® • オーディオ ・ リターン ・ チャンネル （ARC） を備えた、 HDMI 出力1系統...
  • Page 15 JBL CINEMA BASE ™ Quick Start Guide Guide de démarrage rapide • 頻率回應： 45Hz – 20kHz • 最大 SPL： 100dB • 放大器總功率： 240W • 喇叭： 左和右 2.5" (65mm) 全音域驅動器和兩個 3.5" (90mm) 重低音喇叭 • Dolby 數位解碼 ® • 一個 HDMI 輸出，帶音訊回傳通道 (ARC) ®...
  • Page 16 JBL CINEMA BASE ™ Quick Start Guide Guide de démarrage rapide • Respons frekuensi: 45Hz – 20kHz • SPL Maksimum: 100dB • Keseluruhan daya amplifier: 240W • Speaker: driver jangkauan penuh kiri dan kanan 2,5" (65mm) dan subwoofer ganda 3,5" (90mm) •...
