READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE BEGINNING INSTALLATION.
1-
Parts List
Kit Contents:
PART NUMBER
1.
MEL-TX20 Transmitter Unit
2.
MEL-RX20 Receiver Unit
3.
Receiver Antenna
4. (2) AA Lithium Batteries
5.
3 ft. 20 AWG lead wire
6. (4) #6 Pan Head Transmitter Mounting Screws
2-
Install Transmitter and Test
P.O. Box 159 • West Grove, PA 19390 • 800-220-3343 • 610-869-4422 • Fax: 610-869-4423 • www.milleredge.com
6809 South Harl Ave., Suite A • Tempe, AZ 85283 • 800-887-3343 • 480-755-3565 • Fax: 480-755-3558
IMPORTANT:
Required:
1. 1/8" Flat blade screwdriver
2. 1/4" Flat blade screwdriver
3. T2 (10K/Blue Band) or T3 (Diode-
Capacitor/Red Band)Terminated Sensing Edge
Recommended:
VOM for test purposes
Mounting screws as required for receiver
TEST BUTTON
TERMINATION
SELECTION
SILICONE
Model # MEL-K20
TOP LID
SCREWS
CAP (4)
STRAIN RELIEF
FITTING
(2-6) EDGE WIRING TO
TERMINAL BLOCK
MEL-K20_Inst_20140708
TRANSMITTER
PCB
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Miller Edge MEL-K20
Summary of Contents for Miller Edge MEL-K20
-

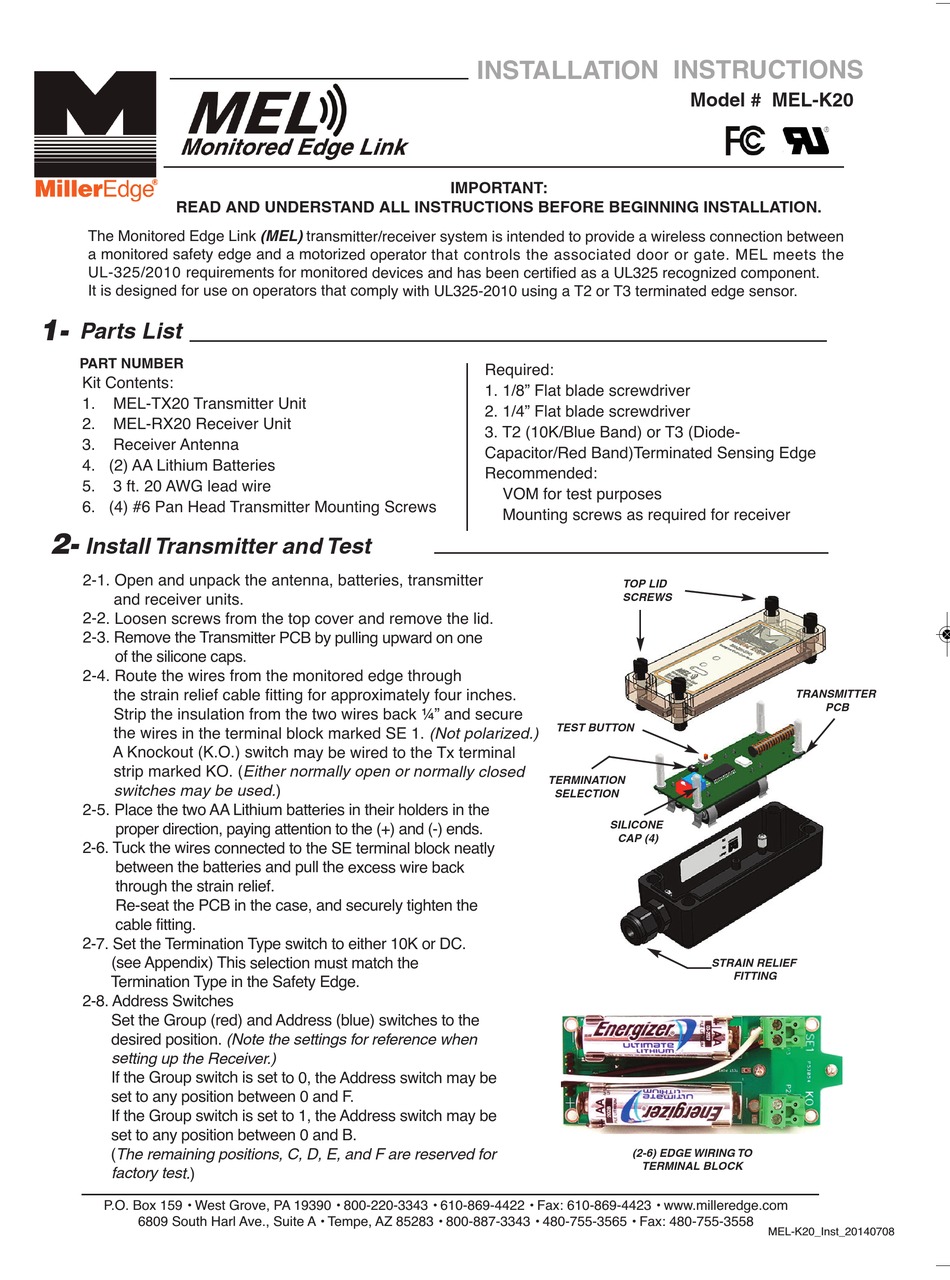

Page 1: Parts List
Model # MEL-K20 IMPORTANT: READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE BEGINNING INSTALLATION. Parts List Required: Kit Contents: PART NUMBER 1. 1/8” Flat blade screwdriver MEL-TX20 Transmitter Unit 2. 1/4” Flat blade screwdriver MEL-RX20 Receiver Unit 3. T2 (10K/Blue Band) or T3 (Diode-... - Page 2 2-9. Momentarily press the TEST button. The Green Tx Data LED should flash. (The Red Low Battery LED will only light when the batteries fall below 2.4v.) 2-10. Mount the Transmitter to the door or gate using #6 - 20 x 3/4” self-drilling screws.The mounting holes are located under the Top Lid Screws.
- Page 3 Specifications and Controls: Transmitter Unit Addressing Switches: Addressing codes allow for multiple transmitters to operate on the same frequency in close proximity. See installation section of this manual. Frequency: Standard frequency: 315 MHz. Green LED: Tx Data, Flashes upon activation and release of the external safety device to indicate Indicator Lights- Tx: transmission.
-
Page 4: Fcc Compliance
With alarm power turned “OFF”, you will have dry relay contacts available on the “LOW BAT” terminals. 7- Appendix: Miller Edge Terminated Sensing Edge Color Coding: T2 10K Resistor (Blue band) T3 Diode/Capacitor (Red band) * Colored ID tape is located on the Sensing Edge cable.
