Summary of Contents for M3 Mobile M3 ORANGE Snap-On

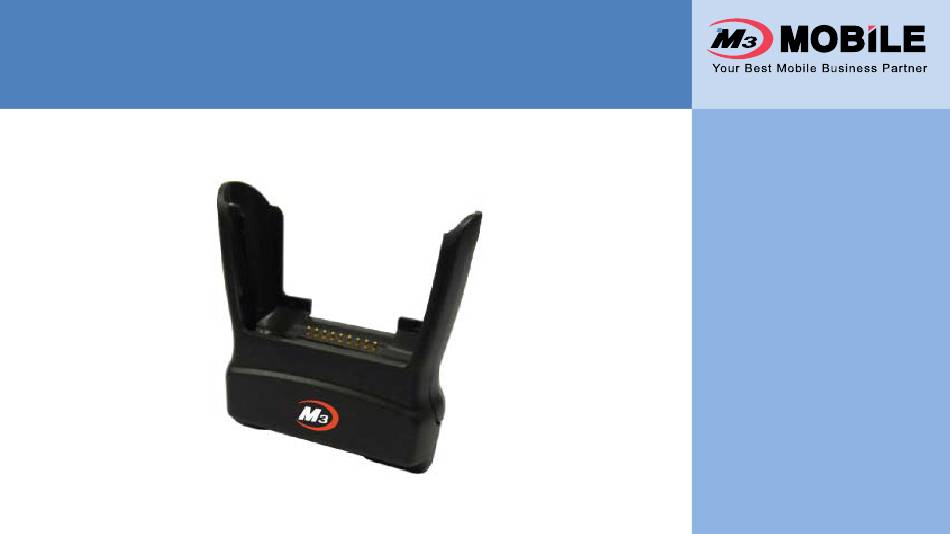

- Page 1 M3 ORANGE Snap-On User Guide Product Model: A-SNO-ATYP-060-R00 Compatible Device: M3 ORANGE Version 2.0 Released in March 2011...
-
Page 2: Table Of Contents
Contents Charging ........14 Copyright and Agreement ..... 3 PC Connection ......15 Notice …………………………………. 4 Serial Communications ....16 Services and Support ....17 Warnings and Cautions for Safety 1. Checklist ………………………….. 8 2. Usage …………………………..….. 9 ........9 Description ........ -
Page 3: Copyright And Agreement
Copyright and Agreement in Usage All contents of this user manual are protected by the Microsoft, Windows, MS Office, Outlook, ActiveSync, copyright laws, and M3 Mobile Co., Ltd. owns all rights Internet Explorer, Windows Logo, and Windows CE, related to them. -
Page 4: Notice
Notice – General Notices The contents of this user manual were made based on the M3 Mobile does not guarantee the quality of the programs “current state” of the product, and this manual may produced by third party software companies installed after contain technical and editing errors or omissions. - Page 5 Notice – Revision History Version 2.0 – Mar, 2011 First release of separate user manual for Snap-On. Version 1.0 – May, 2010 First release of printed version.
-
Page 6: Warnings And Cautions For Safety
If the device is lost or stolen, then immediately report the incident to the service provider. Refrain from using the device while driving. When service for the product is required, request services through the designated service center of M3 Mobile. - Page 7 Warnings and Cautions for Safety – Cntd. Cautions in Carrying and Storing Do not modify the product Do not use the product in high temperature or high Do not try to modify the product by any means. humidity environments as this may quickly cause damage to the product.
-
Page 8: Checklist
Power supply is needed for charging and data communication. provided by M3 Mobile. Compatibility with other power supply source is not guaranteed. Snap-On Power Supply If you don’t have everything, contact your supplier immediately. Serial cables is not provided from M3 Mobile. -
Page 9: Usage
2. Usage – Description A-SNO-ATYP-060-R00 is the M3 Mobile’s optional accessory that is purchased separately with PDA. Description Refer to next images for Snap-On parts and descriptions. 1. Device Slot 4. ON(H) / OFF (C) 8. Product Toggle Switch Label 5. - Page 10 2. Usage – Description continued. 1. Device Slot – A PDA slides into the slot for charging, data transfer or ActiveSync connection. 2. POGO Pin Connector – Used for data communication with PDA such as ActiveSync. USB D- USB D+ USB VBUS COM6_DET (N/A) RXD (N/A)
- Page 11 2. Usage – Description continued. 6. RS232 Serial Port – This RS232 port enables serial communication. Switch must be at ‘ON (H)’. 7. Power Connector – AC power supply connector. Make sure the authentic power supply is used. DC Jack type connector is used. 8.
-
Page 12: Specification
2. Usage – Specification Model A-SNO-ATYP-060-R00 Compatible PDA(s) M3 ORANGE Adapter Input AC 100 ~ 240V, 50 ~ 60Hz Adapter Output DC 5V / 3A Power Connector DC Jack Type Host Supported (Switch ON) Client Supported (Switch OFF) Supported (Switch OFF) Serial Port Com8 is used (Switch ON) Ethernet Port... -
Page 13: Block Diagram
2. Usage – Block Diagram A-SNO-ATYP-060-R00 PIN2: D-SUB 232C PIN3: M3 GREEN 9 PIN PIN5: (COM 8) M3 SKY USB Host or Client (COM 8) (SOCKET) Switch ON: Serial communication and USB Host can be used. Switch OFF: USB Client is possible. -
Page 14: Faq And Troubleshoot
PDA. Caution 1. Use the correct AC adapter with 5V, 3A output provided by M3 Mobile. 2. Incongruent change of battery can cause the explosion. 3. When attached battery is completely discharged, plug charger to main body, then reset the device to check if the... -
Page 15: Pc Connection
3. FAQ and Troubleshoot – PC Connection PC Connection Q1. How to connect to PC. Q2. PDA is not recognized in ActiveSync or Mobile Device Center. Snap-On supports charging and USB connection. You must have Microsoft ActiveSync or Windows Mobile A2-1. -
Page 16: Serial Communications
3. FAQ and Troubleshoot – Serial Comms. Serial Communication Q1. Cannot use Serial communication through Q2. Can Serial communication and ActiveSync be Snap-On. What should I check? used simultaneously? A1-1. Check if the serial cable is properly connected on A2-1. No. -
Page 17: Services And Support
Services and Support Should you require any services or technical support on M3 Mobile’s products, contact your supplier or visit M3 Mobile technical support webpage http://support.m3mobile.co.kr. Desired or relevant manuals can be downloaded from Knowledge Center or FAQ in technical support webpage.
