Temperature Controller
TC5-8SDA
USER'S MANUAL
M 890-00177
rev. 03
REV. 01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC5-8SDA and is the answer not in the manual?

Questions and answers

Related Manuals for Thevco TC5-8SDA

Summary of Contents for Thevco TC5-8SDA

  • Page 1 Temperature Controller TC5-8SDA USER'S MANUAL M 890-00177 rev. 03 REV. 01...

  • Page 2: Table Of Contents

    VENTILATION ..............30 DEHUMIDIFICATION ............. 34 MIST COOLING ..............37 HEATER SETTINGS ............... 41 ALARM SETTINGS ..............46 TEST MODE ................. 48 TROUBLESHOOTING GUIDE ........... 49 TECHNICAL SPECIFICATIONS ..........53 FACTORY SETTINGS............. 54 FUNCTION SUMMARY ............55 GLOSSARY ................. 57 TC5-8SDA rev.03...

  • Page 3: Precautions

    DO NOT SPRAY WATER ON THE CONTROLLER FOR CUSTOMER USE Enter the serial number located on the side of the controller below for future reference. TC5-8SDA Model number: Serial number: TC5-8SDA rev.03...

  • Page 4: Features

    FEATURES The TC5-8SDA is an electronic device used for environmental control in livestock buildings. It allows the user to maintain a specified target temperature by controlling the operation of ventilation and heating equipment. Six stages of constant-speed fans or mist units and two stages of either constant-speed fans or heaters can be connected to the controller.
  • Page 5 The controller can be connected to a computer, thus making it pos- sible to centralize the management of information and diversify control strategies. TEST MODE A test mode allows you to simulate temperature changes and verify controller performance. TC5-8SDA rev.03...

  • Page 6: Location Of The Controls

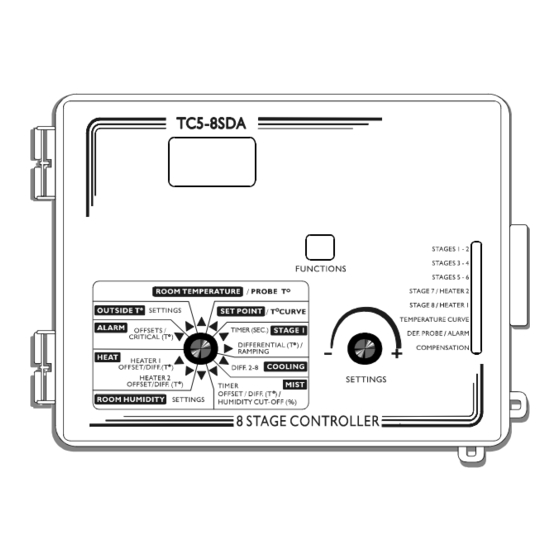

    LOCATION OF THE CONTROLS TC5-8SDA rev.03...

  • Page 7: Controller Status Leds

    TC5-8SDA CONTROLLER STATUS LEDS TC5-8SDA rev.03...

  • Page 8: Internal Switches

    TC5-8SDA INTERNAL SWITCHES The internal switches are located on the inside of the front cover. When the controller is shipped from the factory, all the switches are set to OFF. TC5-8SDA rev.03...

  • Page 9: Installation

    For an alarm of the second type, use the NC terminal. ALL WIRING MUST BE DONE BY AN AUTHORIZED ELECTRICIAN AND MUST COMPLY WITH APPLICABLE CODES, LAWS AND REGULATIONS. BE SURE POWER IS OFF BEFORE DOING ANY WIRING TO AVOID ELECTRI- WARNING CAL SHOCKS AND EQUIPMENT DAMAGE. TC5-8SDA rev.03...

  • Page 10: Temperature Probes

    Use a shielded cable of outside diameter between 0.245 and 0.260 in (6.22 and 6.60 mm) (the cable dimensions should not be under 18 AWG) to ensure the cable entry is liquid tight. Do not ground the shielding. TC5-8SDA rev.03...
  • Page 11 If the probe is defective, the letters "PR1" are displayed, alternating with the state of the probe and the letter "P". TC5-8SDA rev.03...

  • Page 12: Heating / Cooling Options

    Stage 8 for heating and Stage 7 for cooling. • Set switches # 7 and # 8 to ON to use both stages for heating. Note that if only one stage is used for heating, it must be Stage 8. TC5-8SDA rev.03...

  • Page 13: Changing The Parameter Settings

    (ii) If, after about 6 seconds, no action is taken by the user, the absolute temperature value is displayed, alternating with "St 2" and "Str". In this case, the absolute value is: Set Point + Stage 1 Differ- ential + Stage 2 Differential. TC5-8SDA rev.03...

  • Page 14: Locking The Parameter Settings

    When the settings are locked, only the temperature set point can be modified (as long as the temperature curve is deacti- vated). To lock the parameter settings: Set internal switch # 1 to ON. To unlock the parameter settings: Set internal switch # 1 to OFF. TC5-8SDA rev.03...

  • Page 15: Temperature Settings

    The controller can display probe temperatures individually. Probes can also be turned on or off to control the temperature in different parts of the building. Set selection knob to ROOM TEMPERATURE / PROBE TEMP. The average room temperature is displayed. TC5-8SDA rev.03...
  • Page 16 Set the selection knob to ROOM TEMPERATURE / PROBE TEMP or OUTSIDE T°. The current room or outside temperature is dis- played. Turn the adjustment knob clockwise by one notch. The minimum temperature flashes on the display, alternating with the letters "Lo". TC5-8SDA rev.03...
  • Page 17 Press the push-button to access the other probes, etc. NOTE: If you let the display flash for more than 10 seconds, the controller resets the minimum and maximum temperatures currently in memory (the display stops flashing to indicate that the reset has been done). TC5-8SDA rev.03...

  • Page 18: Temperature Set Point

    Use the adjustment knob to adjust the set point to the desired value. NOTE: The temperature set point can be adjusted only if the tempera- ture curve is deactivated (see following section). TC5-8SDA rev.03...

  • Page 19: Temperature Curve

    Certain restrictions apply to reduce the risk of errors: - The highest possible day number is 99. - Decreasing day numbers are not allowed. - Increasing temperatures are not allowed. - The temperature variation cannot exceed 3°F (1.6°C) per day. TC5-8SDA rev.03...
  • Page 20 Using the adjustment knob, adjust the set point to the desired value. Once the six points of the curve have been specified, activate the curve as explained below. NOTE: Make sure the temperature curve is deactivated before specifying new points (see below). TC5-8SDA rev.03...
  • Page 21 OFF appears (thirteen clicks). Turn the adjustment knob clockwise one notch. The word ON flashes on the display and the Temperature Curve Pilot Light turns on, indicating that the temperature curve is now activated. Set the selection knob to ROOM TEMPERATURE. TC5-8SDA rev.03...
  • Page 22 Set the selection knob to SET POINT / T CURVE. The current temperature set point is displayed. Press the push-button to display the points of the curve actually defined until the word ON appears (fourteen clicks). Turn the adjustment knob counterclockwise one notch. The TC5-8SDA rev.03...

  • Page 23: Minimum Ventilation Cycle

    2. To stop the fans, set time on to zero and time off to any value. 3. To run the fans intermittently, set time on to the desired running time and time off to the desired off time. TC5-8SDA rev.03...

  • Page 24: Ramping Option

    Stage 1 fans according to the minimum ventilation cycle. If the room temperature rises above the set point, a new TIME ON is calculated periodically as the temperature increases to allow a smooth progres TC5-8SDA rev.03...
  • Page 25 * When Time Off becomes less than 15 seconds, it is fixed at 15 seconds until the temperature has reached the set point + differential 1. At that point, the stage 1 fans operate continuously. TC5-8SDA rev.03...

  • Page 26: Outside Temperature Compensation

    TC5-8SDA OUTSIDE TEMPERATURE COMPENSATION The TC5-8SDA has the capability of automatically adjusting the running time of the minimum ventilation fans as a function of outside temperature. As the weather gets colder, the on time is decreased gradually to compensate for the change. This can help reduce costs by reducing the ventilation when it is not required.
  • Page 27 NOTES: i) When the compensation factor is activated, the lowest time on value allowed after zero is 30 seconds. ii) The controller recalculates the compensation factor at the end of the time on portion of each timer cycle. TC5-8SDA rev.03...

  • Page 28: Minimum Ventilation Settings

    When this is the case, the actual time on value is displayed, alternating with the letters "On" and "co". Use the adjustment knob to adjust time on to the desired value. TC5-8SDA rev.03...
  • Page 29 Press the push-button. The status of the compensation factor is displayed, i.e. ON / OFF. Use the adjustment knob to set the status to the desired value. After ten seconds, the display returns to the outside temperature value. TC5-8SDA rev.03...

  • Page 30: Ventilation

    VENTILATION The TC5-8SDA controls six stages of constant-speed fans (Stage 1-6) and up to two optional stages of constant-speed fans (Stage 7-8). In this mode, all ventilation stages operate as normal ON/OFF stages as shown below: STAGE 8 STAGE 7...
  • Page 31 = Set Point, the Stage 1 fans stop running continu- ously and start to run according to the minimum ventilation cycle. When the room temperature drops below this point, the stage 1 fans operate according to the minimum ventilation cycle. TC5-8SDA rev.03...
  • Page 32 Use the adjustment knob to adjust the differential to the desired value. Press the push-button. The current differential for Stage 5 flashes on the display, alternating with the letters "St 5". Use the adjustment knob to adjust the differential to the desired value. TC5-8SDA rev.03...
  • Page 33 If Stage 8 has not been configured for mist or heating, press the push-button. The current differential for Stage 8 flashes on the display, alternating with the letters "St 8". Use the adjustment knob to adjust the differential to the desired value. TC5-8SDA rev.03...

  • Page 34: Dehumidification

    If TEMPERATURE >= SET POINT + DIFFERENTIAL 1: The next available ventilation stage is turned on. Case 2: If TEMPERATURE < SET POINT + DIFFERENTIAL 1: Stage 1 fans run continuously. When the humidity drops below SET POINT: The controller resumes normal operation. TC5-8SDA rev.03...
  • Page 35 Set the selection knob to ROOM HUMIDITY - SETTINGS. The current relative humidity is displayed as a percentage. Press the push-button. The humidity set point is displayed, alternating with the letters "SEt" and "rH". Use the adjustment knob to adjust the set point to the desired value. TC5-8SDA rev.03...
  • Page 36 Set the selection knob to ROOM HUMIDITY - SETTINGS. The current relative humidity is displayed as a percentage. Press the push-button twice. The current on/off state of dehu- midification is displayed. Use the adjustment knob to turn dehumidification on or off. TC5-8SDA rev.03...

  • Page 37: Mist Cooling

    Mist Offset Set Point Temperature The mist units operate according to a timer cycle. Time on is the running time of the mist units and time off is the off time of the mist units. TIME ON TIME OFF TC5-8SDA rev.03...
  • Page 38 "On". Press the push-button three times. The mist differential is displayed, alternating with the letters "dIF", Using the adjustment knob, set the differential to the desired value. TC5-8SDA rev.03...
  • Page 39 Use the adjustment knob to set time on to the desired value (in minutes). Press the push-button. The current time off for the mist cycle is displayed, alternating with the letters "Off". Use the adjustment knob to set time off to the desired value (in minutes). TC5-8SDA rev.03...
  • Page 40 "On". Press the push-button four times. The relative humidity cut-off value is displayed, alternating with the letters "StP" and "rH". Use the adjustment knob to adjust the cut-off value to the desired value. TC5-8SDA rev.03...

  • Page 41: Heater Settings

    If the room temperature falls: - at Set Point - Heater 1 Offset - Heater 1 Diff.: Heater 1 turns on. - at Set Point - Heater 1 Offset - Heater 1 Diff. - Heater 2 Diff.: Heater 2 turns on. TC5-8SDA rev.03...
  • Page 42 1 may be insufficient. A built-in protection will operate the fans according to the probes of the zone with the highest temperature whenever the temperature difference between zones is greater than a user-defined value.. TC5-8SDA rev.03...
  • Page 43 If the room temperature falls: - at Set Point - Heater Offset 1 - Diff. 1 (Zone 1) : Heater 1 turns on. - at Set Point - Heater Offset 2 - Diff. 2 (Zone 2) : Heater 2 turns on. TC5-8SDA rev.03...
  • Page 44 2 — OFFSET/DIFF. The current heater offset is displayed, alternating with the letters "OFt". Press the push-button. The heater differential is displayed, alternating with the letters "diF". Use the adjustment knob to adjust the differential to the desired value. TC5-8SDA rev.03...
  • Page 45 "OFT". Press the push-button twice. The maximum temperature difference between zones is displayed, alternating with the letters "dif Zon". Use the adjustment knob to adjust the temperature difference to the desired value. TC5-8SDA rev.03...

  • Page 46: Alarm Settings

    F to 40 F. The critical temperature ranges from -40.0°F to 99.9°F (-40.0°C to 37.7°C). Set the selection knob to ALARM — OFFSETS / CRITI- CAL. The current low alarm offset flashes on the display, alternating with the word "LO". TC5-8SDA rev.03...
  • Page 47 Use the adjustment knob to set the high alarm offset to the desired value. Press the push-button. The current critical high temperature is displayed, alternating with the letters "Cri". Use the adjustment knob to set the critical high temperature to the desired value. TC5-8SDA rev.03...

  • Page 48: Test Mode

    Turn the selector knob to the ROOM TEMPERATURE position. The current room is displayed. Press and hold the push-button for 5 seconds. NOTE: If no user activity is recorded after 5 minutes in test mode, the controller resumes normal operation. TC5-8SDA rev.03...

  • Page 49: Troubleshooting Guide

    There is electrical Do not run probe cables next to temperature. noise near an ex- other power cables. When tended probe cable. crossing other power cables, cross at 90 TC5-8SDA rev.03...
  • Page 50 The wiring is incor- Fix the wiring. Stage 1 fans rect. run continu- ously at full Adjust the set point to the The ambient tempera- speed. ture is above the set desired value. point. TC5-8SDA rev.03...
  • Page 51 L1 modulated by the cycle. controller should be combined with another line (N for 115V or L2 for 230V) to activate the motor. Also, be sure the stage 1 COM- MON is supplied by line L1. TC5-8SDA rev.03...
  • Page 52 If it still is not operating. Listen to see if there is a clicking The controller is sound when the Stage's pilot defective. light turns on. If there is no clicking sound, contact your distributor to repair the control- ler. TC5-8SDA rev.03...

  • Page 53: Technical Specifications

    -40.0° to 120.0°F (-40.0° to 48.9°C). Accuracy: F (1 C) between 41 and 95 F (5 and 35 Enclosure: ABS, moisture and dust-tight. The room temperature where the controller is located MUST ALWAYS REMAIN BETWEEN 32 AND 104 F (0 AND 40 TC5-8SDA rev.03...

  • Page 54: Factory Settings

    These initial parameter settings will not be retained in the controller's memory. Each new setting will replace the preceding one. ii) If the power supply is cut off, the last parameter settings will be retained in memory until the power is restored. TC5-8SDA rev.03...

  • Page 55: Function Summary

    TC5-8SDA rev.03...
  • Page 56 . t e r a l s f f . t e . i r c i t r u t ° T . n i . t n o i t TC5-8SDA rev.03...

  • Page 57: Glossary

    The user can define a minimum ventilation speed curve to adjust the Stage 1 minimum speed automatically over a given time period. The minimum speed increases over time as the animals grow. TC5-8SDA rev.03...
  • Page 58 ZONED HEATERS: When zoned heaters are used, heaters in each zone operate according to their own probes rather than the average temperature for the entire room. In this way, heaters across zones are independent of one another. TC5-8SDA rev.03...
