- Page 1 [HX-DU1603D User Manual] Rover Radio HX-DU1603D User Manual Version：V1.0 第 1 页 共 27 页...
-
Page 2: Table Of Contents
[HX-DU1603D User Manual] CONTENTS 1. SUMMARY ................................4 2. INTERFACE ................................5 2.1 S ..........................5 ERIAL DATA LINE INTERFACE 2.2 RF ..............................6 INTERFACE 2.3 I ..........................6 NSTRUCTION OF LIGHT 2.4 I ............................ 6 NSTRUCTION OF BUTTONS 3. FUNCTION AND OPERATING INSTRUCTIONS ....................7 3.1 O... - Page 3 We strive to guarantee the accuracy and completeness of these manual contents when compiling, but for possible errors or omissions, Harxon will not assume any responsibility. Due to the continuous development of technology, Harxon reserves the rights to change the technical specifications or functions of their products without any notification to users.
-
Page 4: Summary

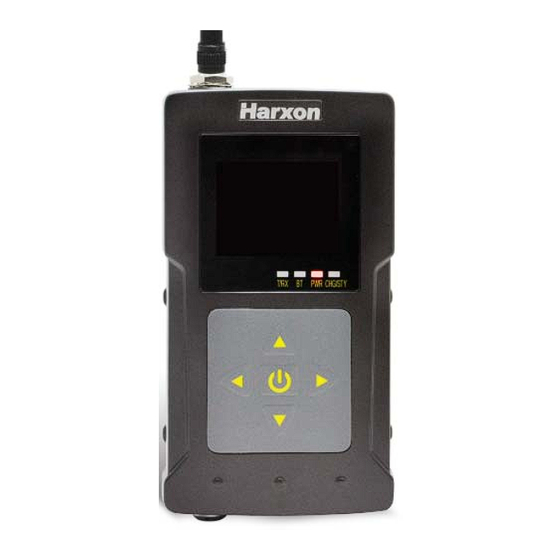

HX-DU1603D is an external half-duplex high-power radio modem, waterproof to IP67、 durable structure，which can apply to all outdoor weather conditions. HX-DU1603D has 2 pieces of two color LED (Wireless transceiver indicator light：green when receiving，red when transmitting；The power charge indicator：red when charging，green when the battery is full)、2 pieces of single color LED（green when Bluetooth online，red when... -
Page 5: Interface
[HX-DU1603D User Manual] 2. Interface 2.1 Serial data interface Interface type: asynchronous serial communication standard of RS232 Pin definitions： 第 5 页 共 27 页... -
Page 6: Rf Interface
Pin 3------serial data receiver，RXD； Pin 4------serial signal grounding； Pin 5------serial data transmission，TXD. 2.2 RF interface HX-DU1603D RF interface is TNC female connector of 50Ω. 2.3 Instruction of LED light A、TRX --Wireless transceiver indicator light； B、BT --Bluetooth indicator light； C、PWR --Power indicator light；... -
Page 7: Function And Operating Instructions
[HX-DU1603D User Manual] D、RIGHT ； E、POWER BUTTON/CONFIRM BUTTON 3. Function and operating instructions 3.1 On/Off （1）Long press the power button for 3-5 seconds to boot, Power indicator light shows red . （2）Long press the power button for 3 seconds to shutdown. -
Page 8: Battery Charge And Discharge Instructions
[HX-DU1603D User Manual] 3.6 Battery charge and discharge instructions A. Charge voltage is DC9V，The maximum charge current is 1.5A；（please use the matching adapter for charging , the charging environment temperature is between 0 and 45 degrees centigrade.) B. When the battery is charging，CHG/STY turns to be red；when the battery is full，CHG/STY turns to be green；... -
Page 9: Wireless Link Rate
[HX-DU1603D User Manual] screen. 4.3 Wireless link rate In this menu bar, you can set the air baud rate，which depends on the protocols。Such as, TRANSEOT supports 4800,9600 air baud rate, TRIMMK3 supports 19200.and choose by the up/down button. When you confirm the air baud rate by the confirm button, the symbol "*" will appear on the screen. -
Page 10: Baud Rate
[HX-DU1603D User Manual] 4.6 Baud rate In this menu bar，you can set the baud rate, for now it supports the baud rate of 9600、19200、38400、 115200 by the up/down button，When you confirm the baud rate by the confirm button, the symbol "*" will appear on the screen. - Page 11 [HX-DU1603D User Manual] 4.8.2 Config Pair Clear ① Launch it，so force radio cancel current or clear pairing. if bluetooth can’t pair with other blue terminals, so you can execute it for the next pairing. Note- Pin Modify ② Launch this operation, so we can change PIN of bluetooth2.0 device.
-
Page 12: Language
[HX-DU1603D User Manual] 4.9 Language Support Chinese and English 4.10 Device Status In the Main Interface, you can see the information as model, firmware, version, S/N, modulation and Band Width. 5. Radio Configuration Software 5.1 Connecting to the Radio ，it will read radio all information automatically. If the software connects Start the software successfully, the connected tips will display on the left bottom of software. - Page 13 [HX-DU1603D User Manual] 第 13 页 共 27 页...
- Page 14 [HX-DU1603D User Manual] If software fails to communicate with radio, please click Connect, then select the COM port that the radio is connected to and a baud rate (Please consult radio menu, Serial Rate), click OK key in Serial Port Setup dialog tab to communicate with radio again.
-
Page 15: Channels Settings
[HX-DU1603D User Manual] 5.2 Channels Settings We can set current channel, TX/RX frequency in Channels tab. The supported max number of channels is 36, user can choose one channel from the channel list at a time. Note1: The default count of channels is 36, if user need modify channels, the Channels tab is required. -
Page 16: Tx/Rx Mode（Optional
[HX-DU1603D User Manual] 5.3 TX/RX Mode（optional） (1)Transceiver：Radio can send data and receive data. (2) Only Transmit：Radio can only send data. (3) Only Receive：Radio can only receive data. 第 16 页 共 27 页... -
Page 17: Current Communication Protocol, Link Rate And Serial Baud(Optional)
[HX-DU1603D User Manual] 5.4 Current Communication Protocol, Link Rate and Serial Baud(Optional) In the optional of Protocol Type, configure radio of current communication protocol. In the optional of Link Rate, configure radio of current link rate. In the optional of Uart Baud, modify current serial rate between radio and PC, or other terminals.The default baud rate between the computer and the radio is... -
Page 18: Tx Power Settings（Optional
[HX-DU1603D User Manual] 5.5 TX Power Settings（Optional） In TX Power Level tab, user can select low power or high power as the current TX power. 第 18 页 共 27 页... -
Page 19: Bluetooth Settings(Optional)
[HX-DU1603D User Manual] 5.6 Bluetooth Settings(Optional) In Wireless tab, we can modify the device name(Name) and PIN(Password). The device name is shown on a remote Bluetooth device during/service discovery.It is limited to 12 characters.The Pin has a maximum length of 4 alphanumeric characters; The factory-default is “0000”. -
Page 20: Common Troubles
[HX-DU1603D User Manual] 6. Common troubles Troubles Probable reason Solution DC voltage is too slow from ① If system’s power is from extern ① external power supply(external power supply, please make sure power supply). that DC voltage is 9V. Turn on Radio fail Power key to press long is not ②If system is supplied by battery,... -
Page 21: Technical Specifications
[HX-DU1603D User Manual] 7. Technical Specifications General Specifications Item Specification Frequency Range 410-470MHz Operating Mode Half-duplex Channel Spacing 12.5KHz Modulation GMSK/4FSK Numbers of Channel 1-36 Operating Voltage 7.5V High power 8.5W@7.5V DC level Power Consumption Low power 3.5W@7.5V DC （typical） level Standby 1.0W@7.5V DC... -
Page 22: Apendix
[HX-DU1603D User Manual] Transmitter Specifications Item Specification High power 33.5±0.5dBm@DC 7.5V （2W） RF output power Low power 27±1dBm@DC 7.5V （0.5W） RF Power Stability ±1dB Adjacent Channel >50dB Power Receiver Specifications Item Requirements Sensitivity -115dBm@BER 10 ，9600bps Adjacent Channel >45dB@12.5KHz Selectivity Modem... - Page 23 [HX-DU1603D User Manual] Turn on radio A and B Set radio A and B of TX/RX for 410.125 MHZ. Set radio A and B of current communication protocol TRANSEOT. Set radio A and B of current link rate for 9600， tx power is 0.5W，...
-
Page 24: Bluetooth Communication Example
[HX-DU1603D User Manual] 8.2 Bluetooth communication example 8.2.1 Slave mode communication At first, we should pair blue device in slave mode, the following chart for slave paring Turn Bluetooth (ONOFF) Select menu “Blue 2.0 Pair”, then enter. Note-you should had better allow radio in slave mode of waiting for pairing. - Page 25 [HX-DU1603D User Manual] 8.2.2 Master mode communication At first, we should pair blue device in master mode, the following chart for master paring. Turn Bluetooth (ONOFF) Select menu “Blue 2.0 Pair”, then enter. Select menu“master pair”， then launch it, at the same time, device begin to scan Bluetooth devices nearby.
- Page 26 [HX-DU1603D User Manual] After pairing success of master mode, select Bluetooth on Data Link menu, and then configure other radio parameter, current TX/RX, Data protocol, Link rate, Radio mode. For example: TX=RX=410.125MHZ， Data protocol：TRANSEOT，Link rate：9600，Radio mode：Transceiver. FCC statements: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 27 [HX-DU1603D User Manual] Installation A、Mounting：Hanging on a tripod B、communication as follows： 第 27 页 共 27 页...
