Accu-Tab
PowerBase
Installation and Operating Instructions
DANGER: DO NOT MIX CHEMICALS!

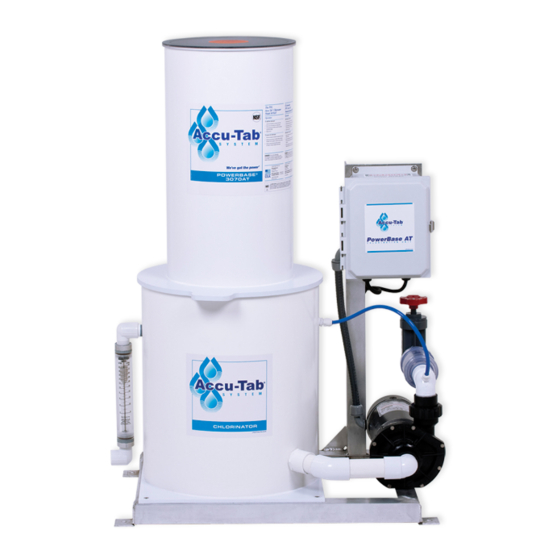

The PowerBase 3070AT chlorinator system is
designed for use with PPG approved tablets
only. Do not mix Cal-Hypo tablets with stabilized
chlorine or bromine products, or other sanitizing
chemicals. Fire or explosion could result.
The PowerBase® 3070AT Chlorinator is
NSF-Listed for pool and spa applications.
ONLY PPG Accu-Tab® Blue SI Tablets for
commercial pool applications are
NSF-50
permitted for NSF installations. Use of
other tablets will void NSF certification.
®
System
®
Model 3070AT
Rev 04-26-10
1
Advertisement
Summary of Contents for Accu-Tab PowerBase 3070AT
- Page 1 PowerBase Model 3070AT Installation and Operating Instructions DANGER: DO NOT MIX CHEMICALS! The PowerBase 3070AT chlorinator system is designed for use with PPG approved tablets only. Do not mix Cal-Hypo tablets with stabilized chlorine or bromine products, or other sanitizing chemicals.
-
Page 2: Installation Instructions
The chlorination system is designed for use ONLY with PPG Accu-Tab Blue tablets utilizing the PPG patented erosion feeder technology that erodes only the bottom layer of tablets on the sieve plate, while keeping tablets above the sieve plate dry and ready for use. - Page 3 7. Connect the discharge assembly to the pump using a section of 1-1/2” pipe. (The parts were shipped loose to prevent breakage in shipment.) 8. Connect the discharge piping from the feeder to the chlorine application point with 1-1/2” PVC pipe or hose. Include an isolation valve in the line. 9.
-
Page 5: Operation
Adding Tablets 1. Tablets may be added while the system is running. Take care to protect eyes, skin, clothing and other equipment from splashing. Do not inhale fumes. 2. Remove lid and add PPG Accu-Tab Blue SI tablets. 3. Replace lid. -
Page 6: Maintenance
Maintenance Clean the Check Valve and Float Valve at least every 4-6 months, or as needed, to remove scale or debris Winterizing 1. Clean chlorination system following instructions below. 2. Close inlet isolation valve and operate pump until no more water can be pumped out. -
Page 7: Troubleshooting
5. Operate system until normal solution tank level is achieved. Switch system off. 6. Close inlet and outlet isolation valves. 7. Very carefully, pour the acid into the upper chlorinator to dissolve scale. It may be necessary to pour directly on the inside walls to remove any scale above the water level. - Page 8 Electrical Drawing—Base System...
- Page 9 If controller not used, remove controller cord and install jumpers between: Terminal #1 & #4 Terminal #2 & #6 Electrical Drawing—With HHL Pump Switch If a chemical controller is NOT used with the HHL Pump Switch, the jumpers should be placed between: Terminals #1 and #4 Terminals #2 and #7...
- Page 10 Chlorinator Warranty Registration information has been completed within thirty (30) days of the customer’s receipt of the system via the Internet at www.accu-tab.com; (ii) the System is installed and operated and maintained in accordance with this manual and the instructions ac- companying the System;...
