C Prox Ltd ROLLER868 User Manual

+44(0)1246 417113
Mains supply
230Vac
Live
Neutral
Earth
* connections for right hand mounted motor.
Swap brown and black if left mounted
FIG2. Push to run open & close with
photocells and/or safety edge
ON Start push button
1 2
6 7 8 9 10
12Vac to power
photocell
To photocell
normally closed
contact (N.C)
1 Live
2 Neutral
3 Motor common
4 Motor close
5 Motor open
6
12Vac output
7
8 Common
9 Safety
10 Start push button
C Prox Ltd (inc Quantek)
59 Sheffield Road, Dronfield, S18 2GF
sales@cproxltd.com
Roller Door Remote Control
1 2 3 4 5
Motor
1B bridged
J1
8k2 resistor
Resistive safety edge
connects directly to
8 & 9 with no resistor
Power supply 230Vac
Motor 230Vac
Maximum power 0.75Hp, 550W
Auxiliary power output
12Vac 130mA max
Common connection of safety and start push button
Safety input for connection of safety edge or photocells. If a non-resistive safety edge or
photocells are used an 8k2 resistor must be connected in series (see diagrams). Resistor
taped to enclosure cover
Start push button, normally open (N.O)
ROLLER868

User Manual

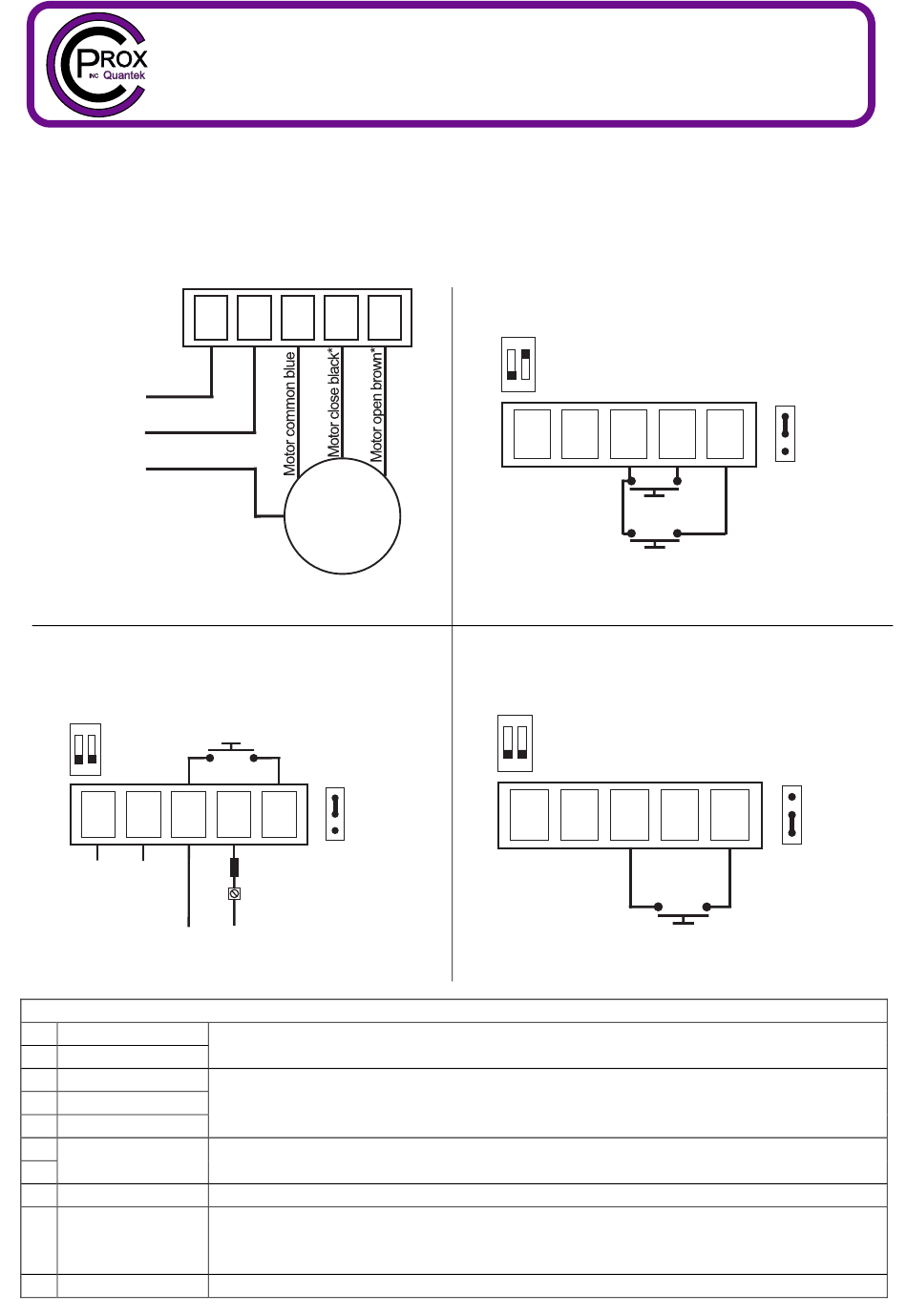

FIG1. Push to run open, deadman close
ON
Dipswitch 2 ON
1 2
6 7 8 9 10
(Deadman)
Push buttons, rocker or keyswitch
FIG3. Push to run open & close without
photocells or safety edge
ON
1 2
6 7 8 9 10
Start push
Connection Details
www.quantek.co.uk
Close
Open
button
1B bridged
J1
2B bridged
J1
