  • Page 1 TS-4000 Multifunction Thermostat Timer Switch User Manual 1st Version,April.11,2017...

  • Page 2: Table Of Contents

    Contents Introduction Before first use Safety notes Proper use Parts Batteries Set the clock and date DST(Daylight saving time) MODE squence Program switch ON and OFF times Program HEAT mode Program COOL mode 20 How to switch Heat Mode/Cool Mode Program countdown (CD) Program random Deactivate programs...

  • Page 3: Introduction

    Introduction Congratulations on the purchase of your new Multi-function Thermostat Timer with big LCD with backlight. The product is designed to automatically turn a connected electrical device on or off at de- signated times. Lights that should turn on and off...

  • Page 4: Safety Notes

    Safety notes Before you use your digital timer switch, please observe the following points: 1. Read the user manual thoroughly before use. Follow all safety instructions to prevent injury due to incorrect use. 2. If you give the device to a third party you must include this user manual.
  • Page 5 10. Do not use the device in the vicinity of heat- producing devices such as ovens or stoves. 11. Do not use the device if it is damaged. 12. Never attempt to repair the device yourself. Repairs may only be carried out by a qualified professional.

  • Page 6: Proper Use

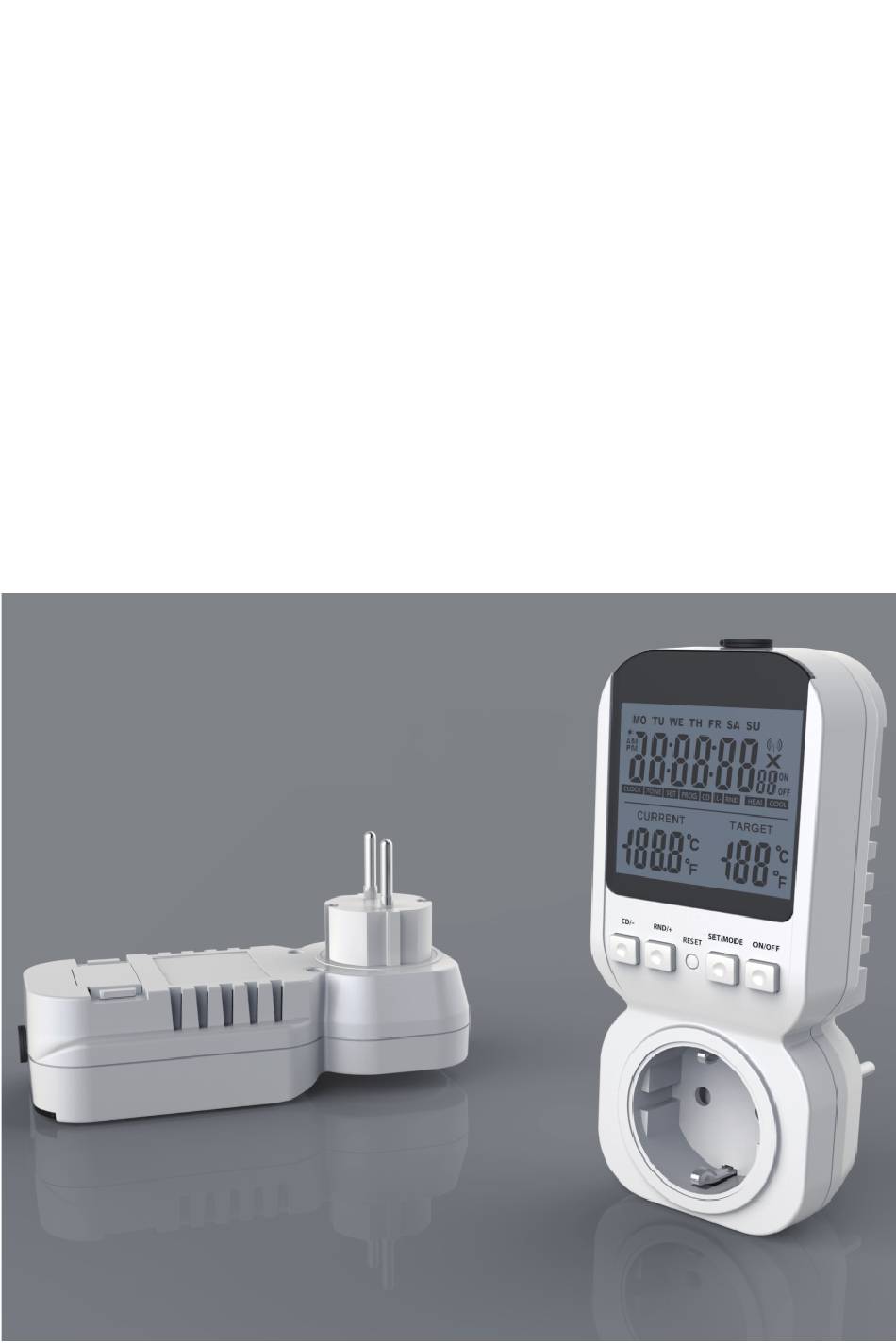

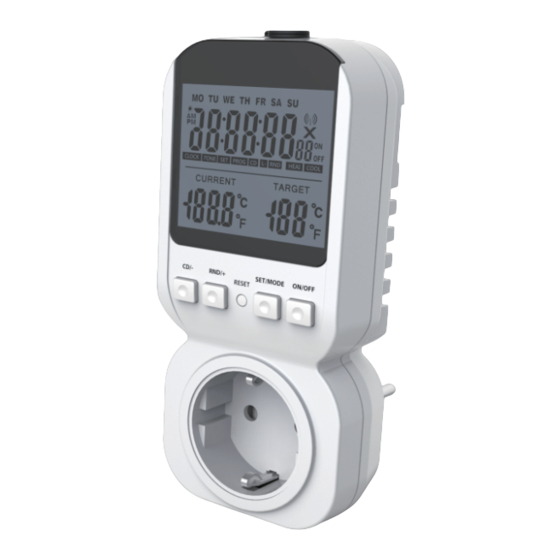

    Proper Use This device is intended for the automatic switching on and off of other connected electrical devices. The max ratings as below: 230VAC/16A/50Hz/3680W(EU) 110VAC/15A/60Hz/1800W(US) 250VAC/13A/50Hz/3250W(UK) Parts CLOCK ZONE PROG CD L- RND HEAT COOL LCD display SET/ RND/ CD/- button MODE RESET RND/+ button...
  • Page 7 CLOCK ZONE PROG CD L- RND HEAT COOL Temperature rising symbol Weekday Temperature symbol RCC symbol (Optional) Current Temperature Program deactivation Countdown mode(CD) ON/OFF status Program symbol Program number Setting symbol Cool mode ZONE symbol(Optional) Heat mode Clock/Time Random mode AM/PM Long random mode Summer time symbol...

  • Page 8: Batteries

    Batteries • Only use batteries of the best quality. Low-grade batteries could leak, causing damage to the device. • Do not dispose of batteries with your household waste! Please dispose of batteries in an environ- mentally friendly way and in accordance with current legislation.

  • Page 9: Set The Clock And Date

    Set the Clock and Date In clock mode,Push SET/MODE button for 3 seconds, go to clock and date setting mode. 1. Set the weekday using RND/+ or CD/- 2. Push SET/MODE button 3. Set the 12Hr/24Hr using RND/+ or CD/- 4.

  • Page 10: Dst(Daylight Saving Time

    DST (Daylight Saving Time) • While in time mode, push and hold the RND/+ and CD/- at the same time,daylight saving time symbol( ) appears on the display. The time of day is automatically set forward an hour. • Repeat this step to reset to the normal time, the daylight saving time symbol( )disappears from the display.
  • Page 11 COOL mode: COOL C1 ON OFF COOL C2 ON - COOL C2 OFF COOL C3 ON - COOL C3 OFF COOL C4 ON - COOL C4 OFF To show the sequence of modes in reverse order, push and hold the SET/MODE button and push the CD/- button repeatedly or push and hold to toggle through more quickly.

  • Page 12: Program Switch On And Off Times

    Program switch ON and OFF times The multifucntions timer switch‘s 20 programmable switching programs are subdivided in: ON: for switch-on OFF: for switch-off programs. 1. In clock mode, push and hold the SET/MODE button and push the RND/+ button repeatedly. The display shows the symbols PROG and ON as well as the switching program number 1.
  • Page 13 4. Push the SET/MODE button.The hour blinks. 5. Set the hour using RND/+ or CD/-.Push and hold either button to toggle through more quickly. 6. Push the SET/MODE button.The minute blinks. 7. Set the minute using RND/+ or CD/-. Push and hold either button to toggle through more quickly.

  • Page 14: Program Heat Mode

    Program Heat Mode This timer can be used to control heaters. It contains 4 programs, which devided into 1 basic program and 3 addtional programs when you want to set different TARGET temperature in differnt time rang. In clock mode,push and hold SET/MODE ,and push RND/+ or CD/- repeatedly .Push and hold to toggle through more quickly.
  • Page 15 You can set different TARGET temperature in different time range. In clock mode,push and hold SET/MODE ,and push RND/+ or CD/- repeatedly. Push and hold to toggle through more quickly. Switch to H2 ON programs: 1. Push and hold SET/MODE for 3 seconds. 2.
  • Page 16 14. Minutes start to flash,using RND/+ or CD/- to set the minutes. 15. Push SET/MODE 16. Seconds start to flash,using RND/+ or CD/- to set the seconds 17. Push SET/MODE,back to programs switch mode. For example, set H1 ON OFF, H2 ON,H2 OFF as below: H1 ON OFF: Target Temp.=26°C PROG...

  • Page 17: Program Cool Mode

    Program Cool Mode This thermostat timer can be used to control cooling devices. It contains 4 programs,which devided into 1 basic program and 3 different programs to set the different TARGET temperature with different time. In clock mode,push and hold SET/MODE ,and push RND/+ or CD/- repeatedly.
  • Page 18 You can also set different target temperature in different time range. In clock mode,push and hold SET/MODE ,and push RND/+ or CD/- repeatedly. Push and hold to toggle through more quickly. Switch to C2 ON programs, 1. Push and hold SET/MODE for 3 seconds. 2.
  • Page 19 14. Minutes start to flash,using RND/+ or CD/- to set the minutes. 15. Press SET/MODE 16. Seconds start to flash,using RND/+ or CD/- to set the seconds 17. Press SET/MODE,back to programs switch mode. For example, we set C1 ON OFF, C2 ON/C2 OFF as below: C1 ON OFF: Target Temp.=18°C PROG...

  • Page 20: How To Switch Heat Mode/Cool Mode

    How to switch Heat Mode/Cool Mode In clock status, 1. Push SET/MODE,activate HEAT mode. HEAT symbol blinks, symbol shows in display. 2. Push SET/MODE again,activate COOL mode. COOL symbol blinks, symbol shows in display. 3. Push SET/MODE again,back to clock status. HEAT Mode: 1.

  • Page 21: Program Countdown (Cd

    Program countdown (CD) This timer has a countdown function that allows a connected electrical device to be turned on or off automatically after a set time has run down. The maximum countdown time is 23 hours, 59 minutes and 59 seconds. Push and hold SET/MODE ,and push RND/+ or CD/- repeatedly .Push and hold to toggle through more quickly.
  • Page 22 7. The minute blinks,using RND/+ or CD/- to set the minute. Push and hold either button to toggle through more quickly. 8. Push the SET/MODE button. 9. The second blinks,using RND/+ or CD/- to set the second. Push and hold either button to toggle through more quickly.

  • Page 23: Program Random

    Program Random Use the random function to turn electrical devices on and off at different random times, for example for security reasons,you are not in home in holiday, You can use this random function to control your home lighting,prevent thief to go into your house. There are three different randome mode: Short random, RND symbol blinks Long random, L-RND symbol blinks...

  • Page 24: Deactivate Programs

    • To start Short random, push the RND/+ button • To start Long Random,push RND/+ button again • To start Program random, push the RND/+ again • To cancel random function,push the RND/+ again. Symbol Description Switch-on time Switch-off time 20 –...

  • Page 25: Trouble Shooting

    Turn off/Turn on This thermostat timer switch can be totally turned off by press ON/OFF button for 3 seconds to save batteries when you don’t use it for a period. Repeat above operation to turn on this item once again. Please take out batteries when you don’t use this item for long time.

  • Page 26: Technical Paramters

    Technical Paramters Max Ratings: • 230VAC/16A/50Hz/3680W(EU) • 120VAC/15A/60Hz/1800W(US) • 250VAC/13A/50Hz/3250W(UK) Temp.Range:0-70°C/32~158°F Protection class: I Battery type: 2pcs x LR44/AG13 Shortest switching time: 1 second Shortest switching interval: 1 second Programs: 30 Group • Switching ON/OFF programs: 20 • Random program: 1 •...

  • Page 27: Clearning And Care

    Clearning and care • When cleaning, the product must be disconnected from mains socket and electrical loads. Only use dry and soft cloth to clear the housing of • the timer switch. • Do not use abrasive or solvents. Disposal In order to preserve, protect and improve the quality of environment, protect human General...
