Summary of Contents for Millenium Signatures MS-510

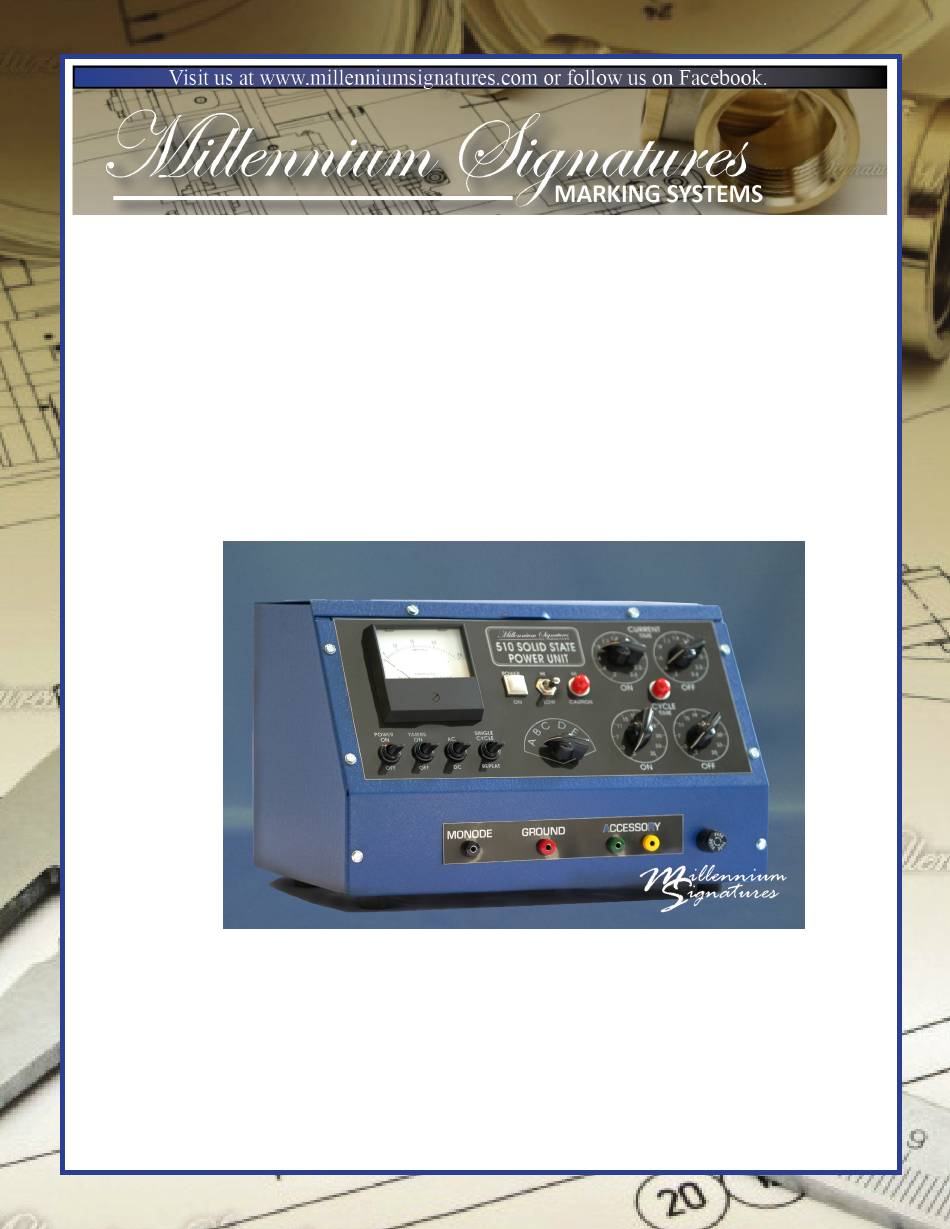

- Page 1 Model MS-510 Instruction Manual 4179-7 Harvester Road Burlington, Ontario, Canada L7L 5M4 Phone: (905) 639-0909 Fax: (905) 639-0919 E-mail: info@millenniumsignatures.com...
- Page 2 510 SOLID STATE CONTROLLED POWER UNIT MARKING AND OPERATING PROCEDURES You have just purchased the industry’s most durable, technically advanced electro- chemical marking power unit available today. Please review the following operating procedures to prevent damage to your unit, and to achieve good marking results. FEATURES: •...
- Page 3 B) In the manual mode 2 wires are required. Plug the black wire into the “monode” jack, and the red wire into the ground jack. C) Attach a deep etch pad or monopad pad to the marking head, with the “O” ring enclosed. Place the monopad against the end of the marker (blue side against the marker).
- Page 4 DEEP ETCHING: To “Deep Etch” flip the toggle switch (Fig. 5) to high and select a power setting “A thru F”. Keep in mind that the higher the power setting, the shorter the life of the stencil. When deep etching, the best results are achieved by a series of short dwells to minimize heat build-up.
- Page 5 FIG. 7 FIG. 8 FIG. 6 FIG. 5 FIG. 9 FIG. 4 FIG. 10 FIG. 3 FIG. 2 FIG. 1 FIG. 11 FIG. 12 ILLUSTRATION 3-A set, the operator need not make any further adjustments, unless an alloy change takes place.
- Page 6 AUTOMATIC SET-UP: Set-up for automatic marking is the same as for semi-automatic marking. Refer to the instructions previously given. AUTOMATIC MARKING WITH AN AM-10-A OR AM-30-T: A) Follow steps “A through C” as outlined above for semi-automatic marking. B) Set the “SINGLE CYCLE/REPEAT” switch to “REPEAT” to activate the automatic mode of the power unit (FIG.
- Page 7 THE MILLENNIUM SIGNATURES B-1220/B-2045 BENCH FIXTURESROLL MARKING APPLICATIONS NOTE: To avoid short circuits (See illustration 1-A), do not cross the leads, or make contact between the marker and the grounded surface when both surfaces are bare. DIRECTIONS: A) Plug the black wire into the black jack of the bench fixture. B) Remove the top plate (carbon) from the fixture.
