FLA ME BO SS
500 MANUAL
®
Version 4.0
|
Download latest at FlameBoss.com/manuals

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Flame boss 500

  • Page 1 FLA ME BO SS 500 MANUAL ® Version 4.0 Download latest at FlameBoss.com/manuals...
  • Page 2 Use only the power adapter provided with the unit. Do not allow children to play with a Flame Boss 500. Keep away from children. Flame Boss 500 is not to be used by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge. Do not place or mount a Flame Boss 500 where it is exposed to excessive heat from the grill or smoker.
  • Page 3: Table Of Contents

    CONTENTS What’s Included Blower & Adapter Installation Vent Closure Probe Placement Installing Flame Boss Mobile App Using Flame Boss Main Menu Features: Timer, Meat Alarms & Pit Alarms WiFi Setup: Using Apps, Controller & Advanced Other Menu Amazon Alexa & Google Assistant Instructions Connect Modes www.FlameBoss.com...
  • Page 4: What's Included

    WHAT’S INCLUDED Blower Flame Boss controller * Kamado * Universal Pit temperature probe Meat temperature probe 12 V DC power supply Adapter plates (3) Manifold with fasteners * Kamado * Universal www.FlameBoss.com...
  • Page 5 KAMADO - BLOWER INSTALLATION www.FlameBoss.com...
  • Page 6 KAMADO - BLOWER INSTALLATION www.FlameBoss.com...
  • Page 7 WEBER SMOKEY MOUNTAIN - BLOWER INSTALLATION www.FlameBoss.com...
  • Page 8 WEBER SMOKEY MOUNTAIN - BLOWER INSTALLATION www.FlameBoss.com...
  • Page 9 PIPE THREAD UNIVERSAL - BLOWER INSTALLATION www.FlameBoss.com...
  • Page 10: Vent Closure

    VENT CLOSURE www.FlameBoss.com...
  • Page 11: Probe Placement

    PROBE PLACEMENT www.FlameBoss.com...
  • Page 12 OR if you are unable to scan the code above, open the browser (Chrome or Safari, for example) on your tablet or smartphone and enter the following address: https://myflameboss.com/app Follow the instructions in the Flame Boss app to add a controller. www.FlameBoss.com...
  • Page 13: Using Flame Boss

    Blower Pit Probe The Flame Boss 500 has the capability of monitoring 3 meats at a time as shown by Meat 1, Meat 2, & Meat 3. You can change the names of meat probes using our web and mobile apps.

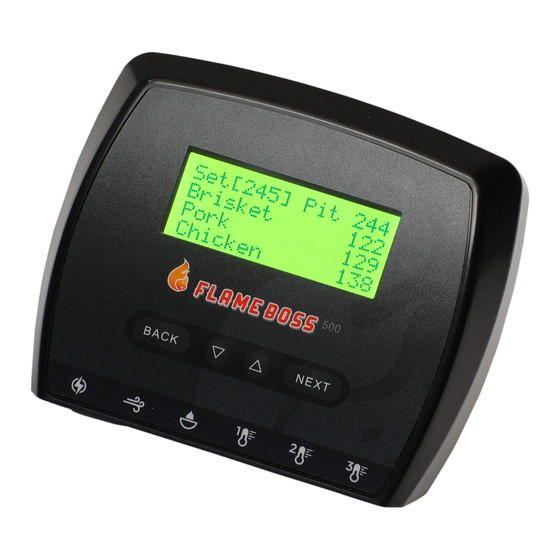

  • Page 14 USING FLAME BOSS ® Home Screen Set [225] Pit 223 Meat 1 Meat 2 Meat 3 The home screen shows the set temperature, pit temperature, and meat temperatures. The set temperature is the desired cooking temperature for your smoker or grill.
  • Page 15: Main Menu

    MAIN MENU > Timer NEXT From the home screen, press to access Meat Alarms the main menu. Press to scroll through Pit Alarm the features. WiFi Pit Alarm NEXT WiFi Press to enter a feature. Advanced WiFi BACK Press to return to the menu. >...
  • Page 16 FEATURES You can configure any setting that has [ ] brackets around it. or pcycles through the different options or values of the setting. NEXT saves the settings and moves the brackets to the next configurable setting. BACK moves the brackets to the previous setting. Timer Timer changes timer’s minutes and seconds.
  • Page 17 FEATURES Meat Alarms selects the meat alarm to configure. Meat Alarm [1] turns the meat alarm mode to Off, On, or On + Meat Alarm 1 Keep Warm. [Off] changes the desired meat done temperature Meat Alarm 1 when the mode is set to On. [195] Done changes the desired meat done temperature Meat Alarm 1...
  • Page 18 FEATURES Pit Alarm turns the pit alarm mode to Off or On. Pit Alarm [Off] changes the pit alarm temperature range. Pit Alarm If the pit temperature goes outside this range from the +/- Limit [20] set temperature, the pit alarm will trigger. www.FlameBoss.com...
  • Page 19 WIFI SETUP USING MOBILE APPS Access Point Mode, follow the screens below: To set your controller in WiFi Mode toggles between Station and Access Point mode. [Access Point] NEXT. Select Access Point mode and press The controller will display this WiFi Status indicating the Entering Your Password: WiFi Status controller is in Access Point mode.
  • Page 20 WIFI SETUP USING CONTROLLER WiFi Mode toggles between Station and Access Point mode. [Station] NEXT Selection Station mode and press Hide PIN in hides or unhides the pin in the online notice. online notice? [Yes] cycles through available local networks detected by WiFi Name (SSID) NEXT the controller.
  • Page 21 ADVANCED WIFI (OPTIONAL) WiFi MAC Address This screen displays the controller’s 2c:3a:e8: Station MAC Address. 22:12:75 toggles between IP Addr Method IP Addr Method Auto (DHCP) and Static IP [Auto (DHCP)] [Static IP] configuration. **Auto (DHCP) is the default configuration. IP Address IP Address changes each byte.
  • Page 22: Other Menu

    OTHER MENU Sound changes the type of sounds the controller makes. > Off Chirps Chirps & Alarm LCD Contrast changes the LCD contrast. [40] Max Open Pause changes the maximum time the controller will stay in open pit mode (controller disables the blower to avoid [ 2:00] over-stoking the fire).
  • Page 23 Download the Amazon Alexa application for your mobile device and sign into your Amazon account. Go to “Skills” on the Alexa app to search and enable the Flame Boss skill or simply speak to your Alexa-enabled device and say “Alexa, enable Flame Boss.”...
  • Page 24 OK Google, open Flame Boss. Hey Google, ask Flame Boss to change the set temperature to 225 degrees. OK Google, ask Flame Boss for the temperatures. OK Google, ask Flame Boss for the Meat 2 temperature.
  • Page 25: Connect Modes

    CONNECT MODES (AVAILABLE IN FIRMWARE VERSIONS 4.0 AND ABOVE) Mode To change modes, press the link at the top of the Account tab. Cloud Connect: Your phone will connect to our server over the internet and you can view and manage any of your connected controllers.
  • Page 26 This product contains ee_printf which includes the following notice: Copyright © 2002 Michael Ringgaard. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
  • Page 27 ENJOY YOUR COOK...
