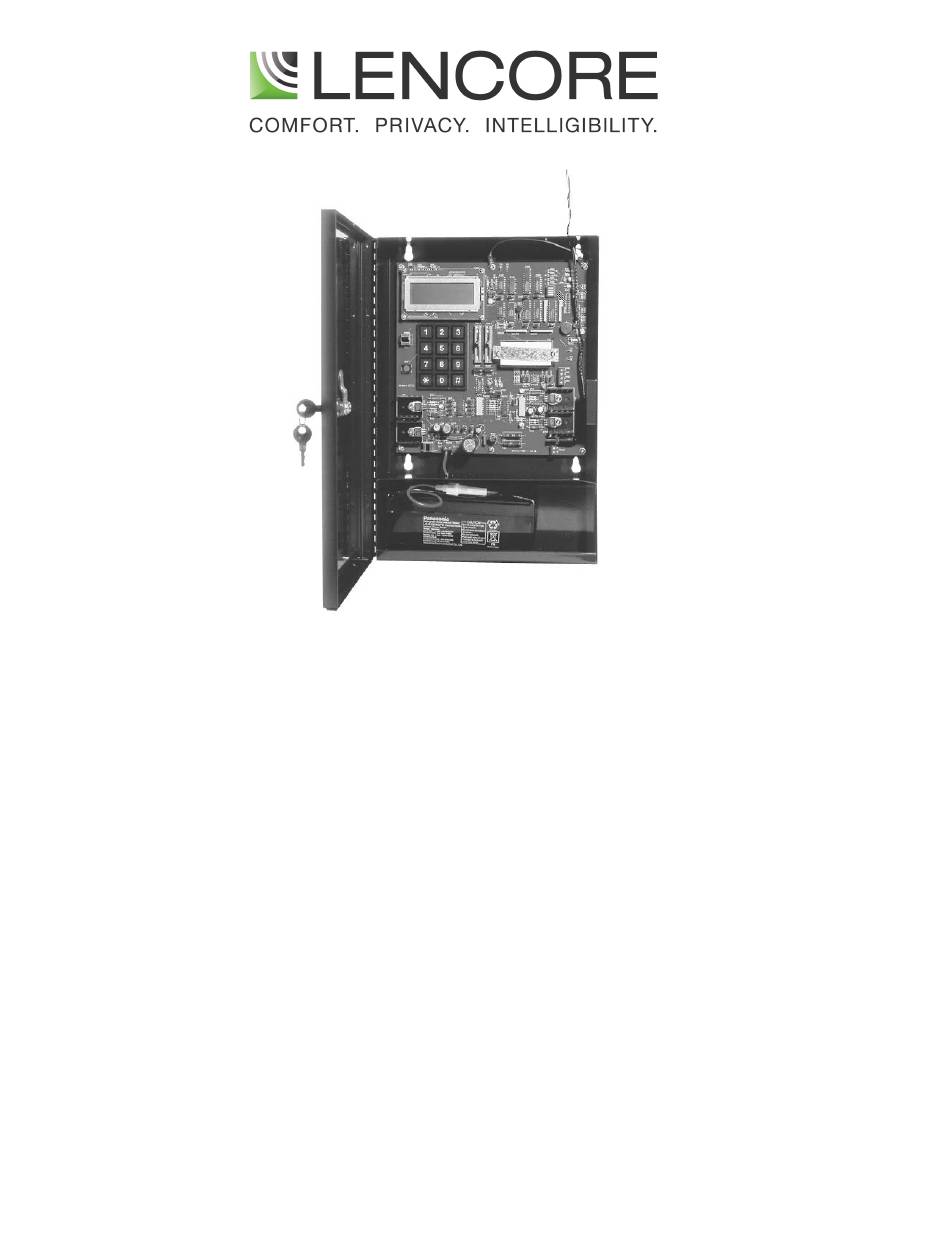

- Page 1 INSTALLATION & PROGRAMMING MANUAL PROGRAMMABLE TIMER (MODEL LP-2)
-
Page 2: Table Of Contents
Copyright © Lencore Acoustics Corp. All rights reserved. April 2000 Introduction Display Keyboard Installation Set Up Connecting the blue and black zone wires Connecting the wall transformer Connecting the battery Battery Switch (S1) & Test/Normal Switch Zone slide controls Programming... -
Page 3: Introduction
Menu flow chart INTRODUCTION The Lencore Model LP-2 Programmable Timer is a two zone electronic attenuator when attached to the blue and black wires of model LM-6 master sound masking units. Raising of masking levels is simulated only. That is, the highest level of sound masking is the same as if the timer were not attached to the blue and black wires of the masters. -
Page 4: Keyboard
On line 3, Z1 refers to Zone 1, Z2 refers to Zone 2. The current values in dB's are shown for each zone. These values are referenced to an office masking level of 47 dB. That is, a reading of "Z1=0dB" and "Z2=0dB" on the timer display, means an office masking level of 47 db for both zones. - Page 5 The two zones must remain separate. If there is only one zone to connect to the timer, leave Zone 2 unconnected. This is very important. a) A 5-foot green wire is provided to attach the Timer Box to an earth ground.
-
Page 6: Programming
steps. Locate the Test/Normal switch on the P.C. Board. Put the switch in Test position. The display will change showing both a dB level and a voltage level for each zone. This bypasses any programmed attenuation and allows for a total system calibration of the LM-6 master units. -
Page 7: Daylight Savings
Press 0 Press 0 Daylight savings Press 0 (for the menu screen) Press 2 Press 2 Press 1 to enable, or 2 to disable Press 0 Press 0 Press 0 To look at masking attenuation levels Press 0 (for the menu screen) Press 3 Press 1 for Zone 1, or 2 for Zone 2 Press 1 for Monday, 2 for Tuesday, etc. -
Page 8: Change Minutes Per Db
Press 0 Press 0 Press 0 Press 0 Change minutes per dB Press 0 (for the menu screen) Press 3 Press 1 for Zone 1, or 2 for Zone 2 Press 1 for Monday, 2 for Tuesday, etc. Press 2 Press 2 Enter desired Minutes per dB, or # to advance to next hour and keep current value, or * to exit. -
Page 9: Change Acclimate Db's / Days Per Db
Turn on acclimate Press 0 (for the menu screen) Press 4 Press 1 Press 1 Press 0 Press 0 Press 0 Turn off acclimate Press 0 (for the menu screen) Press 4 Press 1 Press 1 Press 0 Press 0 Press 0 Change acclimate dB's / days per dB Press 0 (for the menu screen) -
Page 10: Minutes Per Db Help Screen
every 3 days, and will last for 18 days (6 x 3 = 18), not counting Saturday and Sunday. Minutes per dB help screen Press 0 (for the menu screen) Press 3 Press 1 or 2 Press 1, 2, 3, 4, 5, 6 or 7 Press 1 or 2 Press 3 Press # to see next three lines, or * to exit... -
Page 11: Initial Default Values
other values will be set to their default values. These default values are listed below. INITIAL DEFAULT VALUES Default attenuation values after a reset Zone 1 and 2, Monday through Sunday inclusive. 12:00 AM -6 dB 1:00 AM -6 dB 2:00 AM -6 dB 3:00 AM... -
Page 12: Default Minutes Per Db Values After A Reset
Default minutes per dB values after a reset Zone 1 and 2, Monday through Sunday inclusive. 12:00 AM 5 Min/dB 1:00 AM 5 Min/dB 2:00 AM 5 Min/dB 3:00 AM 5 Min/dB 4:00 AM 5 Min/dB 5:00 AM 5 Min/dB 6:00 AM 5 Min/dB 7:00 AM... -
Page 13: Specifications
used by default. Acclimate dB's = -6 Days per dB = 3 The date and time will need to be reentered after a reset. SPECIFICATIONS Power requirements Power consumption 24 VAC , 60 Hz 26-Watts maximum Zones 2 independent zones except for acclimate dB's 500 LM-6 Master units per zone Programming Programmed attenuation range:... - Page 14 7:00 AM 8:00 AM 9:00 AM 10:00 AM 11:00 AM 12:00 PM 1:00 PM 2:00 PM 3:00 PM 4:00 PM 5:00 PM 6:00 PM 7:00 PM 8:00 PM 9:00 PM 10:00 PM 11:00 PM Additional Notes: Acclimation: ON/OFF ______ Acclimate dB's: _______ Days per dB: TIMER RECORD SHEET ZONE 2...
- Page 15 8:00 AM 9:00 AM 10:00 AM 11:00 AM 12:00 PM 1:00 PM 2:00 PM 3:00 PM 4:00 PM 5:00 PM 6:00 PM 7:00 PM 8:00 PM 9:00 PM 10:00 PM 11:00 PM Additional Notes: Acclimation: ON/OFF ______ Acclimate dB's: _______ Days per dB: _____ NOTES -15-...
