Single Scart Set Top Box

Instruction Manual

Model Number: GSDSTB2001

Please read these instructions carefully and keep for future reference

For Customer Services & Spare Parts please call 01204 664 084

Opening times: Monday – Friday 9am until 5pm

GD11FVZS2_IB_0311.indd 1

3/15/2011 8:00:07 AM

Table of Contents

Need help?

Do you have a question about the GSDSTB2001 and is the answer not in the manual?

Questions and answers

Summary of Contents for DigitLogic GSDSTB2001

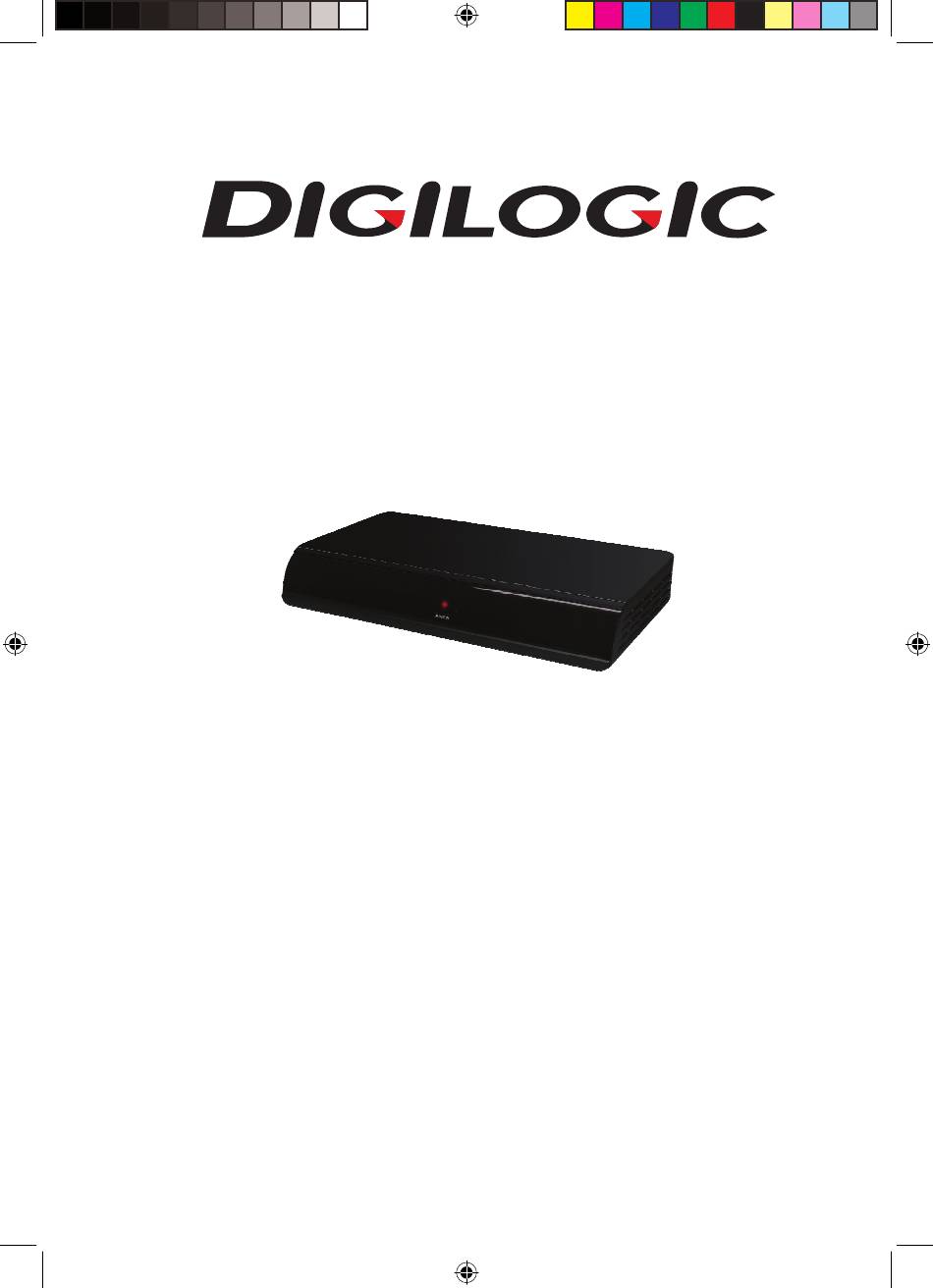

Page 1 Single Scart Set Top Box Instruction Manual Model Number: GSDSTB2001 Please read these instructions carefully and keep for future reference For Customer Services & Spare Parts please call 01204 664 084 Opening times: Monday – Friday 9am until 5pm GD11FVZS2_IB_0311.indd 1...
Page 2 Digital TV Thank you for choosing this digital set top box. Not only can it receive digital TV channels, but you can also listen to digital radio channels. IMPORTANT: Use of any electrical equipment should be undertaken with care. Please read the safety sections on pages 17 and 18 before using your digital box.
Page 3: Table Of Contents
What’s in the box? Your new digital box Remote control WIDE MENU EXIT Scart lead 2x AAA Batteries BACK SUBT INFO TEXT Other things you will need Roof top aerial It is recommended that you use a wideband rooftop aerial in order for your digital box to work properly.
Page 4: Your Digital Box
Your digital box Front view Power on/ Remote control Standby indicator sensor Back view TV Scart Connection to TV Aerial Output. Aerial Input. AC Mains cable Connect the supplied Connect the aerial RF cable to the TV. to this socket GD11FVZS2_IB_0311.indd 4 3/15/2011 8:00:10 AM...
Page 5: Your Remote Control
Your remote control MUTE Turns the volume on and off. STANDBY Power On/Standby. NUMBER PAD Enter values and select the channel directly by entering its number. WIDE Adjust the aspect ratio WIDE of the video output. MENU Opens the menu so that EXIT Closes the on screen menus.
Page 6: Connecting Up
Connecting up Getting connected Connecting to the TV with SCART RF Lead* Aerial Lead* SCART Cable * Not included in the box GD11FVZS2_IB_0311.indd 6 3/15/2011 8:00:12 AM...
Page 7: Getting Started
Getting started Install batteries in remote Remove the battery cover. Insert two size AAA batteries so that the ‘+’ and ‘-’ marks on the batteries match the ‘+’ and ‘-’ marks inside the unit. Replace the battery cover. Plug in and switch on Insert the digital box mains plug into a mains socket.
Page 8 Using your Digital Box As with most of your electrical goods, there will be functions you use everyday, and others that you need only occasionally. We’ve put the most commonly used functions in this section so you can get your digital box up and running as quickly as possible. We suggest you read this section carefully, then use the other sections to dip into whenever you need some extra details or guidance for settings.
Page 9: Using Your Digital Box
Using your Digital Box Changing the channel Using digital text You can select the channel you want to Many digital channels also provide digital watch by using the CH+ and CH - buttons text. For example this could be information on the remote control.
Page 10 Using your Digital Box Organising your channels Favourites You can delete, move, and rename To setup a list of favourite channels; channels in the Channel Organiser. Press the MENU button. Press the MENU button. MAIN MENU MAIN MENU Channel Organiser Favourites Channel Organiser Setup...
Page 11: Advanced Features
Advanced features The setup menu The on screen display setting is always set to English and there are not any other The setup menu lets you change the options available. default settings of your digital box. Press the MENU button. TV setup MAIN MENU TV SETUP...
Page 12 Advanced features Parental control The TV service setup menu lets you rescan your digital box for channels or do a first When parental control is selected you will time installation. need to enter a PIN code to access the menu. If you choose the rescan channels option, any custom settings that you have made such as TV setup will not be changed.
Page 13 Advanced features Technical Information Sleep Time The technical information page shows you The sleep time is used to put the all the information about your digital box. digital box into standby if a button hasn’t been pressed for a set period of time. Technical Information Sleep Time System Version...
Page 14: Re-Tuning
Re-tuning Retuning your digital box Select the TV type using the left and right arrow buttons. Press the OK button. Press the MENU button. Installation Select ‘Setup’ and then press the OK button. Please make sure that your aerial is connected. MAIN MENU Choose your TV type using the ...
Page 15: Troubleshooting
Troubleshooting Please note indoor aerials are not recommended for use with this product (this includes loft aerials) otherwise you may experience problems with reception or picture break-up on some channels. Problem Possible cause What to do Standby light not lit Mains lead unplugged Check mains lead Mains fuse blown...
Page 16: Specifications
Specifications Tuner and channel • RF input connector (IEC-TYPE, IEC169-2, female) • RF output connector (IEC-TYPE, IEC169-2, male) • Frequency range: 470MHz ~862MHz (UHF) Decoder • Transport stream MPEG-2 ISO/IEC 13818 • Profile level MAX. 15Mbit/s • Input rate MPEG-2 Main profile @main level •...
Page 17 Warnings • Unqualified attempts to repair this digital box Safety Tips will invalidate the warranty. If smoke, abnormal noise or odor comes out of • Refer repairs to this digital box to a qualified this digital box, unplug from the mains supply service personnel only.
Page 18 Electrical Information This digital box is fitted with a BS1363/A 13 amp plug. If it is not suitable for your supply sockets it must be removed and replaced with an appropriate plug. If the plug becomes damaged and/or needs to be replaced please follow the wiring instructions below. The plug removed must be disposed of immediately.
Page 19 Guarantee The digital box is guaranteed for twelve months from the date of original purchase. If any defect due to faulty materials or workmanship, contact the customer Helpline. Have your receipt of purchase available for reference. The guarantee is subject to the following provisions: •...
Page 20 For Customer Services & Spare Parts please call 01204 664 084 Opening times: Monday – Friday: 9am until 5pm Alternatively write to: PO BOX 2235 BOLTON BL6 9AJ Revision 1 This symbol is known as the 'Crossed-out wheelie bin Symbol'. When this symbol is marked on a product/batteries, it means that the product/batteries should not be disposed of with your general household waste.
