Summary of Contents for Aveo Engineering Mooney M20 Series

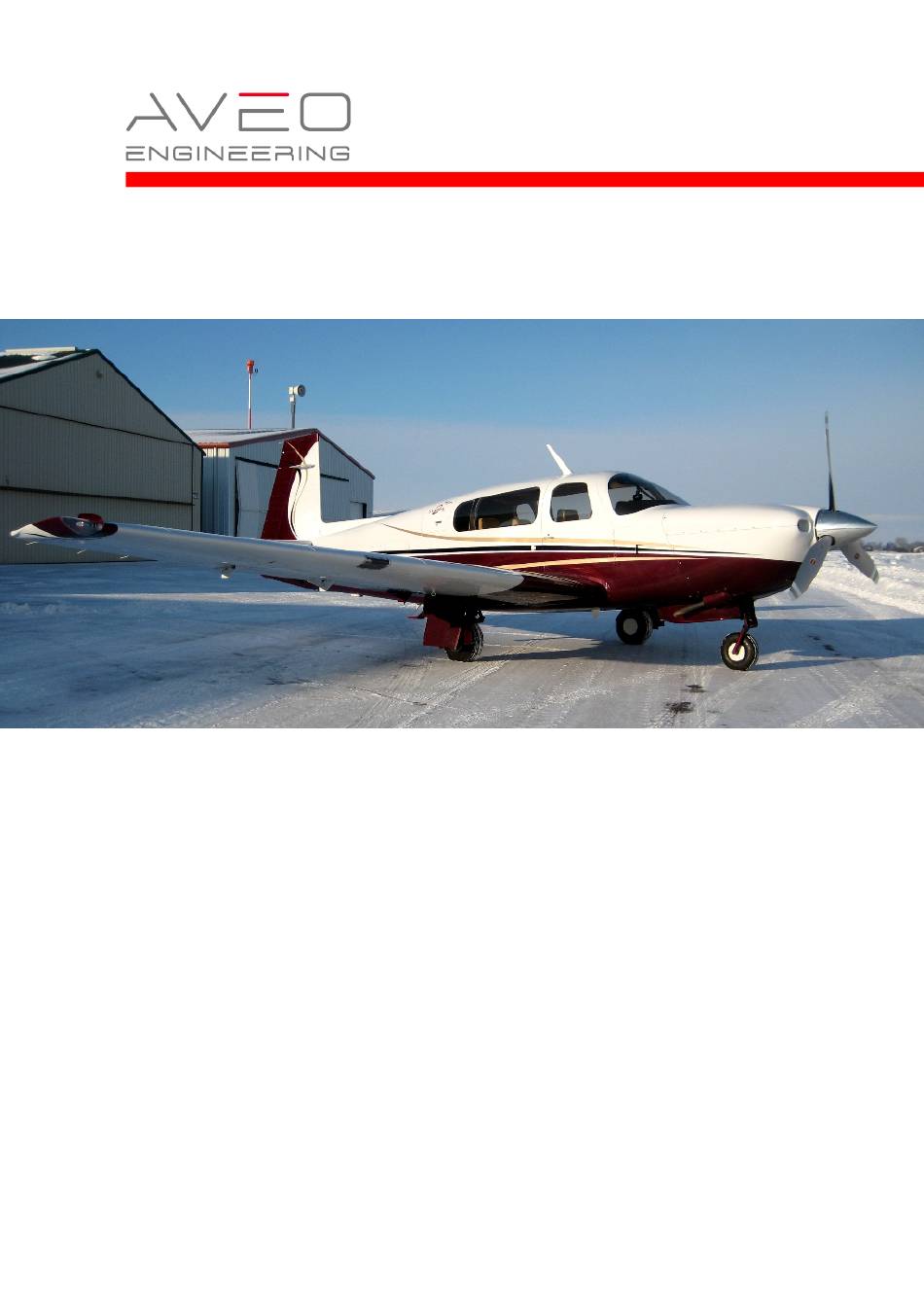

- Page 1 Installation Instruction Mooney M20 Series www.aveoengineering.com...
-
Page 2: Table Of Contents
Installation Instructions Mooney M20 series AVE-MOD-012-INS Issue 02 Table of Contents PART 0 MANUAL ADMINISTRATION OCUMENT APPROVAL MENDMENT ECORD PROCEDURE FFECTED AGES ROCEDURE PART 1 INSTALLATION INSTRUCTION ENERAL ONTINUED IRWORTHINESS ESCRIPTION 1.3.1 Wingtip lights 1.3.2 Aft position light 1.3.3 Anti-collision lights 1.3.4... -
Page 3: Part 0 Manual Administration
19. – Dec. - 2018 Petr Jaroš Engineer, Aveo Engineering Group, s.r.o. Approved by: 19. – Dec. - 2018 Georg Hartl Head of DO, Aveo Engineering Group, s.r.o. __________________________________________________________________________________ Issue of form 01 Aveo Engineering Group , s.r.o. Drasov 202, 261 01 Drasov... -
Page 4: Amendment Record Procedure
Amendment Record procedure The master copy of this document shall be kept electronically as a read only document under the control of Aveo Engineering Group, s.r.o. as Master Copy. ALL amendments to this manual will initiate a raise of Issue ALL raises of issue will be given a sequential Alphabetic Issue Ident sequentially from 01 to 99 in Table 01 - Issue No: Column–... -
Page 5: Installation Instruction
Installation Instructions Mooney M20 series AVE-MOD-012-INS Issue 02 Part 1 Installation Instruction General This installation is to be performed in accordance to common practice as described in FAR AC 43.13-2B Chapter 4 and in FAR AC 43.13 1B Chapter 11 Section 15 (Bonding) as published by FAA. -
Page 6: Description
Installation Instructions Mooney M20 series AVE-MOD-012-INS Issue 02 Description This modification is the replacement or new installation of the composite wingtip segment and of position, anti-collision, taxi- and landing lights by LED type lights. 1.3.1 Wingtip lights This modification allows on aircraft which already have a composite wingtip to replace either the complete wingtip or only the light unit inside or outside the original composite wingtip. -
Page 7: Aft Position Light
Installation Instructions Mooney M20 series AVE-MOD-012-INS Issue 02 1.3.2 Aft position light The aft position light can be replaced by Aveo PosiStrobe CP. The light is a direct replacement. For synchronization applies description under section 1.3.1. 1.3.3 Anti-collision lights The originally installed anticollision light can be replaced by Aveo RedBaron XP red including the adapter. -
Page 8: Wingtip Modification
Installation Instructions Mooney M20 series AVE-MOD-012-INS Issue 02 Wingtip Modification 1.4.1 Option A - Replacement of Light Unit __________________________________________________________________________________ Issue of form 01 Aveo Engineering Group , s.r.o. Drasov 202, 261 01 Drasov Page 8 of 21 Czech Republic... - Page 9 Installation Instructions Mooney M20 series AVE-MOD-012-INS Issue 02 22 (3x) __________________________________________________________________________________ Issue of form 01 Aveo Engineering Group , s.r.o. Drasov 202, 261 01 Drasov Page 9 of 21 Czech Republic...
- Page 10 Installation Instructions Mooney M20 series AVE-MOD-012-INS Issue 02 Figure QTY. Parts Part Number Description Index Avail. assy. Number AVS-P000100175-A60 Ultra Galactica Adapter AVS-SCC0510LHS-C0A Screw#6-32 x3/8" LPSHS AVS-P001290550-A1A Gasket AVE-WPSR-64G Ultra Galactica Embedded Red AVE-WPSG-64G Ultra Galactica Embedded Green AVS-SCM05045LHS-D0A Mounting Screw M5 x 45 01-0430011-00 Connector Kit –...
-
Page 11: Option B - Wingtip Replacement
Installation Instructions Mooney M20 series AVE-MOD-012-INS Issue 02 1.4.2 Option B - Wingtip Replacement 1, 2 __________________________________________________________________________________ Issue of form 01 Aveo Engineering Group , s.r.o. Drasov 202, 261 01 Drasov Page 11 of 21 Czech Republic... - Page 12 Installation Instructions Mooney M20 series AVE-MOD-012-INS Issue 02 Figure QTY. Parts Part Number Description Index Avail. assy. Number AVS-C230105898-A40 Wingtip Fiberglass subassembly right AVS-C230105897-A40 Wingtip Fiberglass subassembly left AVS-C130106889-A00 Wingtip Carbon subassembly right AVS-C130106888-A00 Wingtip Carbon subassembly left AVE-CCPSG-R01 Raised Conforma – Green AVE-CCPSR-R01 Raised Conforma –...
-
Page 13: Rear Position Light Installation
Installation Instructions Mooney M20 series AVE-MOD-012-INS Issue 02 Rear Position Light Installation Original Installation: New Installation: __________________________________________________________________________________ Issue of form 01 Aveo Engineering Group , s.r.o. Drasov 202, 261 01 Drasov Page 13 of 21 Czech Republic... - Page 14 Installation Instructions Mooney M20 series AVE-MOD-012-INS Issue 02 Figure QTY. Parts Part Number Description Index Avail. assy. Number AVE-PSPSYW-T01 PosiStrobe Titania MS-16995-19 Screw #6-32 Thread, 5/8“ SHCS AVS-P000105638-A10 Gasket ------- ---------------------------- ------------------------------------------------ ------ ----- Original parts Several 470004-003 Ring 470004-005...
-
Page 15: Anti-Colllision Lights Installation
Installation Instructions Mooney M20 series AVE-MOD-012-INS Issue 02 Anti-colllision Lights Installation View A Figure QTY. Parts Part Number Description Index Avail. assy. Number BOTTOM ANTI-COLLISION LIGHT INSTALLATION AVS-P000102111-A3A Hex Socket Metric Screw Assy AVE-RBXPR-001 RedBaron XP Galactica AN526-632R6 Original Fasteners... -
Page 16: Taxi And Landing Lights Installation
Installation Instructions Mooney M20 series AVE-MOD-012-INS Issue 02 Taxi and Landing Lights Installation 1.7.1 Wing installation __________________________________________________________________________________ Issue of form 01 Aveo Engineering Group , s.r.o. Drasov 202, 261 01 Drasov Page 16 of 21 Czech Republic... - Page 17 Installation Instructions Mooney M20 series AVE-MOD-012-INS Issue 02 __________________________________________________________________________________ Issue of form 01 Aveo Engineering Group , s.r.o. Drasov 202, 261 01 Drasov Page 17 of 21 Czech Republic...
- Page 18 Installation Instructions Mooney M20 series AVE-MOD-012-INS Issue 02 Figure QTY. Parts Part Number Description Index Avail. assy. Number AVE-H30TATSNL-T0A Hercules Drop-in Landing ------- ---------------------------- ------------------------------------------------ ------ ----- Original parts Several Lens 2102118-001 Retainer RH (LH similar) 210204-501 Plate assembly LH/RH...
-
Page 19: Cowling Installation
Installation Instructions Mooney M20 series AVE-MOD-012-INS Issue 02 1.7.2 Cowling installation __________________________________________________________________________________ Issue of form 01 Aveo Engineering Group , s.r.o. Drasov 202, 261 01 Drasov Page 19 of 21 Czech Republic... - Page 20 Installation Instructions Mooney M20 series AVE-MOD-012-INS Issue 02 Figure QTY. Parts Part Number Description Index Avail. assy. Number AVE-SDD45LW-T02 Samson Drop-In Landing 28V DC AVE-SDD45LW-T03 Samson Drop-In Landing 14V DC ------- ---------------------------- ----------------------------------------------- ------ ----- Original parts Several Cowling 650188-501...
-
Page 21: Part 2 Compliance Demonstration
Installation Instructions Mooney M20 series AVE-MOD-012-INS Issue 02 Part 2 Compliance demonstration This document is in relation to the certification program AVE-MOD-012-PFC. The compliance is demonstrated for the following certification specification: Requirements Statement of Compliance CS 23.2500 MoC 0 CS 23.1301 (a) All navigation and anti-collision lights are ETSO certified.
