System Level Solutions USB20SR User Manual

Usb 2.0 device ip core
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
System Level Solutions, Inc. (USA)
14100 Murphy Avenue
San Martin, CA 95046
(408) 852 - 0067
http://www.slscorp.com
USB 2.0 (USB20SR)
Device IP Core
User Guide
IP Core Version:
Document Version:
Document Date:
1.3
1.3
January 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USB20SR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for System Level Solutions USB20SR

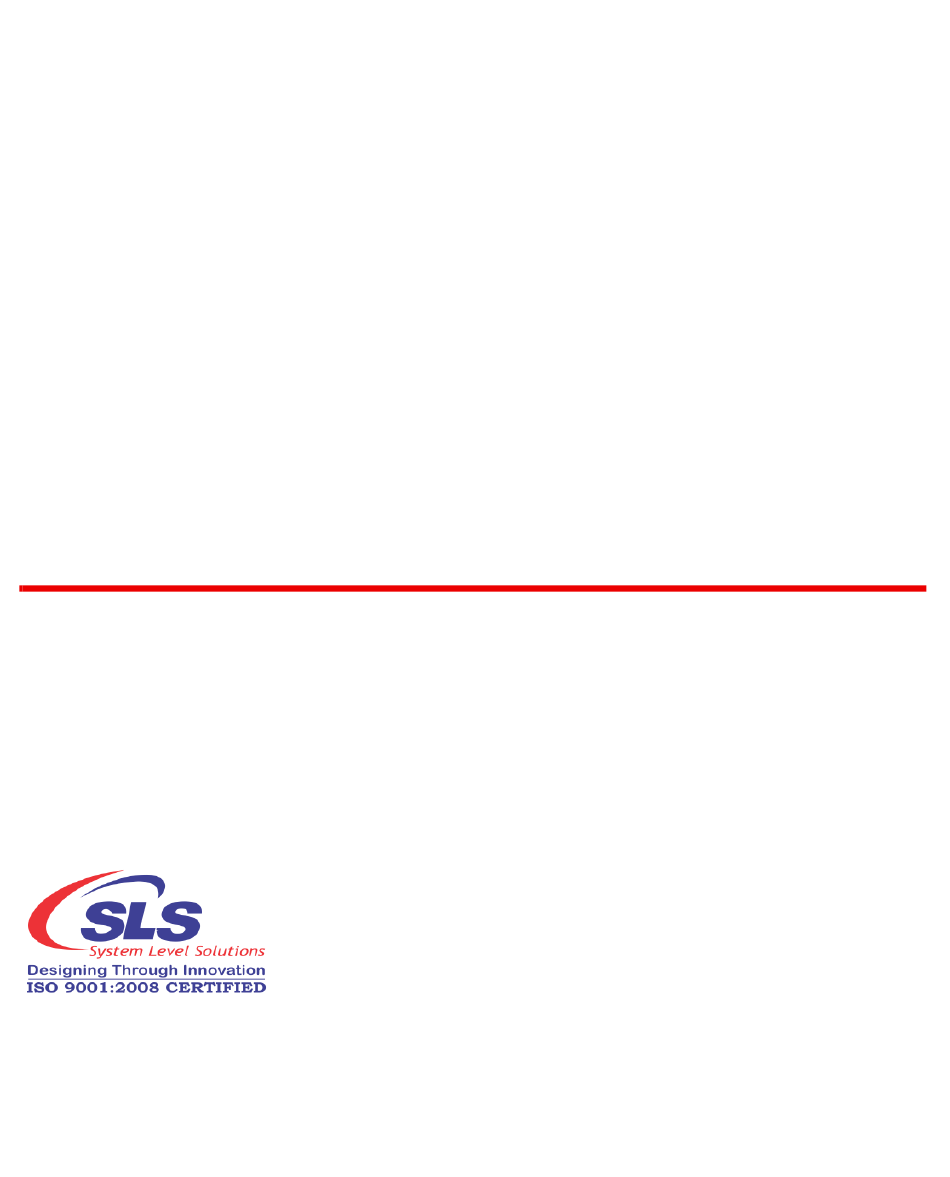

  • Page 1 USB 2.0 (USB20SR) Device IP Core User Guide System Level Solutions, Inc. (USA) 14100 Murphy Avenue San Martin, CA 95046 IP Core Version: (408) 852 - 0067 Document Version: Document Date: January 2013 http://www.slscorp.com...
